◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51479 - NLR/NMR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#120035) — 24 parça
çizim 351082
32 30 24 23 14 19 8 132 72 35
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-98101-297-3 		8-98101-305-0 01 1 1309-
8 BOX ASM; STRG UNIT
ASM PART: A = 8-98101-297-3 		8-98101-305-0 01 1 -1309
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98101-297-3 		8-98061-392-0 01 1 1309-
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98101-297-3 		8-98061-392-0 01 1 -1309
19 COVER; SIDE STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-333-0 01 1 -1309
19 COVER; SIDE STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-333-0 01 1 1309-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-97014-842-0 01 1 -1309
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-97014-842-0 01 1 1309-
24 RETAINER; STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-97014-841-0 01 1 1309-
24 RETAINER; STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-97014-841-0 01 1 -1309
30 BOLT; COVER STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-336-0 04 1 1309-
30 BOLT; COVER STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-336-0 04 1 -1309
32 NUT; ADJ SCREW,STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-337-0 01 1 -1309
32 NUT; ADJ SCREW,STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-337-0 01 1 1309-
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-98101-297-3 		8-98112-931-3 01 1 -1309
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-98101-297-3 		8-98112-931-3 01 1 1309-
72 BOLT; HSG FIX STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-336-0 04 1 -1309
72 BOLT; HSG FIX STRG UNIT
IMA ASM PART: A = 8-98101-297-3 		8-98036-336-0 04 1 1309-
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3 		8-97076-372-0 01 1 -1309
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3 		8-97076-372-0 01 1 1309-

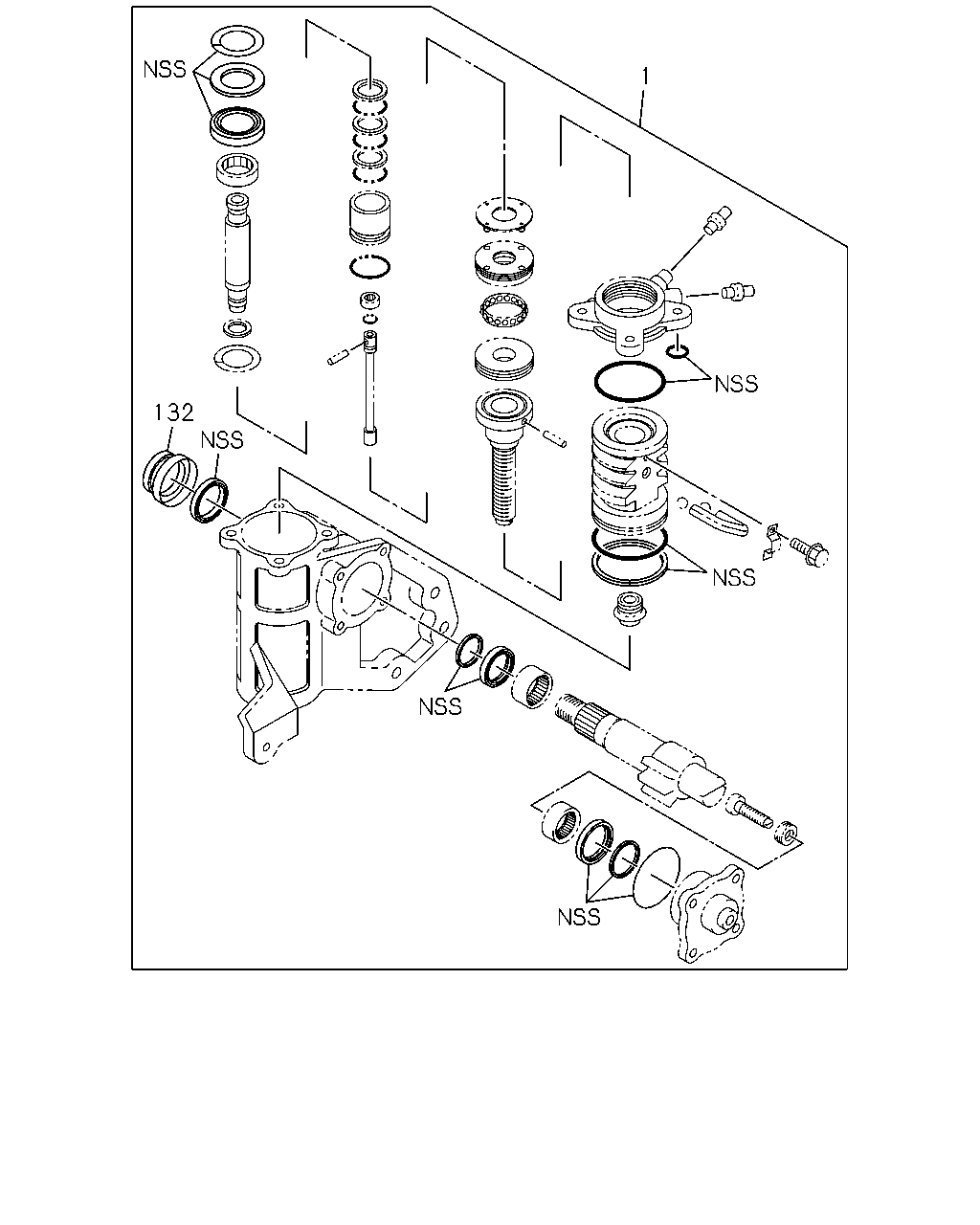

çizim 352760
132 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-98101-297-3 		8-98171-736-0 01 1 1309-
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-98101-297-3 		8-98171-736-0 01 1 -1309
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3 		8-97076-372-0 01 1 -1309
132 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3 		8-97076-372-0 01 1 1309-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
