Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#120031) — 23 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

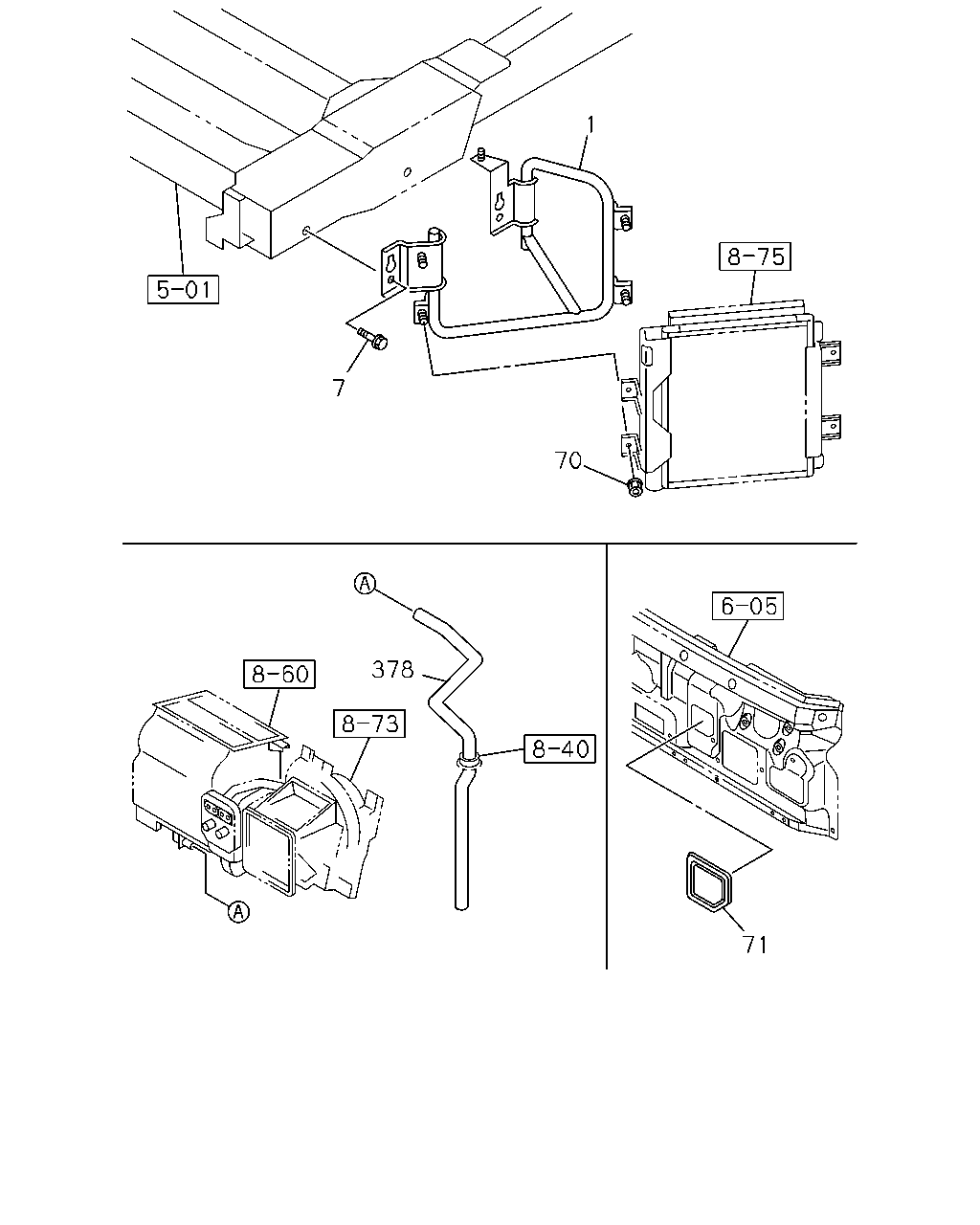

[850A] NO.2 (5 parça)
[850A] NO.1 (18 parça)
▶
7
1
70
378
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; A/C
COOLER WO/HEATER<C65> IMA
8-98214-411-0
01
1
1304-
●
●
7
BOLT; BRKT
COOLER WO/HEATER<C65> M12X30 FLANGE THA
0-28651-230-0
04
1
1304-
●
●
70
NUT; EVAP,A/C
COOLER WO/HEATER<C65> M8 FLANGE THA
0-91180-108-0
04
1
1304-
●
●
71
COVER; EVAP,A/C
EXC. COOLER WO/HEATER<C65>
8-98017-234-1
01
1
1304-
●
●
378
HOSE; DRAIN,EVAPORATOR
COOLER WO/HEATER<C65> IMA
8-97387-174-2
01
1
1304-
●
●
210
46
47
47
14
32
25
37
37
25
34
31
26
30
27
29
29
33
508
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
BOLT; CMPR
COOLER WO/HEATER<C65> M8X90 FLANGE IMA
0-28050-890-0
04
1
1304-
●
●
25
PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> 1-GROOVE IMA
8-97161-198-1
01
1
1304-
●
●
26
BRACKET; IDLE PULLEY,A/C
COOLER WO/HEATER<C65> IMA
8-97161-031-1
01
1
1304-
●
●
27
PULLEY; IDLE,A/C
COOLER WO/HEATER<C65> IMA
8-97386-869-0
01
1
1304-
●
●
29
COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (B) IMA
8-97384-114-0
01
1
1304-
●
●
29
COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (A) IMA
8-97384-115-0
01
1
1304-
●
●
30
COLLAR; IDLE PULLEY
COOLER WO/HEATER<C65> IMA
8-97384-117-0
01
1
1304-
●
●
31
BOLT; ADJ,IDLE PULLEY
COOLER WO/HEATER<C65> IMA
8-97384-113-0
01
1
1304-
●
●
32
BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1674 IMA
8-98010-841-1
01
1
1304-
●
●
33
NUT; IDLER PULLEY
COOLER WO/HEATER<C65> IMA
8-97384-118-0
01
1
1304-
●
●
34
SHAFT; IDLE PULLEY
COOLER WO/HEATER<C65> IMA
8-97384-116-0
01
1
1304-
●
●
37
BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (A) M8X50 FLANGE THA
0-28050-850-0
01
1
1304-
●
●
37
BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (B) M10X65 FLANGE IMA
8-94344-540-1
01
1
1304-
●
●
46
BRACKET; CMPR
COOLER WO/HEATER<C65> THA
8-98006-515-3
01
1
1304-
●
●
47
BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (A) M10X90 FLANGE IMA
0-28151-090-0
02
1
1304-
●
●
47
BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (B) M10X120 FLANGE IMA
0-28156-012-0
01
1
1304-
●
●
210
CLIP; HARNESS
ID=12 VINYL CHLORIDE IMA
8-97367-984-1
01
1
1304-
●
●
508
CLIP; HARNESS
L=140 IMA
5-09707-031-1
01
1
1304-
●
●
