4-01 — PROPELLER SHAFT (#120029) — 244 parça

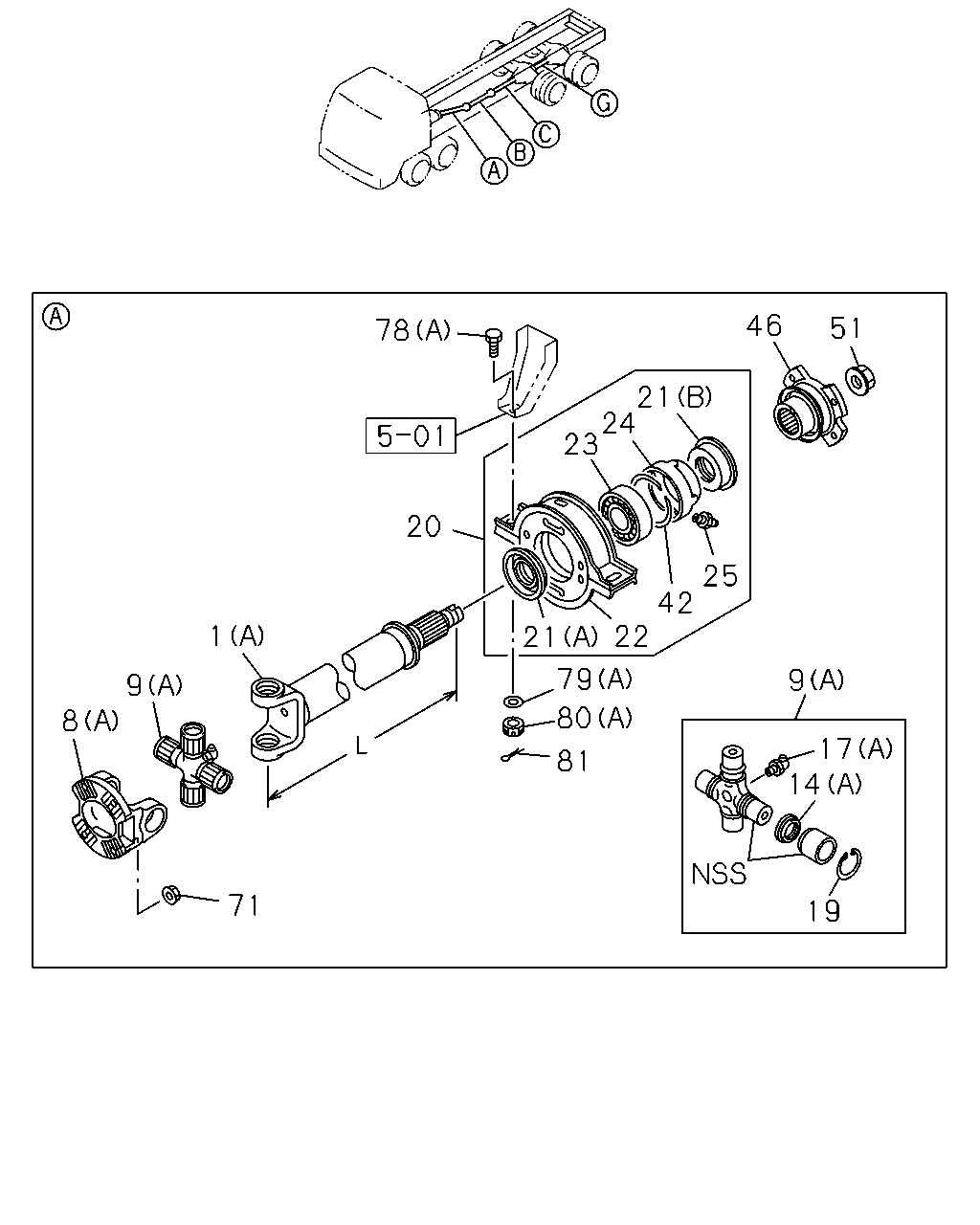

çizim 350981
78 46 51 21 24 23 20 1 9 8 25 42 22 21 79 80 81 9 17 14 19 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1330 		8-98025-912-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1499 		8-98030-328-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1575 		8-98145-458-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (F) L=1675 		8-98145-463-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1305-
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1305-
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1305-
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1305-
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1305-
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1305-
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1305-
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1305-
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1305-
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1305-
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1305-
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1305-
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1305-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1305-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1305-
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1305-
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1305-
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1305-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1305-
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1305-
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1305-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1305-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1305-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) OD=3.7 L=25 		0-81124-025-0 02 1 1305-

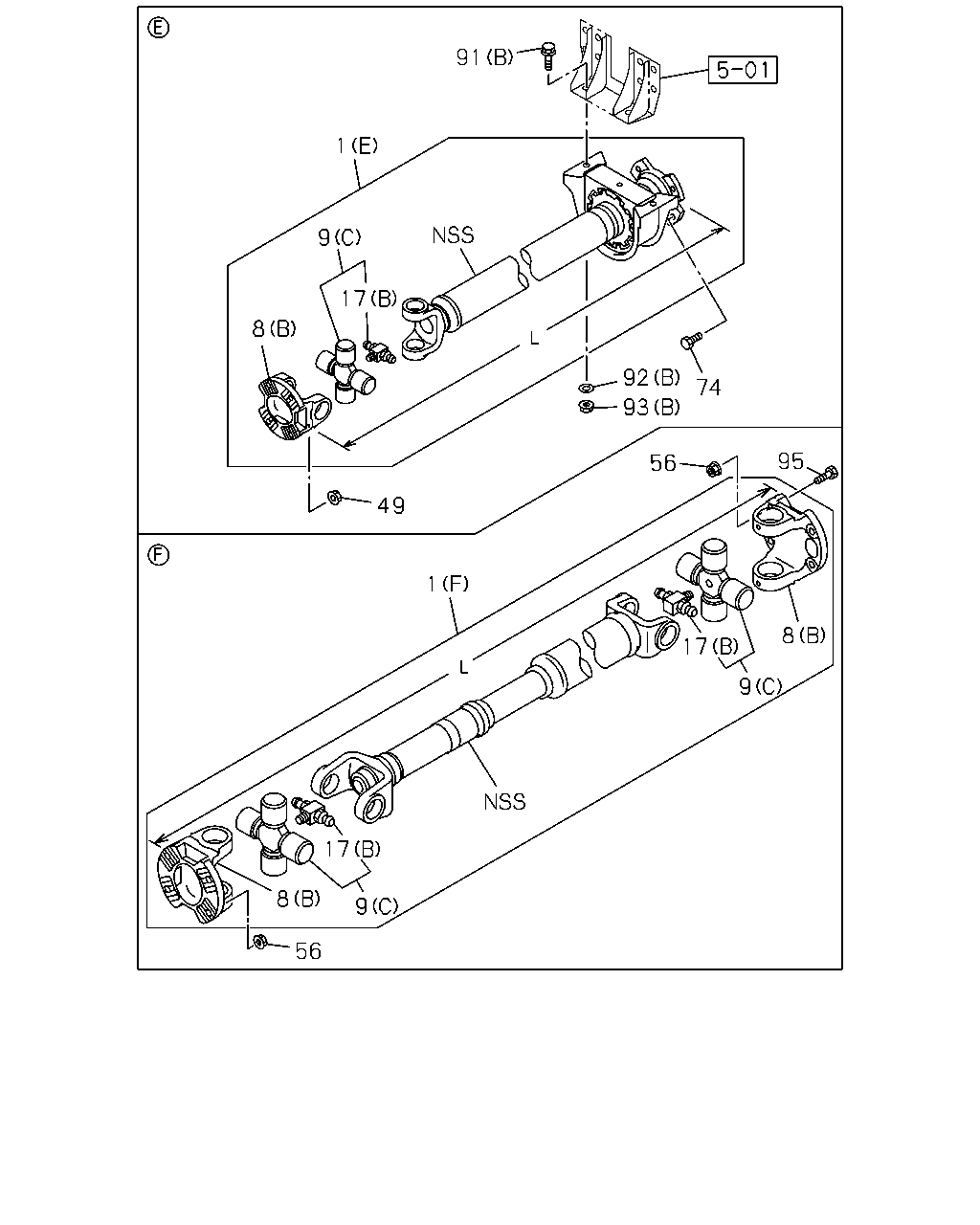

çizim 350997
91 1 9 17 8 92 74 93 56 95 8 17 9 1 49 17 8 9 56
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1330 		8-98025-912-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1499 		8-98030-328-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1575 		8-98145-458-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (F) L=1675 		8-98145-463-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1305-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305-
91 BOLT; HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1305-
91 BOLT; HOLDER SET,CTR BRG
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1305-
92 WASHER; LK,HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1305-
92 WASHER; LK,HOLDER SET,CTR BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1305-
93 NUT; HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1305-
93 NUT; HOLDER SET,CTR BRG
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1305-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1305-

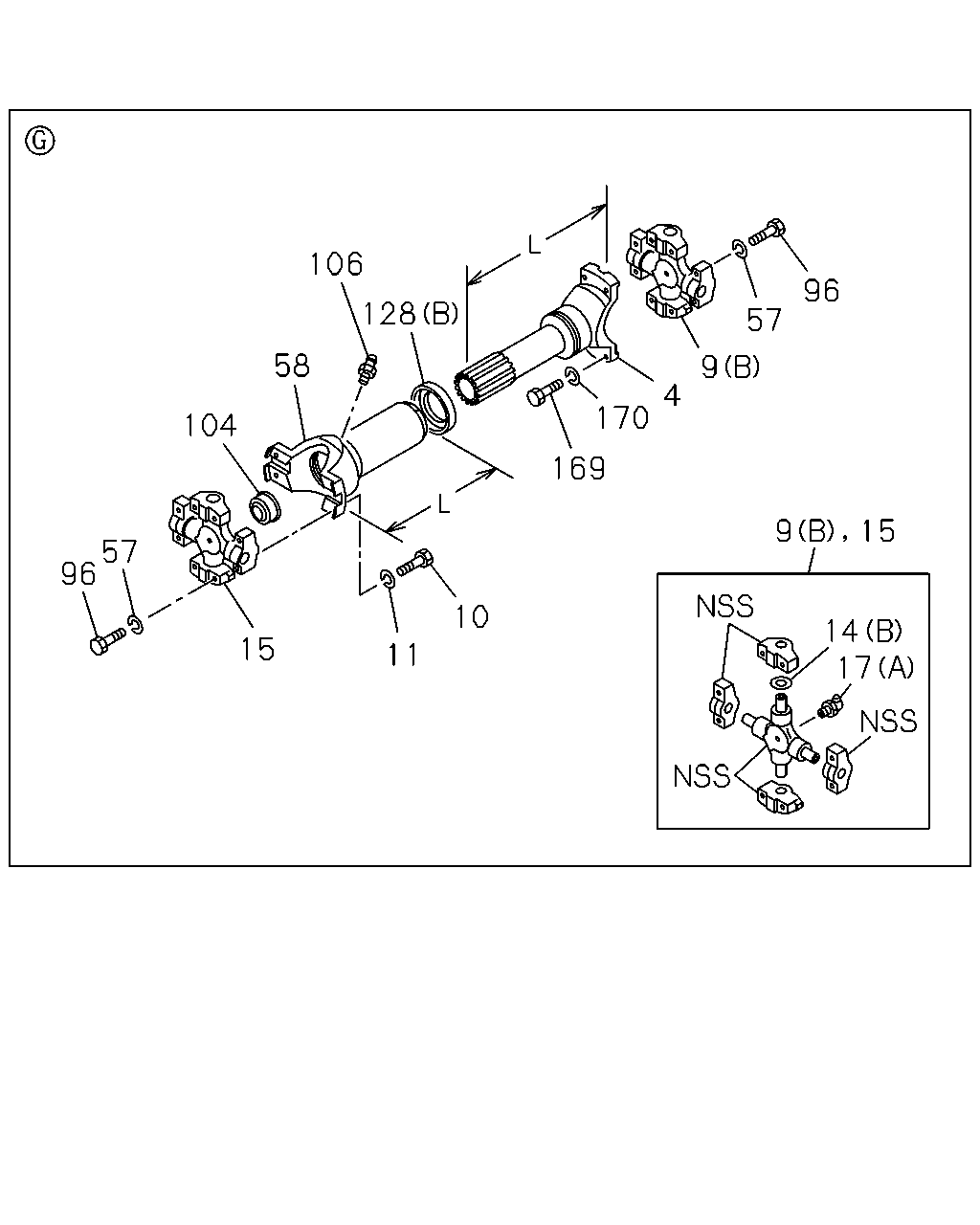

çizim 351000
15 9 14 17 96 57 9 4 170 169 10 11 15 128 106 58 104 57 96
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
L=418 		1-37171-129-3 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1305-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1305-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1305-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1305-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1305-
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1305-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1305-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1305-
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1305-
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1305-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1305-
çizim 351006
78 1 9 8 17 74 79 80 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1330 		8-98025-912-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1499 		8-98030-328-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1575 		8-98145-458-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (F) L=1675 		8-98145-463-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1305-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1305-
79 WASHER; PL,HOLDER SET,CENTER BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1305-
79 WASHER; PL,HOLDER SET,CENTER BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1305-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1305-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1305-

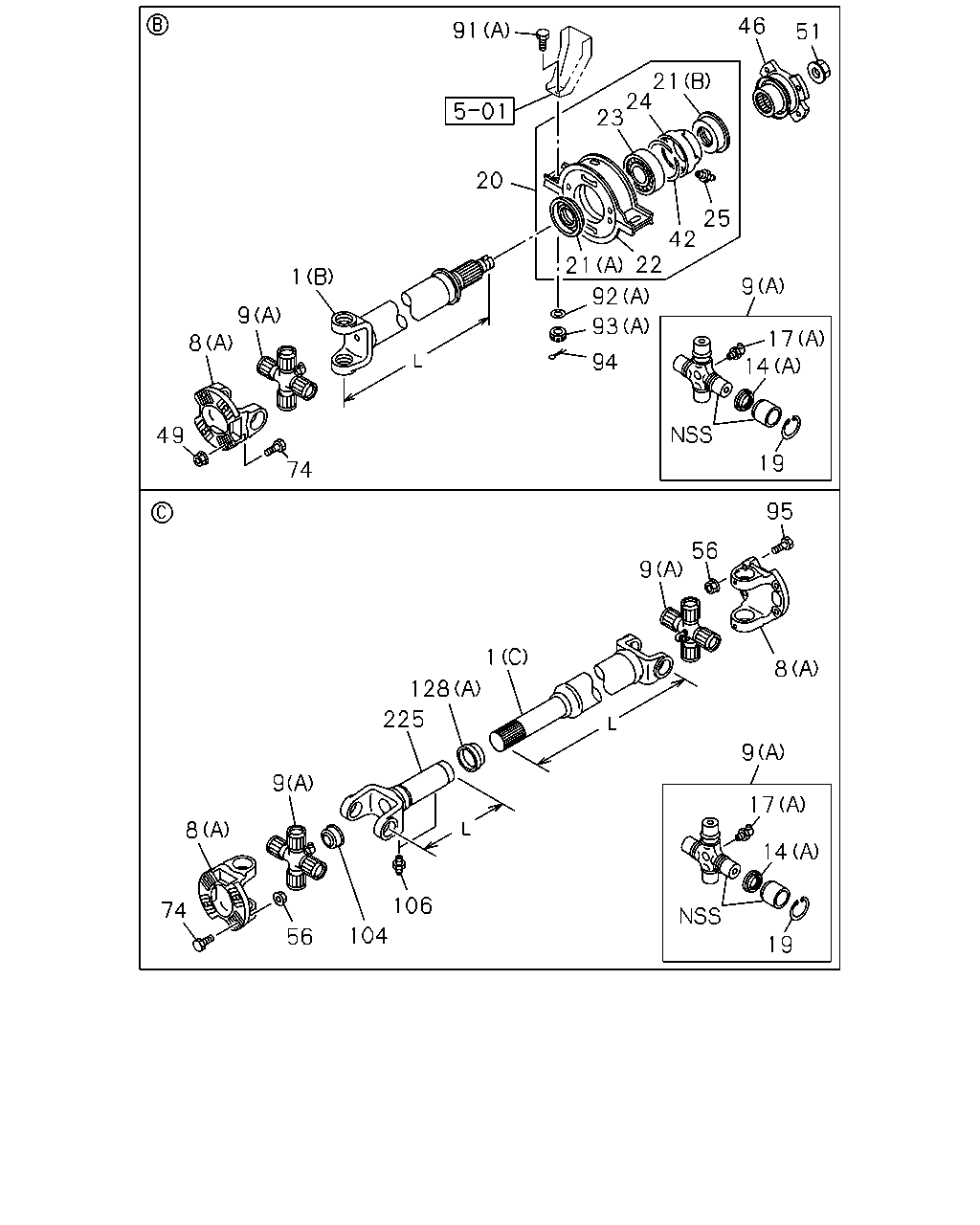

çizim 352002
91 46 21 24 51 23 20 1 21 22 42 25 92 94 93 9 17 14 19 9 8 49 74 128 9 95 56 8 9 17 14 19 1 225 9 106 104 56 8 74
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (C) L=1330 		8-98025-912-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (A) L=874 		8-98030-327-0 01 1 1305-
1 SHAFT; PROP
P115 PROP SHAFT(C5X) (B) L=1499 		8-98030-328-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (E) L=1575 		8-98145-458-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (D) L=870 		8-98145-460-0 01 1 1305-
1 SHAFT; PROP
P130 PROP SHAFT(BEE) (F) L=1675 		8-98145-463-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37211-084-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 02 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37211-083-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) (A) 		1-37300-112-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 02 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT(BEE) (C) 		1-37300-118-0 01 1 1305-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 08 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1305-
14 COVER; DUST,SPIDER
P115 PROP SHAFT(C5X) (A) 		1-37249-133-0 04 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT(C5X) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 02 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT(BEE) (B) 		1-37319-013-0 01 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 08 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.2 		1-09587-103-1 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 08 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1305-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) T=2.17 		1-09587-107-0 04 1 1305-
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1305-
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT(C5X) ID=65 		1-37510-116-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (A) OD=114 		1-09625-222-1 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1305-
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT(C5X) (B) OD=106 		1-09625-622-0 01 1 1305-
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1305-
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37516-056-0 01 1 1305-
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1305-
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-09800-210-0 01 1 1305-
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1305-
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT(C5X) 		1-37529-110-0 01 1 1305-
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1305-
25 NIPPLE; GREASE,CENTER BRG
P115 PROP SHAFT(C5X) MT6 STRAIGHT 		1-09380-006-0 01 1 1305-
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1305-
42 RING; SNAP,CTR BRG
P115 PROP SHAFT(C5X) 		1-09587-085-1 01 1 1305-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1305-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT(C5X) 		1-37245-349-0 01 1 1305-
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305-
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1305-
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT(C5X) M45 FLAMGE 		1-09449-040-0 01 1 1305-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1305-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305-
91 BOLT; HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) (A) M16X45 		1-09042-030-0 02 1 1305-
91 BOLT; HOLDER SET,CTR BRG
P130 PROP SHAFT(BEE) (B) M14X45 FLANGE 		0-28851-445-0 02 1 1305-
92 WASHER; LK,HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) (A) ID=17 		1-09503-241-1 02 1 1305-
92 WASHER; LK,HOLDER SET,CTR BRG
P130 PROP SHAFT(BEE) (B) ID=15 		0-91614-614-0 02 1 1305-
93 NUT; HOLDER SET,CTR BRG
P115 PROP SHAFT(C5X) (A) M16 SLOTTED 		8-98049-689-0 02 1 1305-
93 NUT; HOLDER SET,CTR BRG
P130 PROP SHAFT(BEE) (B) M14 FLANGE 		0-91180-214-0 02 1 1305-
94 PIN; SPLIT,HOLDER SET CTR BRG
P115 PROP SHAFT(C5X) OD=3.7 L=25 		0-81124-025-0 02 1 1305-
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1305-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1305-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-09600-049-0 01 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1305-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1305-
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) (A) 		1-37247-020-0 01 1 1305-
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT(C5X) L=339 		1-37241-140-0 01 1 1305-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
