3-75 — BRAKE PIPING; AIR,FRONT (#120026) — 146 parça

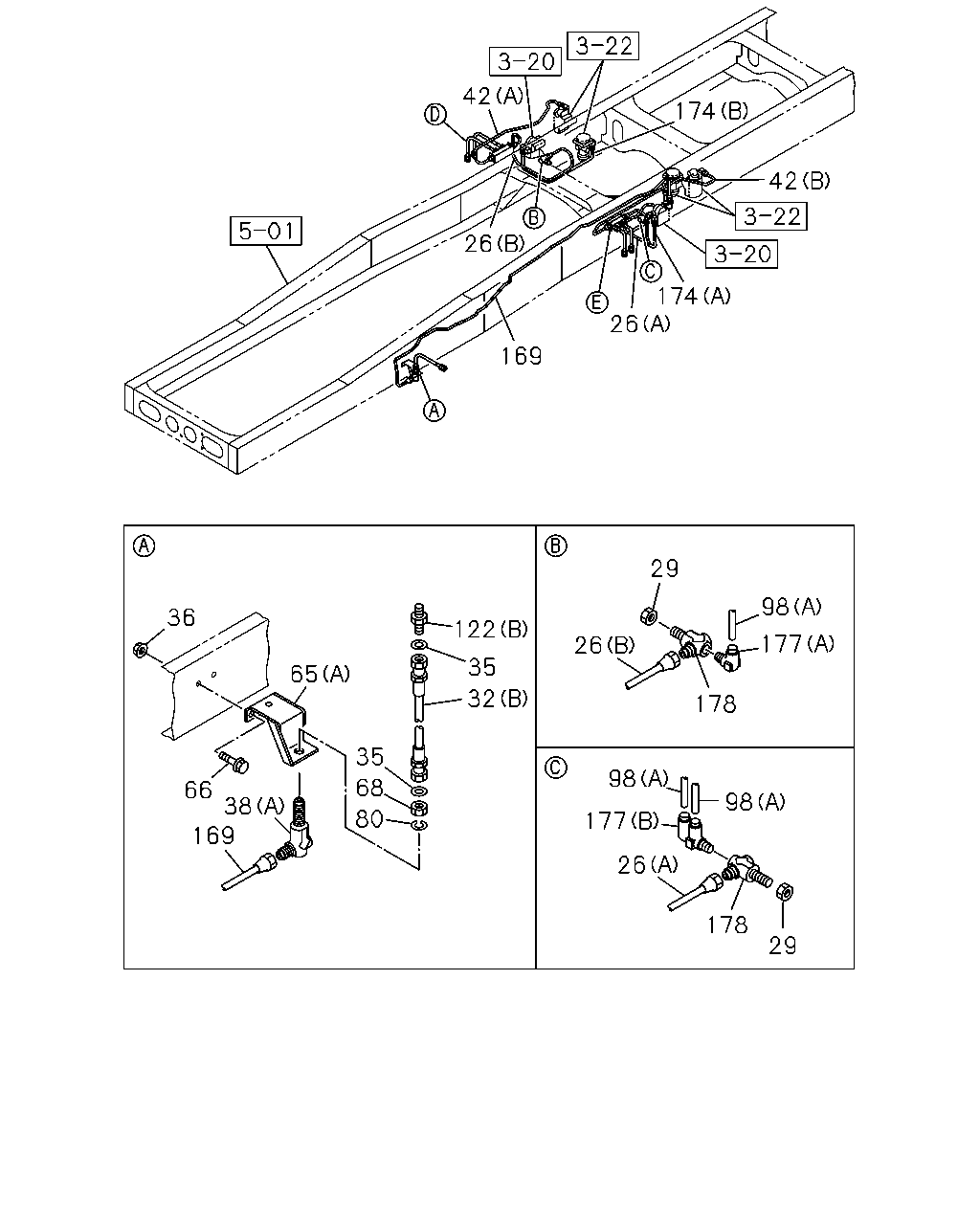

çizim 350956
42 174 42 174 26 169 26 122 65 36 66 38 169 35 68 80 35 32 29 26 98 177 178 98 177 98 26 178 29
BalonParca AdiParca NoAdetTipApplied Date
26 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1132 		8-98241-290-0 01 1 1305-
26 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1094 		8-98241-291-1 01 1 1305-
29 NUT; NIPPLE
M20 		0-91111-520-0 02 1 1305-
32 HOSE; FLEX,FRT
(B) L=470 		0-57847-470-1 01 1 1305-
32 HOSE; FLEX,FRT
(B) L=500 		0-57847-500-1 01 1 1305-
32 HOSE; FLEX,FRT
(A) L=550 		0-57847-550-1 04 1 1305-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1305-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 1305-
38 UNION; AIR PIPE
(B) M20 		1-09654-199-2 01 1 1305-
38 UNION; AIR PIPE
(C) M20 & M20 ELBOW 		1-09654-397-1 02 1 1305-
38 UNION; AIR PIPE
(A) M20 & M20 ELBOW 		1-09654-128-1 03 1 1305-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(A) L=1119 SERVICED BY L=1200 		1-49115-487-0 01 1 1305-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(B) L=1226 		8-98241-295-0 01 1 1305-
65 BRACKET; FLEX HOSE
(A) 		8-98241-468-0 01 1 1305-
65 BRACKET; FLEX HOSE
(B) 		1-47477-770-0 01 1 1305-
65 BRACKET; FLEX HOSE
(C) 		8-98176-155-0 01 1 1305-
65 BRACKET; FLEX HOSE
(C) 		8-98179-015-0 01 1 1305-
65 BRACKET; FLEX HOSE
(D) 		8-98162-738-2 01 1 1305-
65 BRACKET; FLEX HOSE
(D) 		8-98162-737-2 01 1 1305-
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1305-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1305-
66 BOLT; HOSE BRKT
M8X40 FLANGE 		0-28650-840-0 05 1 1305-
68 NUT; UNION
M20 		0-91111-520-0 06 1 1305-
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 06 1 1305-
98 TUBE; NYLON
(D) 		8-98238-519-0 01 1 1305-
98 TUBE; NYLON
(B) L=160 OD=12 		8-98054-251-0 01 1 1305-
98 TUBE; NYLON
(C) L=220 OD=12 		8-98054-252-0 01 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1305-
122 CONNECTOR; FLEX HOSE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 		1-09660-731-1 01 1 1305-
122 CONNECTOR; FLEX HOSE
(B) R3/8 & RC1/4 & M20 3WAY 		1-09661-607-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-478-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-479-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-476-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-477-0 01 1 1305-
169 PIPE; AIR,MODULATOR TO FLEX HOSE
L=2977 		8-98238-693-0 01 1 1305-1504
169 PIPE; AIR,MODULATOR TO FLEX HOSE
L=2986 		8-98302-596-0 01 1 1505-
174 PIPE; AIR,RELAY VLV TO MODULATOR
(B) L=771 		8-98241-578-0 01 1 1305-1504
174 PIPE; AIR,RELAY VLV TO MODULATOR
(B) L=777 		8-98302-599-0 01 1 1505-
174 PIPE; AIR,RELAY VLV TO MODULATOR
(A) L=750 		8-98217-425-0 01 1 1305-1504
174 PIPE; AIR,RELAY VLV TO MODULATOR
(A) L=751 		8-98302-595-0 01 1 1505-
177 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1305-
177 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1305-
178 UNION 1-09650-251-1 02 1 1305-
çizim 352367
34 32 34 68 80 65 36 26 38 34 66 32 34 38 42 80 68 36 66 65 34 32 34 68 80 38 26 32 34 34 38 42 68 80
BalonParca AdiParca NoAdetTipApplied Date
26 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1132 		8-98241-290-0 01 1 1305-
26 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1094 		8-98241-291-1 01 1 1305-
32 HOSE; FLEX,FRT
(B) L=470 		0-57847-470-1 01 1 1305-
32 HOSE; FLEX,FRT
(B) L=500 		0-57847-500-1 01 1 1305-
32 HOSE; FLEX,FRT
(A) L=550 		0-57847-550-1 04 1 1305-
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 1305-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 1305-
38 UNION; AIR PIPE
(B) M20 		1-09654-199-2 01 1 1305-
38 UNION; AIR PIPE
(C) M20 & M20 ELBOW 		1-09654-397-1 02 1 1305-
38 UNION; AIR PIPE
(A) M20 & M20 ELBOW 		1-09654-128-1 03 1 1305-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(A) L=1119 SERVICED BY L=1200 		1-49115-487-0 01 1 1305-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(B) L=1226 		8-98241-295-0 01 1 1305-
65 BRACKET; FLEX HOSE
(A) 		8-98241-468-0 01 1 1305-
65 BRACKET; FLEX HOSE
(B) 		1-47477-770-0 01 1 1305-
65 BRACKET; FLEX HOSE
(C) 		8-98176-155-0 01 1 1305-
65 BRACKET; FLEX HOSE
(C) 		8-98179-015-0 01 1 1305-
65 BRACKET; FLEX HOSE
(D) 		8-98162-738-2 01 1 1305-
65 BRACKET; FLEX HOSE
(D) 		8-98162-737-2 01 1 1305-
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1305-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1305-
66 BOLT; HOSE BRKT
M8X40 FLANGE 		0-28650-840-0 05 1 1305-
68 NUT; UNION
M20 		0-91111-520-0 06 1 1305-
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 06 1 1305-

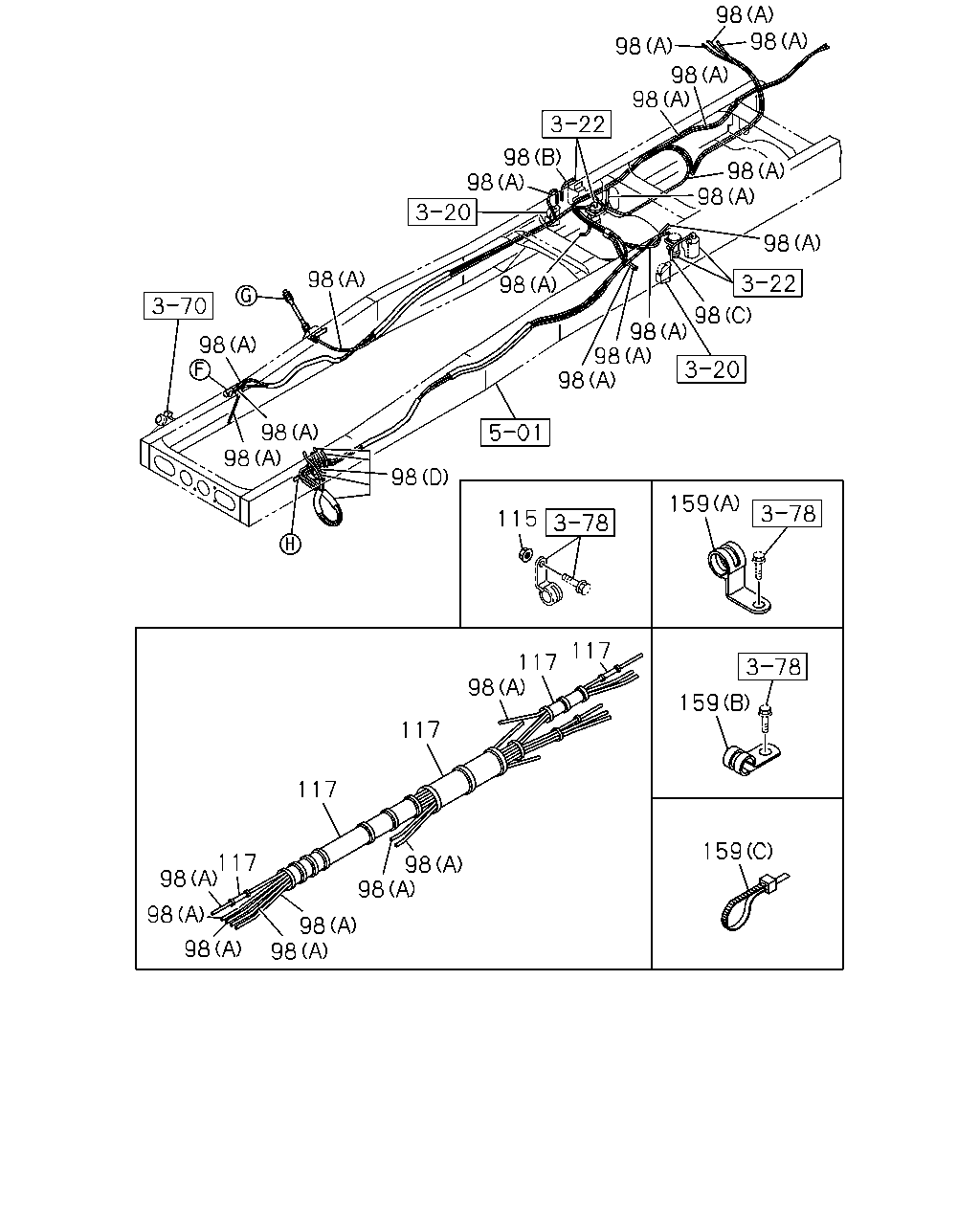

çizim 352656
98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 117 117 159 115 159 159 98 98 98 98 98 98 117 117 117 98 98
BalonParca AdiParca NoAdetTipApplied Date
98 TUBE; NYLON
(D) 		8-98238-519-0 01 1 1305-
98 TUBE; NYLON
(B) L=160 OD=12 		8-98054-251-0 01 1 1305-
98 TUBE; NYLON
(C) L=220 OD=12 		8-98054-252-0 01 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1305-
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 1305-
117 TUBE; CORRUGATE
MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 02 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 06 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1305-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1305-
159 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1305-
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1305-
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 01 1 1305-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 15 1 1305-1305
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 16 1 1306-

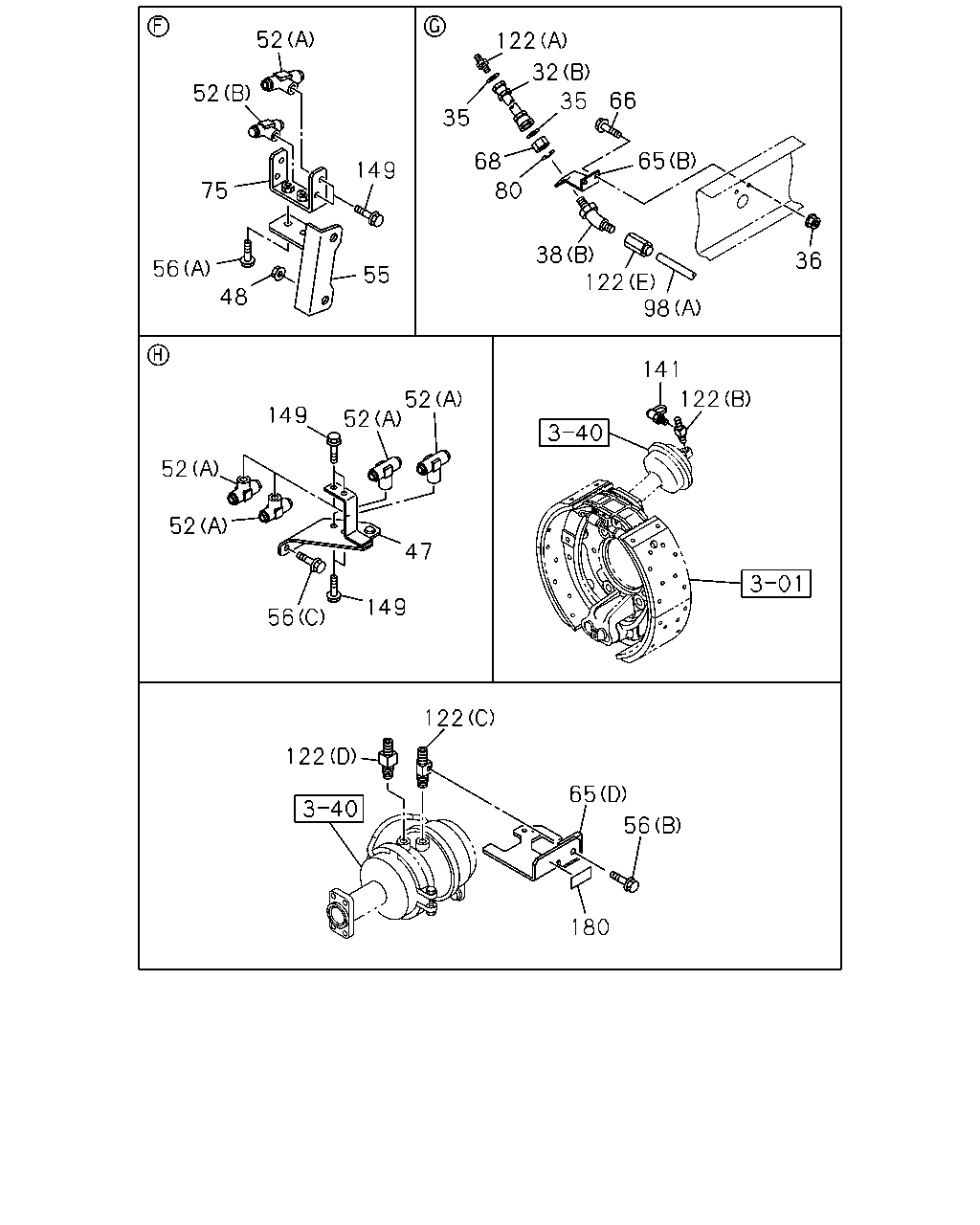

çizim 352670
52 52 75 56 149 55 48 122 35 32 65 36 98 122 38 80 68 35 52 52 149 52 52 56 149 47 141 122 65 56 122 122 180 66
BalonParca AdiParca NoAdetTipApplied Date
32 HOSE; FLEX,FRT
(B) L=470 		0-57847-470-1 01 1 1305-
32 HOSE; FLEX,FRT
(B) L=500 		0-57847-500-1 01 1 1305-
32 HOSE; FLEX,FRT
(A) L=550 		0-57847-550-1 04 1 1305-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1305-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 1305-
38 UNION; AIR PIPE
(B) M20 		1-09654-199-2 01 1 1305-
38 UNION; AIR PIPE
(C) M20 & M20 ELBOW 		1-09654-397-1 02 1 1305-
38 UNION; AIR PIPE
(A) M20 & M20 ELBOW 		1-09654-128-1 03 1 1305-
47 BRACKET; PIPE UNION 8-98238-525-0 01 1 1305-
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 1305-
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 05 1 1305-
52 CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1305-
55 BRACKET; TUBE UNION 1-47479-993-1 01 1 1305-
56 BOLT; UNION BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1305-
56 BOLT; UNION BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1305-
56 BOLT; UNION BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1305-
65 BRACKET; FLEX HOSE
(A) 		8-98241-468-0 01 1 1305-
65 BRACKET; FLEX HOSE
(B) 		1-47477-770-0 01 1 1305-
65 BRACKET; FLEX HOSE
(C) 		8-98176-155-0 01 1 1305-
65 BRACKET; FLEX HOSE
(C) 		8-98179-015-0 01 1 1305-
65 BRACKET; FLEX HOSE
(D) 		8-98162-738-2 01 1 1305-
65 BRACKET; FLEX HOSE
(D) 		8-98162-737-2 01 1 1305-
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1305-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1305-
66 BOLT; HOSE BRKT
M8X40 FLANGE 		0-28650-840-0 05 1 1305-
68 NUT; UNION
M20 		0-91111-520-0 06 1 1305-
75 BRACKET; UNION 1-47471-023-0 01 1 1305-
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 06 1 1305-
98 TUBE; NYLON
(D) 		8-98238-519-0 01 1 1305-
98 TUBE; NYLON
(B) L=160 OD=12 		8-98054-251-0 01 1 1305-
98 TUBE; NYLON
(C) L=220 OD=12 		8-98054-252-0 01 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1305-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1305-
122 CONNECTOR; FLEX HOSE
(E) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 		1-09660-731-1 01 1 1305-
122 CONNECTOR; FLEX HOSE
(B) R3/8 & RC1/4 & M20 3WAY 		1-09661-607-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-478-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-479-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-476-0 01 1 1305-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-477-0 01 1 1305-
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1305-
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1305-
149 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 1305-
180 PLATE; CAUTION 8-98164-504-0 02 1 1305-
