Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#120023) — 262 parça

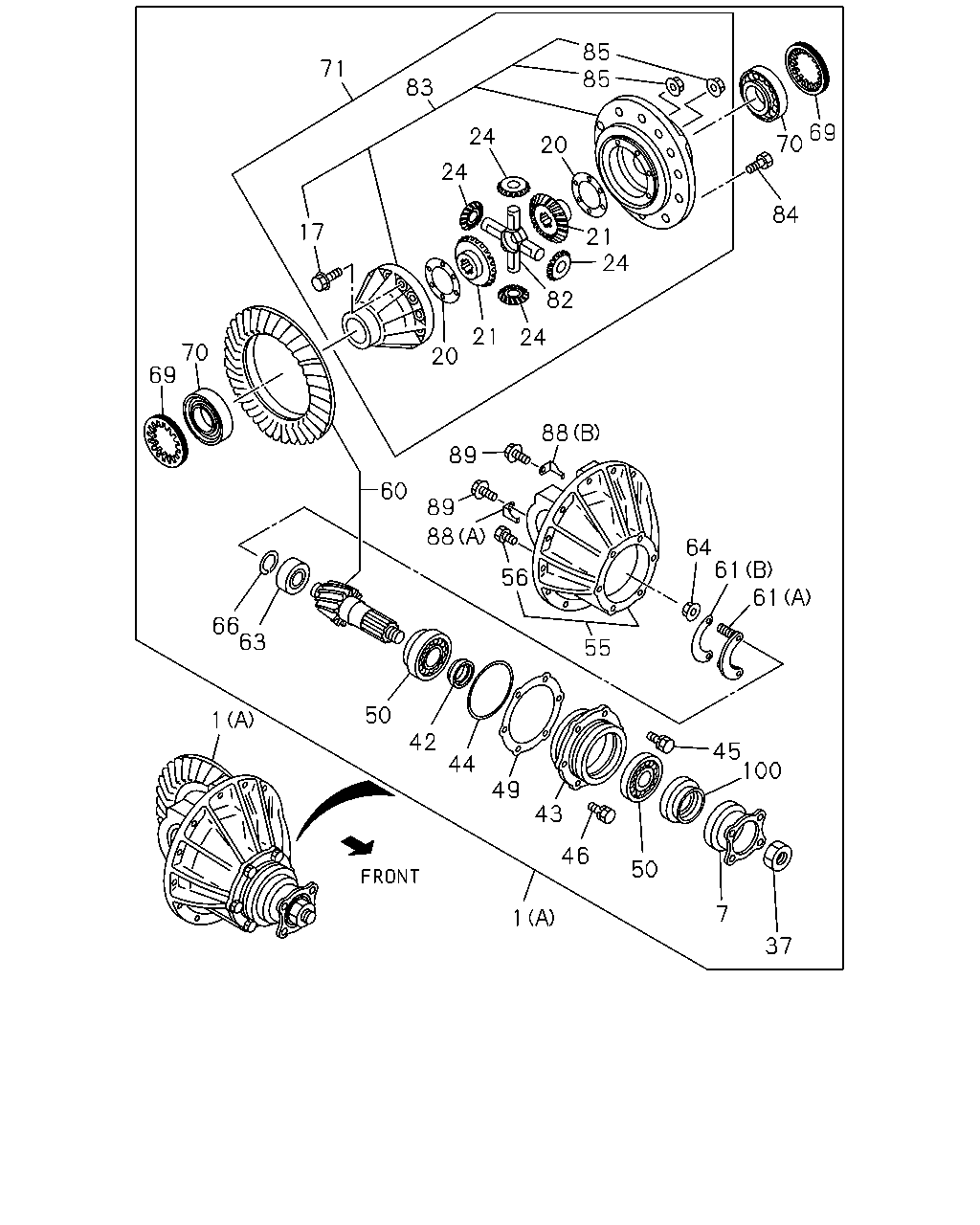

71 83 85 24 20 70 69 84 24 21 82 21 20 70 69 24 17 60 89 88 66 63 50 42 44 49 43 46 50 7 37 1 1 88 56 55 64 61 61 89 45 100 24 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR (A) 41/10 IMA	8-98015-135-0	01	1	1304-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM<G73> (A) 43/9 IMA	8-98015-138-0	01	1	1304-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> (B) 41/9 IMA	8-97388-707-0	01	1	1304-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> (B) 43/8 IMA	8-98065-942-0	01	1	1304-		●
7	FLANGE; FINAL IMA	8-94477-723-4	01	1	1304-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-94477-723-4	01	1	1304-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97073-802-2	01	1	1304-		●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE IMA	8-97232-161-0	12	1	1304-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X75 FLANGE IMA	8-97232-161-0	12	1	1304-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-98219-448-0	12	1	1304-		●
20	WASHER; THRUST,SIDE GEAR T=1.40 IMA	9-41562-601-0	02	1	1304-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM<G73> T=1.40 IMA	9-41562-601-0	02	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.80 IMA	1-41562-073-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.90 IMA	1-41562-074-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.00 IMA	1-41562-075-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.10 IMA	1-41562-076-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.20 IMA	1-41562-077-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.30 IMA	1-41562-078-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.40 IMA	1-41562-079-0	AR	1	1304-		●
21	GEAR; SIDE,DIFF Z=20 IMA	8-97362-599-1	02	1	1304-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=20 IMA	8-97362-599-1	02	1	1304-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16 IMA	8-98165-935-0	02	1	1304-		●
24	GEAR; PINION,DIFF Z=10 IMA	8-98015-202-0	04	1	1304-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=10 IMA	8-98015-202-0	04	1	1304-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10 IMA	1-41551-050-0	04	1	1304-		●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94329-526-1	01	1	1304-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM<G73> M24 FLANGE IMA	8-94329-526-1	01	1	1304-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM<6CP> M30 FLANGE IMA	8-97047-146-0	01	1	1304-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6 IMA	9-41219-603-1	01	1	1304-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM<G73> L=19.6 IMA	9-41219-603-1	01	1	1304-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97047-097-0	01	1	1304-		●
43	CAGE; FINAL PINION IMA	8-94400-890-0	01	1	1304-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-94400-890-0	01	1	1304-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97047-098-0	01	1	1304-		●
44	GASKET; PINION CAGE IMA	9-09720-505-0	01	1	1304-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> IMA	9-09720-505-0	01	1	1304-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97048-053-0	01	1	1304-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1304-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	0-50551-238-0	05	1	1304-1311		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER IMA	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER IMA	8-98221-264-0	05	1	1312-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER IMA	8-98220-227-0	06	1	1304-		●
46	BOLT M14X35 W/LK WASHER IMA	0-50551-435-0	01	1	1304-	●
46	BOLT REAR AXLE HEAVY DUTY 292MM<G73> M14X35 W/LK WASHER IMA	0-50551-435-0	01	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10 IMA	8-94401-335-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.10 IMA	8-94401-335-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12 IMA	8-94401-336-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.12 IMA	8-94401-336-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14 IMA	8-94401-337-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.14 IMA	8-94401-337-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16 IMA	8-94401-338-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.16 IMA	8-94401-338-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18 IMA	8-94401-339-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.18 IMA	8-94401-339-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20 IMA	8-94401-340-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.20 IMA	8-94401-340-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.12 IMA	8-97047-298-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.15 IMA	8-97047-299-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.20 IMA	8-97047-300-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.25 IMA	8-97048-418-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.50 IMA	8-97048-419-0	AR	1	1304-		●
50	BEARING; FINAL PINION JTEKT IMA	5-09812-062-1	02	1	1304-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> JTEKT IMA	5-09812-062-1	02	1	1304-		●
50	BEARING; FINAL PINION NSK IMA	5-09812-063-0	02	1	1304-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> NSK IMA	5-09812-063-0	02	1	1304-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK IMA	1-09812-041-2	01	1	1304-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT IMA	1-09812-042-1	01	1	1304-		●
55	CARRIER; DIFF IMA	8-97307-760-0	01	1	1304-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-97307-760-0	01	1	1304-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97094-637-0	01	1	1304-		●
56	BOLT; BRG CAP M14X80 IMA	8-94365-377-3	04	1	1304-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM<G73> M14X80 IMA	8-94365-377-3	04	1	1304-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM<6CP> M14X95 FLANGE IMA	1-09070-027-0	04	1	1304-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	1304-1311	●
60	GEAR SET; FINAL DRIVE,RR 41/10 IMA	8-98092-055-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM<G73> 43/9 IMA	8-97319-157-0	01	1	1304-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> 41/9 IMA	8-97078-635-1	01	1	1304-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> 43/8 IMA	8-98043-095-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD IMA	5-41227-001-0	01	1	1304-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (A) W/STUD IMA	5-41227-001-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION (B) IMA	9-41227-601-0	01	1	1304-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (B) IMA	9-41227-601-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (A) W/STUD IMA	8-97047-149-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (B) IMA	8-97047-150-0	01	1	1304-		●
63	BEARING; PINION PILOT NSK IMA	5-09810-008-1	01	1	1304-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> NSK IMA	5-09810-008-1	01	1	1304-		●
63	BEARING; PINION PILOT JTEKT IMA	8-97107-548-0	01	1	1304-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> JTEKT IMA	8-97107-548-0	01	1	1304-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> NSK IMA	8-97047-296-0	01	1	1304-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT IMA	8-97047-928-0	01	1	1304-		●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	1304-	●	●
66	RING; SNAP,PILOT BRG IMA	9-09752-002-0	01	1	1304-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM<G73> IMA	9-09752-002-0	01	1	1304-		●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97047-297-0	01	1	1304-		●
69	NUT; ADJ,DIFF CAGE M110 H=10 IMA	5-41121-001-0	02	1	1304-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> M110 H=10 IMA	5-41121-001-0	02	1	1304-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M115 H=20 IMA	1-41121-039-0	02	1	1304-		●
70	BEARING; DIFF CAGE NSK IMA	9-00093-602-0	02	1	1304-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> NSK IMA	9-00093-602-0	02	1	1304-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT ID=66.7 OD=113 T=30 IMA	9-00093-130-0	02	1	1304-		●
71	CAGE ASM; DIFF,FINAL DRIVE IMA	8-98015-181-1	01	1	1304-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-98015-181-1	01	1	1304-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> IMA	8-97047-099-4	01	1	1304-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> IMA	8-97047-100-4	01	1	1304-		●
82	SPIDER; DIFF PINION IMA	5-41521-008-0	01	1	1304-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM<G73> IMA	5-41521-008-0	01	1	1304-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-062-0	01	1	1304-1309		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP> IMA	1-41521-035-2	01	1	1310-		●
83	CAGE ASM; DIFF	8-97319-398-1	01	1	1304-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97319-398-1	01	1	1304-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> IMA	8-98219-705-0	01	1	1304-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> IMA	8-98219-707-0	01	1	1304-		●
84	BOLT; FINAL DRIVE GEAR M14X25 IMA	8-97318-938-1	12	1	1304-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM<G73> M14X25 IMA	8-97318-938-1	12	1	1304-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> M16X30 IMA	8-97047-147-0	12	1	1304-		●
85	NUT; DIFF CAGE SETTING M10 FLANGE THA	0-91180-210-0	12	1	1304-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10 FLANGE THA	0-91180-210-0	12	1	1304-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M12 IMA	8-97065-214-0	12	1	1304-		●
88	PLATE; LK,ADJ NUT (A) IMA	8-97027-281-0	AR	1	1304-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (A) IMA	8-97027-281-0	AR	1	1304-		●
88	PLATE; LK,ADJ NUT (B) IMA	8-97027-282-0	AR	1	1304-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (B) IMA	8-97027-282-0	AR	1	1304-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (D) IMA	8-97087-821-0	AR	1	1304-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (C) T=2.3 IMA	9-41124-015-0	AR	1	1304-		●
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	02	1	1304-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM<G73> M8X16 FLANGE THA	0-28050-816-0	02	1	1304-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM<6CP> M8X16 FLANGE THA	0-28050-816-0	04	1	1304-		●
100	SEAL; OIL,FINAL PINION OD=103 IMA	8-94408-083-0	01	1	1304-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> OD=103 IMA	8-94408-083-0	01	1	1304-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NOK IMA	1-09625-484-1	01	1	1304-		●

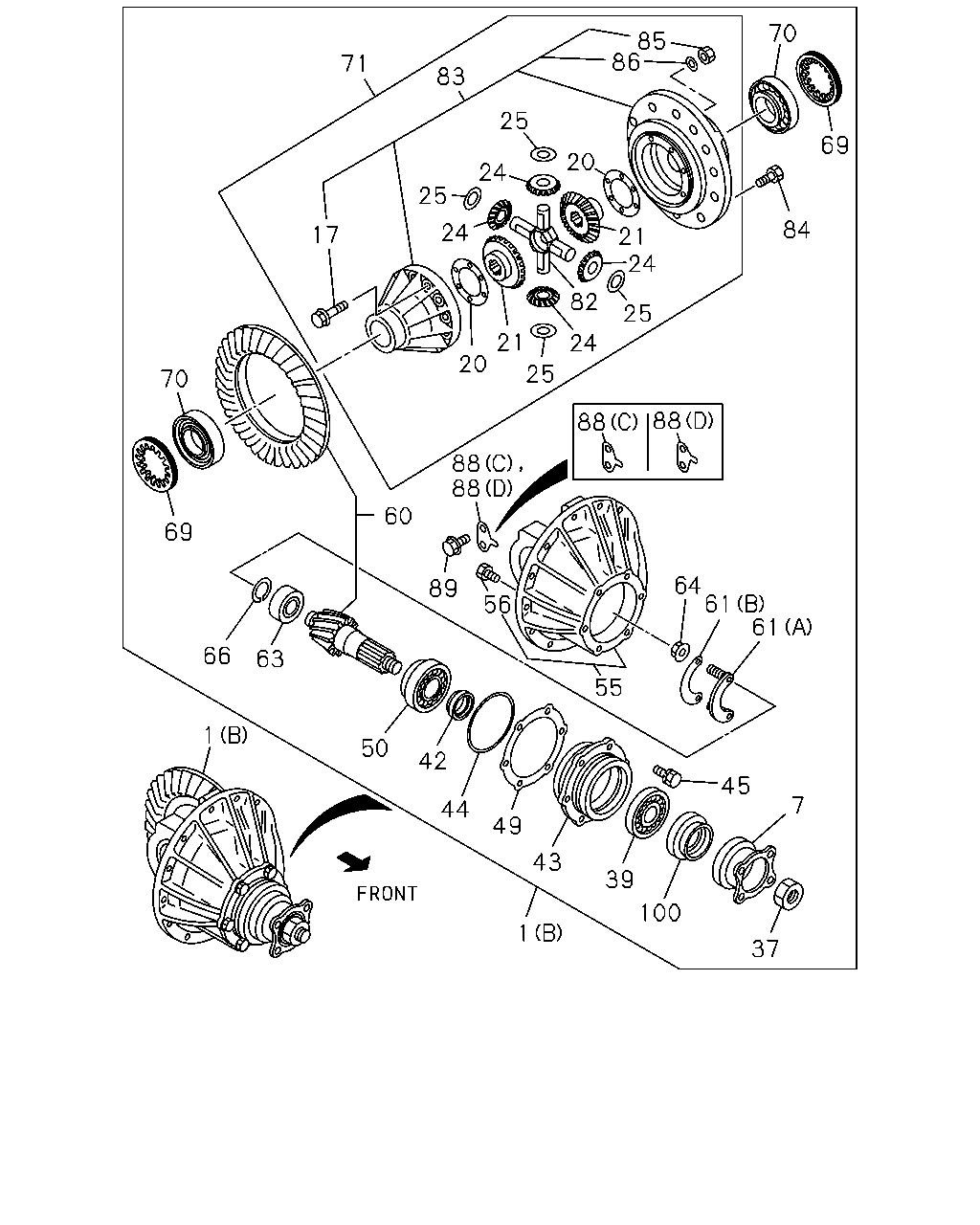

71 17 70 69 66 63 50 1 42 44 49 43 39 100 37 7 45 55 1 61 61 64 88 88 60 89 25 56 88 88 24 25 82 24 21 21 20 24 25 24 25 83 20 84 69 70 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR (A) 41/10 IMA	8-98015-135-0	01	1	1304-	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM<G73> (A) 43/9 IMA	8-98015-138-0	01	1	1304-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> (B) 41/9 IMA	8-97388-707-0	01	1	1304-		●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> (B) 43/8 IMA	8-98065-942-0	01	1	1304-		●
7	FLANGE; FINAL IMA	8-94477-723-4	01	1	1304-	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-94477-723-4	01	1	1304-		●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97073-802-2	01	1	1304-		●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE IMA	8-97232-161-0	12	1	1304-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10X75 FLANGE IMA	8-97232-161-0	12	1	1304-		●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-98219-448-0	12	1	1304-		●
20	WASHER; THRUST,SIDE GEAR T=1.40 IMA	9-41562-601-0	02	1	1304-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM<G73> T=1.40 IMA	9-41562-601-0	02	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.80 IMA	1-41562-073-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=2.90 IMA	1-41562-074-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.00 IMA	1-41562-075-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.10 IMA	1-41562-076-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.20 IMA	1-41562-077-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.30 IMA	1-41562-078-0	AR	1	1304-		●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> T=3.40 IMA	1-41562-079-0	AR	1	1304-		●
21	GEAR; SIDE,DIFF Z=20 IMA	8-97362-599-1	02	1	1304-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=20 IMA	8-97362-599-1	02	1	1304-		●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=16 IMA	8-98165-935-0	02	1	1304-		●
24	GEAR; PINION,DIFF Z=10 IMA	8-98015-202-0	04	1	1304-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM<G73> Z=10 IMA	8-98015-202-0	04	1	1304-		●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM<6CP> Z=10 IMA	1-41551-050-0	04	1	1304-		●
25	WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM<6CP> IMA	1-41552-020-0	04	1	1304-		●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94329-526-1	01	1	1304-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM<G73> M24 FLANGE IMA	8-94329-526-1	01	1	1304-		●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM<6CP> M30 FLANGE IMA	8-97047-146-0	01	1	1304-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT IMA	5-09812-062-1	01	1	1304-		●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK IMA	5-09812-063-0	01	1	1304-		●
42	COLLAR; DIST,COLLAPSIBLE L=19.6 IMA	9-41219-603-1	01	1	1304-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM<G73> L=19.6 IMA	9-41219-603-1	01	1	1304-		●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97047-097-0	01	1	1304-		●
43	CAGE; FINAL PINION IMA	8-94400-890-0	01	1	1304-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-94400-890-0	01	1	1304-		●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97047-098-0	01	1	1304-		●
44	GASKET; PINION CAGE IMA	9-09720-505-0	01	1	1304-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> IMA	9-09720-505-0	01	1	1304-		●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97048-053-0	01	1	1304-		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1304-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER	0-50551-238-0	05	1	1304-1311		●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER IMA	8-98221-264-0	05	1	1312-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> M12X38 W/LK WASHER IMA	8-98221-264-0	05	1	1312-		●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M12X40 W/LK WASHER IMA	8-98220-227-0	06	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10 IMA	8-94401-335-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.10 IMA	8-94401-335-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12 IMA	8-94401-336-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.12 IMA	8-94401-336-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14 IMA	8-94401-337-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.14 IMA	8-94401-337-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16 IMA	8-94401-338-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.16 IMA	8-94401-338-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18 IMA	8-94401-339-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.18 IMA	8-94401-339-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20 IMA	8-94401-340-0	AR	1	1304-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM<G73> ID=132 T=0.20 IMA	8-94401-340-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.12 IMA	8-97047-298-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.15 IMA	8-97047-299-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.20 IMA	8-97047-300-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.25 IMA	8-97048-418-0	AR	1	1304-		●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM<6CP> ID=142 T=0.50 IMA	8-97048-419-0	AR	1	1304-		●
50	BEARING; FINAL PINION JTEKT IMA	5-09812-062-1	02	1	1304-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> JTEKT IMA	5-09812-062-1	02	1	1304-		●
50	BEARING; FINAL PINION NSK IMA	5-09812-063-0	02	1	1304-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> NSK IMA	5-09812-063-0	02	1	1304-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NSK IMA	1-09812-041-2	01	1	1304-		●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT IMA	1-09812-042-1	01	1	1304-		●
55	CARRIER; DIFF IMA	8-97307-760-0	01	1	1304-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-97307-760-0	01	1	1304-		●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97094-637-0	01	1	1304-		●
56	BOLT; BRG CAP M14X80 IMA	8-94365-377-3	04	1	1304-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM<G73> M14X80 IMA	8-94365-377-3	04	1	1304-		●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM<6CP> M14X95 FLANGE IMA	1-09070-027-0	04	1	1304-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	1304-1311	●
60	GEAR SET; FINAL DRIVE,RR 41/10 IMA	8-98092-055-0	01	1	1312-	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM<G73> 43/9 IMA	8-97319-157-0	01	1	1304-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> 41/9 IMA	8-97078-635-1	01	1	1304-		●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> 43/8 IMA	8-98043-095-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD IMA	5-41227-001-0	01	1	1304-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (A) W/STUD IMA	5-41227-001-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION (B) IMA	9-41227-601-0	01	1	1304-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM<G73> (B) IMA	9-41227-601-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (A) W/STUD IMA	8-97047-149-0	01	1	1304-		●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM<6CP> (B) IMA	8-97047-150-0	01	1	1304-		●
63	BEARING; PINION PILOT NSK IMA	5-09810-008-1	01	1	1304-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> NSK IMA	5-09810-008-1	01	1	1304-		●
63	BEARING; PINION PILOT JTEKT IMA	8-97107-548-0	01	1	1304-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM<G73> JTEKT IMA	8-97107-548-0	01	1	1304-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> NSK IMA	8-97047-296-0	01	1	1304-		●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT IMA	8-97047-928-0	01	1	1304-		●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	1304-	●	●
66	RING; SNAP,PILOT BRG IMA	9-09752-002-0	01	1	1304-	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM<G73> IMA	9-09752-002-0	01	1	1304-		●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM<6CP> IMA	8-97047-297-0	01	1	1304-		●
69	NUT; ADJ,DIFF CAGE M110 H=10 IMA	5-41121-001-0	02	1	1304-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> M110 H=10 IMA	5-41121-001-0	02	1	1304-		●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> M115 H=20 IMA	1-41121-039-0	02	1	1304-		●
70	BEARING; DIFF CAGE NSK IMA	9-00093-602-0	02	1	1304-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM<G73> NSK IMA	9-00093-602-0	02	1	1304-		●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM<6CP> JTEKT ID=66.7 OD=113 T=30 IMA	9-00093-130-0	02	1	1304-		●
71	CAGE ASM; DIFF,FINAL DRIVE IMA	8-98015-181-1	01	1	1304-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM<G73> IMA	8-98015-181-1	01	1	1304-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> IMA	8-97047-099-4	01	1	1304-		●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> IMA	8-97047-100-4	01	1	1304-		●
82	SPIDER; DIFF PINION IMA	5-41521-008-0	01	1	1304-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM<G73> IMA	5-41521-008-0	01	1	1304-		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP>	1-41521-062-0	01	1	1304-1309		●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM<6CP> IMA	1-41521-035-2	01	1	1310-		●
83	CAGE ASM; DIFF	8-97319-398-1	01	1	1304-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM<G73>	8-97319-398-1	01	1	1304-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 41/9<HC6> IMA	8-98219-705-0	01	1	1304-		●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM<6CP> FINAL GEAR RATIO 43/8<R40> IMA	8-98219-707-0	01	1	1304-		●
84	BOLT; FINAL DRIVE GEAR M14X25 IMA	8-97318-938-1	12	1	1304-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM<G73> M14X25 IMA	8-97318-938-1	12	1	1304-		●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM<6CP> M16X30 IMA	8-97047-147-0	12	1	1304-		●
85	NUT; DIFF CAGE SETTING M10 FLANGE THA	0-91180-210-0	12	1	1304-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM<G73> M10 FLANGE THA	0-91180-210-0	12	1	1304-		●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> M12 IMA	8-97065-214-0	12	1	1304-		●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM<6CP> ID=12.5 OD=22 T=2 IMA	8-97047-294-0	12	1	1304-		●
88	PLATE; LK,ADJ NUT (A) IMA	8-97027-281-0	AR	1	1304-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (A) IMA	8-97027-281-0	AR	1	1304-		●
88	PLATE; LK,ADJ NUT (B) IMA	8-97027-282-0	AR	1	1304-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM<G73> (B) IMA	8-97027-282-0	AR	1	1304-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (D) IMA	8-97087-821-0	AR	1	1304-		●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM<6CP> (C) T=2.3 IMA	9-41124-015-0	AR	1	1304-		●
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	02	1	1304-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM<G73> M8X16 FLANGE THA	0-28050-816-0	02	1	1304-		●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM<6CP> M8X16 FLANGE THA	0-28050-816-0	04	1	1304-		●
100	SEAL; OIL,FINAL PINION OD=103 IMA	8-94408-083-0	01	1	1304-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM<G73> OD=103 IMA	8-94408-083-0	01	1	1304-		●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM<6CP> NOK IMA	1-09625-484-1	01	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
