Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#120022) — 191 parça

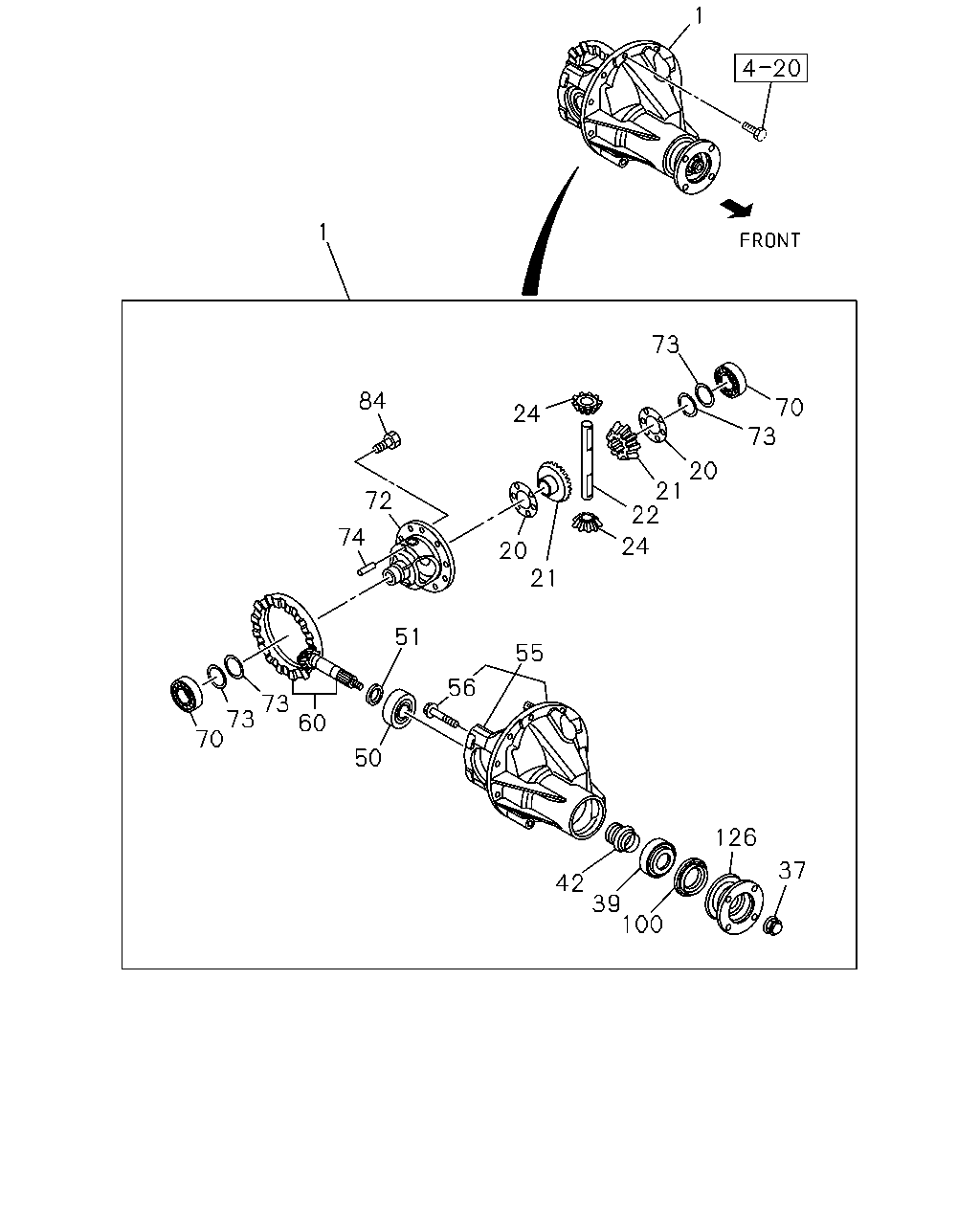

1 24 73 84 1 70 51 60 73 73 50 56 42 39 100 37 126 55 21 20 72 74 20 73 70 21 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) EXC. LIMITED SLIP DIFF<G80> 43/10	8-98190-118-0	01	1	1305-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) 41/9	8-98190-119-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98167-623-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98190-114-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98167-624-0	01	1	1305-		●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98167-626-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98190-117-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98167-625-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98190-116-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) LIMITED SLIP DIFF<G80> 43/10	8-98167-627-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98190-115-0	01	1	1305-		●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=0.80	8-94435-343-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=0.90	8-94435-344-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.10	8-94435-345-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.20	8-94435-346-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.30	8-94435-347-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	1305-		●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	1305-		●	●	●
21	GEAR; SIDE,DIFF Z=18	8-98186-828-1	02	1	1305-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-98186-828-1	02	1	1305-		●	●	●
22	SPIDER; DIFF PINION	8-94435-308-1	01	1	1305-	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<G80>	8-94435-308-1	01	1	1305-		●	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-1	04	1	1305-		●	●	●
24	GEAR; PINION,DIFF Z=10	8-98186-829-0	02	1	1305-	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-98186-829-0	02	1	1305-		●	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1305-	●	●	●	●
39	BEARING; FINAL PINION NSK	9-00093-078-0	01	1	1305-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	1305-	●	●	●	●
50	BEARING; FINAL PINION NSK	8-94435-342-0	01	1	1305-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	1305-	●	●	●	●
55	CARRIER; DIFF	8-97240-889-2	01	1	1305-	●	●	●	●
56	BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1305-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(GY2) 43/10	8-98014-987-1	01	1	1305-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(GT3) 41/9	8-98014-990-1	01	1	1305-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12(GM0) 43/12	8-97374-174-1	01	1	1305-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98014-984-1	01	1	1305-		●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GW1) 43/11	8-98014-980-1	01	1	1305-		●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11(GT4) 41/11	8-98030-515-1	01	1	1305-		●	●
70	BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	1305-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	1305-	●	●	●	●
72	CAGE; DIFF	8-94325-448-0	01	1	1305-	●
72	CAGE; DIFF EXC. LIMITED SLIP DIFF<G80>	8-94325-448-0	01	1	1305-		●	●	●
73	SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	1305-	●	●	●	●
74	PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	1305-	●
74	PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF<G80> OD=5 L=35	9-09878-096-0	01	1	1305-		●	●	●
84	BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	1305-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1305-	●	●	●	●
126	COUPLING; DRIVING PINION	8-98166-552-0	01	1	1305-1305	●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80>	8-98166-552-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/10(GY2) EXC. HIGH RIDE SUSPENSION(7YC)	8-98166-552-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 41/9(GT3)	8-98166-552-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION A/T 5 SPEED-AISIN(MA1)	8-98166-552-0	01	1	1305-1305			●
126	COUPLING; DRIVING PINION	8-98166-552-1	01	1	1306-	●	●	●	●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80>	8-97217-146-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/10(GY2) HIGH RIDE SUSPENSION(7YC)	8-97217-146-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1)	8-97217-146-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION	8-97217-146-0	01	1	1305-1305				●
126	COUPLING; DRIVING PINION M/T MUA 5 SPEED 5H(MWQ)	8-97217-146-0	01	1	1305-1305			●

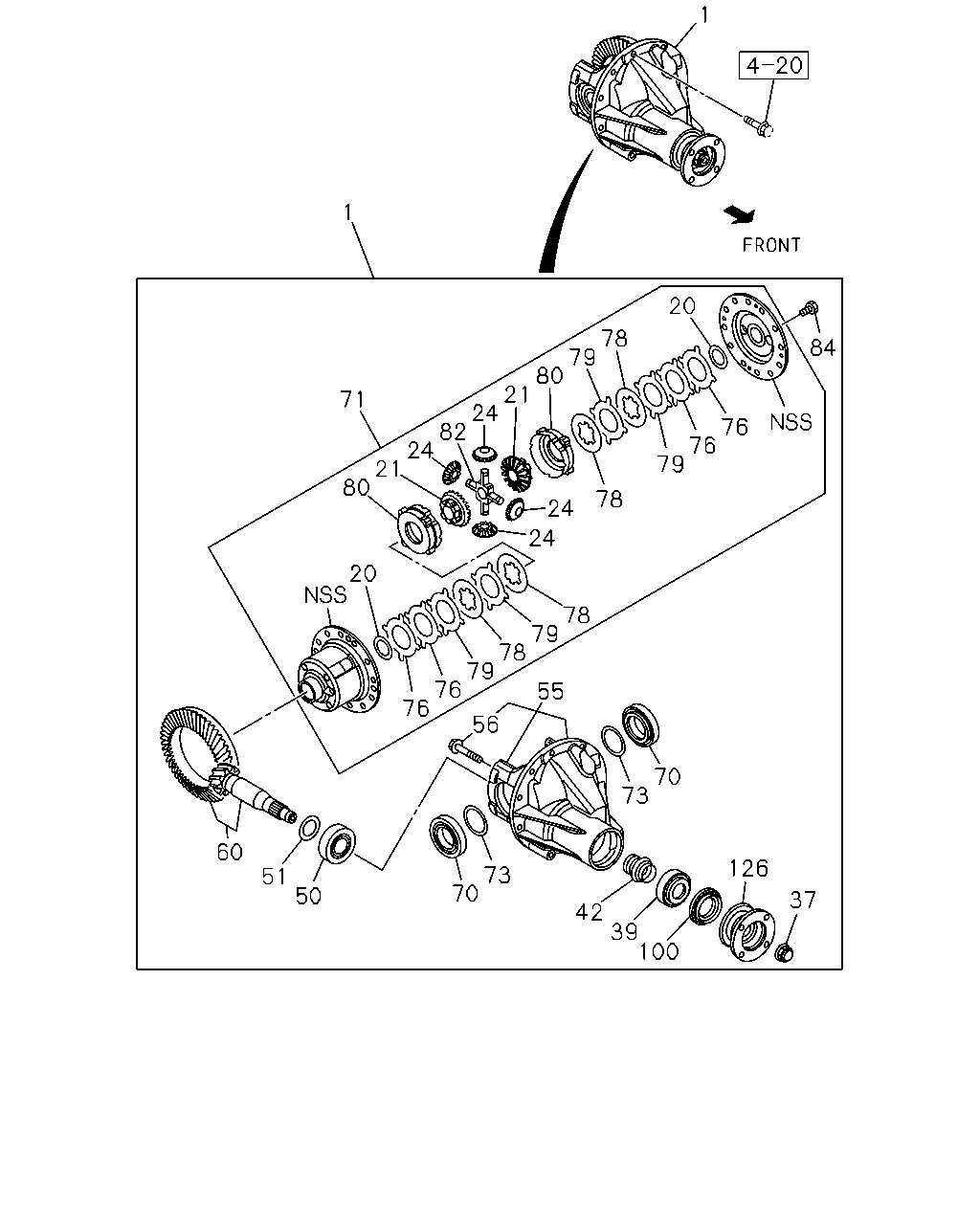

1 1 20 84 76 76 79 78 79 80 78 24 24 78 79 78 79 76 76 20 80 21 24 82 24 21 71 50 51 60 70 42 39 100 126 37 70 73 73 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) EXC. LIMITED SLIP DIFF<G80> 43/10	8-98190-118-0	01	1	1305-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(GT3) 41/9	8-98190-119-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98167-623-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98190-114-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98167-624-0	01	1	1305-		●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98167-626-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98190-117-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98167-625-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98190-116-0	01	1	1305-		●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(GY2) LIMITED SLIP DIFF<G80> 43/10	8-98167-627-0	01	1	1305-		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98190-115-0	01	1	1305-		●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=0.80	8-94435-343-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=0.90	8-94435-344-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.10	8-94435-345-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.20	8-94435-346-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.30	8-94435-347-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	1305-		●	●	●
20	WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	1305-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	1305-		●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	1305-		●	●	●
21	GEAR; SIDE,DIFF Z=18	8-98186-828-1	02	1	1305-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-98186-828-1	02	1	1305-		●	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-1	04	1	1305-		●	●	●
24	GEAR; PINION,DIFF Z=10	8-98186-829-0	02	1	1305-	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-98186-829-0	02	1	1305-		●	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1305-	●	●	●	●
39	BEARING; FINAL PINION NSK	9-00093-078-0	01	1	1305-	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	1305-	●	●	●	●
50	BEARING; FINAL PINION NSK	8-94435-342-0	01	1	1305-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	1305-	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	1305-	●	●	●	●
55	CARRIER; DIFF	8-97240-889-2	01	1	1305-	●	●	●	●
56	BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1305-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(GY2) 43/10	8-98014-987-1	01	1	1305-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(GT3) 41/9	8-98014-990-1	01	1	1305-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12(GM0) 43/12	8-97374-174-1	01	1	1305-		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98014-984-1	01	1	1305-		●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GW1) 43/11	8-98014-980-1	01	1	1305-		●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11(GT4) 41/11	8-98030-515-1	01	1	1305-		●	●
70	BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	1305-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	1305-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<G80>	8-98167-619-0	01	1	1305-		●	●	●
73	SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	1305-	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	1305-	●	●	●	●
76	DISC; BEVEL LIMITED SLIP DIFF<G80>	8-97096-209-0	04	1	1305-		●	●	●
78	DISC; FRICTION LIMITED SLIP DIFF<G80>	8-94453-937-0	04	1	1305-		●	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.85	8-94365-189-0	04	1	1305-		●	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.75	8-94453-936-0	04	1	1305-		●	●	●
80	RING; PRESSURE LIMITED SLIP DIFF<G80>	8-94453-931-0	02	1	1305-		●	●	●
82	SPIDER; DIFF PINION LIMITED SLIP DIFF<G80>	8-94453-932-0	01	1	1305-		●	●	●
84	BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	1305-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1305-	●	●	●	●
126	COUPLING; DRIVING PINION	8-98166-552-0	01	1	1305-1305	●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80>	8-98166-552-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/10(GY2) EXC. HIGH RIDE SUSPENSION(7YC)	8-98166-552-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 41/9(GT3)	8-98166-552-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION A/T 5 SPEED-AISIN(MA1)	8-98166-552-0	01	1	1305-1305			●
126	COUPLING; DRIVING PINION	8-98166-552-1	01	1	1306-	●	●	●	●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80>	8-97217-146-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 43/10(GY2) HIGH RIDE SUSPENSION(7YC)	8-97217-146-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/11(GW1)	8-97217-146-0	01	1	1305-1305		●
126	COUPLING; DRIVING PINION	8-97217-146-0	01	1	1305-1305				●
126	COUPLING; DRIVING PINION M/T MUA 5 SPEED 5H(MWQ)	8-97217-146-0	01	1	1305-1305			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
