◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51479 - NLR/NMR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#120018) — 52 parça

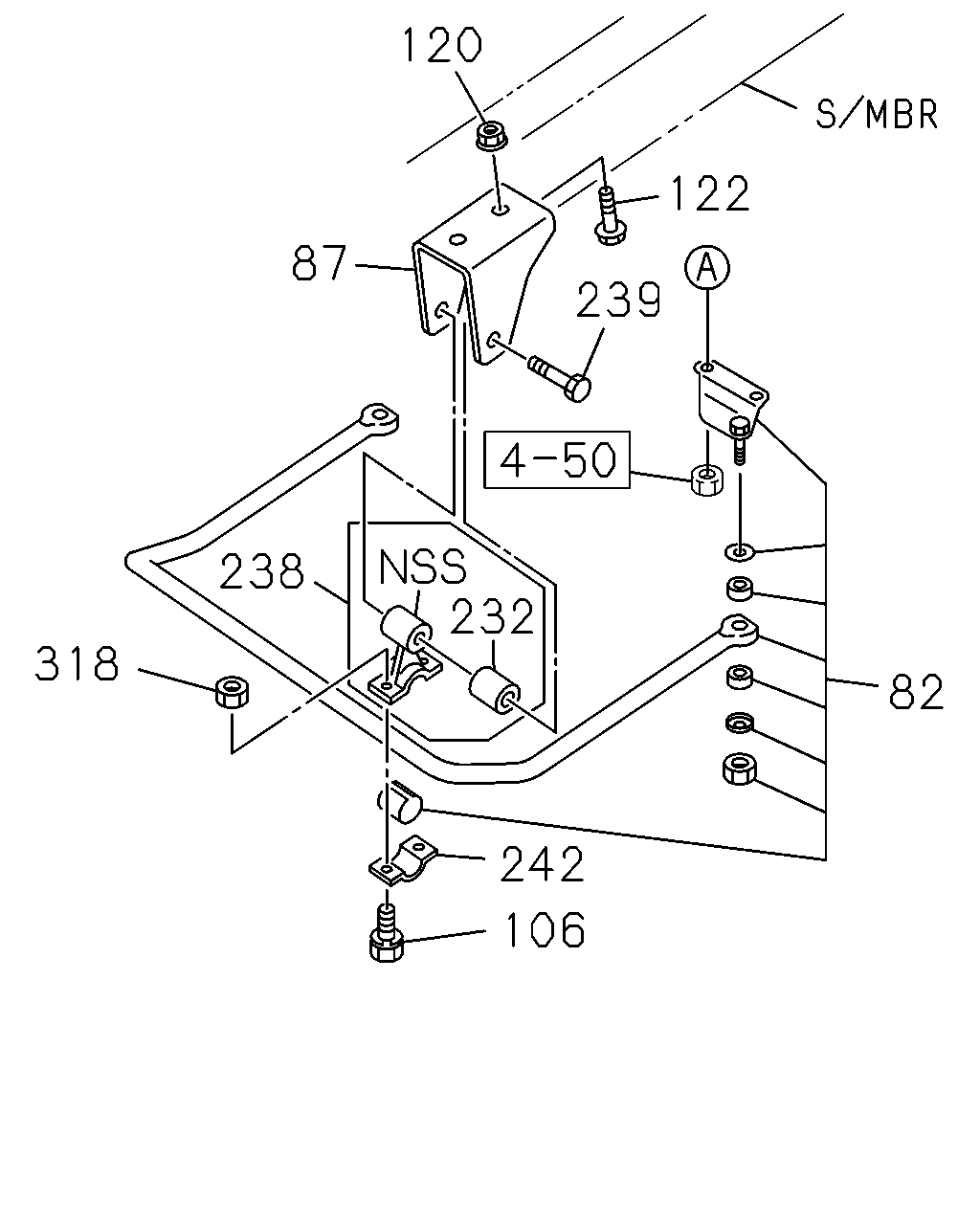

çizim 351002
120 122 239 87 238 318 242 106 82 232
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> IMA 		8-98002-084-2 01 1 1304- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> IMA 		8-98051-506-0 01 1 1304- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> IMA 		8-98051-507-0 01 1 1304- ●
106 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10X25 FLANGE THA 		0-28651-025-0 04 1 1304- ●
120 NUT; STAB BAR BRKT
FRONT STABILIZER SHAFT<F59> M12 FLANGE THA 		0-91180-212-0 04 1 1304- ●
122 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M12X30 FLANGE THA 		0-28661-230-0 04 1 1304- ●
232 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> IMA 		8-97239-911-0 02 1 1304- ●
238 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> IMA 		8-97239-908-0 02 1 1304- ●
239 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE IMA 		0-28851-470-0 02 1 1304- ●
242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> IMA 		8-94178-430-2 02 1 1304- ●
318 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> M10 FLANGE THA 		0-91180-210-0 04 1 1304- ●

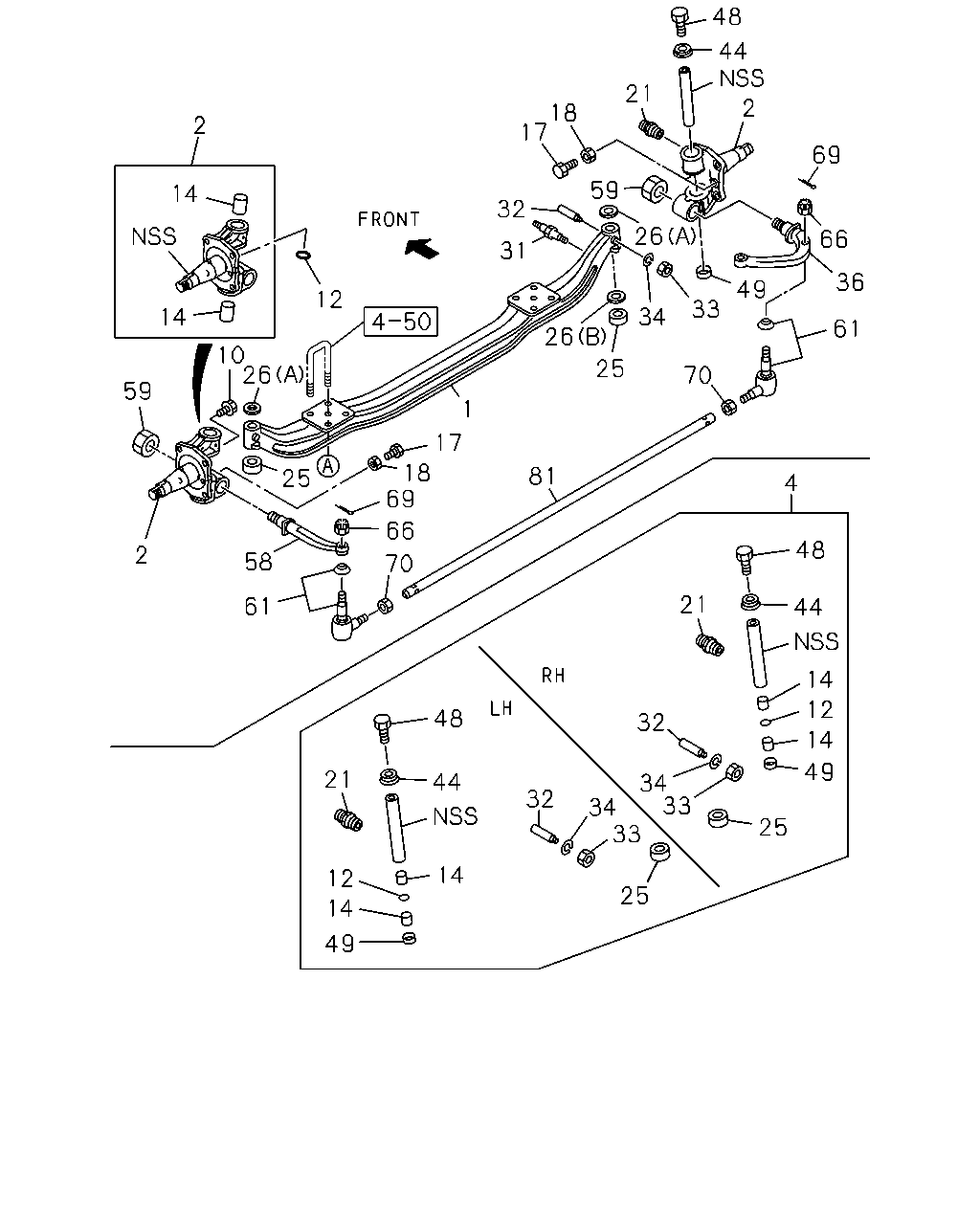

çizim 352506
48 44 2 69 21 18 17 59 26 66 61 36 49 70 33 34 25 26 31 32 12 14 14 2 10 26 59 2 58 61 25 69 18 17 66 70 81 4 48 44 21 14 12 14 49 25 33 34 32 25 33 34 32 48 44 21 14 12 14 49 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT
IMA 		8-97262-000-4 01 1 1304- ● ●
2 KNUCKLE; FRT AXLE 8-97261-545-2 01 1 1304- ● ●
2 KNUCKLE; FRT AXLE 8-97261-546-2 01 1 1304- ● ●
4 KING PIN KIT
IMA 		5-87832-220-2 01 1 1304- ● ●
10 PLUG; PLATE,KNUCKLE
IMA 		8-97360-117-0 01 1 1304- ● ●
12 GASKET; KNUCKLE
IMA 		8-98084-500-0 02 1 1304- ● ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH IMA 		8-94107-672-3 04 1 1304- ● ●
17 BOLT; STOPPER KNUCKLE
IMA 		8-98016-968-0 03 1 1304- ●
17 BOLT; STOPPER KNUCKLE
FRT&RR 7R-16-12 16X5.5F-115<CVM>,FRT&RR 7-16-12 16X5.5F-115<96H> IMA 		8-98016-968-0 03 1 1304- ●
17 BOLT; STOPPER KNUCKLE
FRT&RR 7-15-8 5.5FX15-115<46H> M12X24 EYE-BOLT IMA 		8-97360-059-0 03 1 1304- ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 IMA 		0-91111-512-0 03 1 1304- ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT THA 		0-90301-406-0 04 1 1304- ● ●
25 BEARING; THRUST,KING PIN 8-94248-883-3 01 1 1304- ● ●
25 BEARING; THRUST,KING PIN 8-97141-943-1 01 1 1304- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.50 IMA 		8-94162-574-0 AR 1 1304- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 IMA 		8-94162-575-0 AR 1 1304- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 IMA 		8-94162-576-0 AR 1 1304- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 IMA 		8-94162-577-0 AR 1 1304- ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 IMA 		8-94168-490-0 01 1 1304- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.70 IMA 		8-94174-352-0 AR 1 1304- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 IMA 		8-94174-354-0 AR 1 1304- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 IMA 		8-94174-356-0 AR 1 1304- ● ●
31 PIN; S/ABS,LWR
IMA 		8-97141-944-0 02 1 1304- ● ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1304- ● ●
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1304- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 IMA 		0-91510-510-0 02 1 1304- ● ●
36 ARM; KNUCKLE
IMA 		8-97253-712-3 01 1 1304- ● ●
44 COVER; KING PIN
OD=36 IMA 		8-97360-023-0 02 1 1304- ● ●
48 BOLT; COVER
M10X12 FLANGE IMA 		0-28051-012-0 02 1 1304- ● ●
49 CAP; KNUCKLE
IMA 		8-97360-024-0 02 1 1304- ● ●
58 ARM; TIE ROD
IMA 		8-97138-303-0 01 1 1304- ● ●
59 NUT; TIE ROD ARM
IMA 		8-97360-123-0 02 1 1304- ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 1304-1309 ● ●
61 ROD END; TIE ROD
IMA 		8-97107-349-2 01 1 1310- ● ●
61 ROD END; TIE ROD 8-97255-705-0 01 1 1304-1309 ● ●
61 ROD END; TIE ROD
IMA 		8-98251-954-0 01 1 1310- ● ●
66 NUT; TIE ROD END
M16 SLOTTED IMA 		8-98049-689-0 02 1 1304- ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 IMA 		0-81124-020-0 02 1 1304- ● ●
70 NUT; TIE ROD END
M20 LH THREAD IMA 		8-94254-726-0 01 1 1304- ● ●
70 NUT; TIE ROD END
M20 IMA 		8-98043-530-0 01 1 1304- ● ●
81 ROD; TIE
IMA 		8-97142-024-0 01 1 1304- ● ●
