◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶

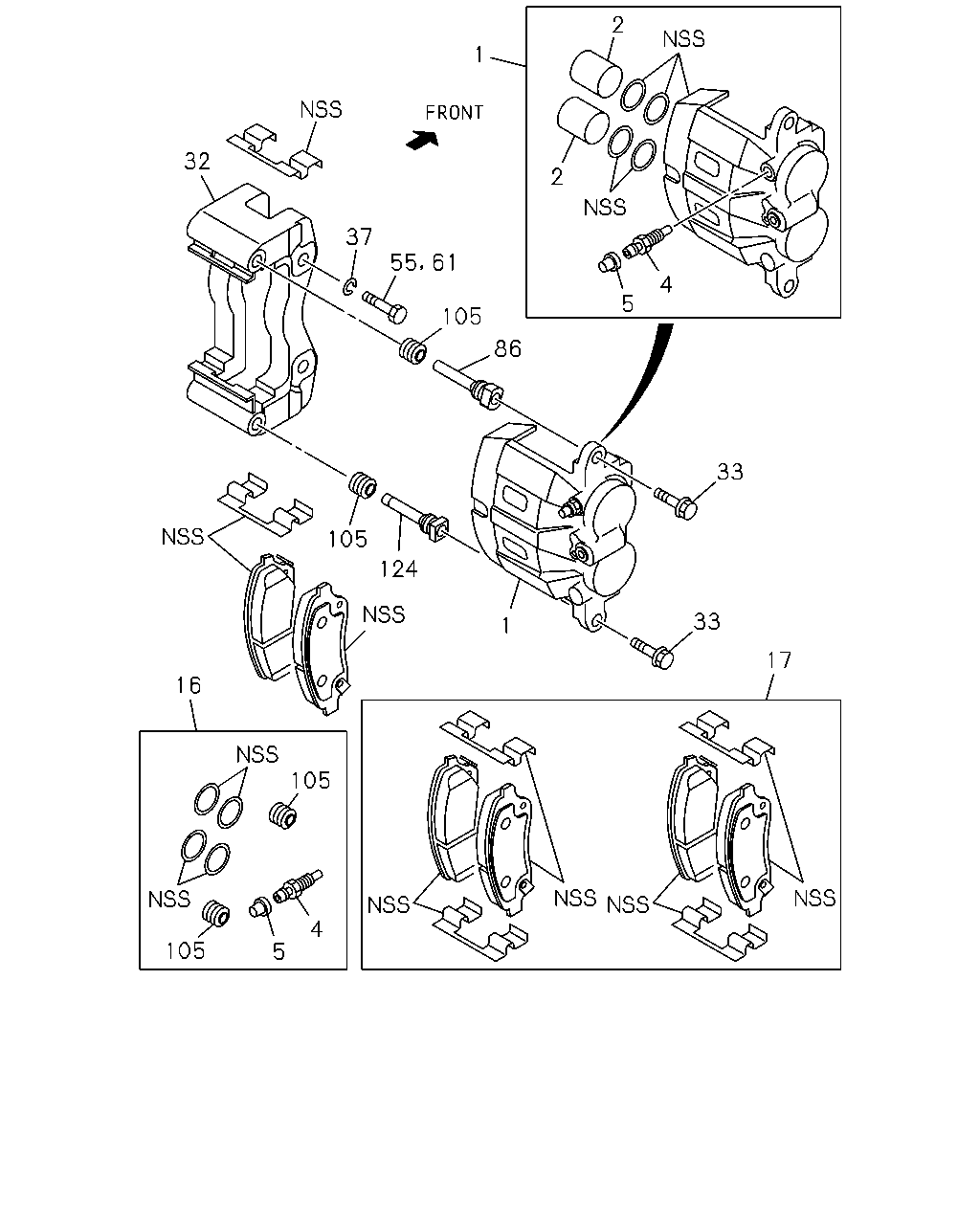

3-02 — FRONT DISC BRAKE CALIPER (#120014) — 19 parça
çizim 350771
2 5 4 2 1 32 37 55 61 105 86 105 124 16 1 33 17 33 105 105 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CALIPER; FRT DISC BRK 8-98077-996-0 01 1 1305- ● ● ● ●
1 CALIPER; FRT DISC BRK 8-98077-997-0 01 1 1305- ● ● ● ●
2 PISTON; CALIPER,DISC BRK,FRT 8-98078-000-0 04 1 1305- ● ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1305- ● ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1305- ● ● ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98079-105-0 01 1 1305- ● ● ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97947-466-0 01 1 1305-1505 ●
17 PAD KIT; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-466-0 01 1 1305-1505 ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-98298-384-0 01 1 1506- ● ● ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97947-571-0 01 1 1305-1505 ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97947-571-0 01 1 1305-1505 ● ●
32 SUPPORT; FRT DISC BRK 8-97947-221-0 02 1 1305- ● ● ● ●
33 BOLT; SUPPORT BRKT TO DISC BRK 8-98078-192-0 04 1 1305- ● ● ● ●
37 WASHER; LK
ID=14.2 		0-91510-814-0 04 1 1305- ● ● ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK 8-98037-731-0 02 1 1305- ● ● ● ●
61 BOLT; SUPPORT BRKT TO KNUCKLE 8-98037-731-0 02 1 1305- ● ● ● ●
86 PIN; GUIDE 8-98078-175-0 02 1 1305- ● ● ● ●
105 BOOT; CALIPER 8-98078-193-0 04 1 1305- ● ● ● ●
124 PIN ASM; W/BUSH 8-98078-176-0 02 1 1305- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
