Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

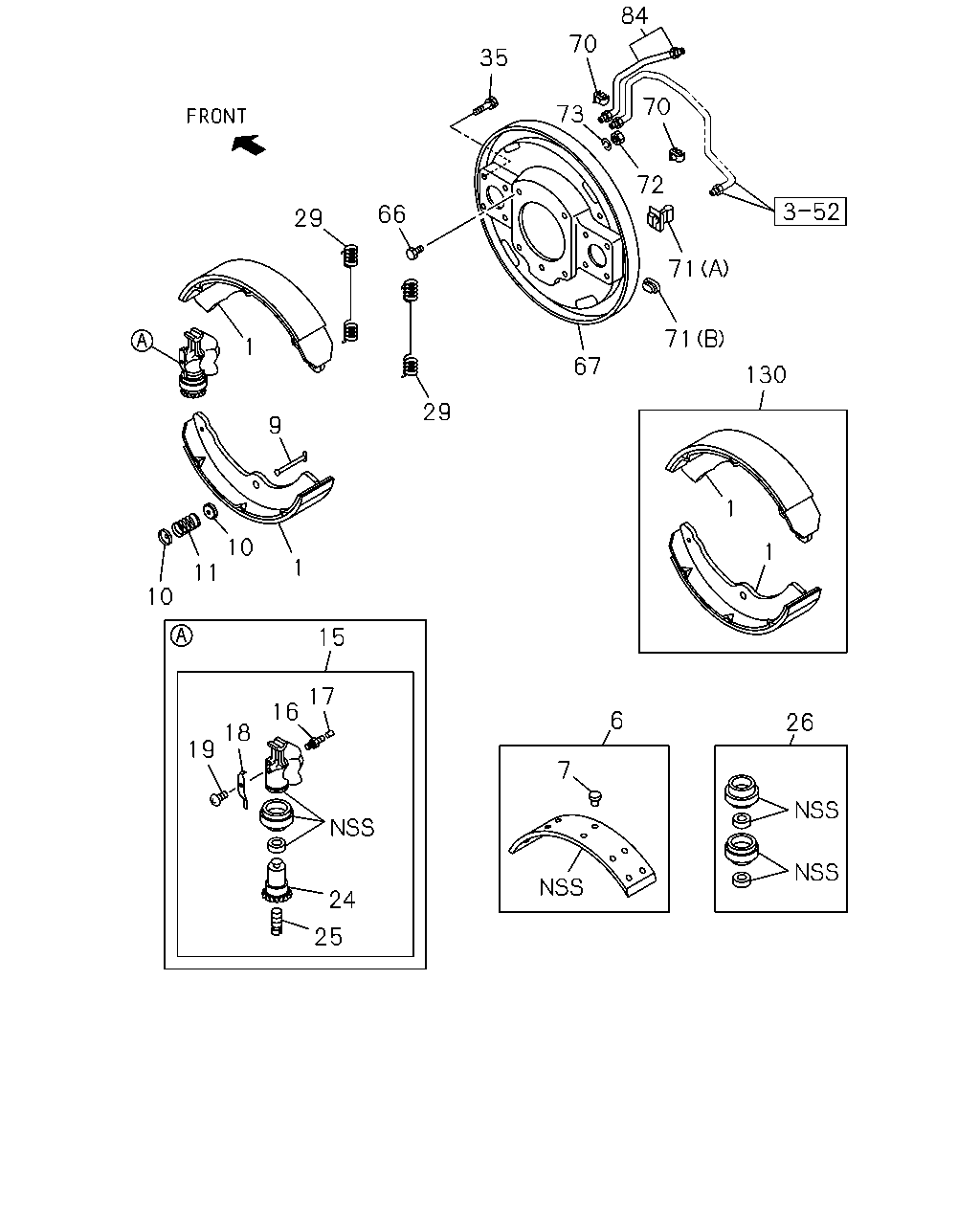

3-01 — FRONT WHEEL BRAKE
(#120013) — 32 parça
130
26
6
1
10
11
10
9
1
29
66
29
67
71
71
72
70
84
70
73
35
15
17
16
18
19
24
25
7
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
IMA
8-97188-455-0
04
1
1304-
6
LINING KIT; FRT BRK
IMA
5-87831-692-0
01
1
1304-
6
LINING KIT; FRT BRK
BEST VALUE PARTS
5-87610-119-0
01
1
1304-
6
LINING KIT; FRT BRK
BEST VALUE PARTS (THAILAND) THA
5-87616-006-0
01
1
1304-
7
RIVET; LINING,FRT BRK
IMA
1-09732-029-0
64
1
1304-
9
PIN; SHOE HOLDER
IMA
8-97122-870-0
04
1
1304-
10
CUP; SHOE HOLDING
IMA
9-47165-096-0
08
1
1304-
11
SPRING; SHOE HOLDING
IMA
5-09580-101-1
04
1
1304-
15
CYLINDER; WHEEL,FRT BRK
FRONT IMA
8-97353-573-0
01
1
1304-
15
CYLINDER; WHEEL,FRT BRK
FRONT IMA
8-97353-574-0
01
1
1304-
15
CYLINDER; WHEEL,FRT BRK
REAR IMA
8-97353-575-0
01
1
1304-
15
CYLINDER; WHEEL,FRT BRK
REAR IMA
8-97353-576-0
01
1
1304-
16
SCREW; BLEEDER,FRT BRK
IMA
8-98050-477-0
02
1
1304-
17
CAP; BLEEDER,FRT WHEEL CYL
IMA
8-98050-479-0
02
1
1304-
18
STOPPER; ADJ SCREW
IMA
8-94128-486-0
04
1
1304-
19
SCREW; STOPPER SETTING
IMA
8-94128-727-0
04
1
1304-
24
PISTON; FRT WHEEL CYL
IMA
8-97353-579-0
04
1
1304-
25
SCREW; ADJ,FRT WHEEL CYL
IMA
8-94414-702-0
04
1
1304-
26
CUP SET; FRT WHEEL CYL
IMA
5-87832-080-0
01
1
1304-
29
SPRING; RETURN,FRT BRK SHOE
IMA
8-97122-869-0
04
1
1304-
35
BOLT; FRT WHEEL CYL
IMA
8-97081-305-0
16
1
1304-
66
BOLT; OIL SHIELD COVER
M14X40 IMA
8-98007-879-0
08
1
1304-
67
PLATE; BACK,FRT BRK
IMA
8-97160-410-0
01
1
1304-
67
PLATE; BACK,FRT BRK
IMA
8-97160-411-0
01
1
1304-
70
CLIP; PIPE HOLD
IMA
8-97022-086-0
04
1
1304-
71
GROMMET; CHECK HOLE
(B) IMA
8-97017-507-0
02
1
1304-
71
GROMMET; CHECK HOLE
(A) IMA
8-97044-742-1
04
1
1304-
72
NUT; OIL SHIELD COVER
M14 THA
0-91110-514-0
08
1
1304-
73
WASHER; LK,OIL SHIELD COVER
ID=14.2 IMA
0-91510-814-0
08
1
1304-
84
PIPE; BRK,WHEEL CYL TO HOSE
THA
8-97940-703-0
01
1
1304-
84
PIPE; BRK,WHEEL CYL TO HOSE
THA
8-97940-704-0
01
1
1304-
130
SHOE KIT; BRK,FRT
IMA
5-87831-693-0
01
1
1304-
