4-20 — REAR AXLE CASE AND SHAFT (#12001) — 112 parça

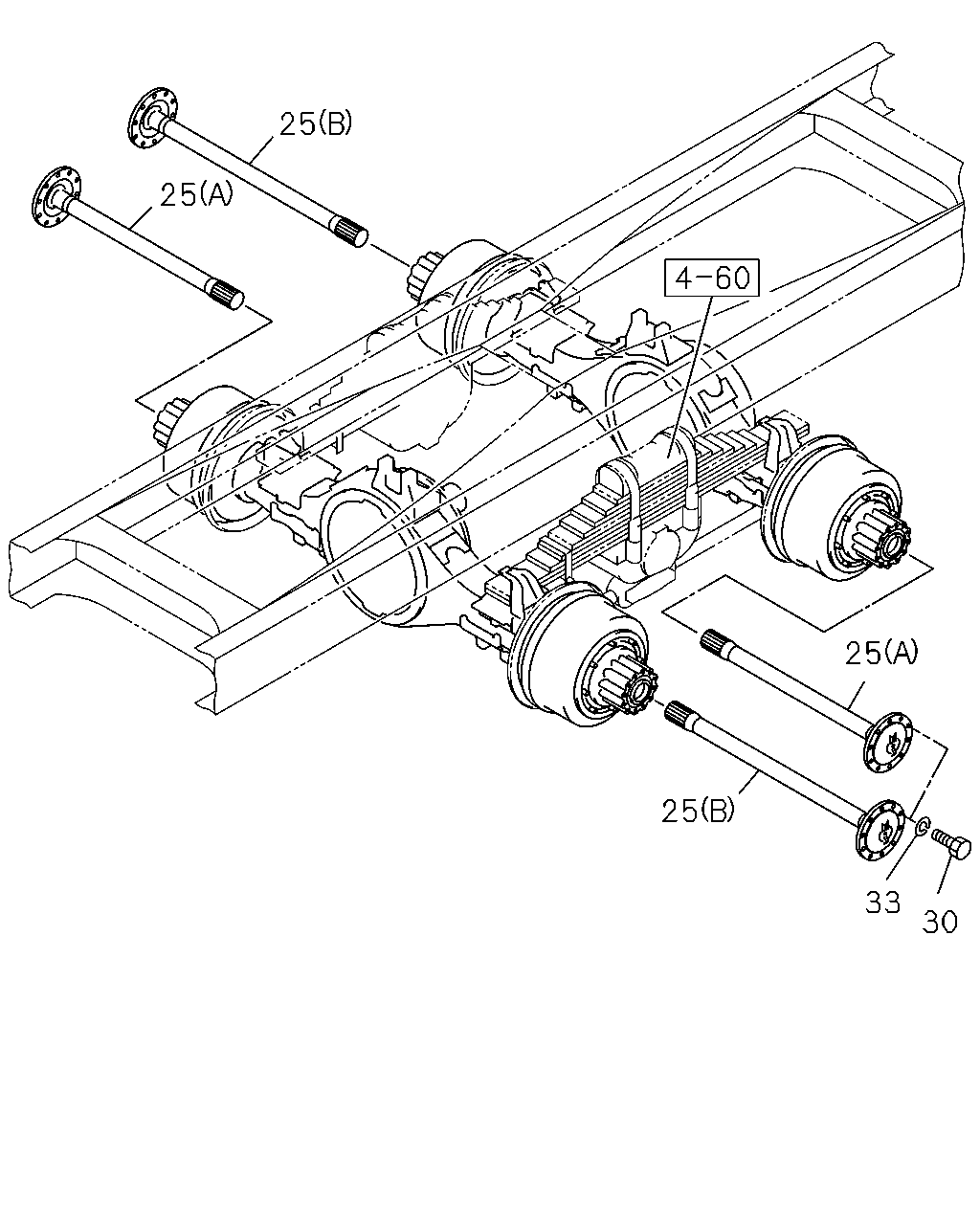

çizim 21086
25 25 25 30 33 25
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-0603
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-0603
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-

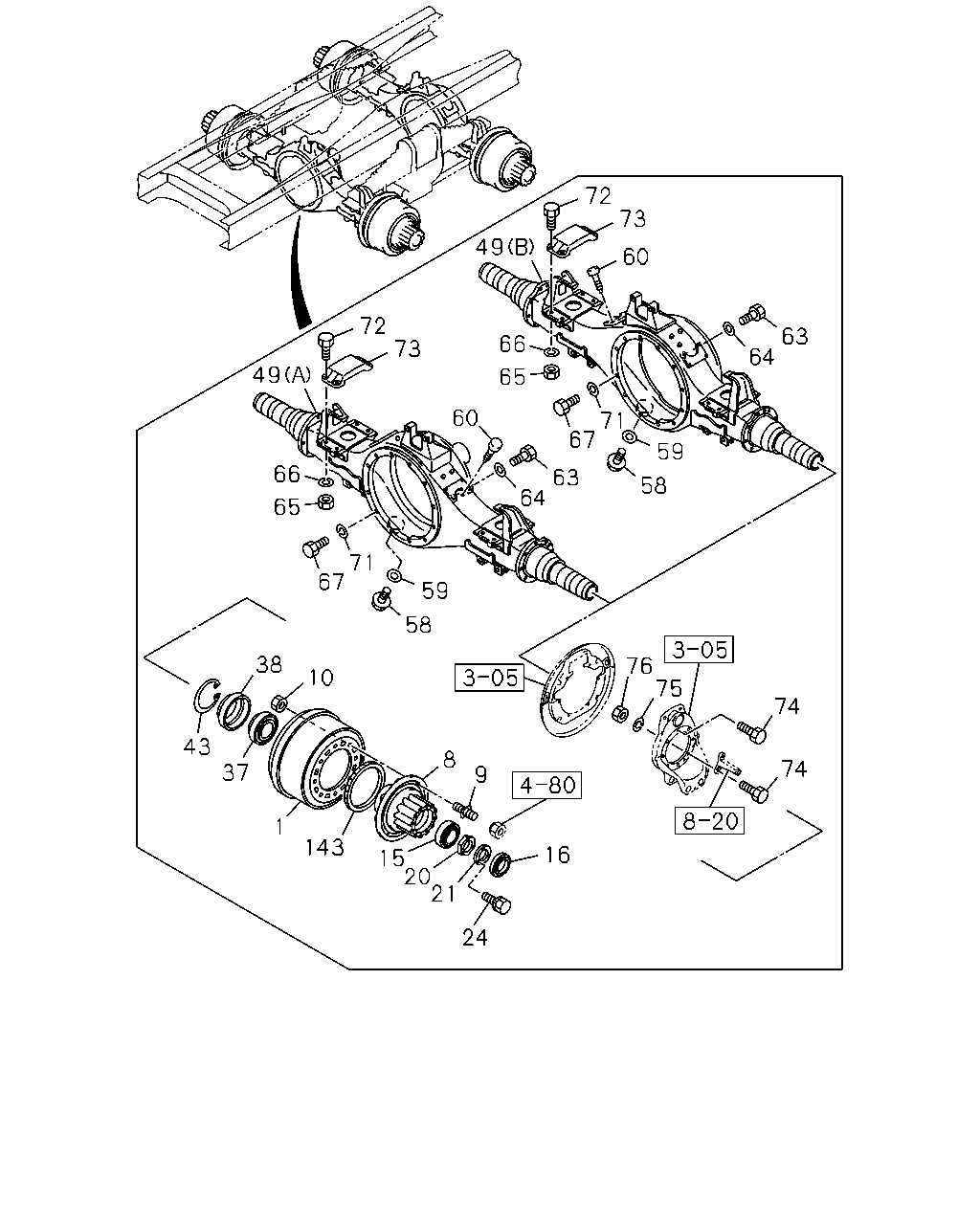

çizim 22304
72 73 60 63 64 59 58 74 74 75 76 16 24 21 20 9 8 15 143 1 37 43 38 10 58 59 71 67 65 66 49 72 73 60 64 63 67 71 65 66 49
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
8 HUB; RR AXLE
REAR AXLE RT210<C2A> 		1-42311-085-0 02 1 0105-
8 HUB; RR AXLE
REAR AXLE RT210<C2A> 		1-42311-085-0 02 1 0105-
8 HUB; RR AXLE
REAR AXLE RT260<C2B> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-42311-085-0 02 1 0105-
8 HUB; RR AXLE
REAR AXLE RT260<C2B> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-42311-085-0 02 1 0105-
8 HUB; RR AXLE
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) 		1-42311-094-0 02 1 0105-
8 HUB; RR AXLE
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) 		1-42311-094-0 02 1 0105-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-070-0 20 1 0209-0210
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> EXC. ANTILOCK BRAKE SYSTEM(BFA) M22X79.8,M22X53.5 RH THREAD 		1-42337-070-0 20 1 0209-0210
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-070-1 20 1 0211-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-070-1 20 1 0211-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-0 20 1 0209-0210
9 PIN; WHEEL,RR AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-0 20 1 0209-0210
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0211-
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0211-
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-027-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> M22X79.8,M22X53.5 RH THREAD 		1-42337-027-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> ANTILOCK BRAKE SYSTEM(BFA) M22X79.8,M22X53.5 RH THREAD 		1-42337-027-0 20 1 0209-0210
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
ANTILOCK BRAKE SYSTEM(BFA) EXC. DISC WHEEL AL<SDM> M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0209-0210
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0105-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0105-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0105-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (B) 		1-42160-979-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-933-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ECE<TDV> (A) 		1-42160-938-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. BRAKE REGULATION ECE<TDV> (A) 		1-42160-939-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,BRAKE REGULATION ECE<TDV> (A) 		1-42160-934-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-42190-236-0 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-42190-237-0 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-42160-978-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-935-1 01 1 0105-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-42160-940-1 01 1 0105-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0105-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
65 NUT
M14 		9-99110-514-0 08 1 0105-0512
65 NUT
M14 		9-99110-514-0 08 1 0105-0512
65 NUT
M14 		0-91110-514-0 08 1 0601-
65 NUT
M14 		0-91110-514-0 08 1 0601-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-0603
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-0603
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0601-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
74 BOLT; RR BRK ASM SETTING
EXC. ANTILOCK BRAKE SYSTEM(BFA) M14X50 		1-09040-066-0 14 1 0105-
74 BOLT; RR BRK ASM SETTING
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) M14X50 		1-09040-066-0 10 1 0105-
74 BOLT; RR BRK ASM SETTING
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) M14X80 		9-92621-480-0 04 1 0105-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-0512
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-0512
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
143 RING; EXCITER
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) 		1-42319-163-0 02 1 0105-0208
143 RING; EXCITER
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) 		1-42319-163-0 02 1 0105-0208
143 RING; EXCITER
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) 		1-42319-173-0 02 1 0209-
143 RING; EXCITER
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) 		1-42319-173-0 02 1 0209-
