◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51492 - NPR BUS CHAS(THAI) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#120009) — 77 parça
çizim 350517
532 38 25 172 385 143 44 2 1 36 562 8
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
THA 		8-97924-535-0 01 1 1304-
2 GASKET; PIPE TO MANIF
IMA 		8-97381-455-0 01 1 1304-
8 BRACKET; EXH PIPE
IMA 		8-97365-228-0 01 1 1304-
25 PIPE; EXH,BRK VLV TO SILENCER
THA 		8-98074-109-0 01 1 1304-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1304-
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 03 1 1304-
38 NUT; SILENCER
M10 FLANGE THA 		0-91180-110-0 02 1 1304-
44 BOLT; BRKT
M10X40 FLANGE THA 		0-28051-040-0 01 1 1304-
143 RUBBER; SUPPORT
(A) IMA 		8-97080-694-0 01 1 1304-
143 RUBBER; SUPPORT
(B) IMA 		8-98034-767-0 01 1 1304-
172 BOLT
M10X35 FLANGE THA 		0-28651-035-0 02 1 1304-
385 BRACKET; SILENCER MTG
(B) IMA 		8-97207-224-0 02 1 1304-
385 BRACKET; SILENCER MTG
(A) IMA 		8-98074-495-1 01 1 1304-
532 NUT
M10 FLANGE THA 		0-91180-110-0 04 1 1304-
562 PLATE; STUD,BOLT
M8X70 IMA 		0-10855-870-0 04 1 1304-

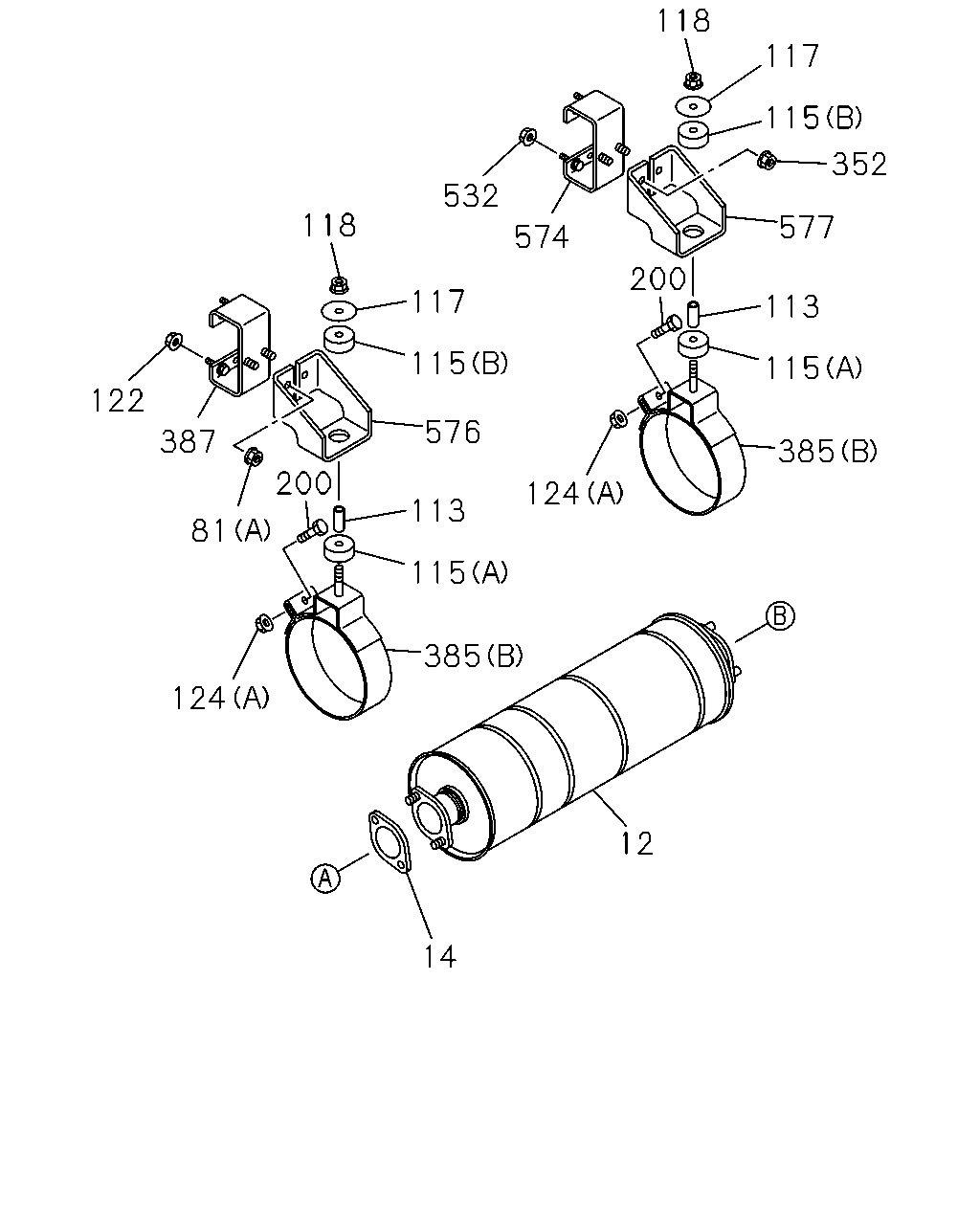

çizim 350521
117 115 118 577 113 115 385 115 113 576 124 115 117 118 200 81 387 122 124 14 12 385 352 574 532 200
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
THA 		8-97924-545-1 01 1 1304-
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 IMA 		8-94328-352-0 01 1 1304-
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1304-
113 COLLAR; DIST,MTG BRKT
L=37.5 THA 		9-22151-217-0 02 1 1304-
115 RUBBER; MTG,SILENCER
(A) IMA 		8-97379-882-0 02 1 1304-
115 RUBBER; MTG,SILENCER
(B) THA 		8-97925-254-0 02 1 1304-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 IMA 		9-09852-169-0 02 1 1304-
118 NUT; SILENCER MTG BRKT
M10 FLANGE IMA 		5-09440-006-0 02 1 1304-
122 NUT; HANGER BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 1304-
124 NUT; SUPPORT RUBBER
(A) M8 IMA 		0-91110-508-0 02 1 1304-
124 NUT; SUPPORT RUBBER
(C) M10 THA 		0-91110-510-0 01 1 1304-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304-
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER THA 		0-50540-845-0 02 1 1304-
352 NUT; BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 1304-
385 BRACKET; SILENCER MTG
(B) IMA 		8-97207-224-0 02 1 1304-
385 BRACKET; SILENCER MTG
(A) IMA 		8-98074-495-1 01 1 1304-
387 SPACER; BRKT
IMA 		8-98044-774-0 01 1 1304-
532 NUT
M10 FLANGE THA 		0-91180-110-0 04 1 1304-
574 SPACER; DPD
IMA 		8-98044-774-0 01 1 1304-
576 BRACKET; DPD FRT TO FRAME
THA 		8-98074-124-1 01 1 1304-
577 BRACKET; DPD RR TO FRAME
THA 		8-98074-124-1 01 1 1304-

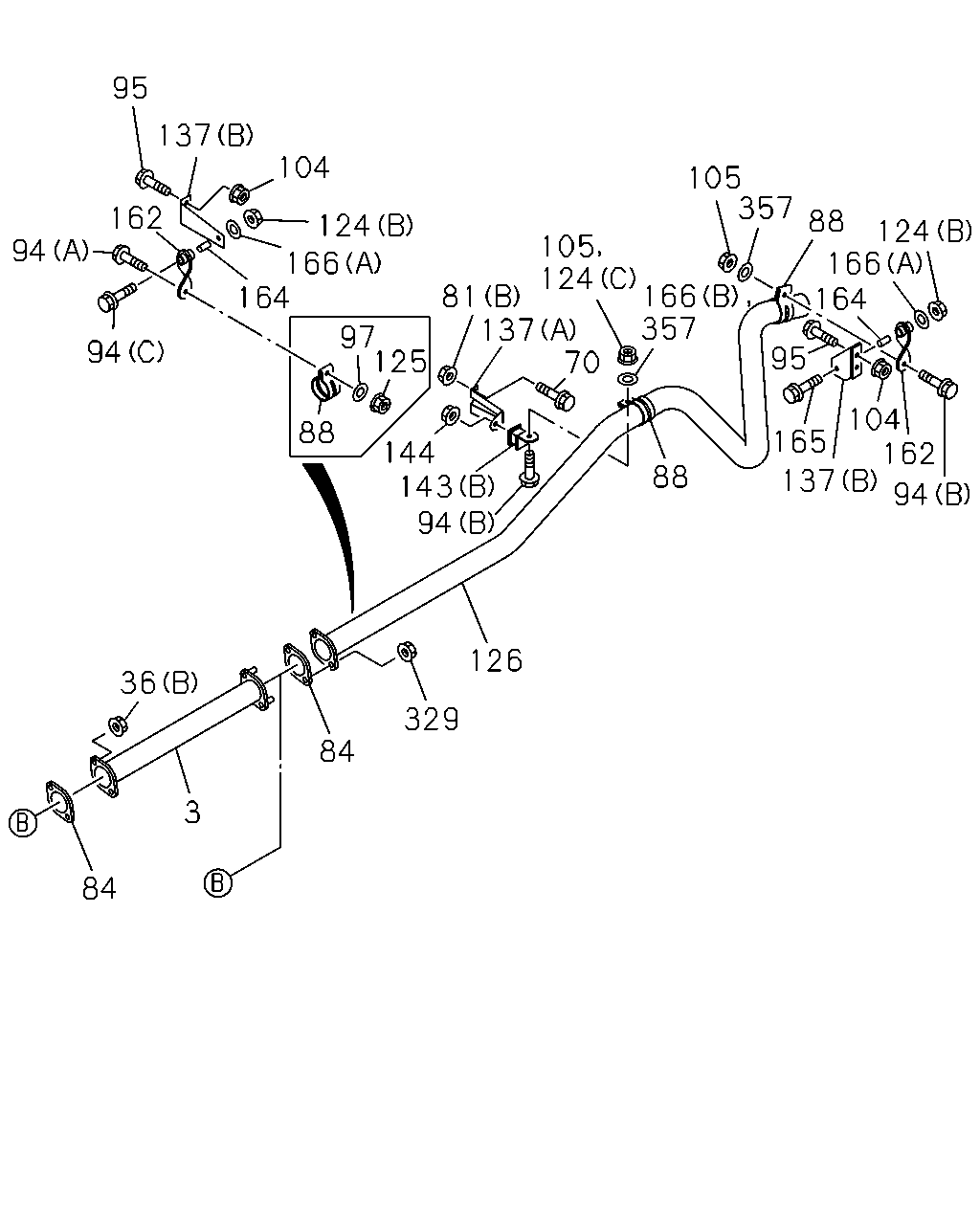

çizim 352796
95 94 94 36 84 84 126 3 329 94 143 144 164 166 124 104 137 81 105 88 165 104 137 164 166 124 105 166 70 137 124 357 95 162 94 162 357 88 125 97 88
BalonParca AdiParca NoAdetTipApplied Date
3 PIPE; EXH,CENTER
THA 		8-97307-804-0 01 1 1304-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1304-
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 03 1 1304-
70 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1304-
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1304-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1304-
84 GASKET; EXH PIPE
ID=64.7 IMA 		8-94328-352-0 01 1 1304-
84 GASKET; EXH PIPE
ID=64.7 IMA 		8-94328-352-0 01 1 1304-
88 CLAMP; EXH PIPE
IMA 		8-97373-158-0 01 1 1304-
88 CLAMP; EXH PIPE
IMA 		8-97373-158-0 02 1 1304-
94 BOLT; CLAMP
(C) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
94 BOLT; CLAMP
(A) M10X50 FLANGE THA 		8-97301-165-0 01 1 1304-
94 BOLT; CLAMP
(B) M10X45 FLANGE THA 		0-28051-045-0 01 1 1304-
94 BOLT; CLAMP
(B) M10X45 FLANGE THA 		0-28051-045-0 01 1 1304-
95 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 04 1 1304-
97 WASHER; PL,CLAMP
ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1304-
104 NUT; BRKT
M10 FLANGE THA 		0-91180-110-0 04 1 1304-
105 NUT; CLAMP
M10 THA 		0-91110-510-0 01 1 1304-
124 NUT; SUPPORT RUBBER
(A) M8 IMA 		0-91110-508-0 02 1 1304-
124 NUT; SUPPORT RUBBER
(C) M10 THA 		0-91110-510-0 01 1 1304-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304-
125 NUT; CLAMP
M10 THA 		0-91110-510-0 01 1 1304-
126 PIPE; EXH,RR
THA 		8-97924-506-0 01 1 1304-
137 BRACKET; TAIL PIPE
(B) IMA 		8-97185-801-0 02 1 1304-
137 BRACKET; TAIL PIPE
(A) IMA 		8-98090-280-0 01 1 1304-
143 RUBBER; SUPPORT
(A) IMA 		8-97080-694-0 01 1 1304-
143 RUBBER; SUPPORT
(B) IMA 		8-98034-767-0 01 1 1304-
144 NUT; MTG RUBBER
M8 FLANGE THA 		0-91180-108-0 01 1 1304-
162 RUBBER; SUPPORT,TAIL PIPE
L=115 IMA 		8-98034-765-0 01 1 1304-
162 RUBBER; SUPPORT,TAIL PIPE
L=115 IMA 		8-98034-765-0 01 1 1304-
164 COLLAR; DIST,TAIL PIPE
L=37.5 THA 		9-22151-217-0 01 1 1304-
164 COLLAR; DIST,TAIL PIPE
L=37.5 THA 		9-22151-217-0 01 1 1304-
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE THA 		0-28051-070-0 01 1 1304-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
(B) ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1304-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
(A) ID=10.5 OD=32 IMA 		0-91614-810-0 01 1 1304-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
(A) ID=10.5 OD=32 IMA 		0-91614-810-0 01 1 1304-
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1304-
357 WASHER; PL,CLAMP
ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1304-
