Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#120008) — 91 parça

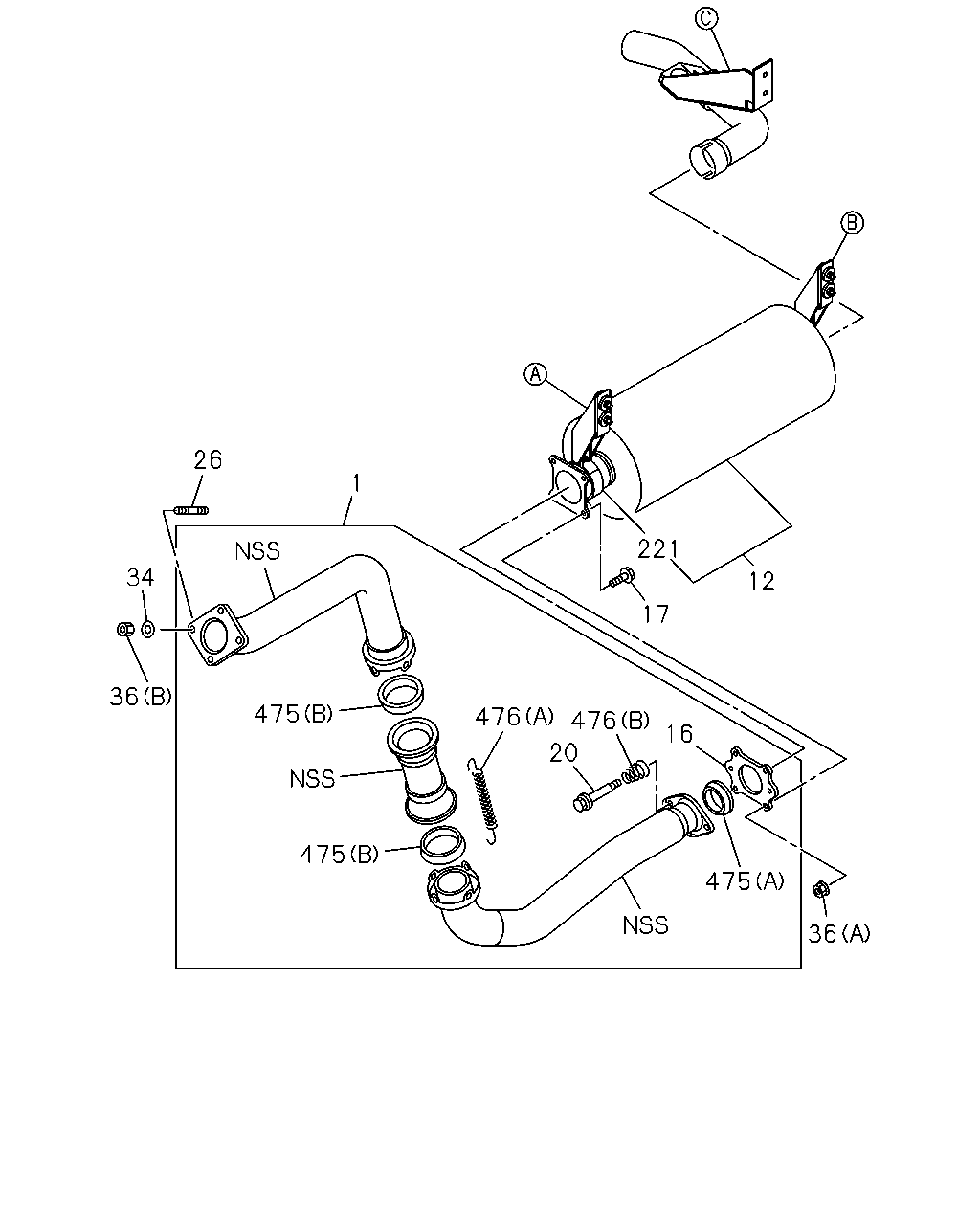

221 12 17 16 476 476 20 475 36 475 475 36 34 26 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 5300MM<53W> THA	8-97925-896-0	01	1	1305-	●
1	PIPE; EXH THA	8-97925-765-0	01	1	1305-		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1305-	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1305-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1305-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1305-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1305-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1305-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1305-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1305-	●	●
221	CLAMP; EXH SILENCER D=101.4	1-22133-170-1	01	1	1305-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1305-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1305-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1305-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1305-	●	●

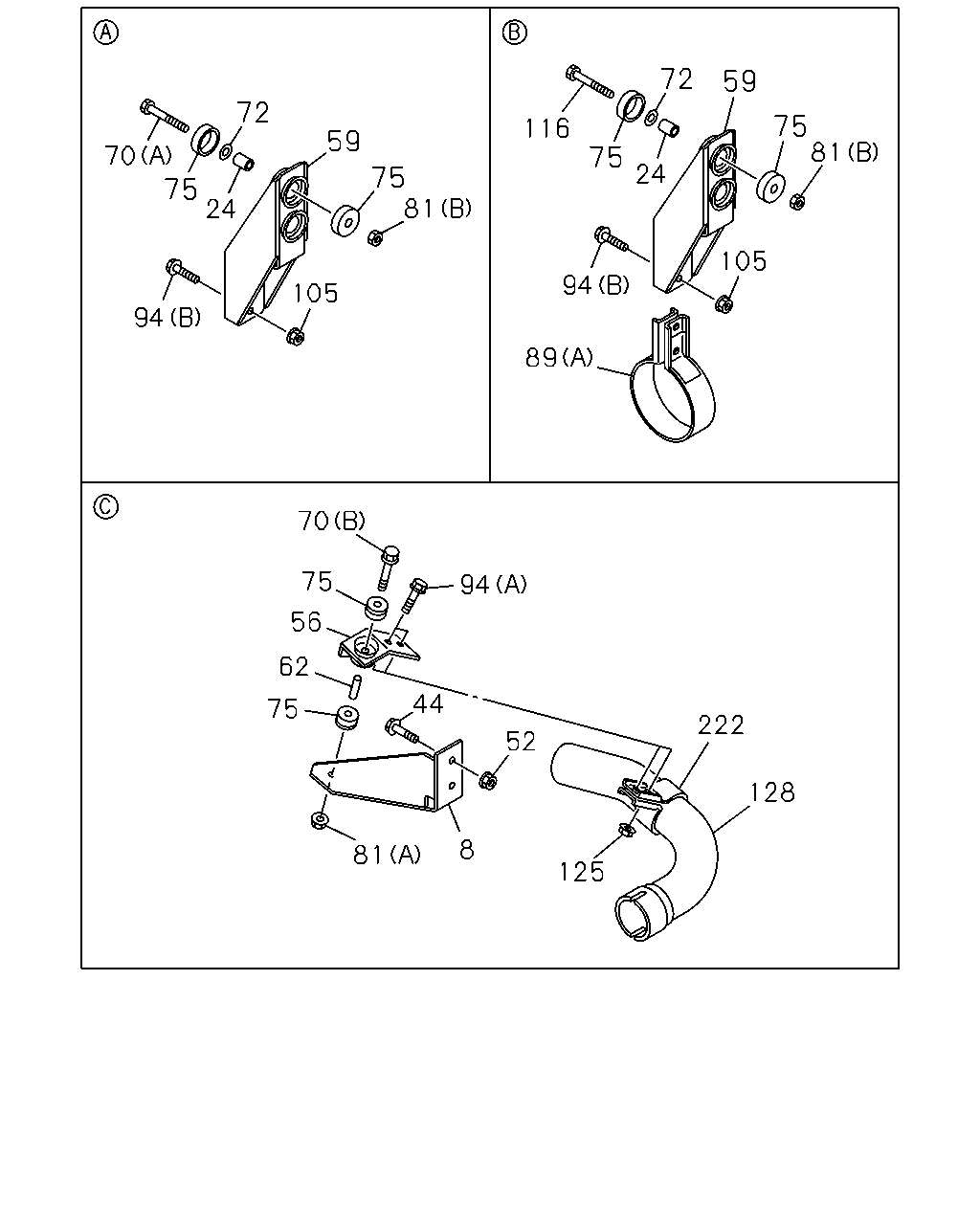

59 72 75 105 94 89 105 81 75 59 72 70 24 75 94 70 94 44 52 222 128 8 125 81 75 75 56 62 116 24 75 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE WHEEL BASE 5300MM<53W> THA	8-97640-908-0	01	1	1305-	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1305-	●	●
44	BOLT; BRKT WHEEL BASE 5300MM<53W> M10X35 FLANGE THA	0-28051-035-0	02	1	1305-	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28651-035-0	02	1	1305-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1305-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5300MM<53W> THA	8-97926-043-0	01	1	1305-	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97925-781-0	01	1	1305-		●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 5300MM<53W> THA	8-97924-889-0	02	1	1305-	●
59	BRACKET; EXH SILENCER,FRT	8-98055-106-0	02	1	1305-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1305-	●	●
70	BOLT; BRKT WHEEL BASE 5300MM<53W> (A) M10X50	0-10856-050-0	01	1	1305-	●
70	BOLT; BRKT WHEEL BASE 5300MM<53W> (A) M10X60	0-10856-060-0	01	1	1305-	●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1305-	●	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1305-		●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1305-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 5300MM<53W> OD=40 THA	1-22159-094-0	02	1	1305-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1305-	●	●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1305-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1305-	●	●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1305-	●	●
89	CLAMP; EXH SILENCER,RR (B) D=101.4	1-22133-170-1	01	1	1305-		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1305-	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1305-	●	●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1305-	●	●
116	BOLT; BRKT WHEEL BASE 5300MM<53W> M10X50	0-10856-050-0	02	1	1305-	●
116	BOLT; BRKT M10X60	0-10856-060-0	02	1	1305-		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1305-	●	●
128	PIPE; EXH,RR WHEEL BASE 5300MM<53W> THA	8-97926-046-0	01	1	1305-	●
222	CLAMP; EXH PIPE WHEEL BASE 5300MM<53W> D=101.4	1-22133-170-1	01	1	1305-	●

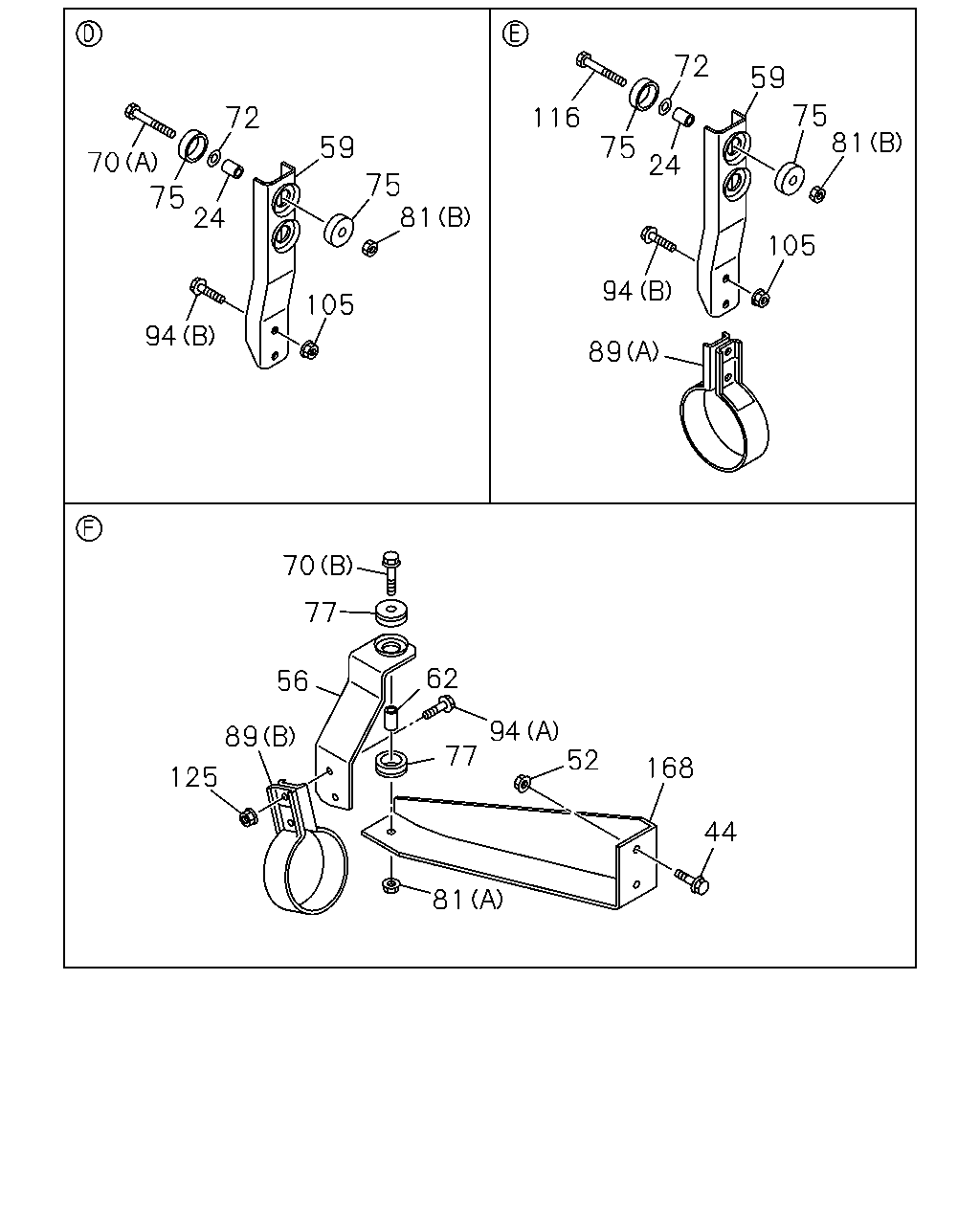

72 105 81 75 59 70 94 75 116 72 81 105 94 89 24 75 59 168 44 94 52 77 77 70 56 89 125 62 81 75 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1305-	●	●
44	BOLT; BRKT WHEEL BASE 5300MM<53W> M10X35 FLANGE THA	0-28051-035-0	02	1	1305-	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28651-035-0	02	1	1305-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1305-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5300MM<53W> THA	8-97926-043-0	01	1	1305-	●
56	BRACKET; CLAMP,EXH PIPE THA	8-97925-781-0	01	1	1305-		●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 5300MM<53W> THA	8-97924-889-0	02	1	1305-	●
59	BRACKET; EXH SILENCER,FRT	8-98055-106-0	02	1	1305-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1305-	●	●
70	BOLT; BRKT WHEEL BASE 5300MM<53W> (A) M10X50	0-10856-050-0	01	1	1305-	●
70	BOLT; BRKT WHEEL BASE 5300MM<53W> (A) M10X60	0-10856-060-0	01	1	1305-	●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1305-	●	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1305-		●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1305-	●	●
75	RUBBER; SUPPORT,BRKT WHEEL BASE 5300MM<53W> OD=40 THA	1-22159-094-0	02	1	1305-	●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1305-	●	●
77	RUBBER; CUSHION,BRKT OD=40 THA	1-22159-094-0	02	1	1305-		●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1305-	●	●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1305-	●	●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1305-	●	●
89	CLAMP; EXH SILENCER,RR (B) D=101.4	1-22133-170-1	01	1	1305-		●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1305-	●	●
94	BOLT; CLAMP (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1305-	●	●
105	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	04	1	1305-	●	●
116	BOLT; BRKT WHEEL BASE 5300MM<53W> M10X50	0-10856-050-0	02	1	1305-	●
116	BOLT; BRKT M10X60	0-10856-060-0	02	1	1305-		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1305-	●	●
168	BRACKET; EXH PIPE,FRT THA	8-98200-861-1	01	1	1305-		●

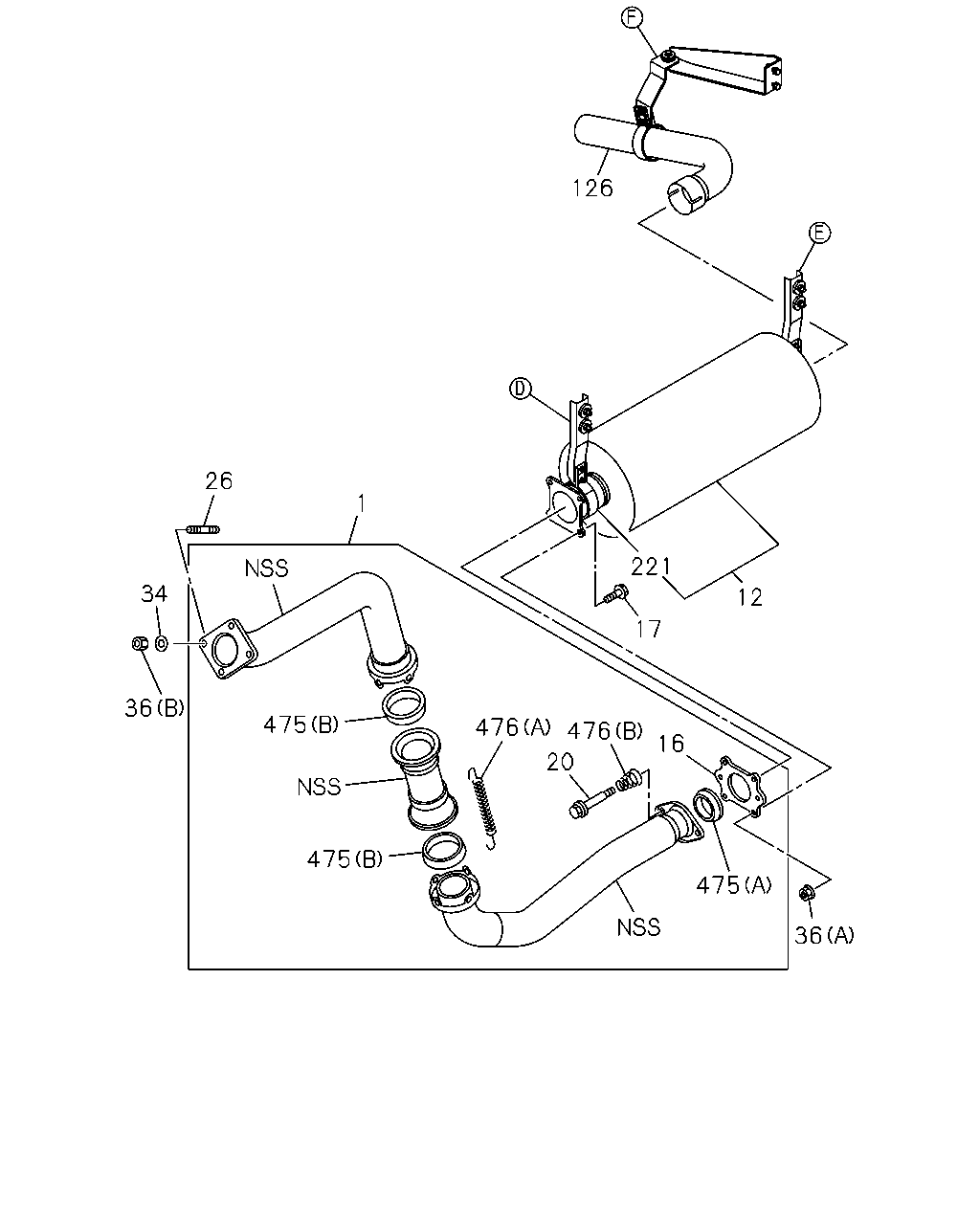

126 221 12 17 475 36 16 476 476 20 475 36 26 475 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 5300MM<53W> THA	8-97925-896-0	01	1	1305-	●
1	PIPE; EXH THA	8-97925-765-0	01	1	1305-		●
12	SILENCER ASM; EXH	8-98203-518-1	01	1	1305-	●	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1305-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1305-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1305-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1305-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1305-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1305-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1305-	●	●
126	PIPE; EXH,RR THA	8-97925-780-0	01	1	1305-		●
221	CLAMP; EXH SILENCER D=101.4	1-22133-170-1	01	1	1305-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1305-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1305-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1305-	●	●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1305-	●	●

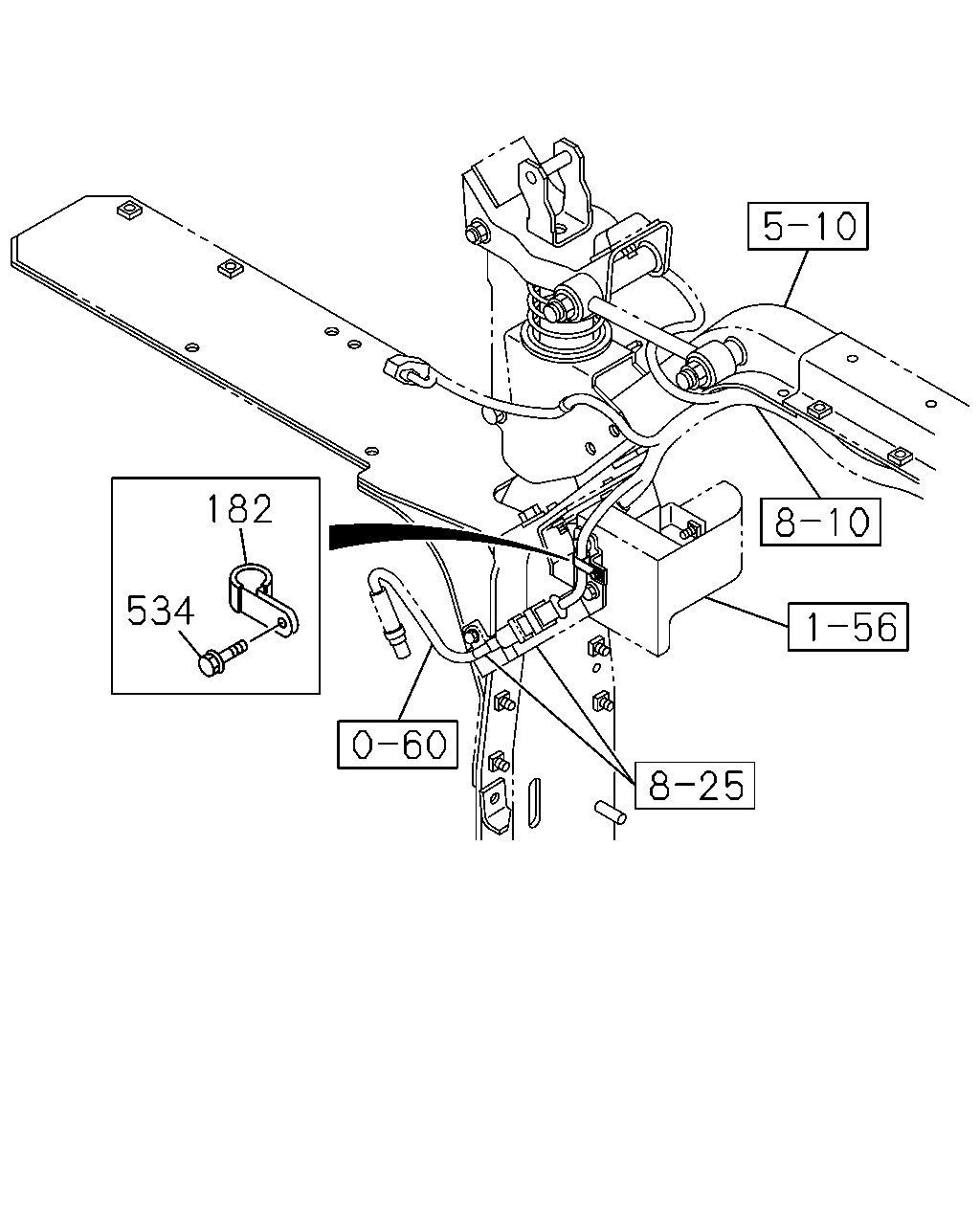

182 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	CLIP; HARNESS ID=19 L=28	0-95235-856-0	01	1	1305-	●
182	CLIP; HARNESS ID=11 L=24	0-95235-045-0	01	1	1305-		●
534	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1305-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
