◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#120005) — 307 parça

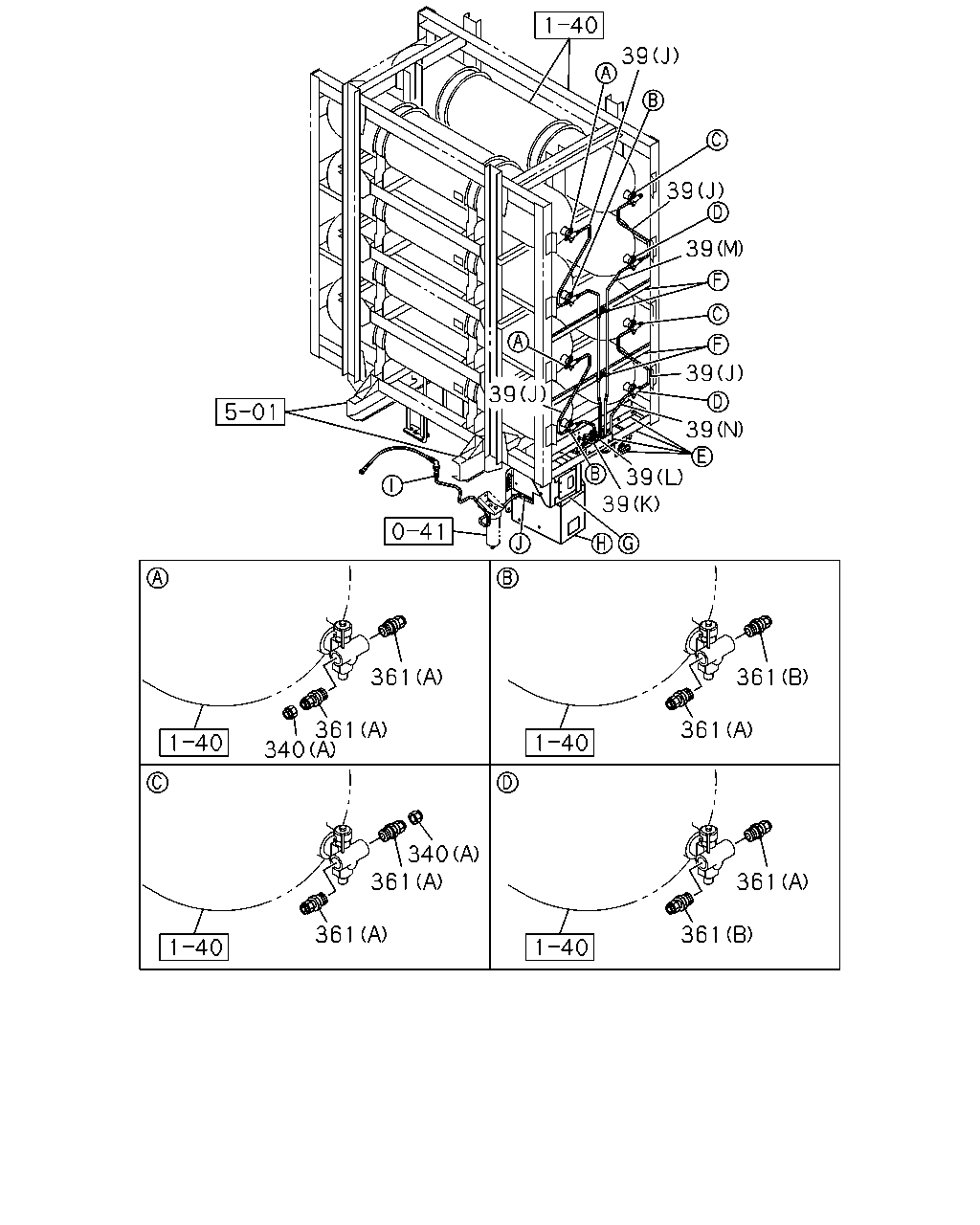

çizim 350469
39 39 39 39 39 39 39 39 361 361 340 361 361 361 361 340 361 361
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1305- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1305- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1305- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1305- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1305- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1305- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1305- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1305- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1305- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1305- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1305- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1305- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1305- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1305- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1305- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1305- ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1305- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1305- ● ●

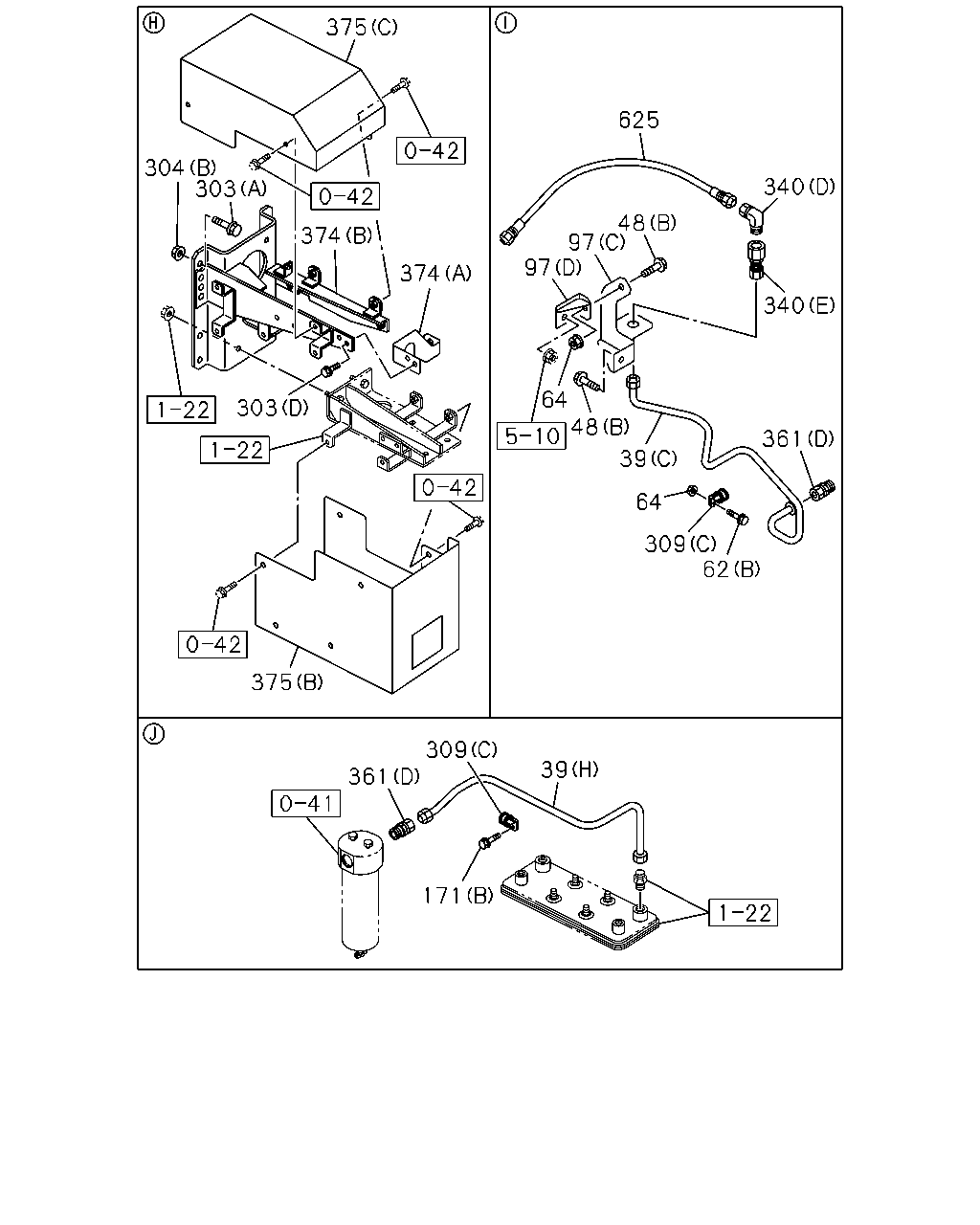

çizim 350483
625 340 340 361 39 309 62 48 64 97 97 48 375 304 374 303 374 64 375 309 39 361 171 303
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1305- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1305- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1305- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1305- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1305- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1305- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1305- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1305- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1305- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1305- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1305- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1305- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1305- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1305- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1305- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1305- ●
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1305- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1305- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1305- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1305- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1305- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1305- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1305- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1305- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1305- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1305- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1305- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1305- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1305- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1305- ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1305- ● ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1305- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1305- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1305- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1305- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1305- ● ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1305- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1305- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1305- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1305- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1305- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1305-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1305- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1305- ● ●
374 BRACKET; REGULATOR
(A) THA 		8-97925-786-0 01 1 1305- ● ●
374 BRACKET; REGULATOR
(B) THA 		8-97925-970-1 01 1 1305- ● ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1305- ● ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1305- ● ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1305- ● ●
625 HOSE; FUEL,CNG 8-97925-799-0 01 1 1305- ● ●

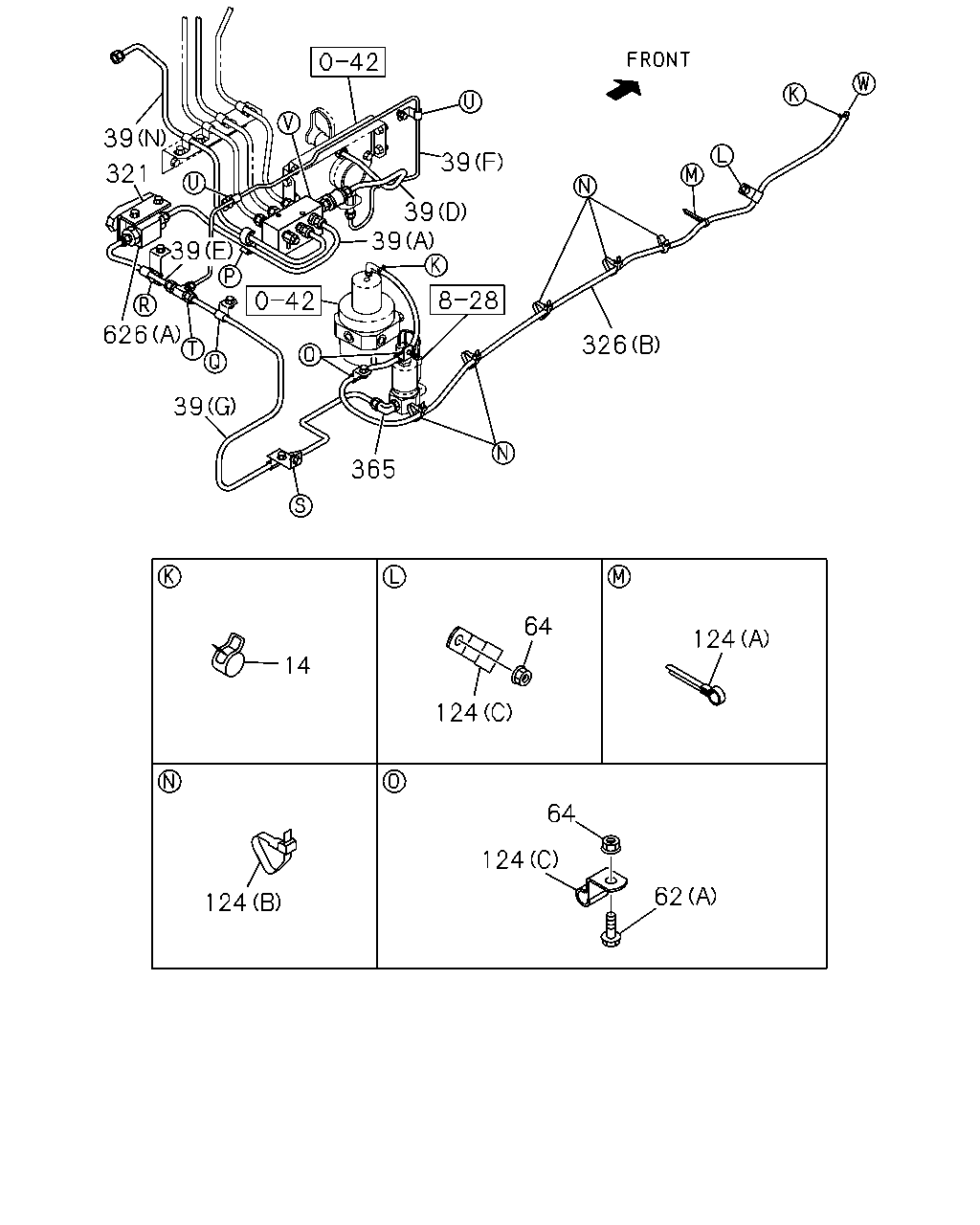

çizim 350487
326 365 39 626 39 39 39 39 39 321 14 124 64 124 64 62 124 124
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; HOSE 8-98209-375-0 02 1 1305- ● ●
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1305- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1305- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1305- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1305- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1305- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1305- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1305- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1305- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1305- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1305- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1305- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1305- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1305- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1305- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1305- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1305- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1305- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1305- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1305- ● ●
124 CLIP; HOSE
(A) ID=11 L=61 		1-09700-484-0 01 1 1305- ● ●
124 CLIP; HOSE
(B) L=250 		5-09707-030-1 05 1 1305- ● ●
124 CLIP; HOSE
(C) ID=11 H=20 L=20 		8-98033-780-0 03 1 1305- ● ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1305- ● ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1305- ● ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1305- ● ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1305- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1305- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1305- ● ●
çizim 350495
62 64 309 62 48 64 103 97 309 309 62 64 309 103 64 48 309 62 97 340 341 341 341 341 340 340 340 626 459
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1305- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1305- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1305- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1305- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1305- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1305- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1305- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1305- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1305- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1305- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1305- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1305- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1305- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1305- ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1305- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1305- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1305- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1305- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1305-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1305- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1305- ● ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1305- ● ●
459 VALVE; CHECK 8-97925-798-0 01 1 1305- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1305- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1305- ● ●
çizim 350498
80 41 41 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1305- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1305- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1305- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1305- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1305- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1305- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1305- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1305- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1305- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1305- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1305- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1305- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1305- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1305- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1305- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1305- ●
41 CLIP; FUEL PIPE,FUEL TANK 8-97601-912-0 02 1 1305- ● ●
80 BOLT; CLIP,FUEL TANK
M6X35 FLANGE 		0-28050-635-0 01 1 1305- ● ●
çizim 350500
326 318 309 309 171 282 282 309 309 97 171 303
BalonParca AdiParca NoAdetTipApplied Date A B
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1305- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1305- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1305- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1305- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1305- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1305- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1305- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1305- ●
171 BOLT; CLIP
(A) M6X35 FLANGE THA 		0-28650-635-0 03 1 1305- ● ●
171 BOLT; CLIP
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
282 CLIP; HOSE,RUBBER
(A) L=260 		8-97127-894-0 02 1 1305- ● ●
282 CLIP; HOSE,RUBBER
(B) 		8-98209-375-0 02 1 1305- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1305- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1305- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1305- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1305- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1305- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1305- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1305- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1305- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1305-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
318 PIPE; VACUUM
THA 		8-97926-077-0 01 1 1305- ● ●
326 HOSE; VACUUM
(A) 		8-98209-374-0 01 1 1305- ● ●
326 HOSE; VACUUM
(B) 		8-98211-427-1 01 1 1305- ● ●

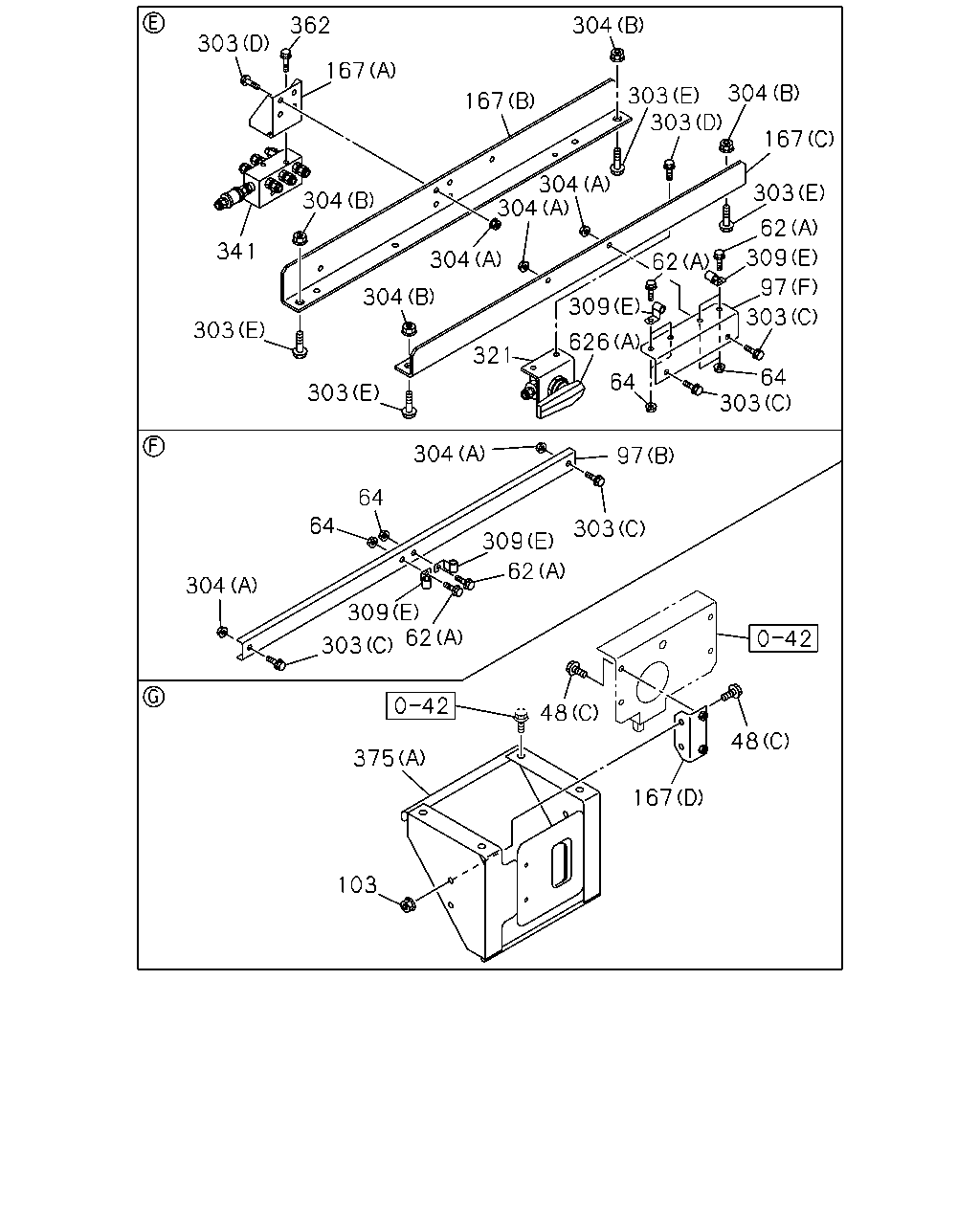

çizim 352143
303 64 303 97 309 62 303 167 304 303 303 304 167 167 304 304 304 304 304 309 64 626 321 303 303 341 303 362 62 304 64 304 309 303 62 309 303 97 64 375 48 167 48 103
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1305- ●
48 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 08 1 1305- ● ●
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305- ● ●
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1305- ●
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 15 1 1305- ● ●
62 BOLT; CLIP FIX
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1305- ● ●
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 17 1 1305- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-912-0 01 1 1305- ●
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1305- ● ●
97 BRACKET; CLIP
(B) THA 		8-97925-722-0 02 1 1305- ● ●
97 BRACKET; CLIP
(D) THA 		8-97925-759-0 01 1 1305- ● ●
97 BRACKET; CLIP
(E) THA 		8-97925-771-0 01 1 1305- ● ●
97 BRACKET; CLIP
(F) THA 		8-97925-840-0 01 1 1305- ● ●
97 BRACKET; CLIP
(G) THA 		8-97926-026-0 01 1 1305- ● ●
97 BRACKET; CLIP
(C) THA 		8-97925-757-0 01 1 1305- ●
103 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 06 1 1305- ● ●
167 BRACKET
(A) THA 		8-97925-720-0 01 1 1305- ● ●
167 BRACKET
(B) THA 		8-97925-727-1 01 1 1305- ● ●
167 BRACKET
(C) THA 		8-97925-728-1 01 1 1305- ● ●
167 BRACKET
(D) THA 		8-97925-843-0 02 1 1305- ● ●
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28051-235-0 06 1 1305- ● ●
303 BOLT; BRKT
(B) M10X16 FLANGE THA 		0-28151-016-0 01 1 1305- ● ●
303 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1305- ● ●
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 09 1 1305- ● ●
303 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1305- ● ●
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 10 1 1305- ● ●
304 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 10 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1305- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1305- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1305- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1305- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1305-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
321 BRACKET; VLV
THA 		8-97925-721-0 01 1 1305- ● ●
341 MANIFOLD; CNG 8-97925-815-1 01 1 1305- ● ●
362 BOLT; MANIFOLD
M8X16 FLANGE THA 		0-28050-816-0 02 1 1305- ● ●
375 COVER; REGULATOR
(A) THA 		8-97925-766-0 01 1 1305- ● ●
375 COVER; REGULATOR
(B) THA 		8-97925-971-0 01 1 1305- ● ●
375 COVER; REGULATOR
(C) THA 		8-97925-972-0 01 1 1305- ● ●
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-824-0 01 1 1305- ● ●
626 VALVE; FUEL RECIRCULATION
(A) 		8-97925-797-0 01 1 1305- ● ●
çizim 352280
361 340 455 39 39 309 455 278 365 51
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(G) THA 		8-97925-876-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-981-0 01 1 1305- ●
39 PIPE; FUEL
(C) THA 		8-97925-982-0 01 1 1305- ●
39 PIPE; FUEL
(A) THA 		8-97925-724-0 01 1 1305- ● ●
39 PIPE; FUEL
(B) THA 		8-97925-740-0 01 1 1305- ● ●
39 PIPE; FUEL
(D) THA 		8-97925-767-1 01 1 1305- ● ●
39 PIPE; FUEL
(E) THA 		8-97925-768-0 01 1 1305- ● ●
39 PIPE; FUEL
(F) THA 		8-97925-769-0 01 1 1305- ● ●
39 PIPE; FUEL
(I) THA 		8-97925-974-0 01 1 1305- ● ●
39 PIPE; FUEL
(J) THA 		8-97925-976-0 04 1 1305- ● ●
39 PIPE; FUEL
(K) THA 		8-97925-977-0 01 1 1305- ● ●
39 PIPE; FUEL
(L) THA 		8-97925-978-0 01 1 1305- ● ●
39 PIPE; FUEL
(M) THA 		8-97925-979-0 01 1 1305- ● ●
39 PIPE; FUEL
(N) THA 		8-97925-980-0 01 1 1305- ● ●
39 PIPE; FUEL
(O) THA 		8-97926-058-0 01 1 1305- ● ●
39 PIPE; FUEL
(C) THA 		8-97925-758-0 01 1 1305- ●
39 PIPE; FUEL
(G) THA 		8-97925-770-0 01 1 1305- ●
39 PIPE; FUEL
(H) THA 		8-97925-973-0 01 1 1305- ●
51 NUT; CLIP,PIPE
M8 FLANGE THA 		0-91180-108-0 01 1 1305- ● ●
278 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=30 L=30 		1-09701-080-0 01 1 1305- ●
309 CLIP; PIPE
(A) ID=11 L=28 		0-95235-055-0 01 1 1305- ● ●
309 CLIP; PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ● ●
309 CLIP; PIPE
(C) ID=16 H=25 L=25 		1-09701-162-0 01 1 1305- ●
309 CLIP; PIPE
(D) ID=10 & 10 		1-09709-277-1 01 1 1305- ● ●
309 CLIP; PIPE
(E) ID=11 H=20 L=20 		8-98033-780-0 11 1 1305- ● ●
309 CLIP; PIPE
(F) 		8-98039-293-0 06 1 1305-1405 ● ●
309 CLIP; PIPE
(F) 		8-98148-996-2 06 1 1406- ● ●
340 CONNECTOR; CNG
(H) 		1-22427-145-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(A) 		1-22427-158-0 04 1 1305- ● ●
340 CONNECTOR; CNG
(B) 		8-97925-787-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(C) 		8-97925-790-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(G) 		8-97925-791-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(D) 		8-97925-794-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(E) 		8-97925-796-0 01 1 1305- ● ●
340 CONNECTOR; CNG
(F) 		8-97925-962-0 04 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(A) 		1-22427-010-0 12 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(B) 		1-22427-065-0 04 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(C) THA 		8-97925-762-0 01 1 1305- ● ●
361 CONNECTOR; FUEL TANK
(D) 		8-97925-792-0 02 1 1305- ● ●
365 CONNECTOR; MAGNETIC VLV 8-97925-789-0 02 1 1305- ● ●
455 CONNECTOR; REGULATOR
(A) 		8-97925-789-0 01 1 1305- ● ●
455 CONNECTOR; REGULATOR
(B) 		8-97925-793-0 01 1 1305- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
