1-41 — FUEL PIPING; CHASSIS (#120004) — 20 parça

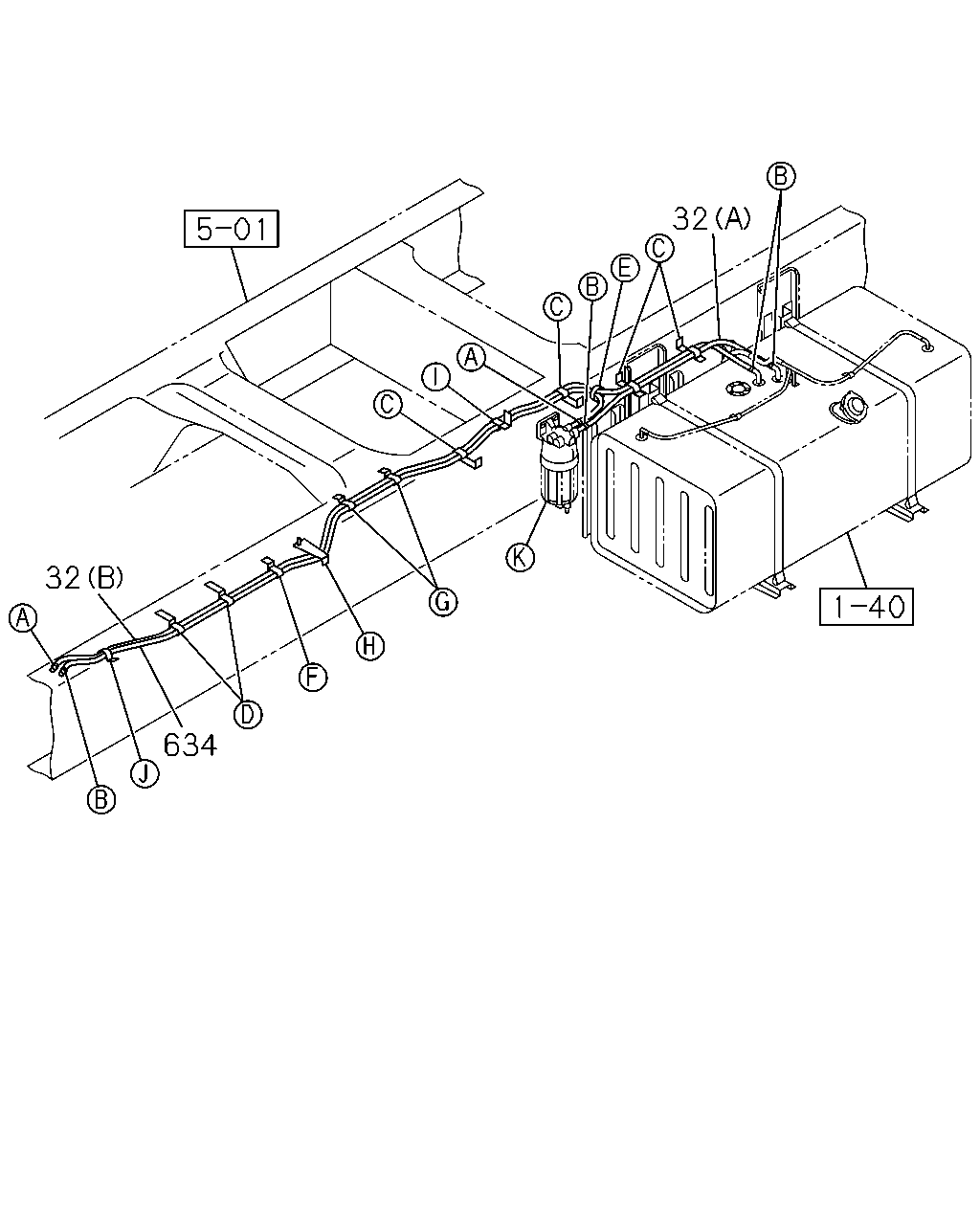

çizim 350477
32 32 634
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1305-
32 PIPE; DELIVERY,FUEL TANK
(B) L=2950 SERVICED BY L=3000 		0-01262-300-0 01 1 1305-
634 HOSE; RUBBER RETURN
L=3400 SERVICED BY L=8000 		0-01260-800-0 01 1 1305-

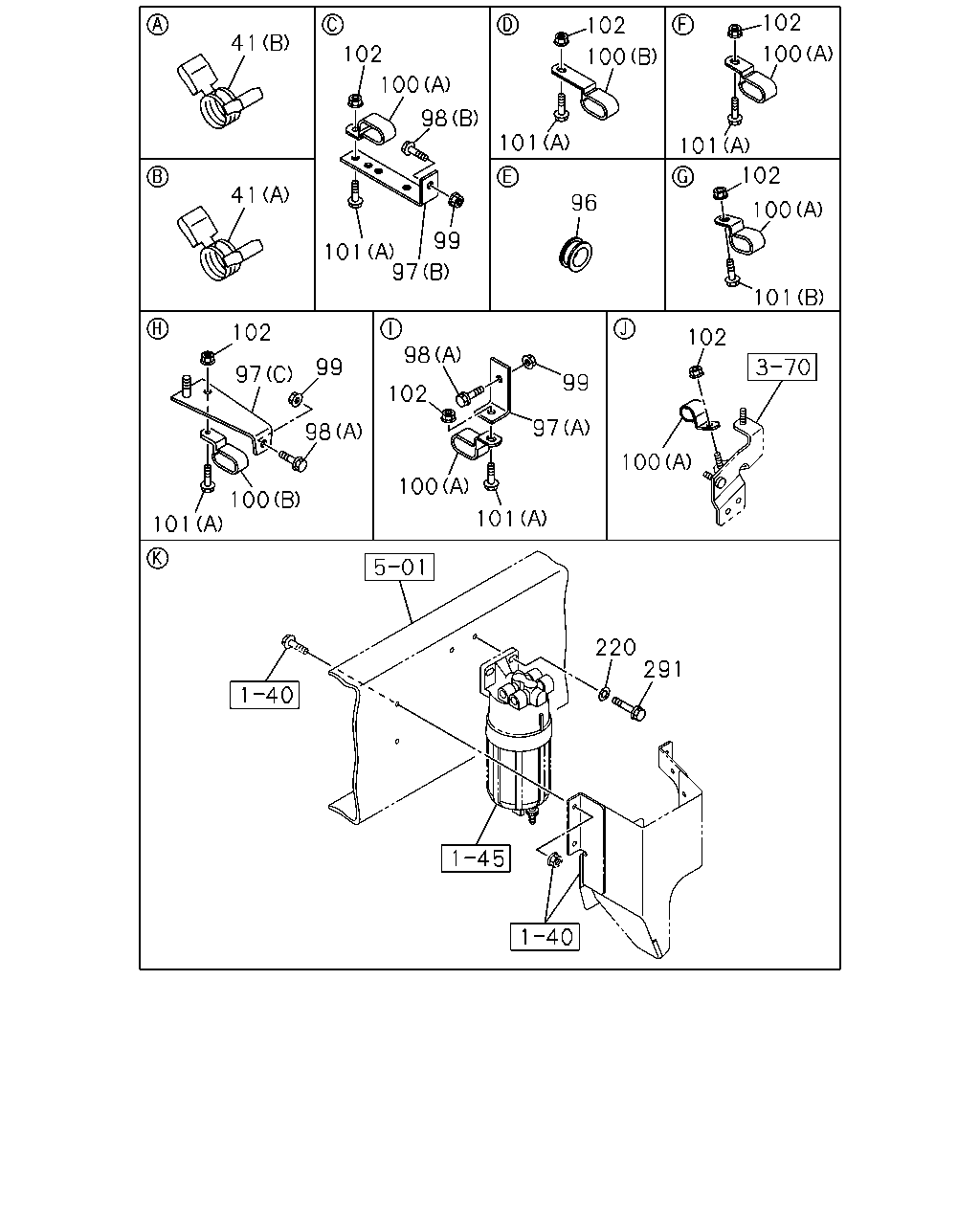

çizim 352749
41 41 102 100 98 101 99 97 102 100 101 102 100 101 96 102 100 101 102 100 98 102 100 97 99 101 102 97 99 98 100 101 220 291
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1305-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1305-
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1305-
97 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 1305-
97 BRACKET; CLIP
(B) 		1-82698-358-0 04 1 1305-
97 BRACKET; CLIP
(C) 		8-97609-096-0 01 1 1305-
98 BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305-
98 BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 04 1 1305-
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE THA 		0-91180-108-0 06 1 1305-
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 1305-
100 CLIP; FUEL PIPE
(A) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 07 1 1305-
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 03 1 1305-
101 BOLT; CLIP,FUEL PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 09 1 1305-
101 BOLT; CLIP,FUEL PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE THA 		0-91180-108-0 12 1 1305-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1305-
291 BOLT; FILER TO BRKT
M10X60 FLANGE THA 		0-28051-060-0 02 1 1305-
