◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11539 - CYH CHINA EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#120001) — 26 parça

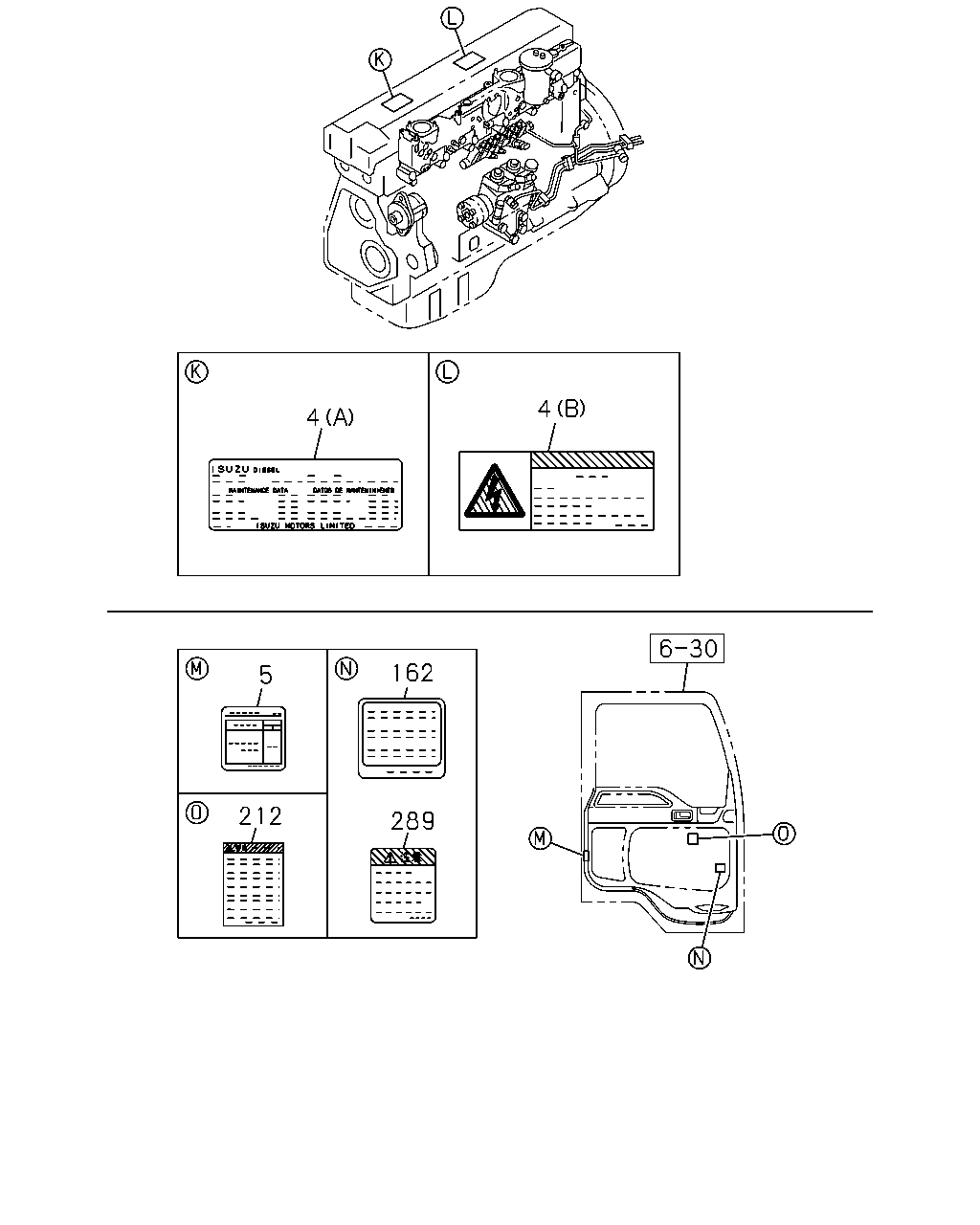

çizim 350649
4 4 5 162 289 212
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		1-85875-456-0 01 1 1305-
4 LABEL; ENG MAINTENANCE
6WG1 TC-N(71L) (A) 		8-98198-872-0 01 1 1305-
4 LABEL; ENG MAINTENANCE
6WG1 TC-R(75L) (A) 		8-98198-873-0 01 1 1305-
5 LABEL; TIRE AIR PRESSURE 8-98201-252-0 01 1 1305-
162 PLATE; CAUTION,FUEL 1-85875-457-0 01 1 1305-
212 LABEL; SAFETY 1-85883-208-0 01 1 1305-
289 PLATE; CAUTION,DRIVING 1-85883-223-1 01 1 1305-

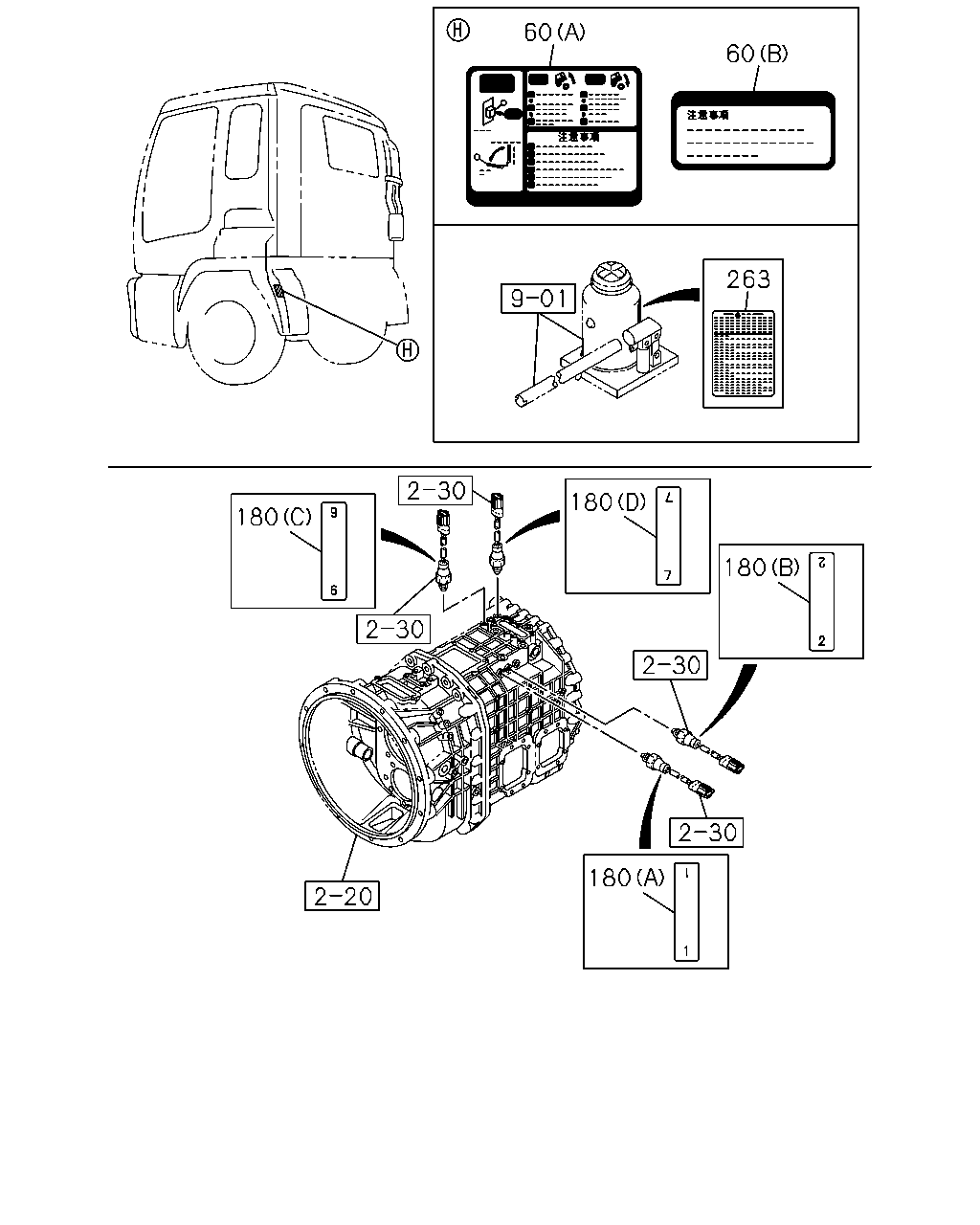

çizim 351423
180 180 180 60 60 263 180
BalonParca AdiParca NoAdetTipApplied Date
60 PLATE; CAUTION,CAB TILT
(A) 		8-98191-063-0 01 1 1305-
60 PLATE; CAUTION,CAB TILT
(B) 		8-98191-071-0 01 1 1305-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (C) 		1-85881-880-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (D) 		1-85881-881-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (A) 		1-85881-871-0 01 1 1305-1506
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (B) 		1-85881-872-0 01 1 1507-
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> 		1-85881-878-0 01 1 1305-
çizim 352064
290 156
BalonParca AdiParca NoAdetTipApplied Date
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98228-015-0 01 1 1305-
290 PLATE; CAUTION,OIL TANK 1-85881-876-0 01 1 1305-

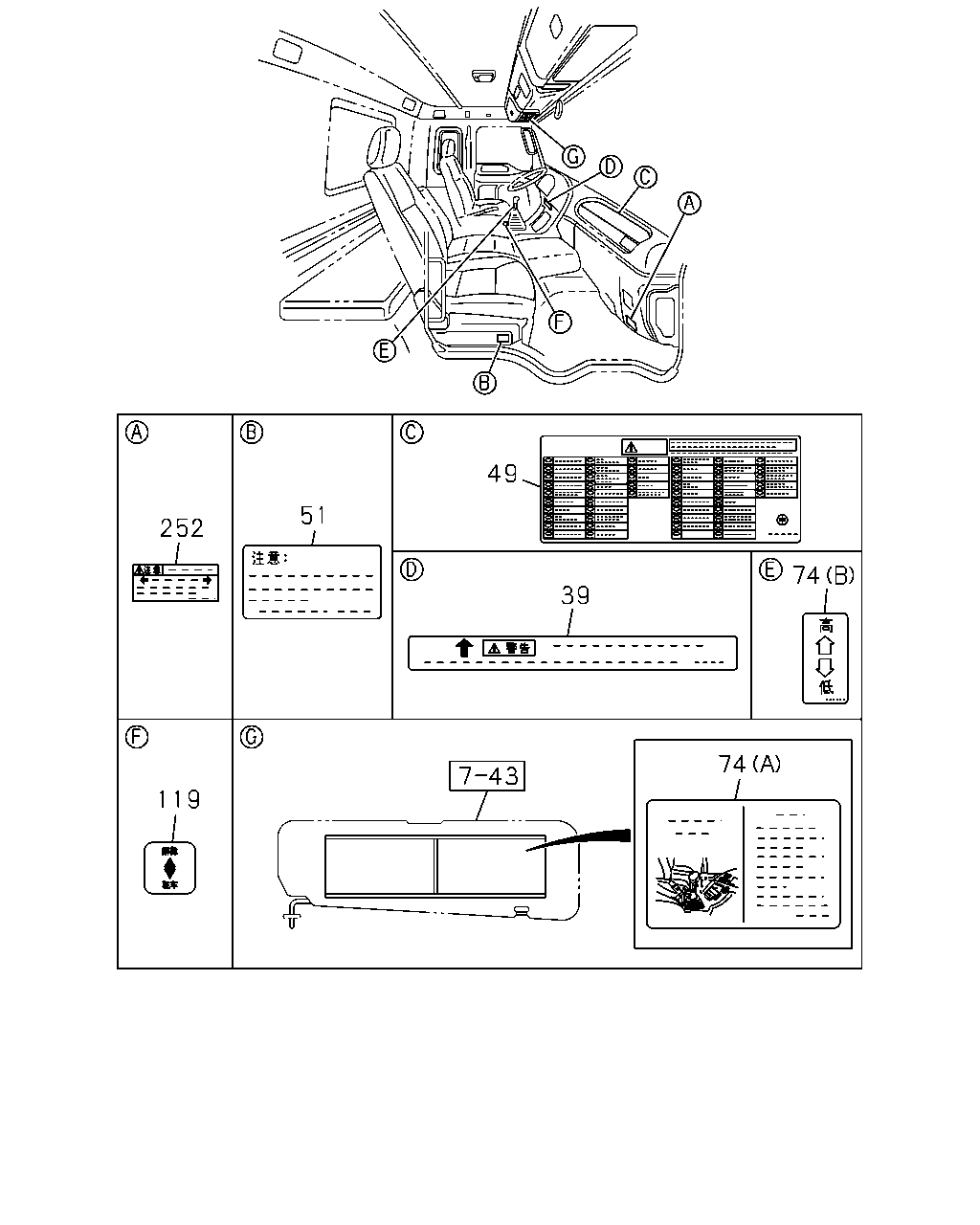

çizim 352123
74 74 39 49 51 252 119
BalonParca AdiParca NoAdetTipApplied Date
39 PLATE; CAUTION,ENG STOP 8-97643-999-0 01 1 1305-
49 PLATE; CAUTION,FUSE BOX 8-97641-305-0 01 1 1305-
51 PLATE; CAUTION,WARNING 8-97616-500-0 01 1 1305-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) (A) 		1-85881-849-0 01 1 1305-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) (B) 		8-98120-457-0 01 1 1305-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-874-0 01 1 1305-
252 PLATE; CAUTION,HARNESS 1-85878-515-0 01 1 1305-
çizim 352735
181 181 144
BalonParca AdiParca NoAdetTipApplied Date
144 PLATE; CAUTION,CLU
MJX16P M/T(Y3Z) 		1-85878-345-0 01 1 1305-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 1305-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 1305-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
