0-50 — OIL COOLER AND OIL FILTER (#1200) — 368 parça

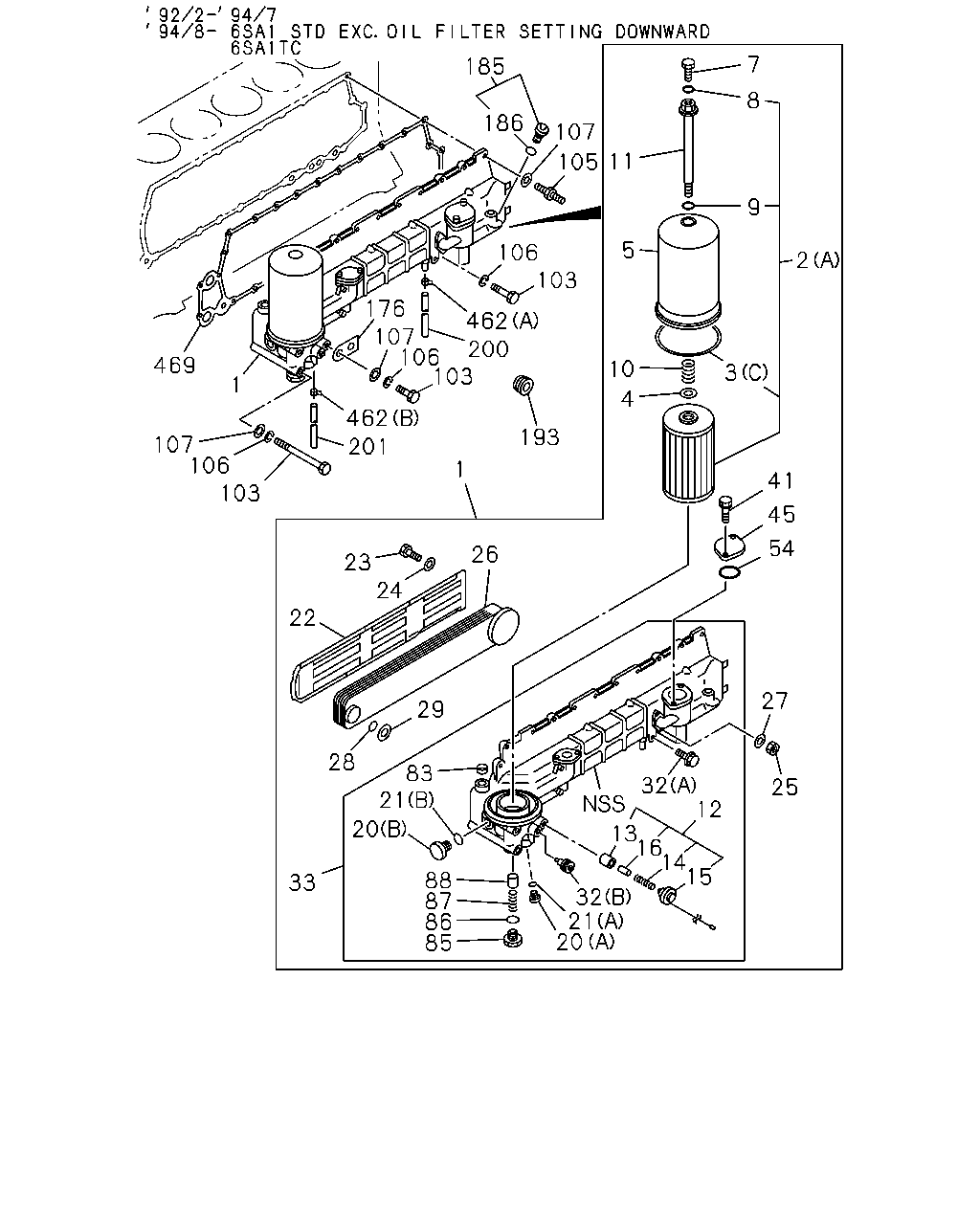

185 11 186 107 9 105 5 106 103 3 3 462 200 469 193 176 107 106 1 31 103 45 54 23 24 22 27 25 26 28 29 83 21 20 32 13 16 14 15 1 12 33 86 85 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9408-		●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	9408-	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	9408-	●
3	GASKET (C)	9-09920-311-0	01	1	9202-9407	●	●
3	GASKET EXC. OIL FILTER SETTING DOWNWARD<E7V> (C)	9-09920-311-0	01	1	9408-	●
3	GASKET (C)	9-09920-311-0	01	1	9408-		●
5	CASE; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	9408-	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9202-9407	●	●
5	CASE; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-125-1	01	1	9408-	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9408-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9202-	●	●
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	9408-	●
11	BOLT; CENTER	1-13231-047-0	01	1	9202-9407	●	●
11	BOLT; CENTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●
11	BOLT; CENTER	1-13231-047-0	01	1	9408-		●
12	VALVE ASM; BYPASS	1-13260-070-0	01	1	9202-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9202-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9202-	●	●
15	PLUG; RELIEF VLV	1-13265-021-0	01	1	9202-	●	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9202-	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9202-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9202-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9202-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9202-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9202-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9202-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9202-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9202-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9202-	●	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9202-	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9202-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9202-	●	●
31	BOLT; OIL PIPE OIL FILTER SETTING DOWNWARD<E7V>	1-13219-161-0	02	1	9408-	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9202-	●	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9202-9407	●	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-0	01	1	9408-	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9408-		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-170-3	01	1	9408-	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9202-9407	●	●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-176-2	01	1	9408-	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9408-		●
45	COVER; OIL PORT	1-13219-172-0	01	1	9202-	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9202-	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9202-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	9408-	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9202-9407	●	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	9408-	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9408-		●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9202-	●	●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9208-	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-9207	●	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9408-		●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9208-	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4	9-09160-508-0	07	1	9208-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-9207	●	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4	9-09160-508-0	04	1	9208-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9208-		●
176	BRACKET; HARNESS CLIP OIL FILTER SETTING DOWNWARD<E7V>	1-82699-304-0	01	1	9408-	●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9202-9407	●	●
176	BRACKET; HARNESS CLIP EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-82699-182-0	01	1	9408-	●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9408-		●
185	VALVE; OIL RELIEF,OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V>	1-13160-031-0	01	1	9405-	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	1-13160-017-1	01	1	9202-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9202-		●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9202-	●	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 T=8.0	1-09605-066-0	01	1	9202-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9202-9407	●	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-0	01	1	9408-	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9408-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-			●

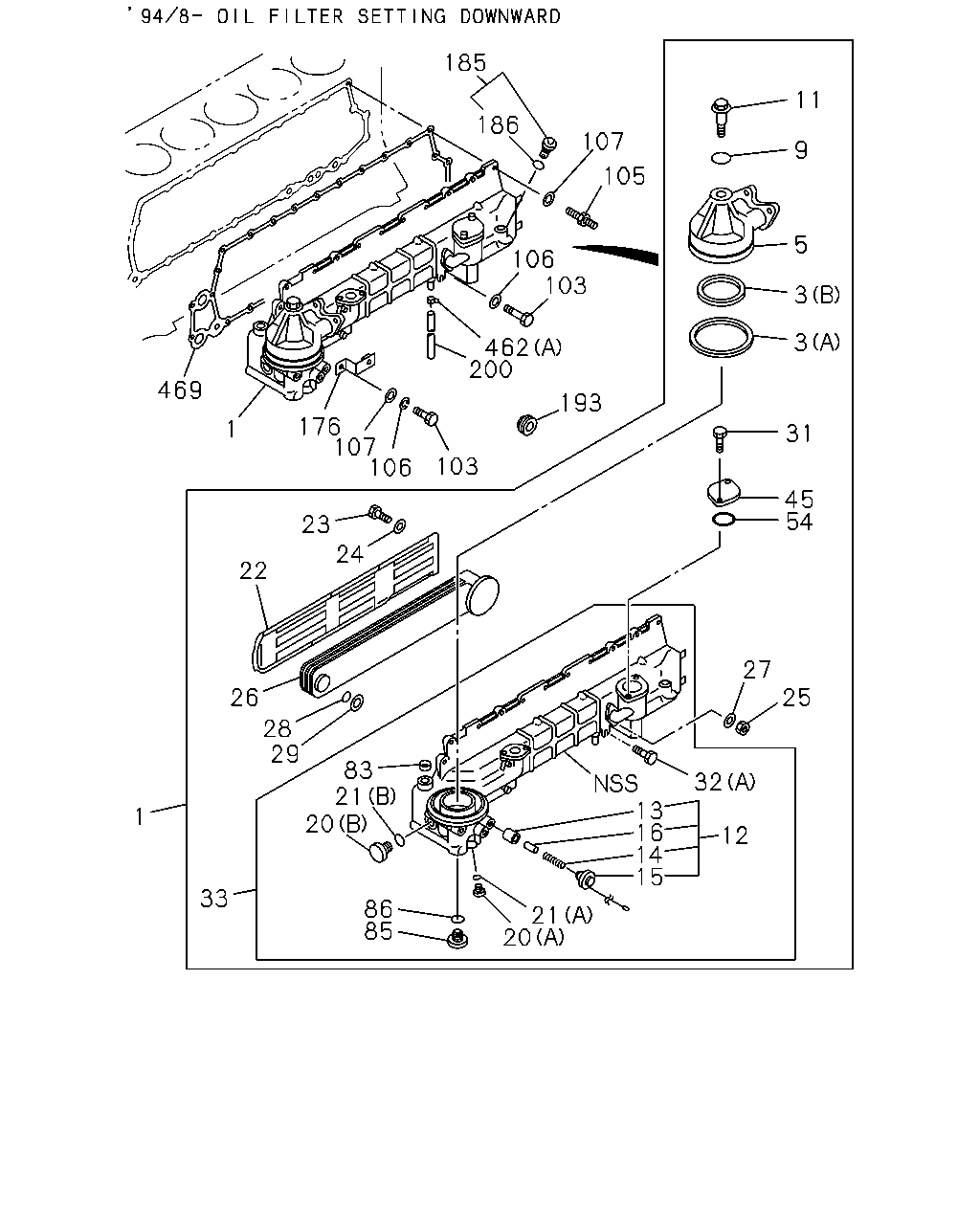

7 185 8 186 107 11 105 9 5 106 103 2 176 107 200 106 103 462 469 10 3 1 4 462 193 107 106 103 201 1 41 45 54 26 23 24 22 27 29 28 83 21 32 12 25 20 13 16 14 15 88 87 86 85 33 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9408-		●
2	ELEMENT; OIL FILTER (B)	1-13240-077-1	01	1	9202-	●	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9202-9407	●	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (A)	1-87810-075-2	01	1	9408-	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9408-		●
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9202-			●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9202-			●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	9408-	●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	9408-	●
3	GASKET (C)	9-09920-311-0	01	1	9202-9407	●	●
3	GASKET EXC. OIL FILTER SETTING DOWNWARD<E7V> (C)	9-09920-311-0	01	1	9408-	●
3	GASKET (C)	9-09920-311-0	01	1	9408-		●
4	WASHER; ELEMENT	1-13219-173-0	01	1	9202-9407	●	●
4	WASHER; ELEMENT EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	01	1	9408-	●
4	WASHER; ELEMENT	1-13219-173-0	01	1	9408-		●
5	CASE; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	9408-	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9202-9407	●	●
5	CASE; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-125-1	01	1	9408-	●
5	CASE; OIL FILTER	1-13211-125-1	01	1	9408-		●
7	PLUG; CENTER BOLT M10	1-09000-105-0	01	1	9202-9407	●	●
7	PLUG; CENTER BOLT EXC. OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	9408-	●
7	PLUG; CENTER BOLT M10	1-09000-105-0	01	1	9408-		●
8	GASKET; PLUG ID=9.8	1-09623-055-0	01	1	9202-9407	●	●
8	GASKET; PLUG EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	01	1	9408-	●
8	GASKET; PLUG ID=9.8	1-09623-055-0	01	1	9408-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9202-	●	●
10	SPRING; ELEMENT	9-09941-283-0	01	1	9202-9407	●	●
10	SPRING; ELEMENT EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	01	1	9408-	●
10	SPRING; ELEMENT	9-09941-283-0	01	1	9408-		●
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	9408-	●
11	BOLT; CENTER	1-13231-047-0	01	1	9202-9407	●	●
11	BOLT; CENTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	9408-	●
11	BOLT; CENTER	1-13231-047-0	01	1	9408-		●
12	VALVE ASM; BYPASS	1-13260-070-0	01	1	9202-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9202-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9202-	●	●
15	PLUG; RELIEF VLV	1-13265-021-0	01	1	9202-	●	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9202-	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9202-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9202-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9202-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9202-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9202-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9202-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9202-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9202-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9202-	●	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9202-	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9202-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9202-	●	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9202-	●	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9202-9407	●	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-0	01	1	9408-	●
32	PLUG; DRAIN (B)	1-13219-295-0	01	1	9408-		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-170-3	01	1	9408-	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9202-9407	●	●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-176-2	01	1	9408-	●
33	HOUSING ASM; COOLER	1-13211-176-2	01	1	9408-		●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9202-9407	●	●
41	BOLT; COVER FIX EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-161-0	02	1	9408-	●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9408-		●
45	COVER; OIL PORT	1-13219-172-0	01	1	9202-	●	●
54	GASKET; OIL PIPE	1-13219-162-0	01	1	9202-	●	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9202-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	9408-	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9202-9407	●	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	9408-	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9408-		●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9202-	●	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9202-9407	●	●
87	SPRING; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-148-0	01	1	9408-	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9408-		●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9202-9407	●	●
88	VALVE; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-13262-009-0	01	1	9408-	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9408-		●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9208-	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-9207	●	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9408-		●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
105	STUD; OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> M8X24,M10X35 L=64.5	1-09300-044-4	03	1	9208-	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4	9-09160-508-0	07	1	9208-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-9207	●	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4	9-09160-508-0	04	1	9208-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9208-		●
176	BRACKET; HARNESS CLIP OIL FILTER SETTING DOWNWARD<E7V>	1-82699-304-0	01	1	9408-	●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9202-9407	●	●
176	BRACKET; HARNESS CLIP EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-82699-182-0	01	1	9408-	●
176	BRACKET; HARNESS CLIP	1-82699-182-0	01	1	9408-		●
185	VALVE; OIL RELIEF,OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V>	1-13160-031-0	01	1	9405-	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	1-13160-017-1	01	1	9202-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9202-		●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9202-	●	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 T=8.0	1-09605-066-0	01	1	9202-	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9202-	●	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9407	●	●
201	PIPE; VINYL,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9408-	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9408-		●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9202-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9202-9407	●	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-0	01	1	9408-	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9408-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-			●

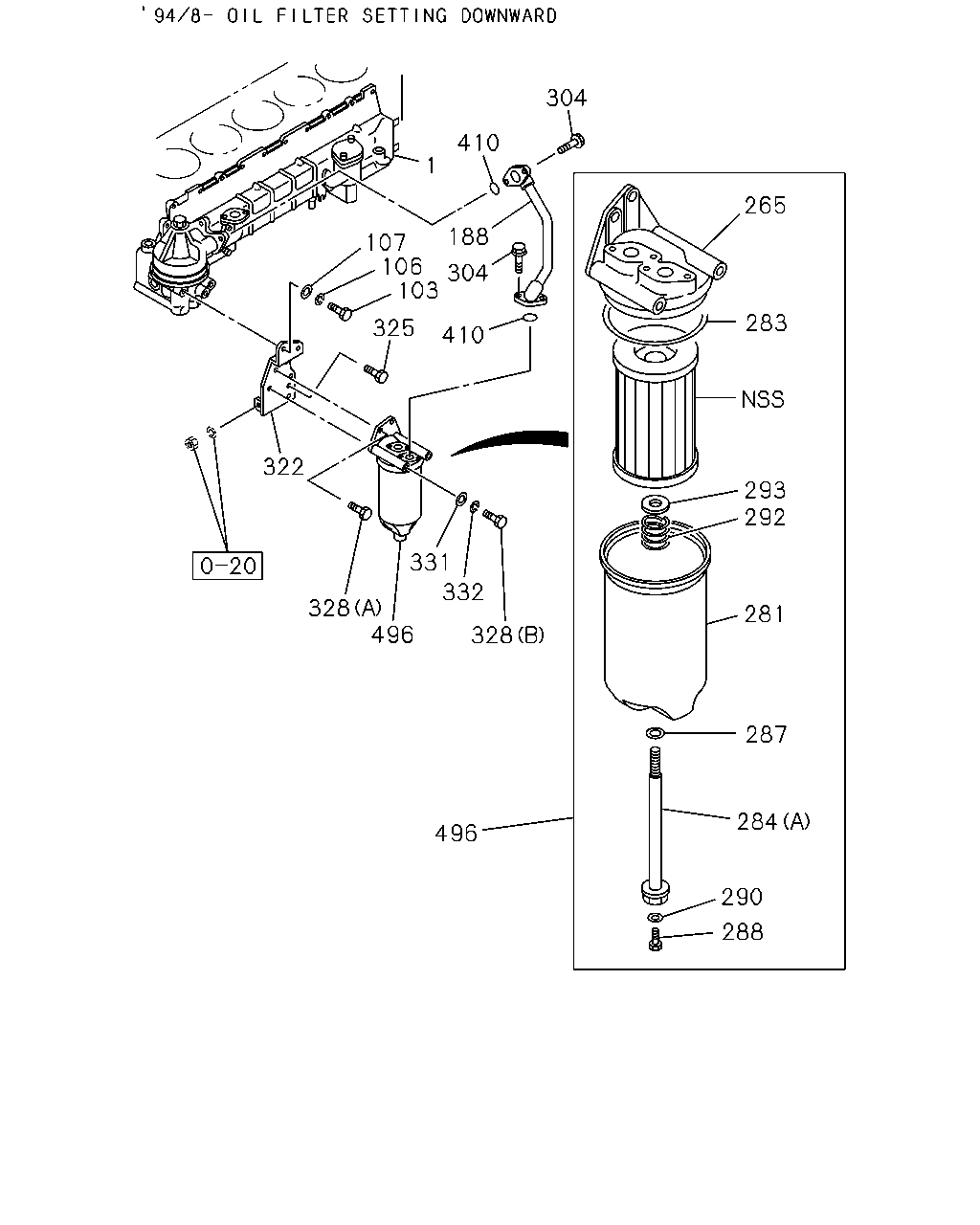

304 410 1 265 188 107 106 304 103 283 325 410 322 293 292 331 332 328 496 281 328 287 284 496 290 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-21700-235-4	01	1	9408-	●
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9202-9407	●	●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13200-904-0	01	1	9408-	●
1	FILTER & COOLER ASM; OIL	1-13200-904-0	01	1	9408-		●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9208-	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-9207	●	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9408-		●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9202-	●	●
107	WASHER; PL,OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4	9-09160-508-0	07	1	9208-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9202-9207	●	●
107	WASHER; PL,OIL COOLER EXC. ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4	9-09160-508-0	04	1	9208-	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9208-		●
188	PIPE; BYPASS OIL FILTER SETTING DOWNWARD<E7V>	1-13312-650-0	02	1	9408-	●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	9408-	●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9202-			●
281	COVER; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-153-0	01	1	9408-	●
283	GASKET; BODY TO COVER OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-170-0	01	1	9408-	●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13231-047-0	01	1	9408-	●
284	BOLT; CENTER,OIL FILTER (B)	1-13212-064-1	01	1	9202-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-			●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	9408-	●
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	9408-	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9202-9407	●	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9408-	●	●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	01	1	9408-	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9202-			●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9202-9407	●	●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9408-	●	●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	01	1	9408-	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9202-			●
293	SEAT; SPR	1-13219-173-0	01	1	9202-9407	●	●
293	SEAT; SPR	1-13219-173-0	01	1	9408-	●	●
293	SEAT; SPR OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	01	1	9408-	●
293	SEAT; SPR	9-13239-025-0	02	1	9202-			●
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28080-820-0	08	1	9408-	●
322	BRACKET; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-19755-121-1	01	1	9408-	●
325	BOLT; BRKT TO BODY OIL FILTER SETTING DOWNWARD<E7V> M10X22 W/LK WASHER	0-50051-022-0	02	1	9408-	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9408-	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142	5-09000-160-1	02	1	9408-	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9202-			●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9202-			●
331	WASHER; PL,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> ID=10.5 OD=18	9-09160-510-0	02	1	9408-	●
332	WASHER; LK,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> ID=10.2	9-09150-510-0	02	1	9408-	●
410	GASKET OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-450-0	04	1	9408-	●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	9408-	●
496	FILTER ASM; OIL	8-94393-427-1	01	1	9202-			●

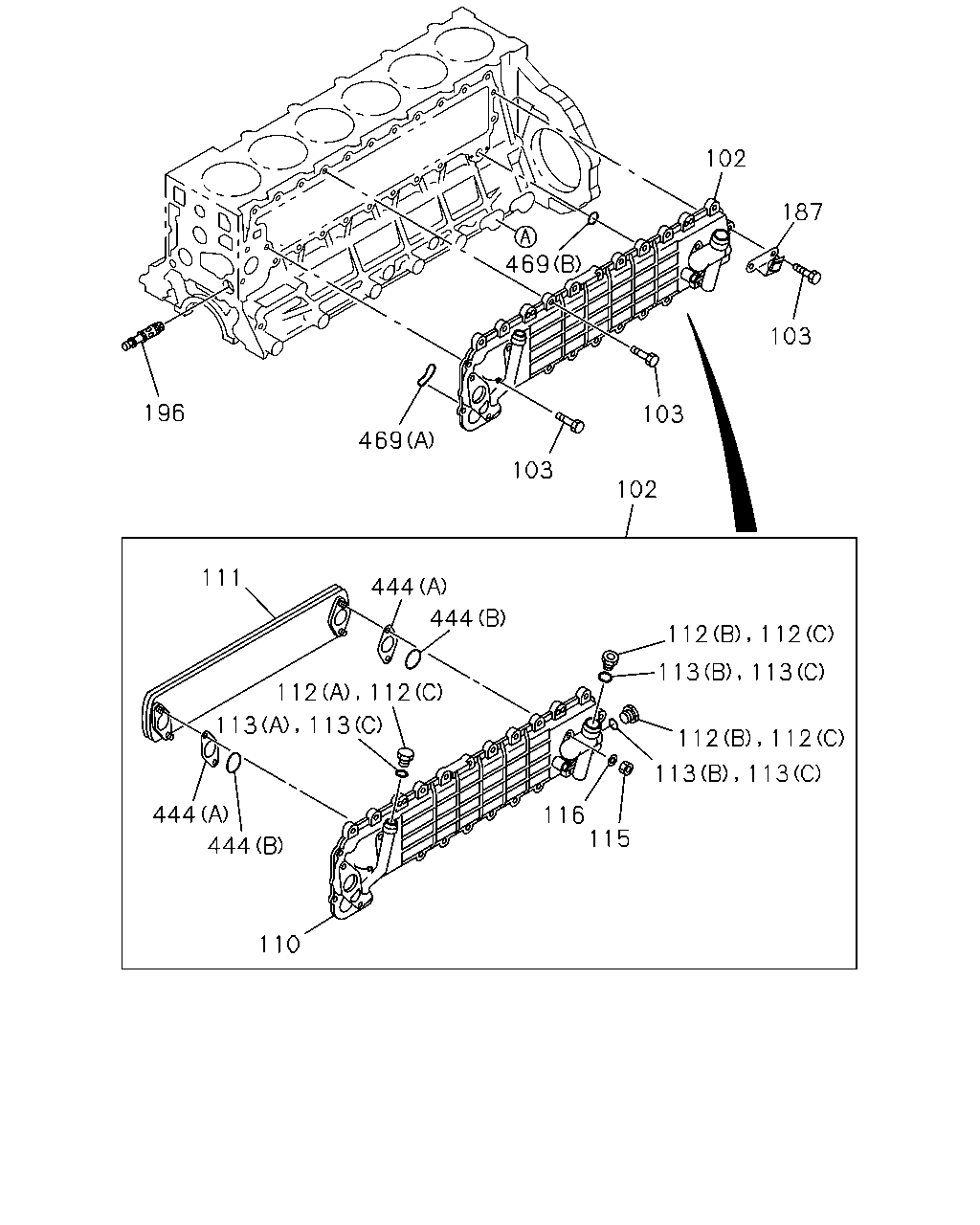

102 187 469 103 196 103 469 103 102 111 444 444 112 112 113 113 112 112 113 113 112 112 113 113 444 116 115 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V>	8-94393-750-3	01	1	9405-			●
102	COOLER ASM; OIL EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94397-459-3	01	1	9202-9307			●
102	COOLER ASM; OIL EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94393-320-1	01	1	9308-			●
103	BOLT; OIL COOLER ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	21	1	9208-	●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> M8X145	1-09000-448-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9202-9207	●	●
103	BOLT; OIL COOLER EXC. ANTI NOISE EQUIPMENT ECE<SLK> M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	24	1	9208-		●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9202-9407	●	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> M8X138	5-09000-031-1	02	1	9408-	●
103	BOLT; OIL COOLER M8X138	5-09000-031-1	02	1	9408-		●
103	BOLT; OIL COOLER M8X155	9-09801-275-0	02	1	9202-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-			●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-			●
110	BODY; CASE,OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V>	8-94393-606-3	01	1	9405-			●
110	BODY; CASE,OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-714-2	01	1	9202-			●
111	CORE; OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V>	8-94393-773-0	01	1	9405-			●
111	CORE; OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-715-0	01	1	9202-9307			●
111	CORE; OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-716-0	01	1	9308-			●
112	PLUG; OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> (A)	8-94393-604-0	01	1	9405-			●
112	PLUG; OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> (B)	8-94396-753-0	02	1	9405-			●
112	PLUG; OIL COOLER CASE EXC. ENG OIL PUMP HEAVY DUTY<Q1V> (C)	8-94396-753-0	03	1	9202-			●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> (A)	1-09623-499-0	01	1	9405-			●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> (B) M24	8-94396-755-0	02	1	9405-			●
113	GASKET; PLUG,OIL COOLER CASE EXC. ENG OIL PUMP HEAVY DUTY<Q1V> (C) M24	8-94396-755-0	03	1	9202-			●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9202-			●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9202-			●
187	CLIP; PIPE TO PIPE	8-94396-688-1	01	1	9202-			●
196	THERMOSTAT; OIL COOLER 90?C	8-94393-347-2	01	1	9202-9412			●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9501-			●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9202-			●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-159-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-			●

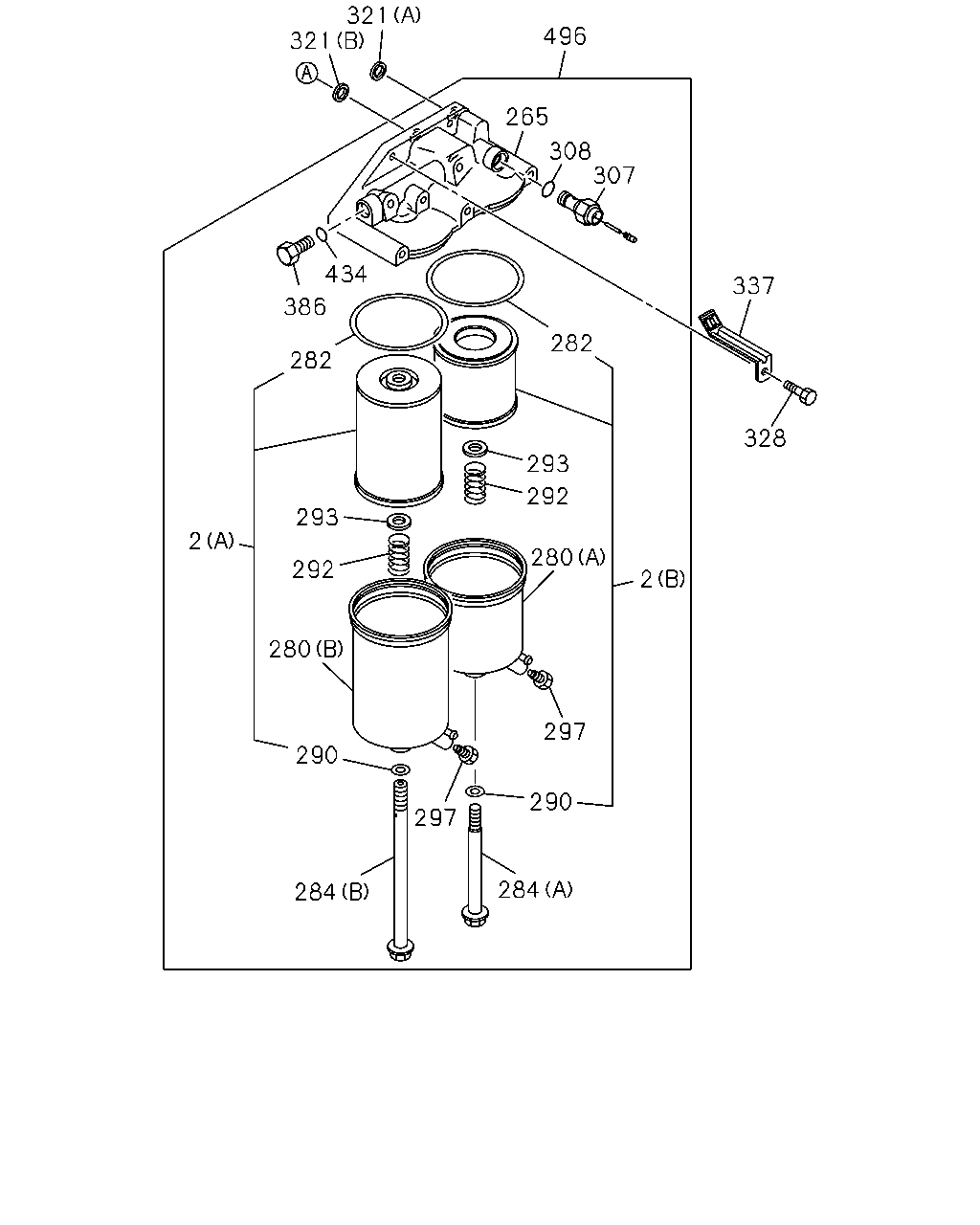

321 321 496 265 308 307 434 337 386 282 282 328 293 292 293 2 280 292 2 280 297 290 290 297 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER (B)	1-13240-077-1	01	1	9202-	●	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9202-9407	●	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (A)	1-87810-075-2	01	1	9408-	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9408-		●
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9202-			●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9202-			●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	9408-	●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9202-			●
280	CASE ASM; OIL FILTER	1-13212-150-0	01	1	9202-	●	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9202-			●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9202-			●
282	GASKET; BODY TO CASE	1-09623-170-0	01	1	9202-	●	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9202-			●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13231-047-0	01	1	9408-	●
284	BOLT; CENTER,OIL FILTER (B)	1-13212-064-1	01	1	9202-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-			●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9202-9407	●	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9408-	●	●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	01	1	9408-	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9202-			●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9202-9407	●	●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9408-	●	●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	01	1	9408-	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9202-			●
293	SEAT; SPR	1-13219-173-0	01	1	9202-9407	●	●
293	SEAT; SPR	1-13219-173-0	01	1	9408-	●	●
293	SEAT; SPR OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	01	1	9408-	●
293	SEAT; SPR	9-13239-025-0	02	1	9202-			●
297	PLUG; COVER	1-13219-275-0	02	1	9202-			●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9202-			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9202-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=9.8	8-94399-339-0	02	1	9202-			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=22.1	8-94399-399-0	02	1	9202-			●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9408-	●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X142	5-09000-160-1	02	1	9408-	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9202-			●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9202-			●
337	BRACKET; FUEL PIPE	8-94399-726-0	01	1	9202-			●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9202-			●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9202-			●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	9408-	●
496	FILTER ASM; OIL	8-94393-427-1	01	1	9202-			●

339 338 390 340 282 341 293 292 284 2 280 291 290 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER (B)	1-13240-077-1	01	1	9202-	●	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9202-9407	●	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V> (A)	1-87810-075-2	01	1	9408-	●
2	ELEMENT; OIL FILTER (A)	1-87810-075-2	01	1	9408-		●
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9202-			●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9202-			●
132	PLUG; PARTIAL OIL FILTER M10	1-09000-105-0	01	1	9202-	●	●
280	CASE ASM; OIL FILTER	1-13212-150-0	01	1	9202-	●	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9202-			●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9202-			●
282	GASKET; BODY TO CASE	1-09623-170-0	01	1	9202-	●	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9202-			●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13231-047-0	01	1	9408-	●
284	BOLT; CENTER,OIL FILTER (B)	1-13212-064-1	01	1	9202-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-			●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-			●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9202-9407	●	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9408-	●	●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	01	1	9408-	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9202-			●
291	GASKET; OIL DRAIN,CENTER BOLT ID=15.5	9-09920-694-0	01	1	9202-	●	●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9202-9407	●	●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9408-	●	●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	01	1	9408-	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9202-			●
293	SEAT; SPR	1-13219-173-0	01	1	9202-9407	●	●
293	SEAT; SPR	1-13219-173-0	01	1	9408-	●	●
293	SEAT; SPR OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	01	1	9408-	●
293	SEAT; SPR	9-13239-025-0	02	1	9202-			●
338	FILTER ASM; OIL PARTIAL	1-13200-704-1	01	1	9202-	●	●
339	BRACKET; PARTIAL OIL FILTER	1-19755-062-1	01	1	9202-	●	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-	●	●
341	BOLT; OIL FILTER,PARTIAL M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9202-	●	●
390	BODY; OIL FILTER,PARTIAL	1-13212-141-0	01	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
