◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#119992) — 8 parça

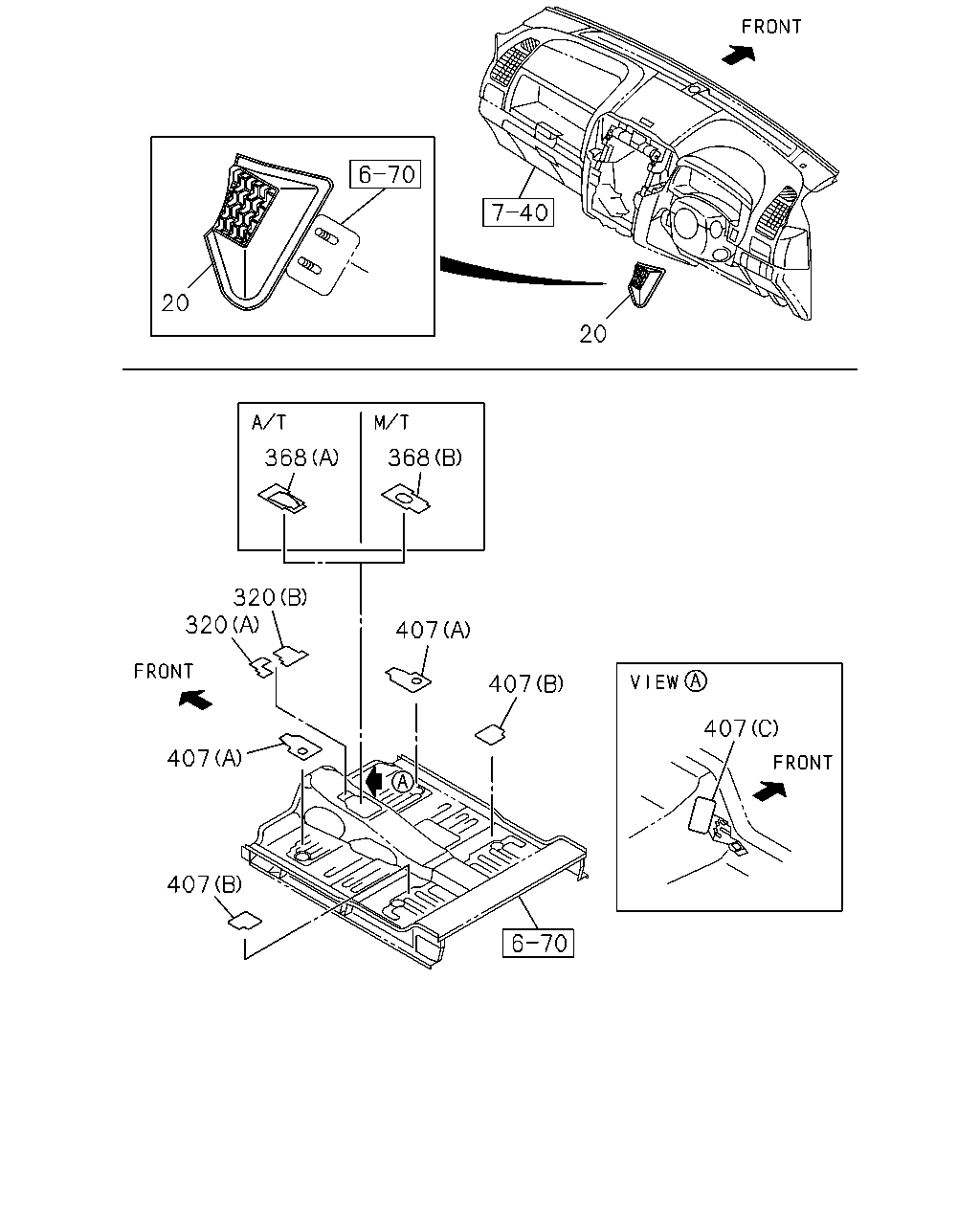

çizim 351403
20 20 407 407 407 407 407 320 320 368 368
BalonParca AdiParca NoAdetTipApplied Date A B C D
20 REST; FOOT 8-98064-439-2 01 1 1305- ● ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER(AK5) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-704-0 01 1 1305- ● ● ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE(AK6) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-705-0 01 1 1305- ● ● ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1305- ● ● ● ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1305- ● ●
407 DEADENER; FLOOR PANEL
(C) 		8-98165-147-0 01 1 1305- ● ● ● ●
407 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1305- ● ●
407 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1305- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
