◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#119991) — 39 parça

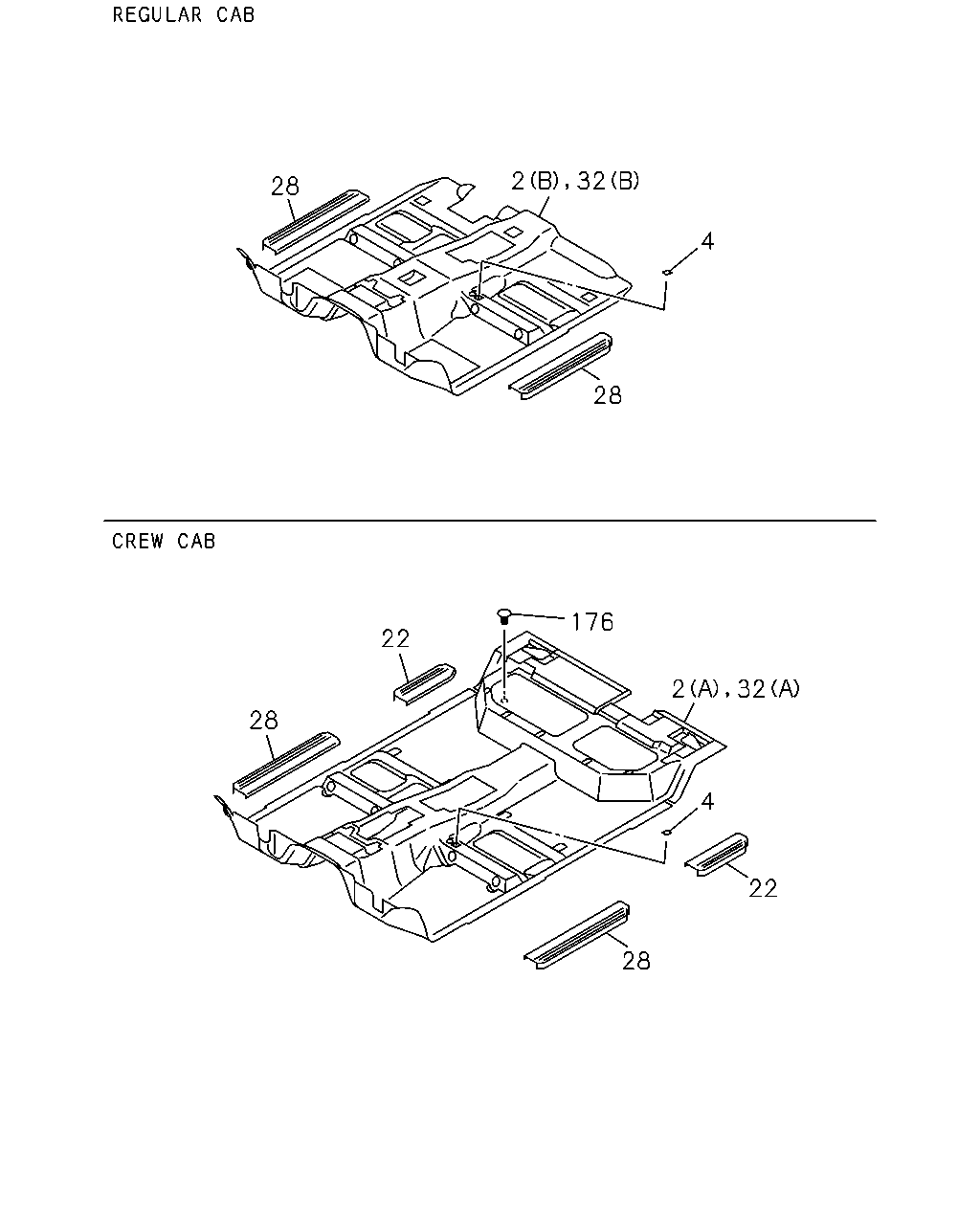

çizim 351381
4 28 2 32 28 28 22 176 2 32 22 28 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> EQUIPMENT IMPACT<EPS> (B) BLACK 		8-97429-905-0 01 1 1410- ●
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> EQUIPMENT IMPACT<EPS> (B) BLACK 		8-97429-907-0 01 1 1410- ●
2 MAT; FLOOR
4JA1-T ENG(LP0) COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97417-112-6 01 1 1305-1409 ●
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97417-112-6 01 1 1305-1409 ●
2 MAT; FLOOR
4JA1-T ENG(LP0) COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97417-112-6 01 1 1410- ●
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> EXC. EQUIPMENT IMPACT<EPS> (B) BLACK 		8-97417-112-6 01 1 1410- ●
2 MAT; FLOOR
4JA1-T ENG(LP0) COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-111-5 01 1 1305-1409 ●
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-111-5 01 1 1305-1409 ●
2 MAT; FLOOR
4JA1-T ENG(LP0) COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-111-5 01 1 1410- ●
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> EXC. EQUIPMENT IMPACT<EPS> (B) BLACK 		8-97417-111-5 01 1 1410- ●
2 MAT; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97416-942-8 01 1 1305-1409 ●
2 MAT; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97416-942-8 01 1 1410- ●
2 MAT; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> (A) BLACK 		8-97416-952-8 01 1 1305-1409 ●
2 MAT; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> EXC. EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97416-952-8 01 1 1410- ●
4 INSULATOR; FRT 8-98185-968-0 04 1 1305- ● ● ● ●
22 PLATE; SILL,RR
BLACK 		8-97416-948-5 01 1 1305- ● ●
22 PLATE; SILL,RR
BLACK 		8-97416-950-5 01 1 1305- ● ●
28 PLATE; SILL,FRT
BLACK 		8-97416-944-3 01 1 1305- ● ● ● ●
28 PLATE; SILL,FRT
BLACK 		8-97416-946-3 01 1 1305- ● ● ● ●
32 CARPET; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EQUIPMENT IMPACT<EPS> EXC. COVERING FLOOR VINYL<B38> (A) BLACK 		8-97429-887-0 01 1 1410- ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97429-887-0 01 1 1410- ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE WO/LID<D54> EQUIPMENT IMPACT<EPS> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97429-899-0 01 1 1410- ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE W/LID<D55> EQUIPMENT IMPACT<EPS> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97429-901-0 01 1 1410- ●
32 CARPET; FLOOR
4JA1-T ENG(LP0) FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-440-5 01 1 1305-1409 ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-440-5 01 1 1305-1409 ●
32 CARPET; FLOOR
4JA1-T ENG(LP0) FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-440-5 01 1 1410- ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38>,EQUIPMENT IMPACT<EPS> (B) BLACK 		8-97417-440-5 01 1 1410- ●
32 CARPET; FLOOR
4JA1-T ENG(LP0) FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-422-5 01 1 1305-1409 ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-422-5 01 1 1305-1409 ●
32 CARPET; FLOOR
4JA1-T ENG(LP0) FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97417-422-5 01 1 1410- ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38>,EQUIPMENT IMPACT<EPS> (B) BLACK 		8-97417-422-5 01 1 1410- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (A) BLACK 		8-97422-851-6 01 1 1305-1409 ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97422-851-6 01 1 1305-1409 ●
32 CARPET; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38>,EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97422-851-6 01 1 1410- ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97422-851-6 01 1 1410- ●
32 CARPET; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (A) BLACK 		8-97422-853-6 01 1 1305-1409 ●
32 CARPET; FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38>,EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97422-853-6 01 1 1410- ●
176 RETAINER; CARPET
BLACK 		8-97416-667-0 02 1 1305- ● ●
176 RETAINER; CARPET
BLACK 		8-97416-667-0 10 1 1305- ● ●
