◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#11999) — 117 parça

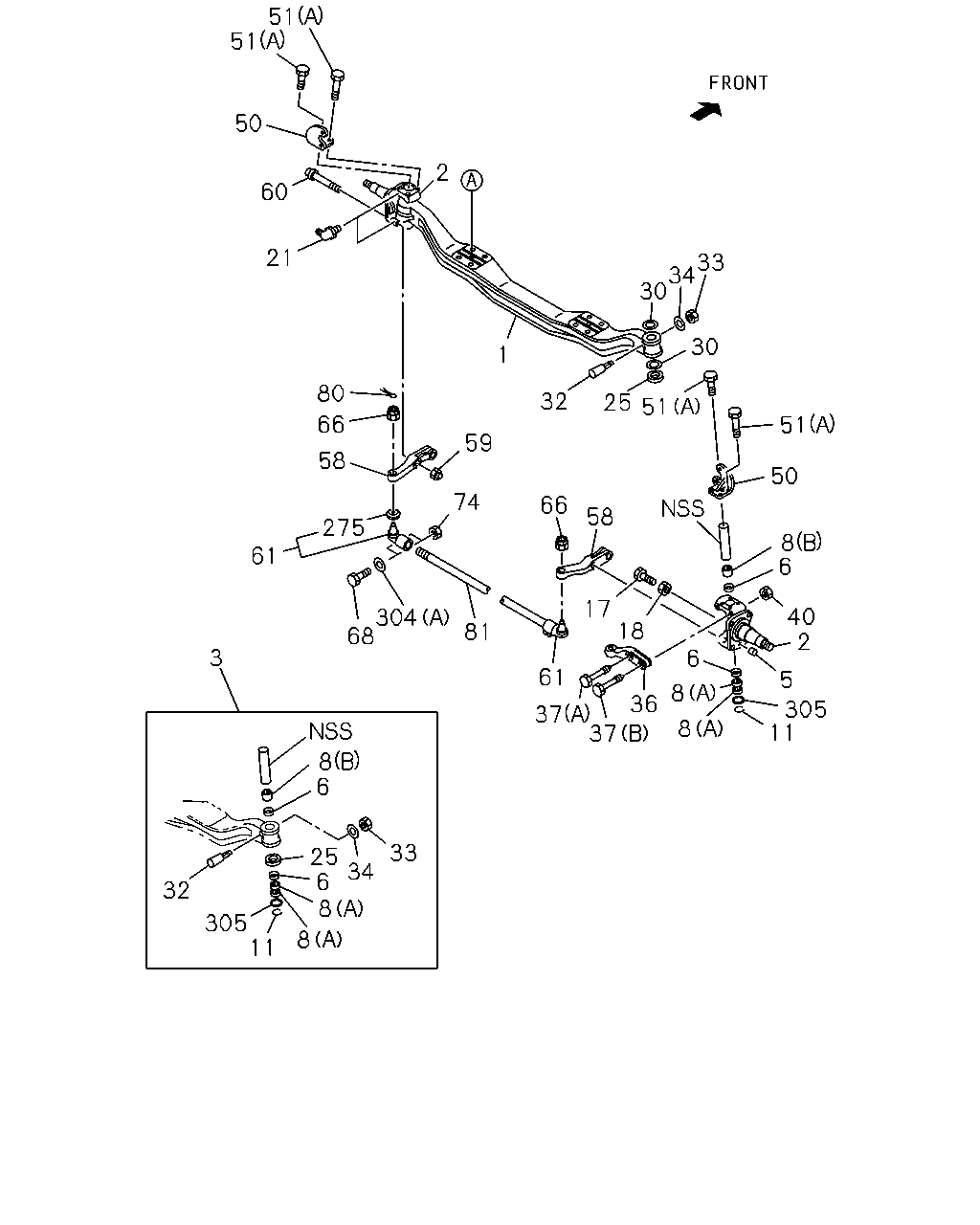

çizim 22301
51 51 50 60 21 2 33 34 30 30 51 50 8 6 40 2 5 305 11 8 8 6 36 37 37 61 33 34 25 6 8 8 11 305 32 6 8 3 68 81 304 17 18 58 66 74 275 61 58 66 80 59 32 25 51 1
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-107-5 01 1 0105-
2 KNUCKLE; FRT AXLE 1-43132-079-0 01 1 0105-
2 KNUCKLE; FRT AXLE 1-43131-079-0 01 1 0105-
3 KING PIN SET 1-87830-738-4 02 1 0105-
5 PIN; KNUCKLE TO DRUM COVER 1-09740-072-0 02 1 0105-
6 SEAL; KING PIN 9-09926-024-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0105-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0105-
11 RING; SNAP,KNUCKLE PLUG 9-09950-204-0 02 1 0105-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 0105-
18 NUT; STOPPER BOLT,KNUCKLE
M18 		9-99110-518-0 02 1 0105-0512
18 NUT; STOPPER BOLT,KNUCKLE
M18 		0-91110-518-0 02 1 0601-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0105-0512
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0601-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0105-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0105-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0105-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0105-
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0105-0512
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601-
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0105-0603
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604-
36 ARM; KNUCKLE 1-43133-063-3 01 1 0105-
37 BOLT; KNUCKLE ARM
(A) M22X179 		1-09000-578-1 01 1 0105-
37 BOLT; KNUCKLE ARM
(B) M22X167 		9-09806-847-3 01 1 0105-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0105-
50 BRACKET; POWER CHAMBER 1-43145-010-3 01 1 0105-
50 BRACKET; POWER CHAMBER 1-43145-009-3 01 1 0105-
51 BOLT; POWER CHAMBER BRKT
(A) M12X60 FLANGE 		0-28081-260-0 02 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0601-
51 BOLT; POWER CHAMBER BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28681-225-0 02 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28651-225-0 02 1 0601-
51 BOLT; POWER CHAMBER BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X15,M12X26 L=52.7 		1-09029-099-0 04 1 0105-
51 BOLT; POWER CHAMBER BRKT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28681-225-0 06 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28651-225-0 06 1 0601-
58 ARM; TIE ROD 1-43135-042-3 01 1 0105-
58 ARM; TIE ROD 1-43134-042-3 01 1 0105-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0105-
60 BOLT; TIE ROD ARM
M22X193 		1-09000-154-2 04 1 0105-
61 ROD END; TIE ROD 1-43150-802-0 01 1 0105-
61 ROD END; TIE ROD 1-43150-801-0 01 1 0105-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0105-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0105-
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0105-0512
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0601-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0105-0606
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0607-
81 ROD; TIE 1-43151-118-0 01 1 0105-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0105-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0105-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0105-
305 COVER; KNUCKLE 1-43175-021-0 02 1 0105-

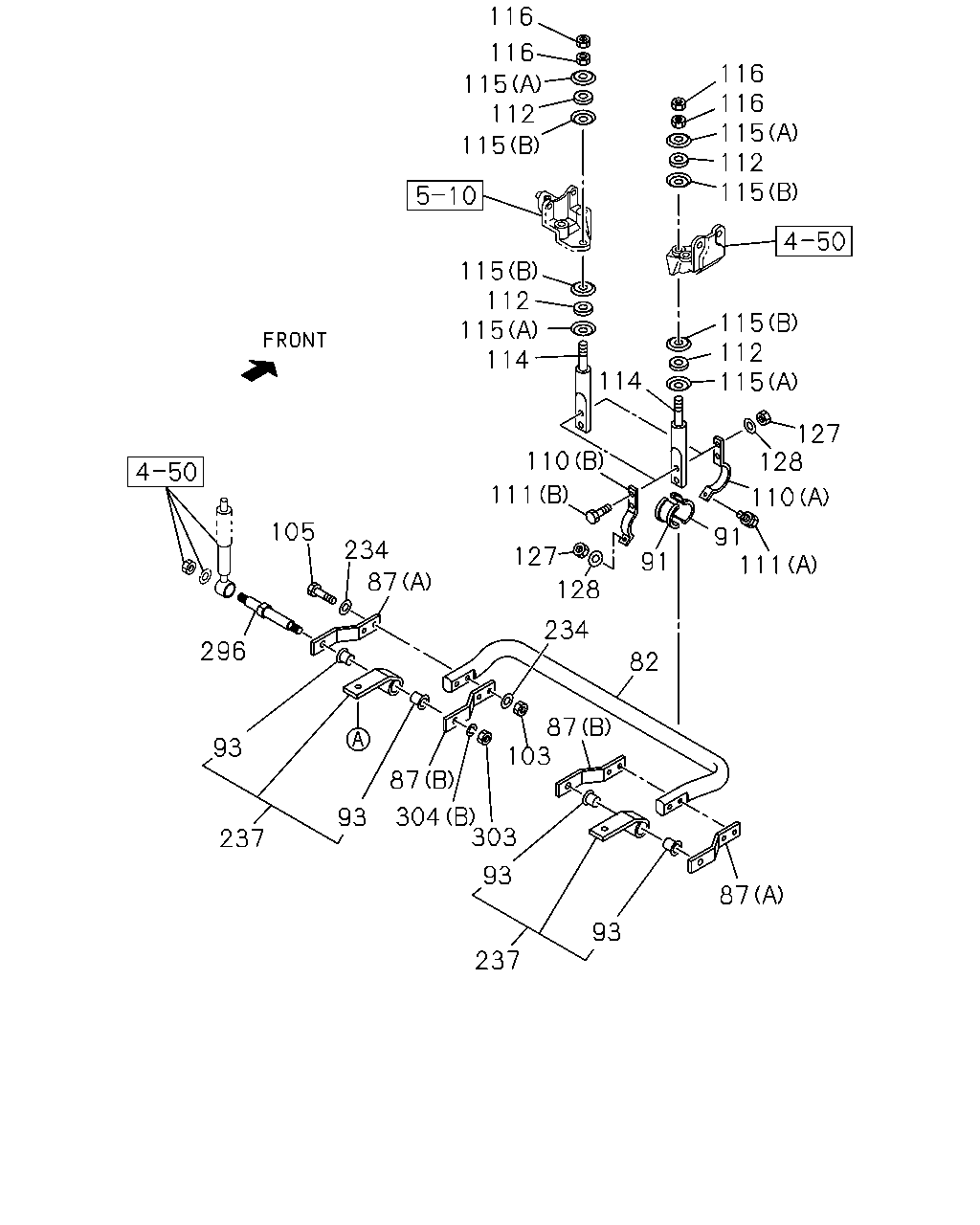

çizim 22303
116 116 115 112 115 116 116 115 112 115 115 112 115 127 128 110 91 111 91 82 87 93 237 93 303 103 87 87 304 93 237 93 296 105 234 87 234 128 127 111 110 114 114 115 112 115
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-134-0 01 1 0105-
87 BRACKET; STABILIZER
(A) 		1-51781-083-1 02 1 0105-
87 BRACKET; STABILIZER
(B) 		1-51781-084-1 02 1 0105-
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 0105-
93 BUSHING; STABILIZER 1-51689-015-1 04 1 0105-
103 NUT; BRKT FIX
M14 		9-99110-514-0 04 1 0105-0512
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 0601-
105 BOLT; BRKT FIX
M14X70 		9-91061-470-0 04 1 0105-0206
105 BOLT; BRKT FIX
M14X70 		9-91066-470-0 04 1 0207-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0105-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0105-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0105-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0105-
112 BUSHING; ROD 9-51631-039-0 04 1 0105-
114 ROD; STAB BAR 1-51773-072-2 02 1 0105-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.5 		9-51631-040-0 04 1 0105-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=20.8 		9-51631-041-0 04 1 0105-
116 NUT; LK,STAB TO FRAME
M14 		9-99111-414-0 04 1 0105-0512
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 0601-
127 NUT; CLAMP
M12 		9-99110-412-0 06 1 0105-0512
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 0601-
128 WASHER; LK,CLAMP
ID=12.2 		9-09150-512-0 06 1 0105-0603
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-512-0 06 1 0604-
234 WASHER; STAB
ID=15 		9-09651-069-0 08 1 0105-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 0105-
296 PIN; STAB 1-51682-145-2 02 1 0105-
303 NUT; PIN
M20 		9-99110-520-0 02 1 0105-0512
303 NUT; PIN
M20 		0-91110-520-0 02 1 0601-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0105-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0105-

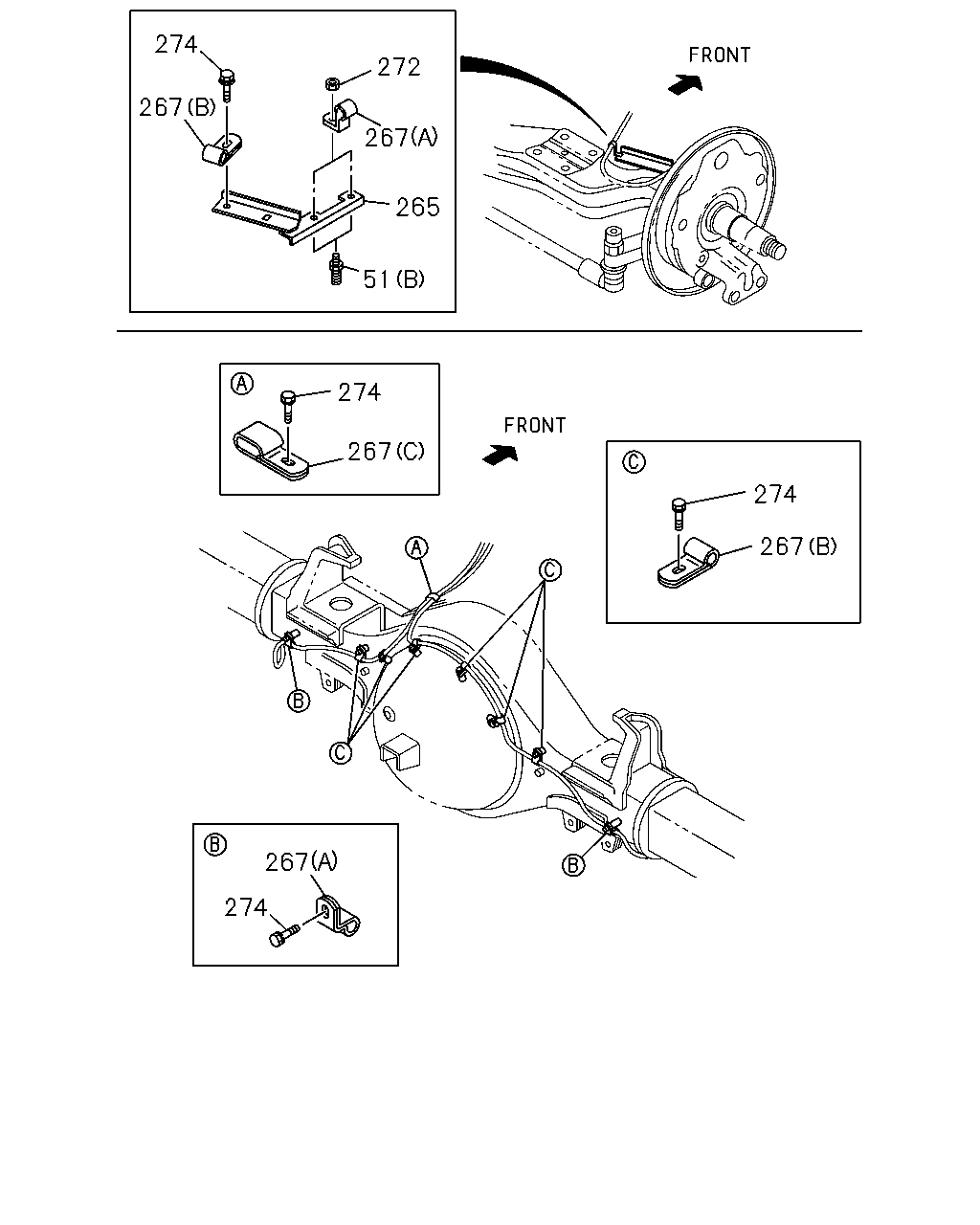

çizim 80304
272 267 274 267 265 51 274 267 274 267 267 274
BalonParca AdiParca NoAdetTipApplied Date
51 BOLT; POWER CHAMBER BRKT
(A) M12X60 FLANGE 		0-28081-260-0 02 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0601-
51 BOLT; POWER CHAMBER BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28681-225-0 02 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28651-225-0 02 1 0601-
51 BOLT; POWER CHAMBER BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X15,M12X26 L=52.7 		1-09029-099-0 04 1 0105-
51 BOLT; POWER CHAMBER BRKT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28681-225-0 06 1 0105-0512
51 BOLT; POWER CHAMBER BRKT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M12X25 FLANGE 		0-28651-225-0 06 1 0601-
265 BRACKET; CLIP I BEAM
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-622-0 01 1 0105-
265 BRACKET; CLIP I BEAM
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-621-0 01 1 0105-
267 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0105-
267 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		9-09525-025-0 06 1 0105-0606
267 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		0-95235-025-0 06 1 0607-
267 CLIP; HARNESS
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		9-09525-025-0 05 1 0105-0606
267 CLIP; HARNESS
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16 		0-95235-025-0 05 1 0607-
267 CLIP; HARNESS
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11X2 L=16 		9-09535-025-0 01 1 0105-0606
267 CLIP; HARNESS
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11X2 L=16 		0-95325-025-0 01 1 0607-
272 NUT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 04 1 0105-0602
272 NUT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0603-
274 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X16 W/LK&PL WASHER 		0-50140-816-0 04 1 0105-0512
274 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X16 W/LK&PL WASHER 		0-50640-816-0 04 1 0601-
274 BOLT; CLIP
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) M8X12 W/LK WASHER 		0-50040-812-0 06 1 0105-0512
274 BOLT; CLIP
REAR AXLE RT260<C2B> ANTILOCK BRAKE SYSTEM(BFA) M8X12 W/LK WASHER 		0-50540-812-0 06 1 0601-
