Sayfa 6-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶

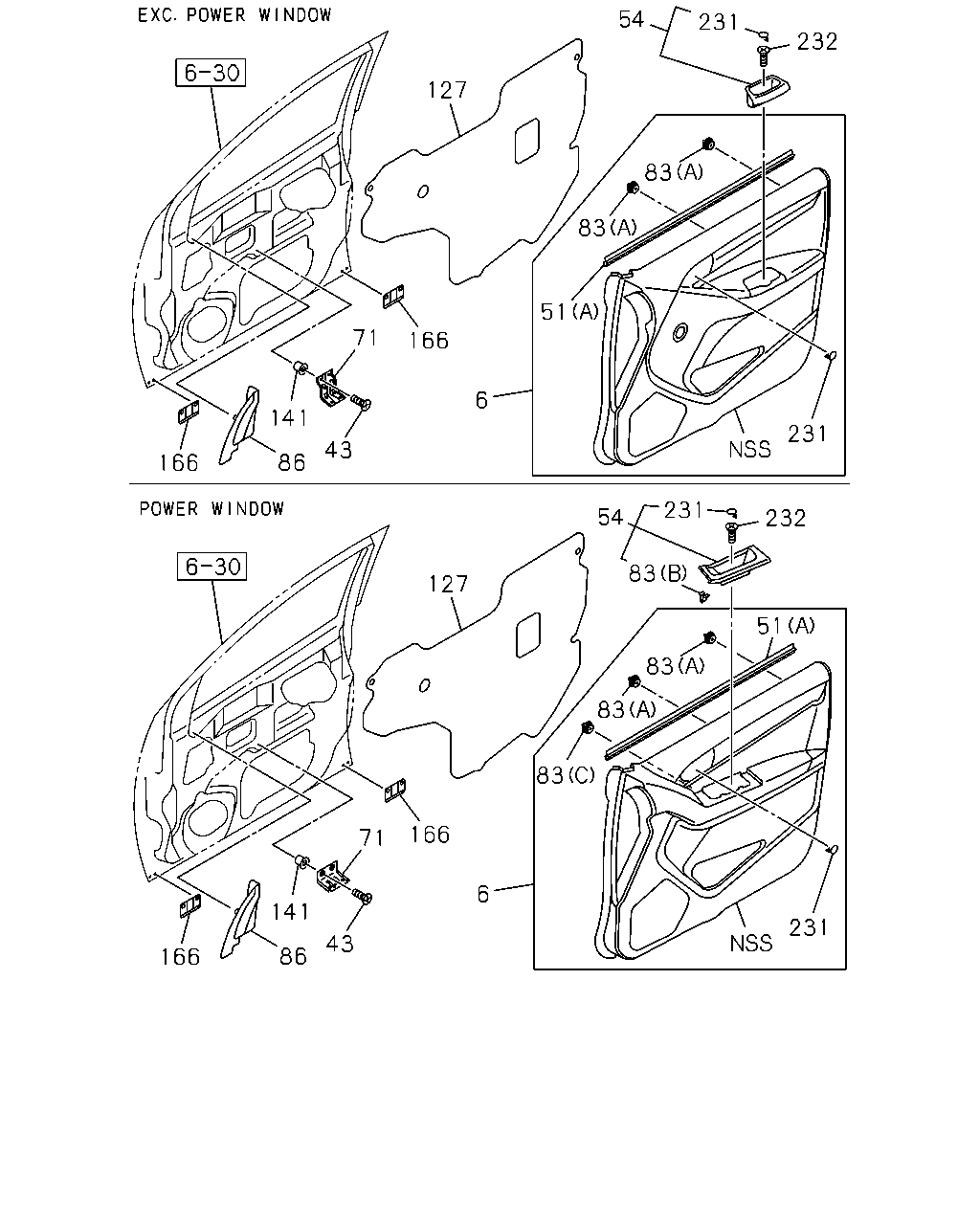

6-35 — FRONT DOOR TRIM (#119982) — 42 parça

127 54 231 232 83 83 51 231 6 166 71 141 43 86 166 127 166 71 43 141 86 166 6 83 83 83 51 232 231 54 83 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-710-1	01	1	1305-	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-710-1	01	1	1305-			●
6	TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-714-1	01	1	1305-	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC(RBA) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-714-1	01	1	1305-			●
6	TRIM; DOOR,UPR EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-740-7	01	1	1305-	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-740-7	01	1	1305-			●
6	TRIM; DOOR,UPR EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-742-7	01	1	1305-	●	●
6	TRIM; DOOR,UPR INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-742-7	01	1	1305-			●
6	TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-708-1	01	1	1305-			●
6	TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-708-1	01	1	1305-				●
6	TRIM; DOOR,UPR INTERIOR CUSTOM(RBD) POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-712-1	01	1	1305-			●
6	TRIM; DOOR,UPR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK MAL	8-97425-712-1	01	1	1305-				●
43	SCREW; DOOR POCKET M5X14 TAPPING	8-98184-363-0	04	1	1305-	●	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A)	8-98109-544-3	01	1	1305-	●	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A)	8-98109-545-3	01	1	1305-	●	●	●	●

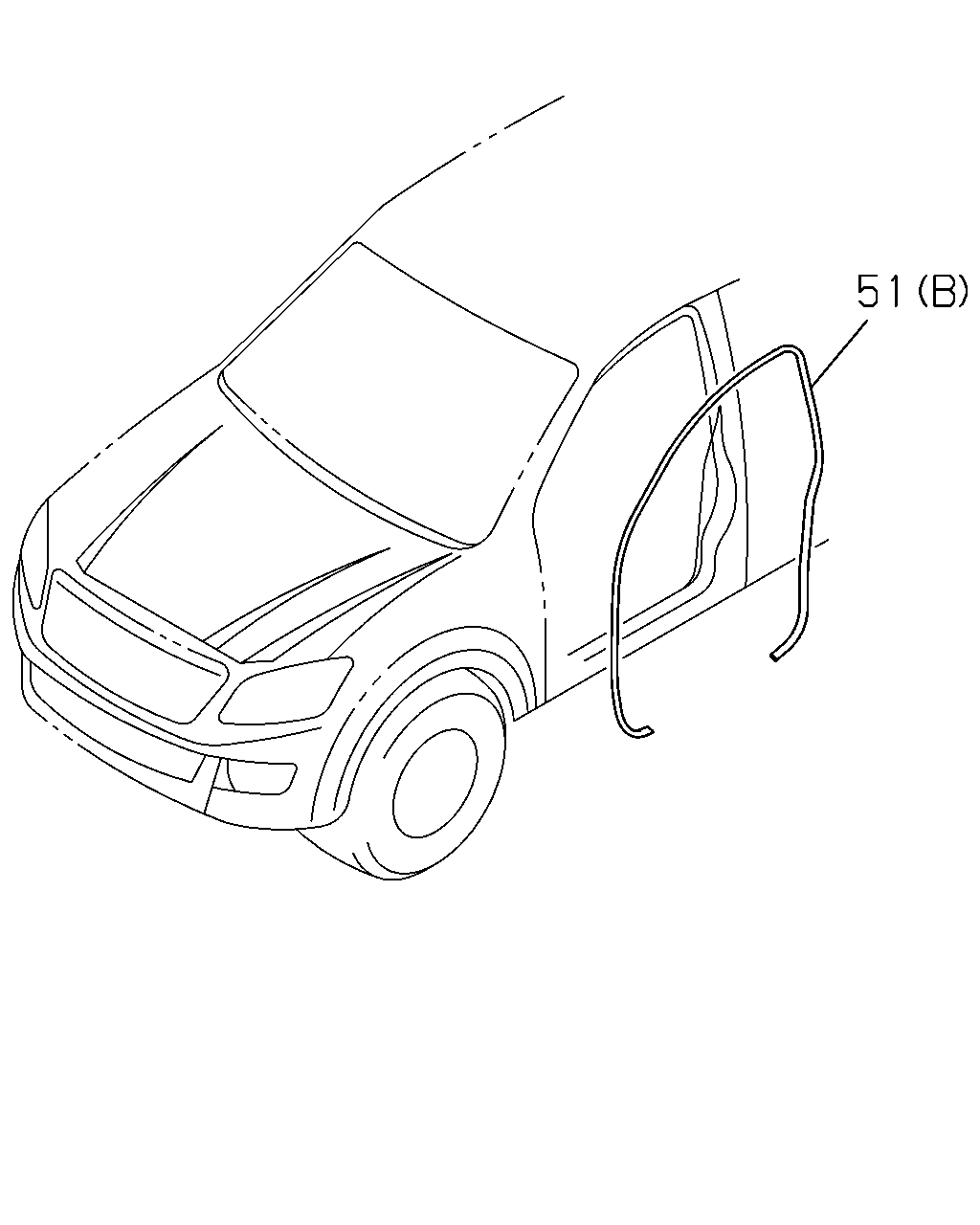

51	WEATHERSTRIP; FRONT DOOR (B)	8-98201-892-0	02	1	1305-	●	●	●	●
54	BOX; FRT DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-750-1	01	1	1305-	●	●	●	●
54	BOX; FRT DOOR POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-751-1	01	1	1305-	●	●	●	●
54	BOX; FRT DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-752-5	01	1	1305-	●	●	●	●
54	BOX; FRT DOOR EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK	8-97416-753-5	01	1	1305-	●	●	●	●
71	BRACKET; ARM REST POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98102-215-2	02	1	1305-	●	●	●	●
71	BRACKET; ARM REST EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98102-216-4	02	1	1305-	●	●	●	●
83	CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98166-326-0	02	1	1309-	●	●	●	●
83	CLIP; DOOR TRIM EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98160-729-0	18	1	1309-	●	●
83	CLIP; DOOR TRIM INTERIOR BASIC(RBA) EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98160-729-0	18	1	1309-			●
83	CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98164-677-0	02	1	1305-	●	●	●	●
83	CLIP; DOOR TRIM (A)	8-98160-729-0	18	1	1305-1308	●	●	●	●
83	CLIP; DOOR TRIM POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98160-729-0	16	1	1309-	●	●	●	●
86	COVER ASM; DOOR POCKET BLACK	8-97416-748-3	01	1	1305-	●	●	●	●
86	COVER ASM; DOOR POCKET BLACK	8-97416-749-3	01	1	1305-	●	●	●	●
127	SEAL; DOOR INNER POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-454-1	01	1	1305-	●	●	●	●
127	SEAL; DOOR INNER POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98192-455-1	01	1	1305-	●	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98103-523-1	01	1	1305-	●	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31>	8-98103-524-1	01	1	1305-	●	●	●	●
141	GROMMET; SCREW,LWR COVER	8-94152-494-0	04	1	1305-	●	●	●	●
166	PLUG; HOLE	8-98197-448-0	04	1	1305-	●	●	●	●
231	COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1305-	●	●	●	●
231	COVER; HOLDER,BOLT BLACK	8-97416-610-0	02	1	1305-	●	●	●	●
232	BOLT; DOOR TRIM M5X14 TAPPING	8-98184-363-0	02	1	1305-	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
51	WEATHERSTRIP; FRONT DOOR (A)	8-98109-544-3	01	1	1305-	●	●	●	●
51	WEATHERSTRIP; FRONT DOOR (A)	8-98109-545-3	01	1	1305-	●	●	●	●
51	WEATHERSTRIP; FRONT DOOR (B)	8-98201-892-0	02	1	1305-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
