◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#119980) — 72 parça

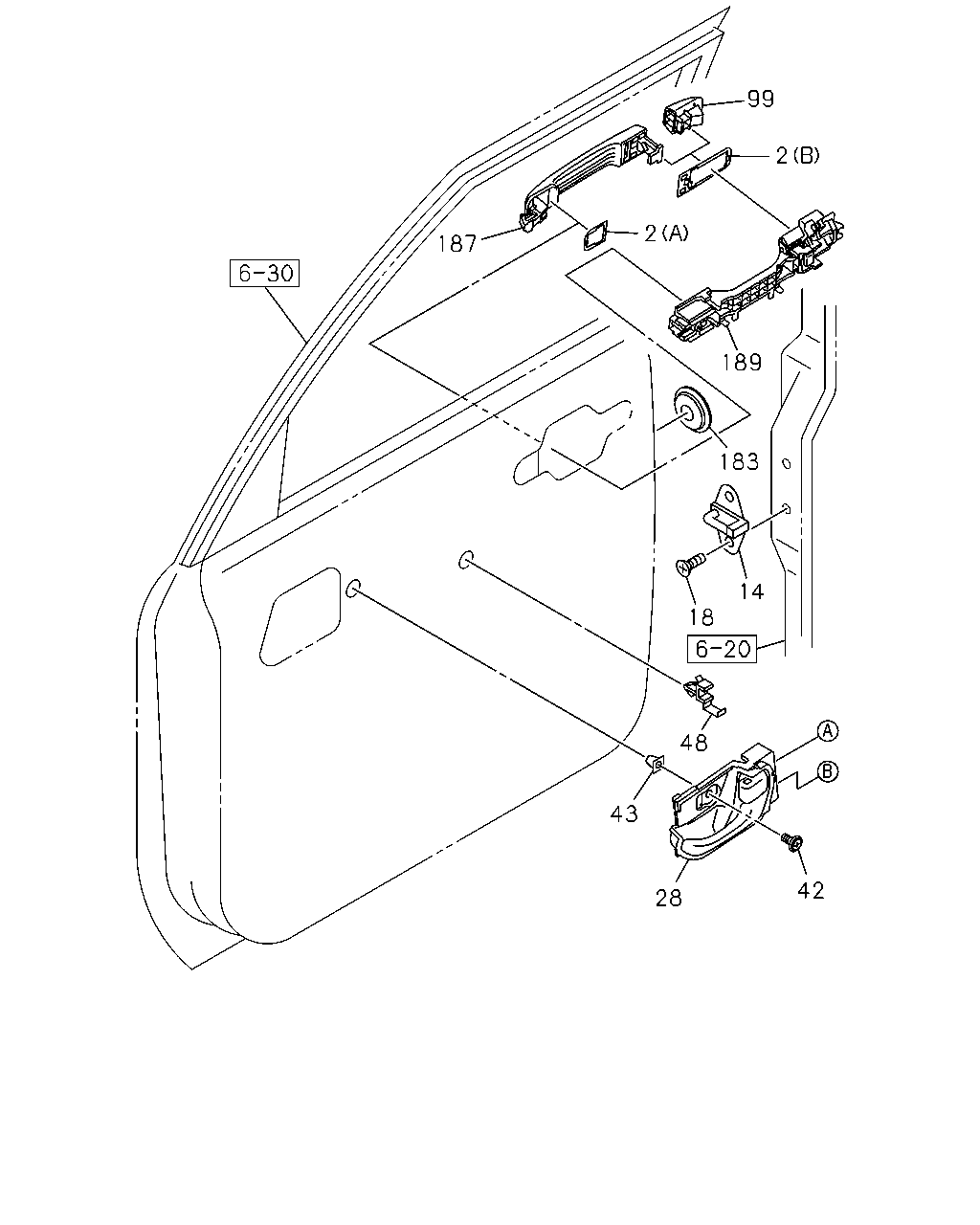

çizim 351318
99 2 187 2 189 183 14 18 48 43 28 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET; OUTSIDE HANDLE,DOOR
(A) 		8-98176-466-0 01 1 1305- ● ● ● ●
2 GASKET; OUTSIDE HANDLE,DOOR
(B) 		8-98176-467-2 01 1 1305- ● ● ● ●
14 STRIKER; FRT DOOR 8-98012-203-0 02 1 1305- ● ● ● ●
18 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1305- ● ● ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-726-4 01 1 1305- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC(RBA) BLACK 		8-97416-726-4 01 1 1305- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-728-4 01 1 1305- ● ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR BASIC(RBA) BLACK 		8-97416-728-4 01 1 1305- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM(RBD) BLACK 		8-97416-730-3 01 1 1305- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-730-3 01 1 1305- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
INTERIOR CUSTOM(RBD) BLACK 		8-97416-732-3 01 1 1305- ●
28 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-732-3 01 1 1305- ●
42 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING 		8-98184-363-0 02 1 1305- ● ● ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR 8-94152-494-0 02 1 1305- ● ● ● ●
48 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 1305- ● ● ● ●
99 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-462-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-462-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-462-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
OUTSIDE HANDLE CHROME<E20> EXC. REMOTE CONT DOOR LOCK<AP5> PLATED 		8-98176-462-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-460-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-460-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-460-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
EXC. REMOTE CONT DOOR LOCK<AP5>,OUTSIDE HANDLE CHROME<E20> 		8-98176-460-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-465-1 01 1 1305- ● ●
99 COVER; HOLE DOOR LOCK
REMOTE CONT DOOR LOCK<AP5> EXC. OUTSIDE HANDLE CHROME<E20> BLACK 		8-98176-463-1 01 1 1305- ● ●
183 GROMMET
OD=26 		8-94141-484-0 02 1 1305- ● ● ● ●
187 GRIP; FRT DOOR
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-458-0 01 1 1305- ● ● ● ●
187 GRIP; FRT DOOR
OUTSIDE HANDLE CHROME<E20> PLATED 		8-98176-458-0 01 1 1305- ● ● ● ●
187 GRIP; FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-456-0 01 1 1305- ● ● ● ●
187 GRIP; FRT DOOR
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98176-456-0 01 1 1305- ● ● ● ●
189 BRACKET; GRIP,DOOR 8-98176-469-4 01 1 1305- ● ● ● ●
189 BRACKET; GRIP,DOOR 8-98176-471-4 01 1 1305- ● ● ● ●
çizim 351334
8 12 51 176 8 176 175 36 51 12 79 11 12 175 36 175 175
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98115-578-4 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> (A) 		8-98115-578-4 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) 		8-98103-872-4 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98103-872-4 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98103-869-3 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) 		8-98103-869-3 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) 		8-98103-868-3 01 1 1305- ● ● ● ●
8 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98103-874-4 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98124-520-4 01 1 1305- ● ●
8 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98103-871-4 01 1 1305- ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-993-0 01 1 1305-1502 ● ●
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-993-0 01 1 1305-1502 ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97349-993-0 01 1 1305-1502 ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-98292-012-0 01 1 1503- ● ●
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-012-0 01 1 1503- ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98292-012-0 01 1 1503- ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-995-0 01 1 1305-1502 ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-995-0 01 1 1305-1502 ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-98292-013-0 01 1 1503- ● ●
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-013-0 01 1 1503- ● ●
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-994-0 01 1 1305-1502 ● ●
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-022-0 01 1 1503- ● ●
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-996-0 01 1 1305-1502 ● ●
11 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-015-0 01 1 1503- ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 1305- ● ● ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 02 1 1305- ● ● ● ●
12 SCREW; DOOR LK
(A) M6X14.5 		8-98004-342-0 06 1 1305- ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-98193-693-0 01 1 1305- ● ● ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-98193-692-0 01 1 1305- ● ●
36 LINK; DOOR LOCK,OUTSIDE
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98193-692-0 01 1 1305- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97349-986-0 01 1 1305- ● ● ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 1305- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD
EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97349-985-0 01 1 1305- ● ●
79 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> M6X8 FLANGE 		8-98048-996-0 02 1 1305- ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98193-688-0 01 1 1305- ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98193-689-0 01 1 1305- ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(A) 		8-98193-690-0 01 1 1305- ● ● ● ●
175 CABLE ASM; LOCK CONTROL
(B) 		8-98193-691-0 01 1 1305- ● ● ● ●
176 COVER; DOOR LOCK 8-97349-991-0 01 1 1305- ● ● ● ●
176 COVER; DOOR LOCK 8-97349-992-0 01 1 1305- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
