◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#11998) — 66 parça

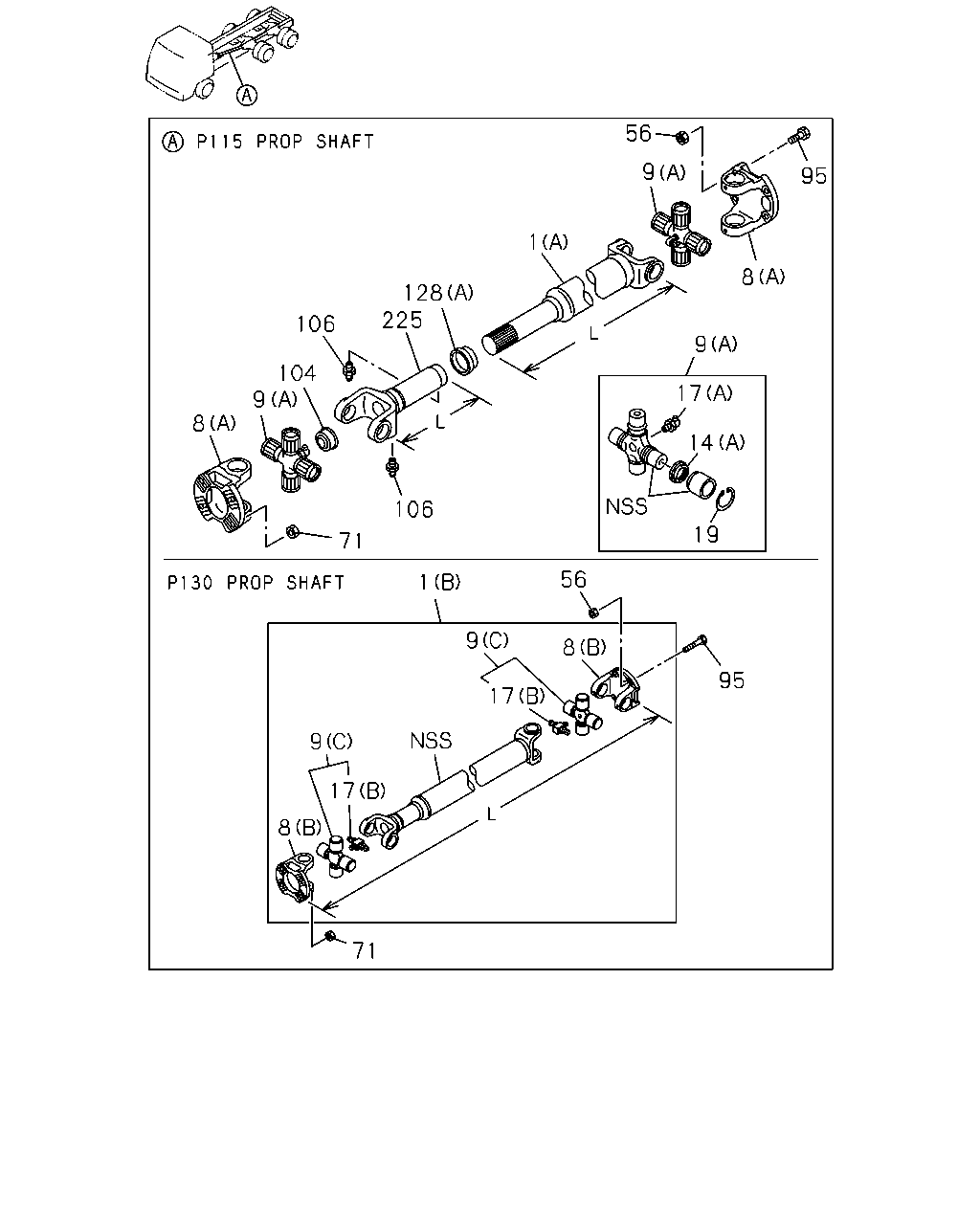

çizim 79993
56 95 9 8 9 17 14 19 95 56 8 17 71 8 17 9 9 1 71 106 8 9 104 106 225 128 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
MJX16P M/T(Y3Z) P115 PROP SHAFT<C5X> (A) L=570 		1-37124-642-1 01 1 0107- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (A) L=650 		1-37124-824-1 01 1 0105-0106 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) P115 PROP SHAFT<C5X> (A) L=650 		1-37124-824-1 01 1 0107- ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (B) L=915 		1-37124-592-1 01 1 0105-0210 ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (B) L=900 		1-37125-171-0 01 1 0211- ●
1 SHAFT; PROP
(B) L=1475 		1-37124-934-1 01 1 0105-0210 ●
1 SHAFT; PROP
(B) L=1460 		1-37125-172-0 01 1 0211- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37211-083-0 02 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-083-0 02 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37211-077-1 02 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-112-0 02 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (C) 		1-37300-118-0 02 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0105- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0105- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0105- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> T=2.2 		1-09587-103-1 AR 1 0105- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> T=2.17 		1-09587-107-0 AR 1 0105- ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105- ● ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105- ● ●
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0105- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0105- ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 0105- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105- ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-0312 ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> L=339 		1-37241-140-0 01 1 0105- ●

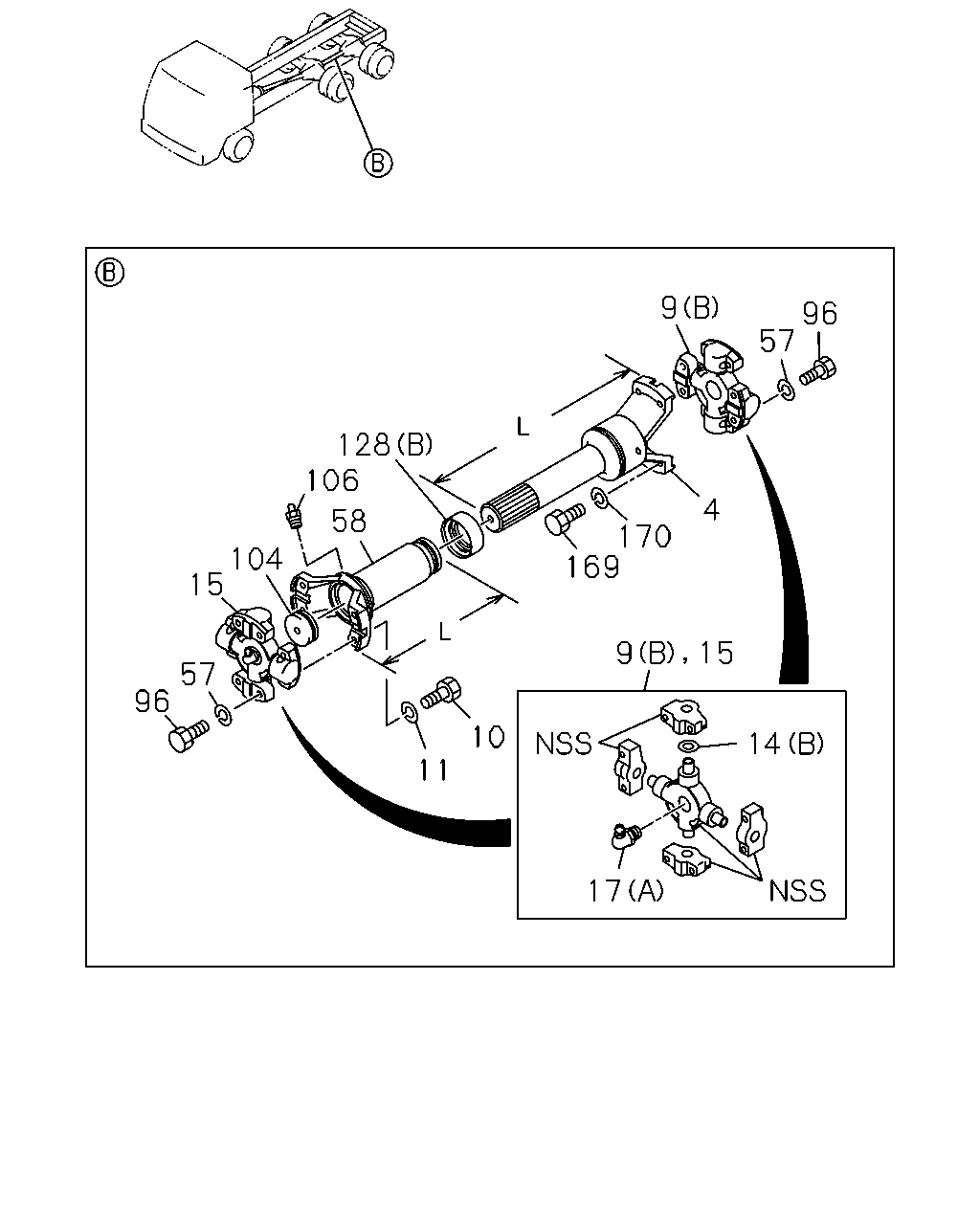

çizim 80890
96 57 9 4 170 169 9 15 14 17 10 11 96 57 15 104 58 106 128
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37300-112-0 02 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (C) 		1-37300-118-0 02 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-118-0 02 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0105- ● ●
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0105- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604- ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105- ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0105- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 		1-37319-013-0 02 1 0105- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0105-0603 ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0105- ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0105- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0105- ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> 		1-09600-049-0 01 1 0105- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105- ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-0312 ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0105- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604- ● ●
