Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#119973) — 19 parça
◀
[510A] CAB MTG BRKT REAR (10 parça)

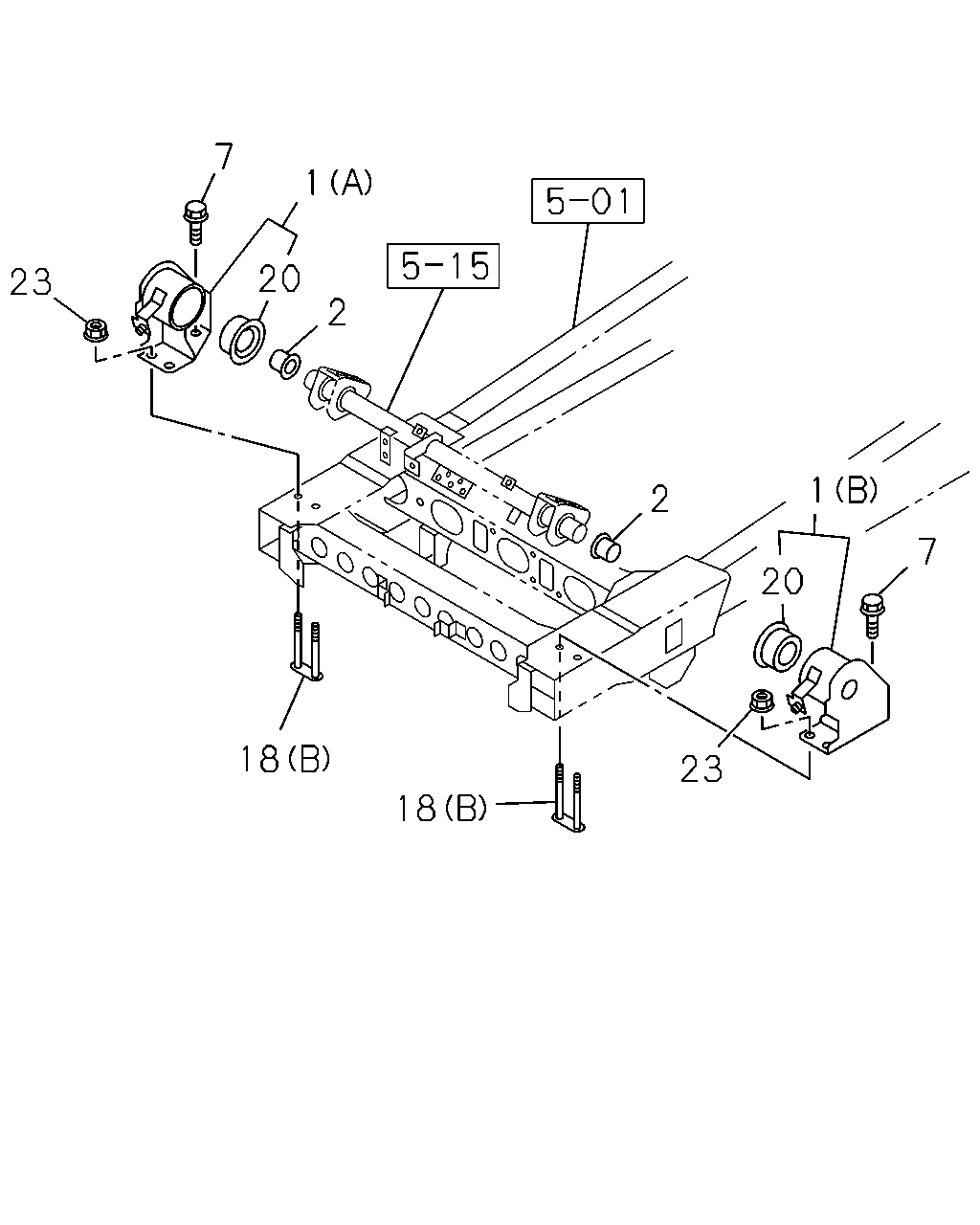

[510A] CAB MTG BRKT FRONT (9 parça)
▶
156
151
300
149
199
156
151
300
149
199
191
191
192
18
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
PLATE; MTG BRKT FIX
(A) IMA
8-97034-139-2
02
1
1304-
18
PLATE; MTG BRKT FIX
(B) IMA
8-98029-285-1
02
1
1304-
149
RUBBER; MTG,CAB,UPR RR
8-98038-868-0
02
1
1304-
151
WASHER; CAB MTG,RR UPR
ID=16.5 OD=58
8-97359-040-1
02
1
1304-
156
NUT; CAB MTG RR
M14 FLANGE THA
0-91180-114-0
02
1
1304-
191
BOLT; BRKT FIX
M12X40 FLANGE IMA
0-28651-240-0
08
1
1304-
192
NUT; BRKT FIX
M12 FLANGE THA
0-91180-112-0
08
1
1304-
199
BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ>
8-98024-772-2
01
1
1304-
199
BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ>
8-98024-778-1
01
1
1304-
300
BOLT; MTG RUBBER
M10X20 FLANGE THA
0-28651-020-0
08
1
1304-
23
18
18
23
7
1
20
2
2
1
20
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
(A) IMA
8-98074-798-2
01
1
1304-
1
BRACKET; CAB MTG
(B)
8-98074-800-2
01
1
1304-
2
BUSHING; TORSION BAR
8-97061-514-0
02
1
1304-
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE IMA
0-28661-440-0
02
1
1304-
18
PLATE; MTG BRKT FIX
(A) IMA
8-97034-139-2
02
1
1304-
18
PLATE; MTG BRKT FIX
(B) IMA
8-98029-285-1
02
1
1304-
20
RUBBER; MTG,CAB BRKT
IMA
8-98007-037-1
01
1
1304-
20
RUBBER; MTG,CAB BRKT
IMA
8-98007-037-1
01
1
1304-
23
NUT; MTG BRKT
M14 IMA
8-98039-989-0
04
1
1304-
