2-05 — CLUTCH PIPING (#119971) — 17 parça

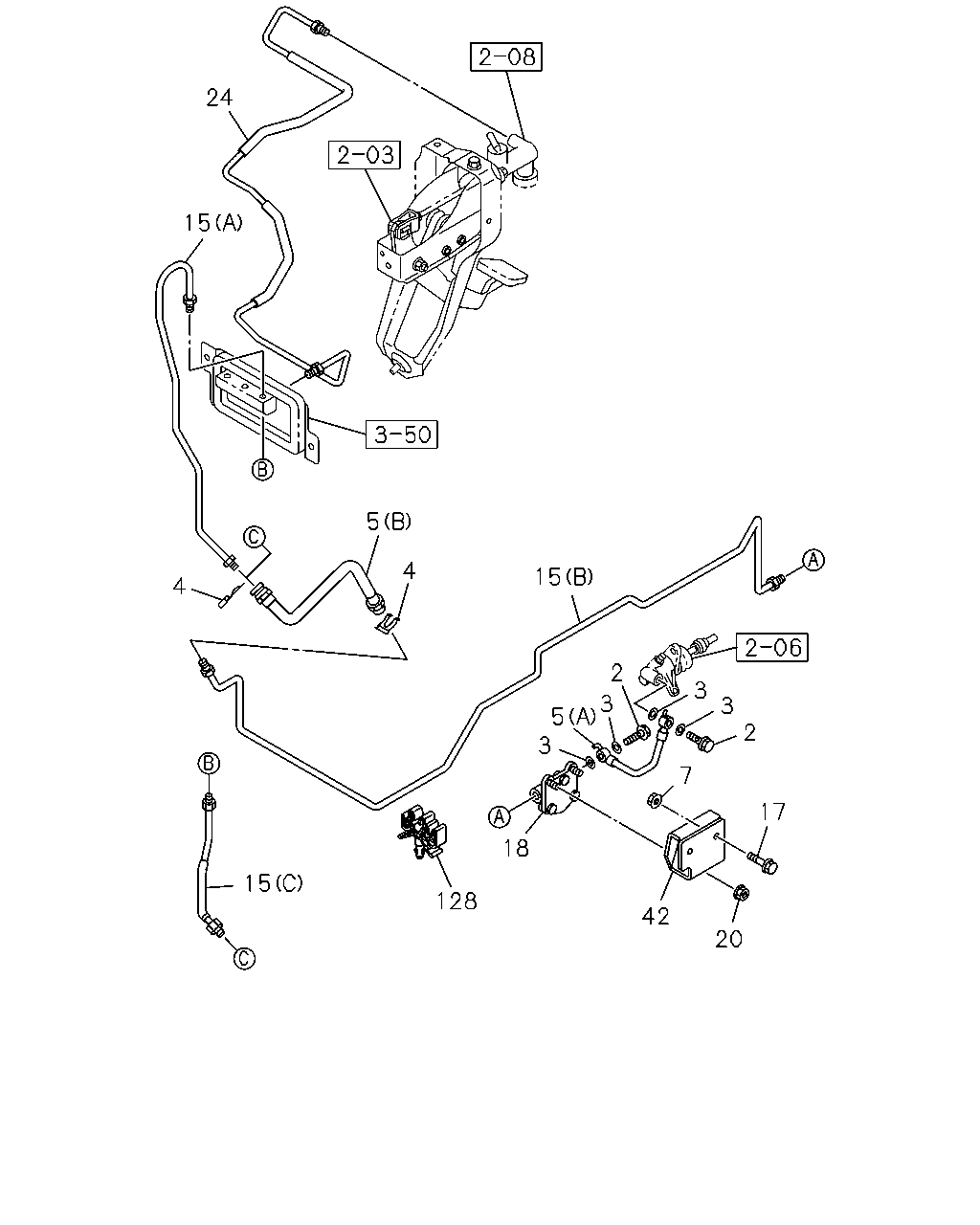

çizim 350570
24 15 5 4 15 15 2 3 5 3 18 128 3 3 2 7 17 42 20 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
M10X22 THA 		8-98014-005-0 02 1 1304- ● ●
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1304- ● ●
4 CLIP; FLEX HOSE,CLU CONT
IMA 		8-97365-304-0 02 1 1304- ● ●
5 HOSE; FLEX,CLU PIPE
(A) IMA 		8-98077-611-2 01 1 1304- ● ●
5 HOSE; FLEX,CLU PIPE
(B) IMA 		8-98083-907-0 01 1 1304- ● ●
7 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 02 1 1304- ● ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-98041-742-3 01 1 1304- ● ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97389-643-0 01 1 1304-1401 ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-98250-269-0 01 1 1402- ●
15 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-98043-499-3 01 1 1304- ●
17 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1304- ● ●
18 DAMPER ASM; CLU OIL
IMA 		8-98077-610-1 01 1 1304- ● ●
20 NUT; CLU OIL DAMPER
M8 FLANGE THA 		0-91180-108-0 02 1 1304- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-98077-617-0 01 1 1304- ●
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-98098-686-1 01 1 1304- ●
42 BRACKET; FLEX HOSE,CLU CONT
IMA 		8-98082-472-2 01 1 1304- ● ●
128 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> ID=12 & 6.35 & 4.76 IMA 		8-97202-954-1 01 1 1304- ● ●
