0-66 — GENERATOR (#119970) — 75 parça

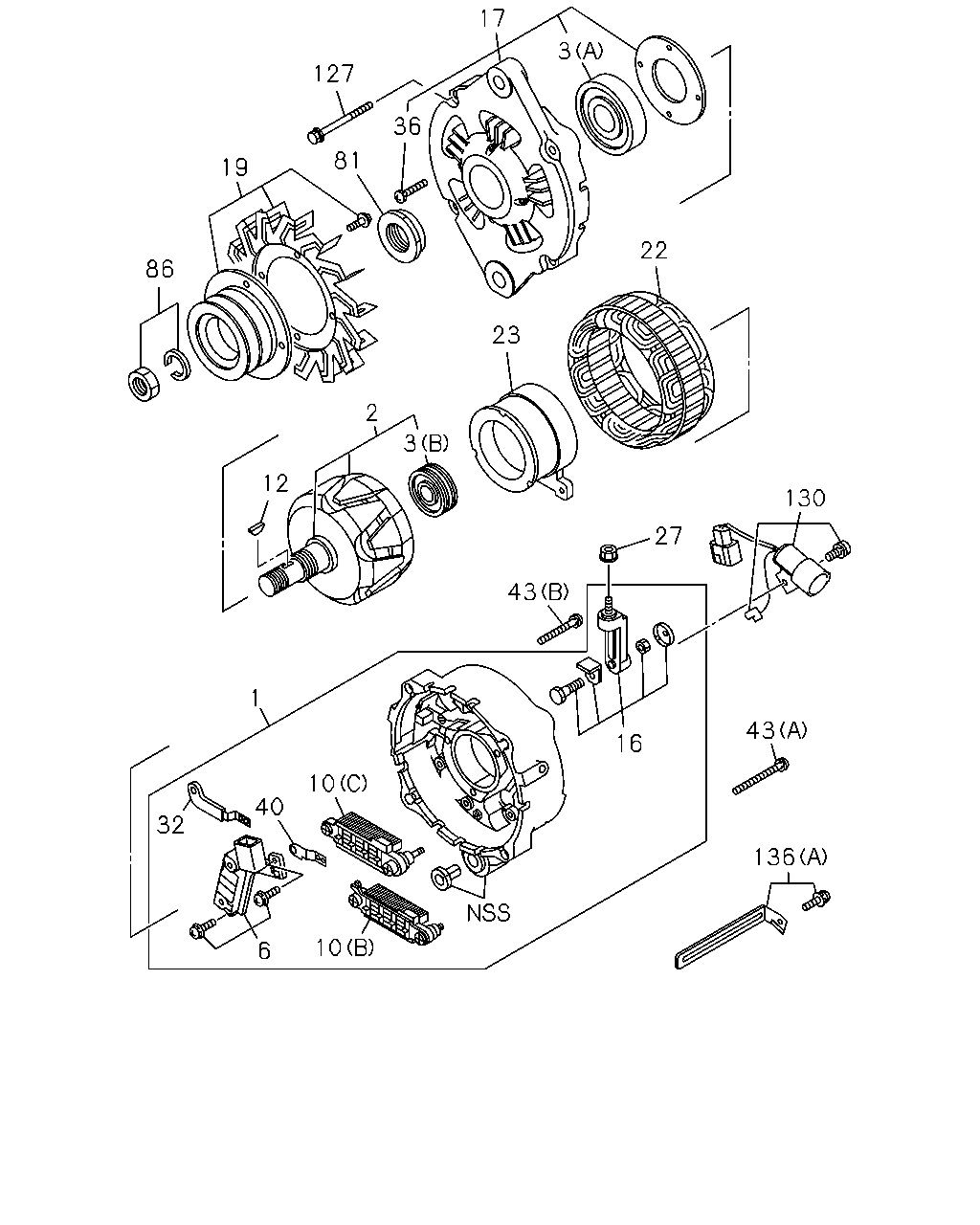

12 22 127 19 86 81 36 17 3 2 3 136 27 43 43 130 16 65 6 40 10 32 23 136 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-496-0	8-98140-797-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-496-0	1-81221-106-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-496-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 8-98127-496-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 8-98127-496-0	8-98047-084-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-98127-496-0	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-98127-495-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-496-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-495-0	1-81213-116-1	01	1	-
19	PULLEY; GEN ASM PART: A = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-496-0	1-81222-149-3	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-496-0	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: A = 8-98127-495-0	1-81211-135-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-496-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 8-98127-495-0	1-81212-031-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-821-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-98127-495-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 8-98127-496-0	8-98047-089-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 8-98127-496-0	1-81222-163-0	01	1	-
40	PLATE; RR COVER ASM PART: A = 8-98127-495-0	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-817-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-98127-495-0	1-84132-016-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-813-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 8-98127-496-0	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 8-98127-495-0	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: A = 8-98127-495-0	1-81229-897-0	01	1	-

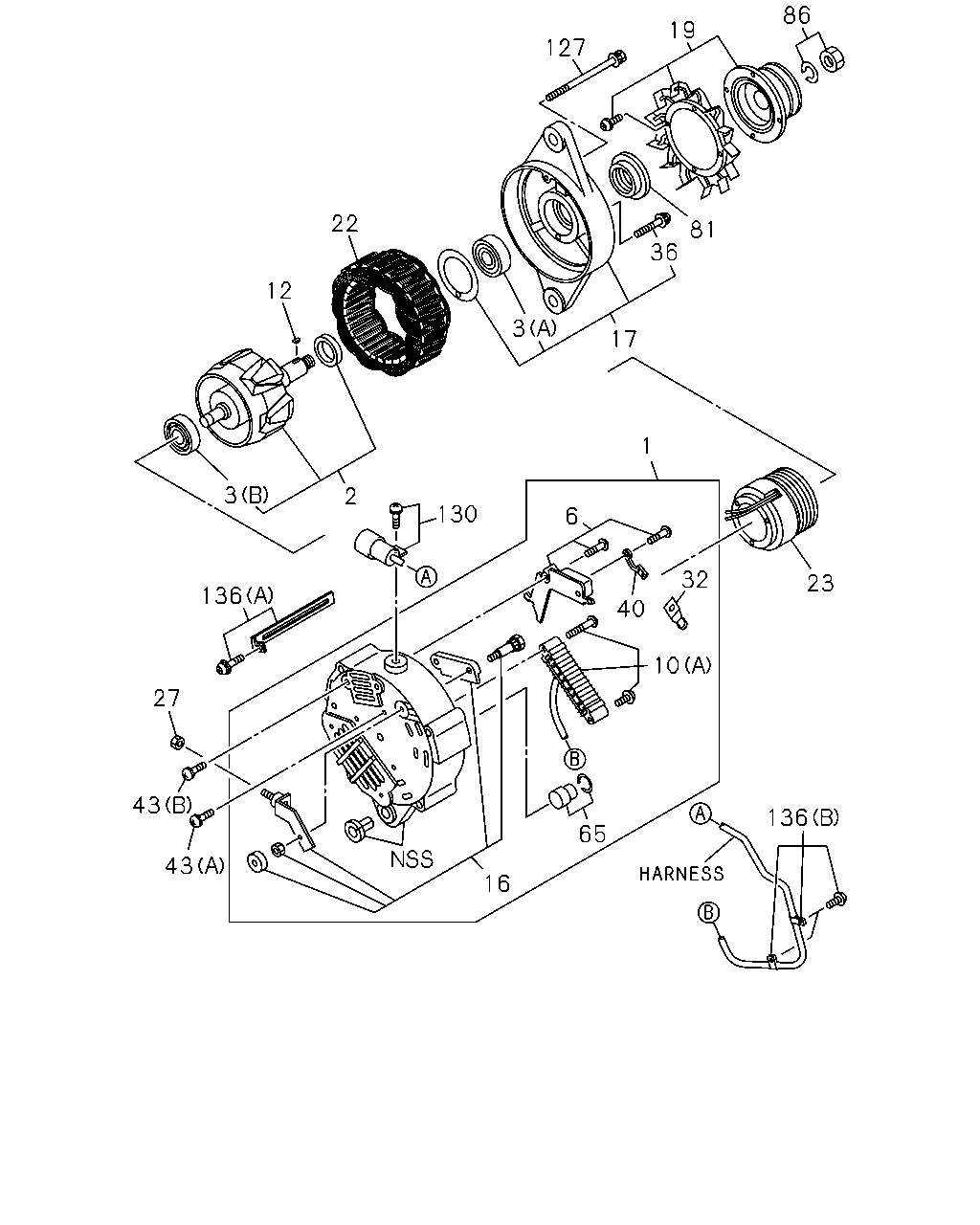

17 127 19 81 86 12 2 3 23 22 36 3 27 130 43 16 43 136 10 1 32 40 10 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-98127-495-0	8-98140-795-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-98127-496-0	8-98140-797-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-98127-495-0	1-81221-105-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-98127-496-0	1-81221-106-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-815-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-816-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-98127-495-0	8-98047-078-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-98127-496-0	8-98047-080-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 8-98127-495-0	8-98047-081-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 8-98127-496-0	8-98047-083-0	01	1	-
10	RECTIFIER; GEN (C) ASM PART: B = 8-98127-496-0	8-98047-084-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-822-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-98127-496-0	1-81229-806-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-98127-495-0	8-98140-796-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-98127-496-0	1-81213-115-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-98127-495-0	1-81213-116-1	01	1	-
19	PULLEY; GEN ASM PART: A = 8-98127-495-0	1-81222-139-1	01	1	-
19	PULLEY; GEN ASM PART: B = 8-98127-496-0	1-81222-149-3	01	1	-
22	STATOR; GEN ASM PART: B = 8-98127-496-0	1-81211-132-1	01	1	-
22	STATOR; GEN ASM PART: A = 8-98127-495-0	1-81211-135-0	01	1	-
23	COIL; ROTOR GEN ASM PART: B = 8-98127-496-0	1-81212-025-1	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 8-98127-495-0	1-81212-031-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-821-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: A = 8-98127-495-0	8-98047-087-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 8-98127-496-0	8-98047-089-0	01	1	-
36	SCREW; FRT COVER ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-814-0	01	1	-
40	PLATE; RR COVER ASM PART: B = 8-98127-496-0	1-81222-163-0	01	1	-
40	PLATE; RR COVER ASM PART: A = 8-98127-495-0	1-81222-164-1	01	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-774-0	01	1	-
43	SCREW; RR END COVER (B) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-817-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-813-0	01	1	-
86	NUT SET; PULLEY,GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-812-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 8-98127-496-0	1-81229-892-0	01	1	-
130	CONNECTOR; GEN ASM PART: A = 8-98127-495-0	1-81229-894-0	01	1	-
136	CLAMP; GENERATOR (A) ASM PART: A = 8-98127-495-0, B = 8-98127-496-0	1-81229-775-0	01	1	-
136	CLAMP; GENERATOR (B) ASM PART: A = 8-98127-495-0	1-81229-897-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
