Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10878 - EXZ RHD FUEL TANK 400L
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

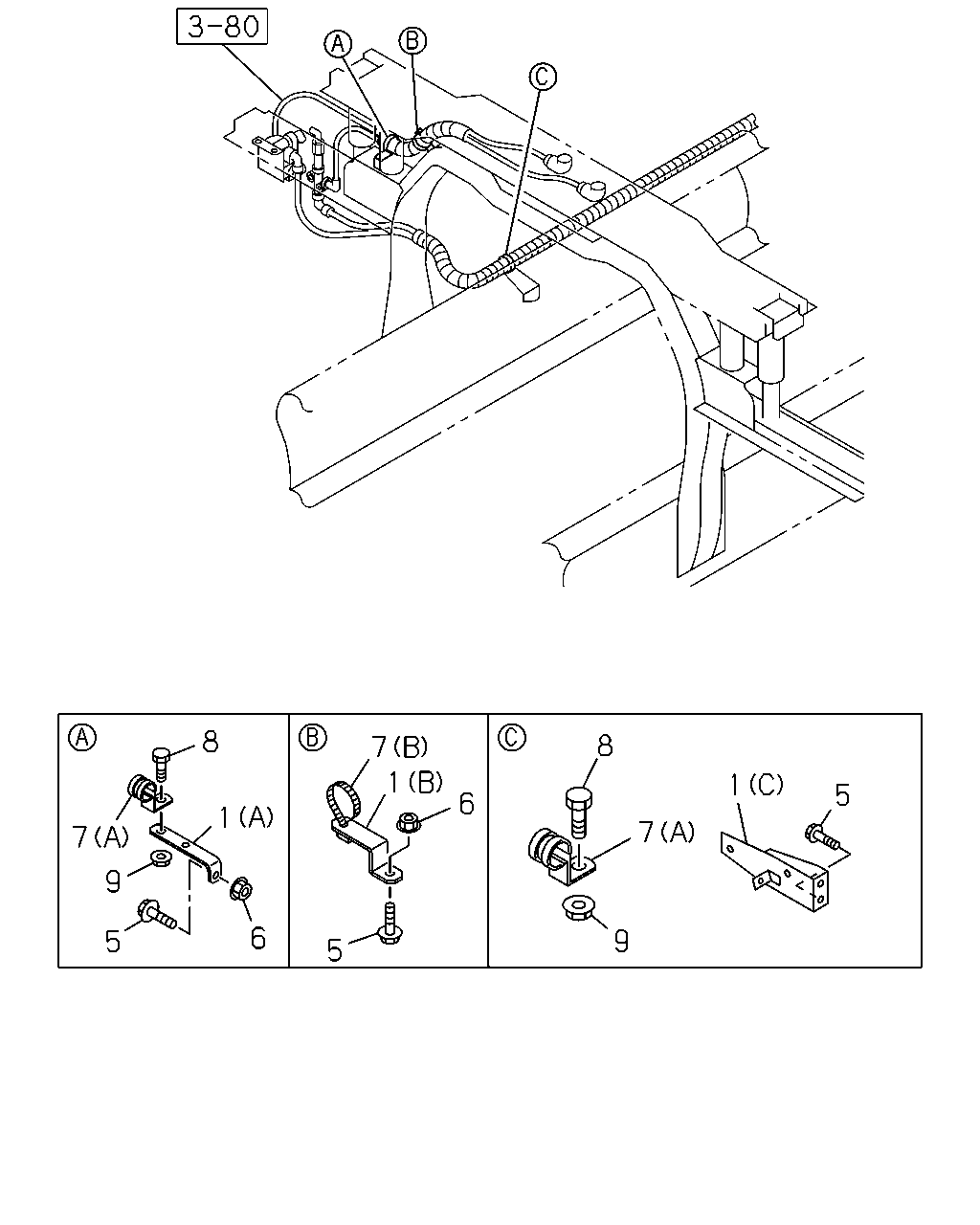

3-83 — FIXING PARTS; TRAILER PIPING
(#11997) — 19 parça
5
1
7
9
8
6
1
7
1
8
7
9
5
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)
1-22131-847-0
01
1
0310-
1
BRACKET; CLIP
(A) L=90
1-47477-755-1
01
1
0105-
1
BRACKET; CLIP
(B)
1-47477-908-1
01
1
0105-
5
BOLT; BRKT
SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X30 FLANGE
0-28681-030-0
02
1
0310-0512
5
BOLT; BRKT
SILENCER SINGLE VERTICAL<N28>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> M10X30 FLANGE
0-28651-030-0
02
1
0601-
5
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0105-0512
5
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-0602
6
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
7
CLIP; NYLON TUBE
(A) ID=35 H=45 L=33
1-09700-947-0
01
1
0105-
7
CLIP; NYLON TUBE
(A) ID=21 L=30 H=40
1-09700-991-1
01
1
0105-
7
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
03
1
0105-
7
CLIP; NYLON TUBE
(B) L=250
1-09707-126-0
01
1
0105-
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28080-820-0
03
1
0105-0512
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28050-820-0
03
1
0601-
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28680-820-0
02
1
0105-0512
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0601-
9
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
05
1
0105-0602
9
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
05
1
0603-
