◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#119963) — 15 parça

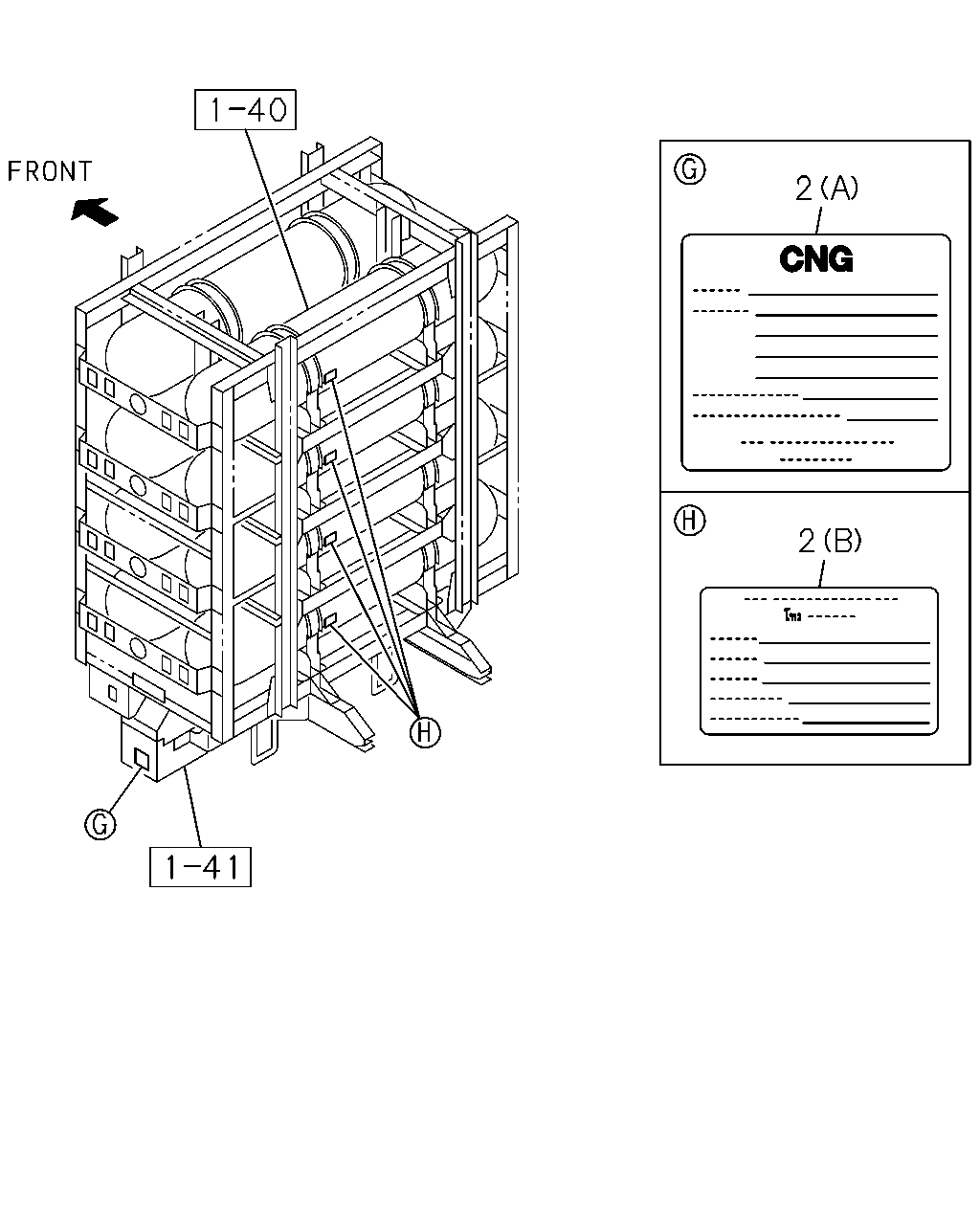

çizim 352208
2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION
(A) THA 		8-97924-883-1 01 1 1305- ● ●
2 LABEL; FUEL CAUTION
(B) THA 		8-97924-884-1 08 1 1305- ● ●
çizim 352326
51 6 181
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		8-97918-788-0 01 1 1305- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> THA 		8-97918-788-0 01 1 1305- ●
51 PLATE; CAUTION,WARNING
THA 		8-97924-894-1 01 1 1305- ● ●
181 PLATE; CAUTION,AIR CLEANER
THA 		8-97923-977-1 01 1 1305- ● ●

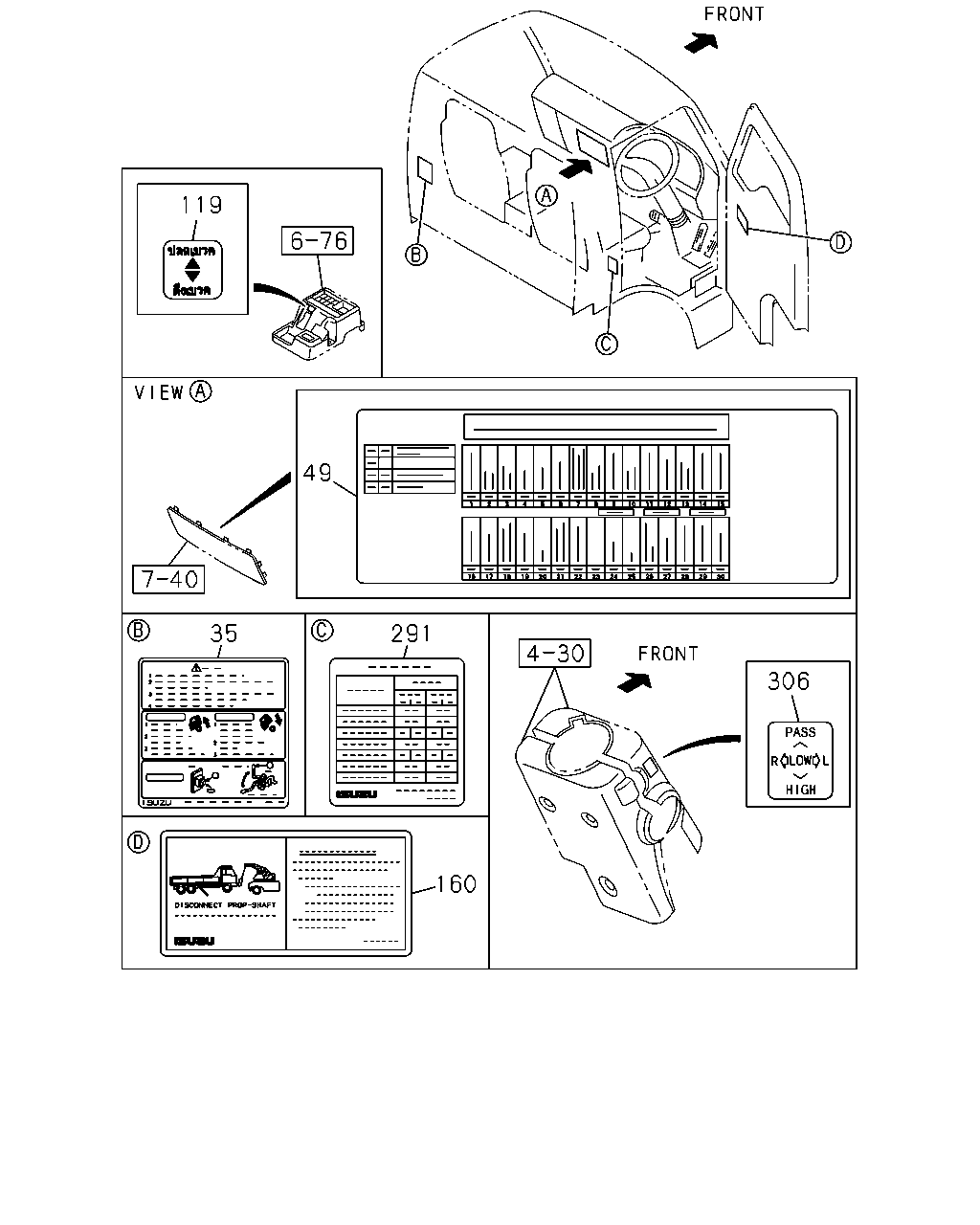

çizim 352634
119 49 306 291 35 160
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
THA 		8-97923-976-1 01 1 1305- ● ●
49 PLATE; CAUTION,FUSE BOX
THA 		8-97923-962-1 01 1 1305- ●
49 PLATE; CAUTION,FUSE BOX
EXC. ANTILOCK BRAKE SYSTEM<BFA> THA 		8-97923-962-1 01 1 1305- ●
49 PLATE; CAUTION,FUSE BOX
ANTILOCK BRAKE SYSTEM<BFA> THA 		8-97924-890-0 01 1 1305- ●
119 PLATE; CAUTION,HAND BRK LEVER
THA 		8-97924-257-1 01 1 1305- ● ●
160 PLATE; CAUTION,TOWING
THA 		8-97918-791-1 01 1 1305- ● ●
291 PLATE; CAUTION,TIRE AIR PRESS
THA 		8-97924-660-1 01 1 1305- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1305-1306 ● ●
306 LABEL; BEAM & PASS
THA 		8-97948-259-0 01 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
