◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51479 - NLR/NMR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#119962) — 35 parça

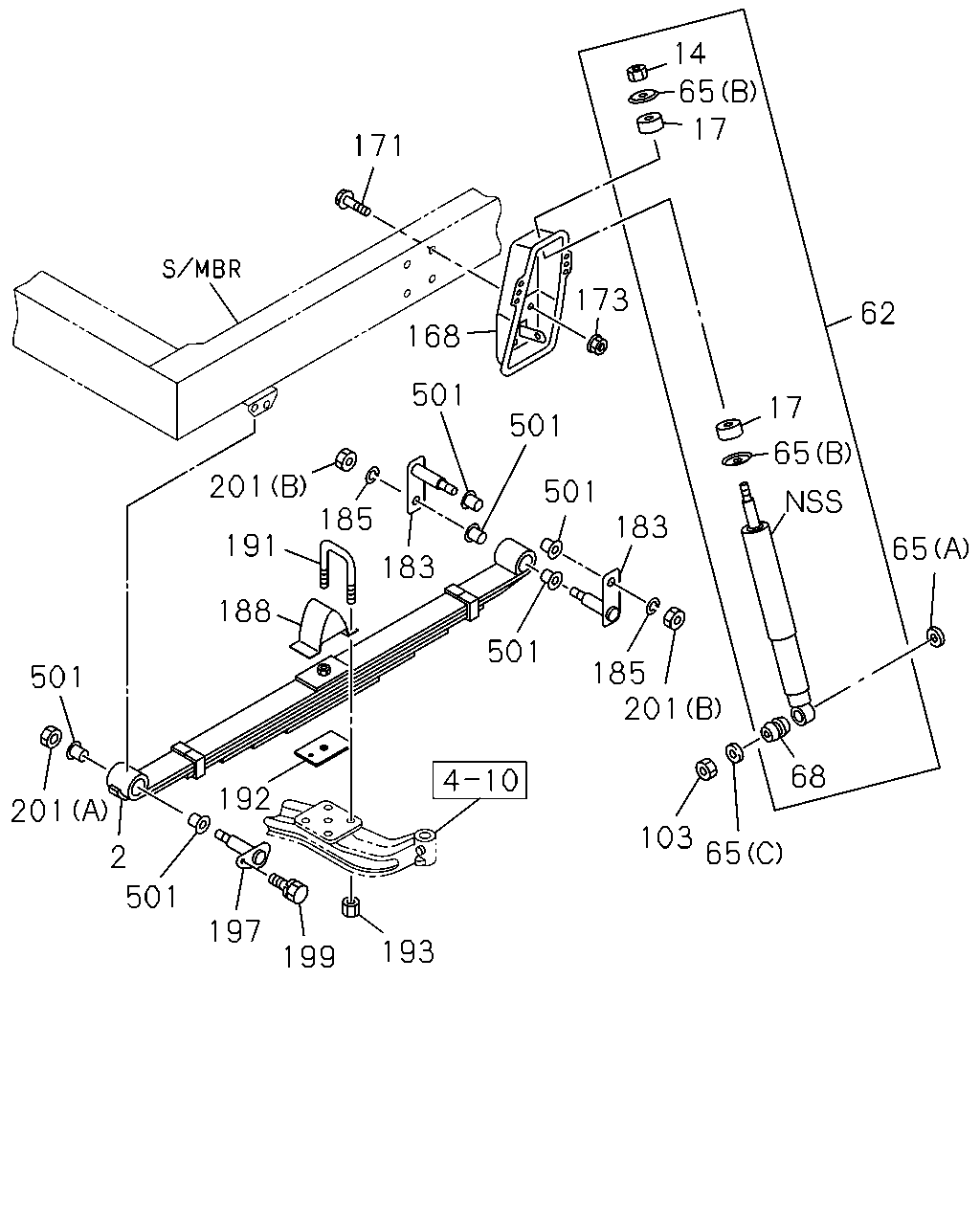

çizim 352068
65 103 201 185 65 62 17 65 183 501 501 501 173 168 171 201 191 188 183 185 501 201 2 68 14 65 17 501 501 197 199 193 192
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGLE RR TIRE<6TD> 6-LEAF THA 		8-98079-885-0 01 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGLE RR TIRE<6TD> 6-LEAF THA 		8-98079-887-0 01 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 6-LEAF THA 		8-98001-533-0 01 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON<RPT> REAR WIDE TREAD<V4T> 6-LEAF THA 		8-98079-881-0 01 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-926-0 01 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON<RPW> REAR WIDE TREAD<V4T> 8-LEAF THA 		8-98079-961-0 01 1 1304- ●
14 NUT; S/ABS,UPR
M10 THA 		8-94317-772-0 02 1 1304- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO THA 		9-51631-603-0 04 1 1304- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-097-0 02 1 1304- ● ●
65 WASHER; S/ABS
(A) ID=17 OD=32 IMA 		0-91614-616-0 02 1 1304- ● ●
65 WASHER; S/ABS
(B) ID=10.5 OD=38 THA 		9-51631-062-0 04 1 1304- ● ●
65 WASHER; S/ABS
(C) ID=12.5 IMA 		9-51679-022-0 02 1 1304- ● ●
68 BUSHING; S/ABS
TOKICO THA 		8-94224-694-0 02 1 1304- ● ●
103 NUT; S/ABS TO LWR LINK
M12 IMA 		0-91111-512-0 02 1 1304- ● ●
168 BRACKET; S/ABS,FRT SUSP
IMA 		8-98002-081-0 01 1 1304- ● ●
168 BRACKET; S/ABS,FRT SUSP
IMA 		8-98039-597-0 01 1 1304- ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE THA 		0-28651-030-0 08 1 1304- ● ●
173 NUT; S/ABS
M10 FLANGE THA 		0-91180-210-0 08 1 1304-1403 ● ●
173 NUT; S/ABS
M10 FLANGE THA 		0-91180-110-0 08 1 1404- ● ●
183 SHACKLE; FRT SUSP
IMA 		8-98034-341-0 04 1 1304- ● ●
185 WASHER; LK,PIN
ID=16.5 IMA 		8-98011-489-0 04 1 1304- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
IMA 		8-98033-515-0 02 1 1304- ● ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> REAR L=105 		8-97304-074-1 02 1 1304- ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> FRONT L=115 		8-97304-075-1 02 1 1304- ●
191 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 1304- ●
191 U-BOLT; FRT SPR
G.V.W. 5.0-5.5TON<RPT> L=105 		8-97304-074-1 04 1 1304- ●
191 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON<RPW> L=125 		8-97304-076-1 04 1 1304- ●
192 PIECE; DIST
SINGLE RR TIRE<6TD> IMA 		8-94249-413-1 02 1 1304- ●
193 NUT; U BOLT
M14 FLANGE IMA 		8-97360-124-0 08 1 1304- ● ●
197 PIN; FRT SPR,FRT
IMA 		8-94117-900-1 02 1 1304- ● ●
199 BOLT
M10X25 FLANGE THA 		0-28651-025-0 02 1 1304- ● ●
201 NUT; PIN LK
(B) M16 THA 		0-91110-516-0 04 1 1304- ● ●
201 NUT; PIN LK
(A) M16 FLANGE IMA 		8-97360-125-0 02 1 1304- ● ●
501 BUSHING; LEAF SPR,FRT
THA 		8-97925-208-0 04 1 1304- ● ●
501 BUSHING; LEAF SPR,FRT
THA 		8-97925-208-0 08 1 1304- ● ●
