◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#11996) — 46 parça

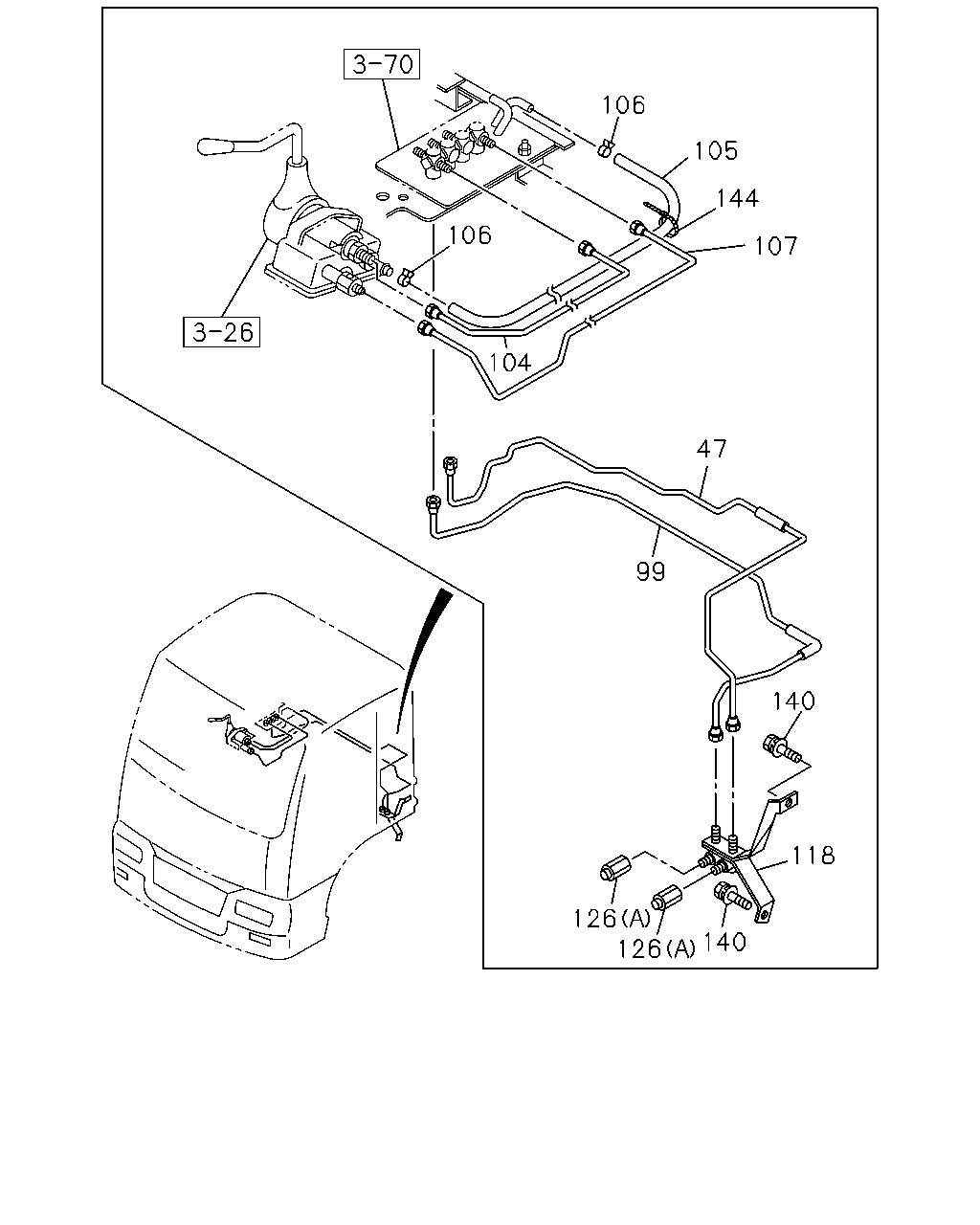

çizim 80342
106 106 105 144 107 104 47 99 140 118 140 126 126
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> 		1-49121-763-2 01 1 0105-
47 PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> L=1910 SERVICED BY L=1950 		1-47428-854-0 01 1 0105-
99 PIPE; AIR,JOINT TO JOINT
BAGGAGE BOX CAB RR SIDE<TBM> 		1-49122-058-1 01 1 0105-
99 PIPE; AIR,JOINT TO JOINT
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-49122-057-1 01 1 0105-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49121-477-0 01 1 0105-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0105-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-47495-160-0 01 1 0105-
118 JOINT; AIR PIPE 1-47470-608-1 01 1 0105-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-0210
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0211-
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
140 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112-

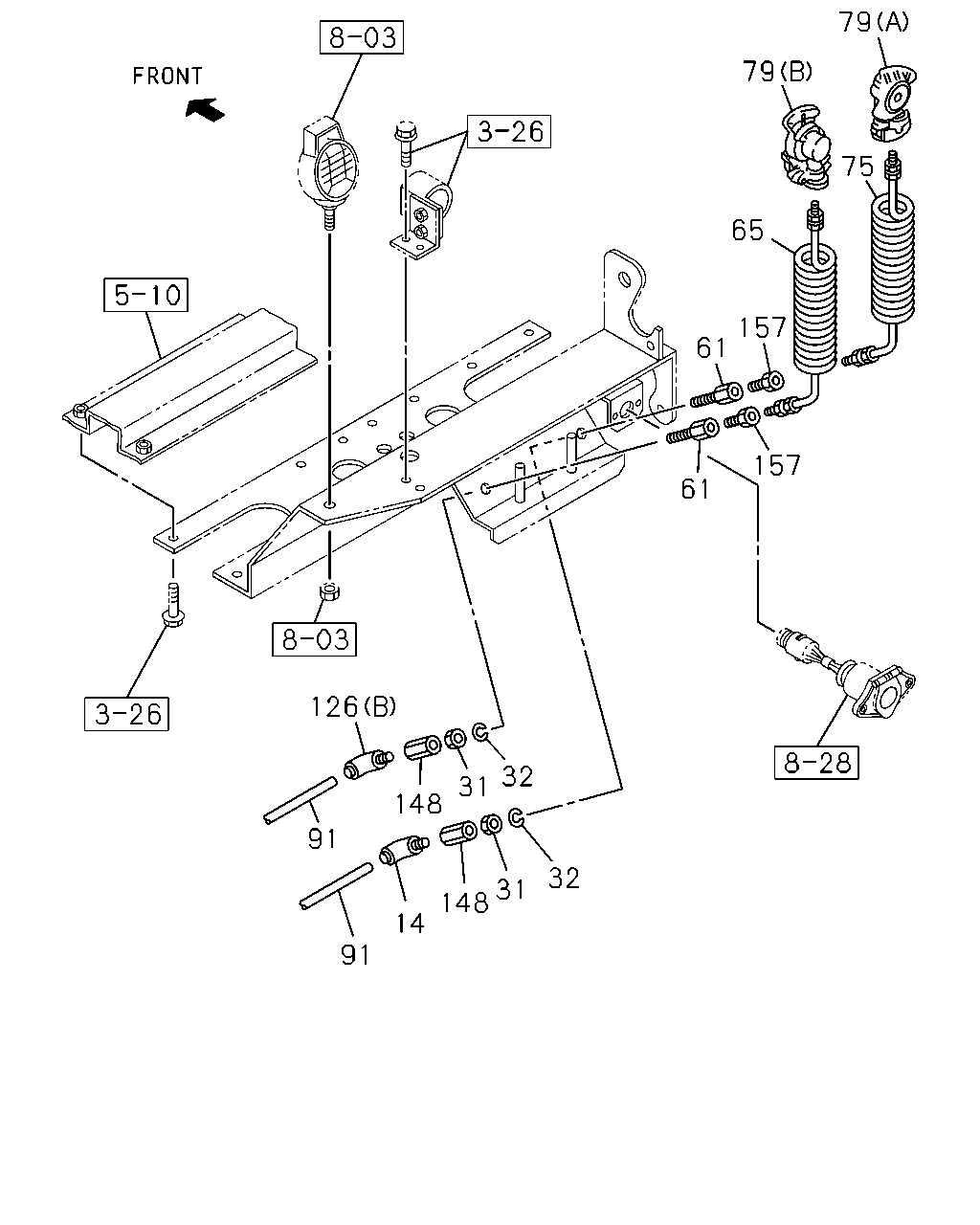

çizim 80855
79 79 75 65 157 61 157 61 32 32 31 31 148 148 126 91 14 91
BalonParca AdiParca NoAdetTipApplied Date
14 CONNECTOR; AIR PIPE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
31 NUT; UNION
M16 		9-99111-416-0 02 1 0105-0512
31 NUT; UNION
M16 		0-91111-516-0 02 1 0601-
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 0105-0603
32 WASHER; LK,UNION
ID=16.2 		0-91510-516-0 02 1 0604-
61 UNION; NYLON TUBE 1-09650-222-1 02 1 0105-
65 HOSE; AIR 1-49212-518-0 01 1 0105-
75 HOSE; FLEX,TRAILER EMERGENCY 1-49212-518-0 01 1 0105-
79 COUPLING; AIR,TRAILER
(A) 		1-47478-210-0 01 1 0105-
79 COUPLING; AIR,TRAILER
(B) 		1-47478-211-0 01 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87410-082-0 AR 1 0105-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-0210
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0211-
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 0105-
157 ADAPTER 1-09660-078-0 02 1 0105-

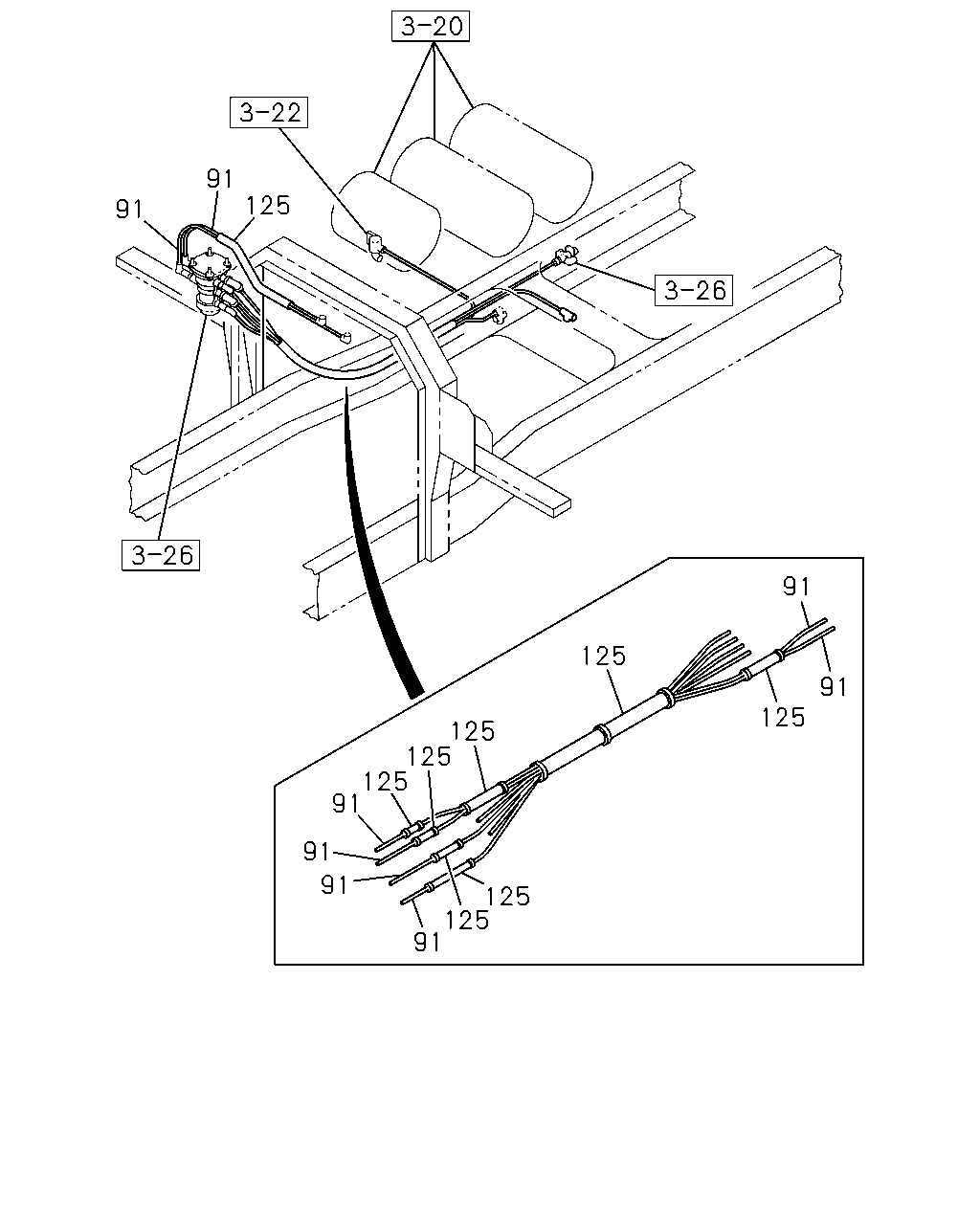

çizim 80861
91 91 125 91 91 125 125 125 125 125 91 91 91 91 125 125
BalonParca AdiParca NoAdetTipApplied Date
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
91 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87410-082-0 AR 1 0105-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0105-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
