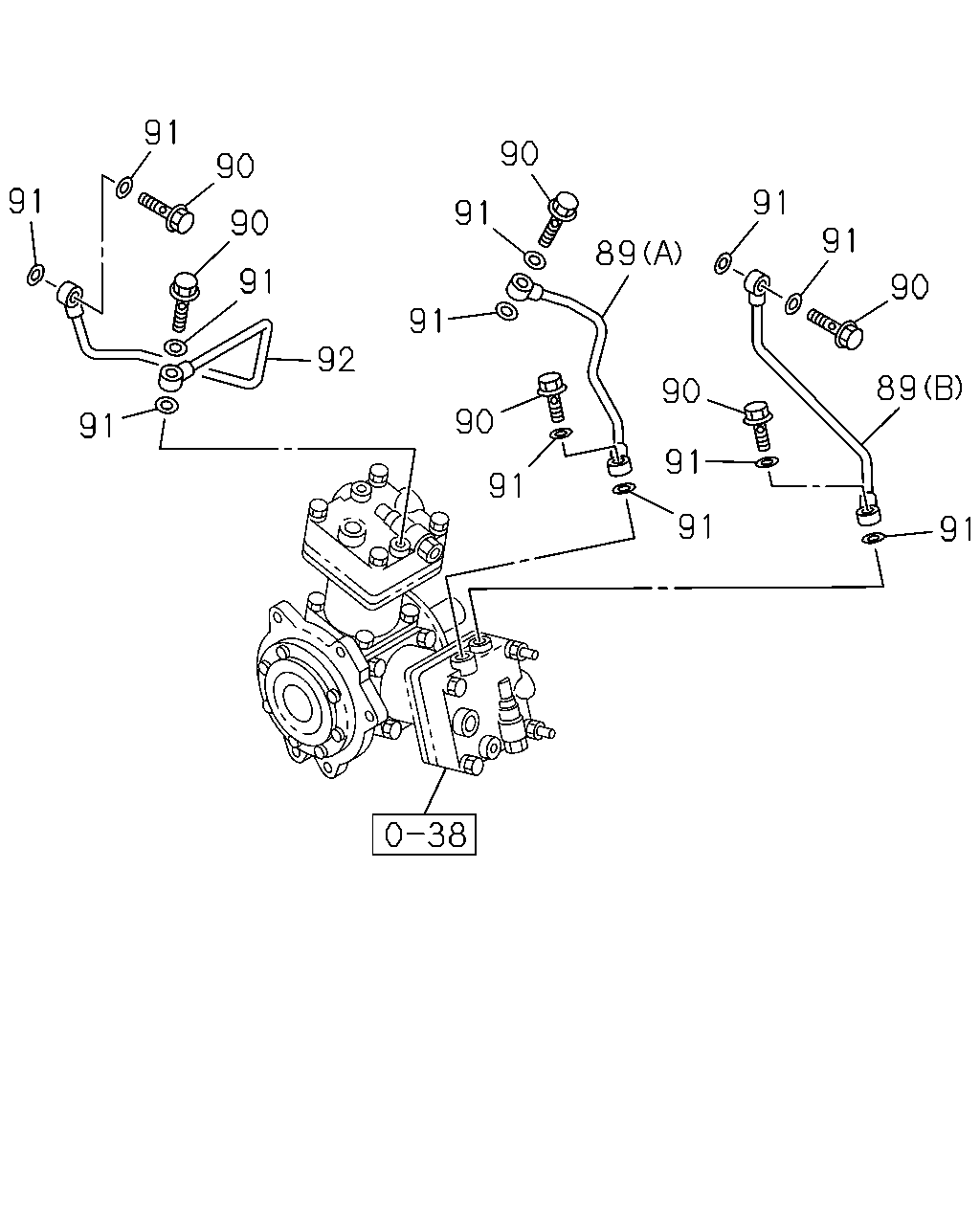

Sayfa 0-32 - Isuzu EPC

91 91 90 90 91 92 91 90 91 91 89 91 91 90 89 91 91 91 90 90 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1305-	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1305-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1305-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1305-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1305-	●	●

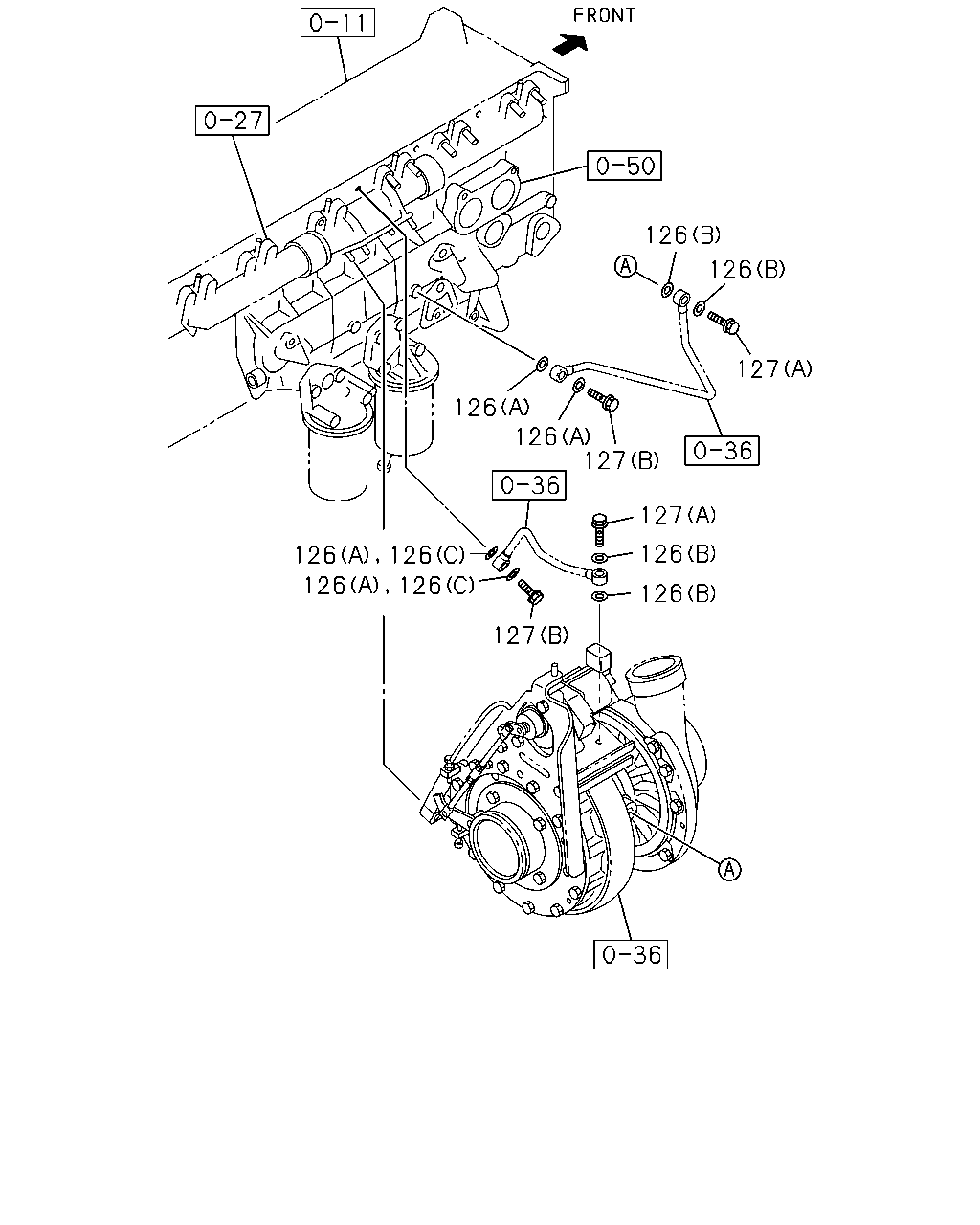

126 126 127 127 126 126 127 126 126 127 126 126 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1305-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1305-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	1305-	●	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1305-	●	●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1305-	●	●

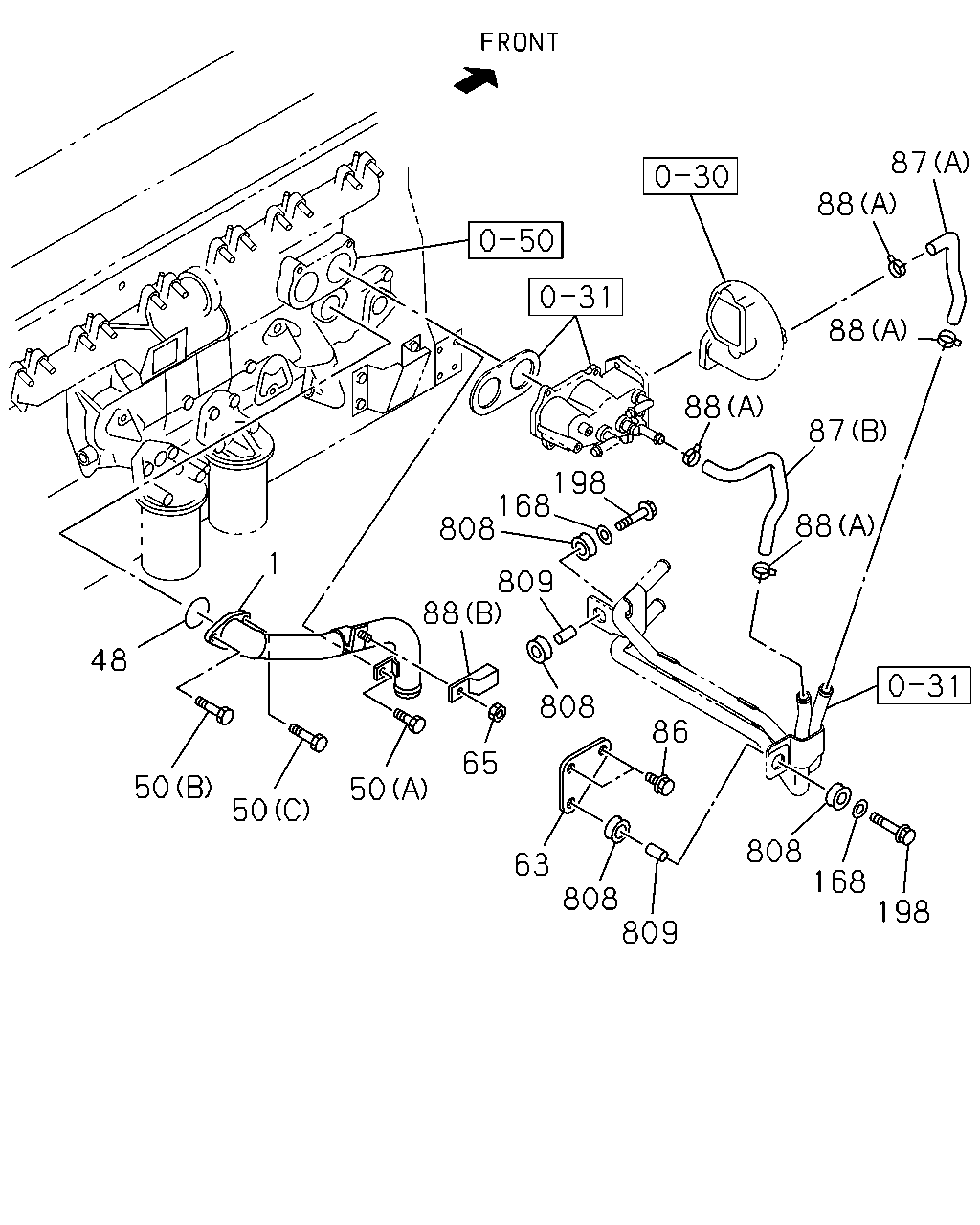

87 88 88 87 88 88 86 808 168 198 198 168 808 88 808 65 50 63 808 809 50 50 48 809 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1305-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1305-	●	●
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28051-090-0	01	1	1305-1306	●	●
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28151-090-0	01	1	1307-	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1305-	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1305-	●	●
63	BRACKET; WATER PIPE	8-98202-988-1	01	1	1305-	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	1305-	●	●
86	BOLT; BRKT,HTR PIPE M14X25 FLANGE	0-28951-425-0	02	1	1305-	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	1305-	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1305-	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1305-	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1305-	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1305-	●	●
198	BOLT; PIPE M10X50 FLANGE	0-28051-050-0	02	1	1305-	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	1305-	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1305-	●	●

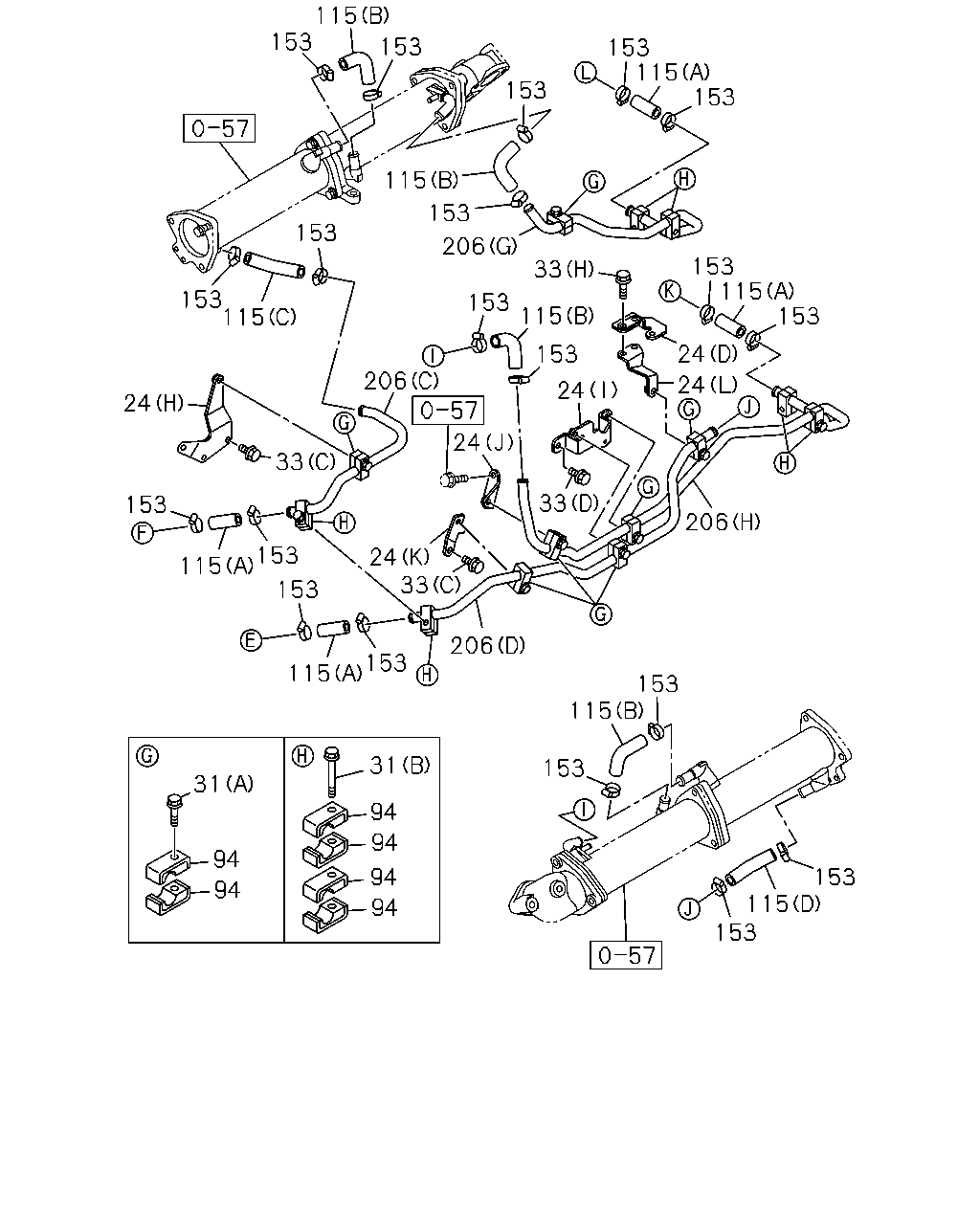

153 115 153 115 153 153 206 206 24 24 31 94 94 94 94 94 31 94 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (A)	8-97640-528-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (F)	8-97640-851-0	01	1	1305-	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1305-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1305-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1305-	●	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1305-	●	●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1305-	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1305-	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1305-	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1305-	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1305-	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1305-	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1305-	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1305-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1305-	●	●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1305-	●	●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1305-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (A)	8-97640-526-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97640-527-0	01	1	1305-	●	●

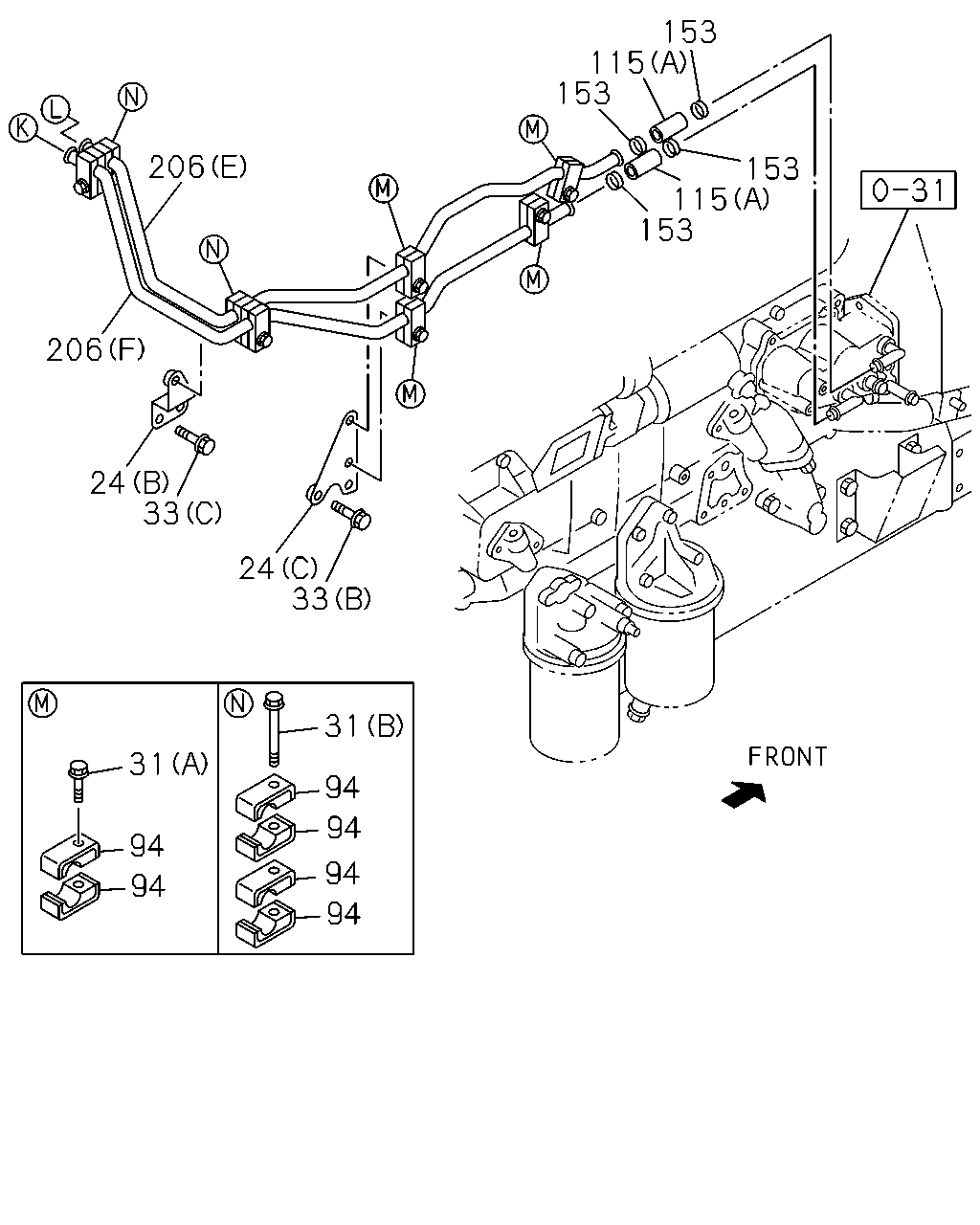

115 153 115 153 153 153 33 206 115 24 153 153 24 24 153 115 153 153 153 153 24 153 33 153 153 115 115 153 206 33 24 115 206 24 115 206 33 153 115 153 153 153 115 31 94 94 94 94 94 94 31 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (A)	8-97640-528-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (F)	8-97640-851-0	01	1	1305-	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1305-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1305-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1305-	●	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1305-	●	●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1305-	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1305-	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1305-	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1305-	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1305-	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1305-	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1305-	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1305-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1305-	●	●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1305-	●	●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1305-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (A)	8-97640-526-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97640-527-0	01	1	1305-	●	●

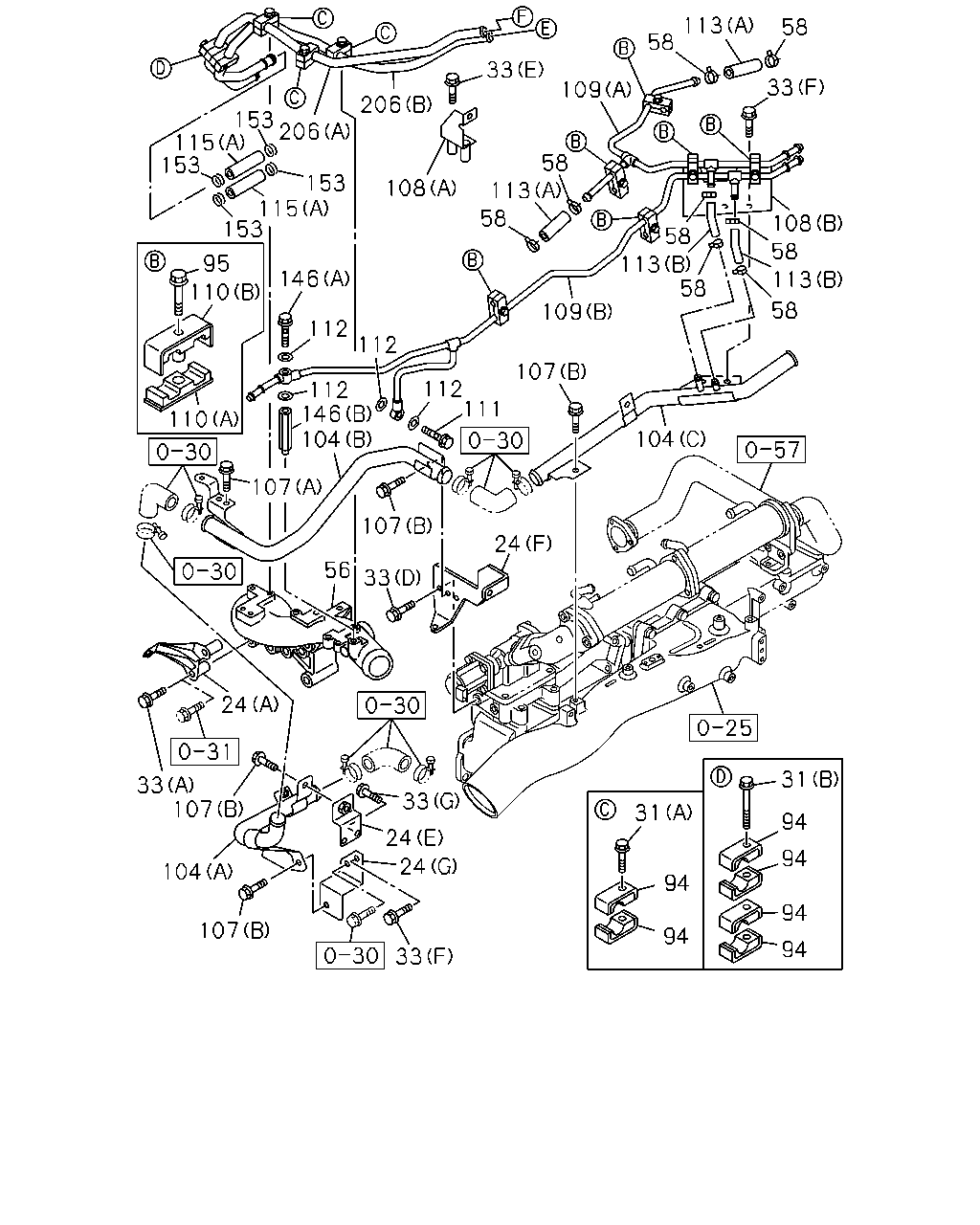

113 58 33 58 109 33 58 113 108 206 206 153 115 153 153 115 153 95 146 110 112 112 110 112 146 112 111 107 109 58 113 58 58 104 24 31 31 94 94 94 94 94 94 33 24 24 33 107 104 107 33 24 33 56 107 108 58 113 104 107 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1305-	●	●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (A)	8-97640-528-0	01	1	1305-	●	●
24	BRACKET; WATER PIPE (F)	8-97640-851-0	01	1	1305-	●	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1305-	●	●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1305-	●	●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1305-	●	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1305-	●	●
33	BOLT; BRKT (H) M8X25 FLANGE	0-28050-825-0	02	1	1305-	●	●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1305-	●	●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1305-	●	●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1305-	●	●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1305-	●	●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1305-	●	●
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1305-	●	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1305-	●	●
94	CLIP; WATER PIPE ID=17 L=17	1-09701-284-0	56	1	1305-	●	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1305-	●	●
104	PIPE; WATER CHARGE (C)	8-97640-850-2	01	1	1305-	●	●
104	PIPE; WATER CHARGE (B)	8-98192-816-2	01	1	1305-	●	●
104	PIPE; WATER CHARGE (A)	8-98192-817-0	01	1	1305-	●	●
107	BOLT; WATER PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	1305-	●	●
107	BOLT; WATER PIPE (B) M10X20 FLANGE	0-28151-020-0	04	1	1305-	●	●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1305-	●	●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1305-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97640-818-0	01	1	1305-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-343-0	01	1	1305-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1305-	●	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1305-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1305-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	05	1	1305-	●	●
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1305-	●	●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1305-	●	●
115	HOSE; RUBBER (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1305-	●	●
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1305-	●	●
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1305-	●	●
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1305-	●	●
146	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1305-	●	●
146	BOLT; EYE (B)	8-97640-875-0	01	1	1305-	●	●
153	CLIP; RUBBER HOSE ID=25	8-97177-581-0	28	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (A)	8-97640-526-0	01	1	1305-	●	●
206	PIPE; WATER,EGR COOLER (B)	8-97640-527-0	01	1	1305-	●	●
