Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#119958) — 57 parça

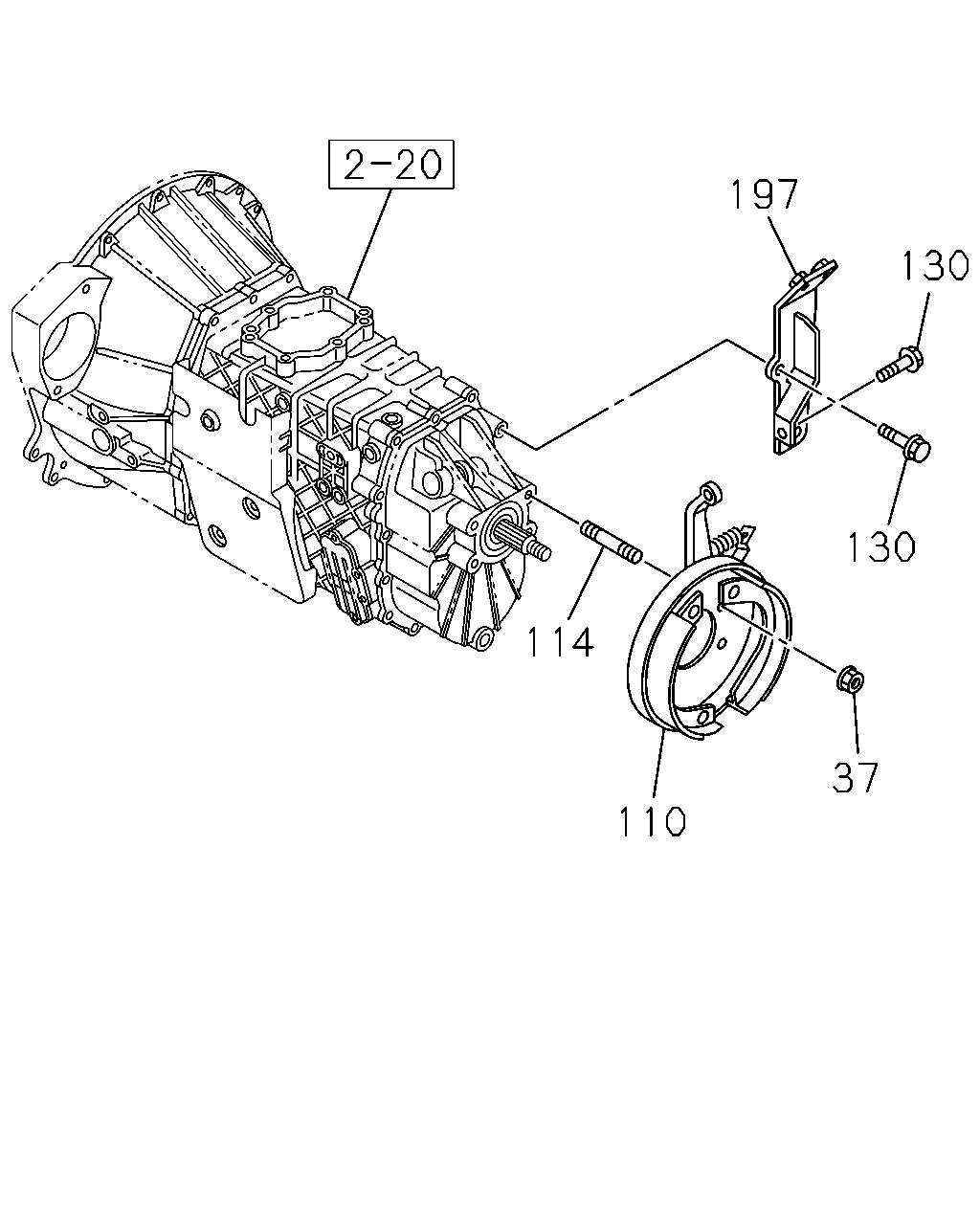

110 114 37 130 130 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	NUT; SUPPORT PLATE M12 LOCK NUT IMA	8-98029-927-0	04	1	1304-	●
37	NUT; SUPPORT PLATE M14 FLANGE IMA	8-97365-444-0	04	1	1304-		●
110	BRAKE ASM; PARKING IMA	8-98034-305-0	01	1	1304-		●
114	STUD; SUPPORT PLATE IMA	8-98029-929-0	04	1	1304-	●
114	STUD; SUPPORT PLATE M14X22.5 L=42.5 IMA	8-97365-445-0	04	1	1304-		●
130	BOLT; BRKT M10X25 FLANGE THA	0-28151-025-0	03	1	1304-		●
197	BRACKET; CENTER BRAKE CABLE IMA	8-97244-812-0	01	1	1304-		●

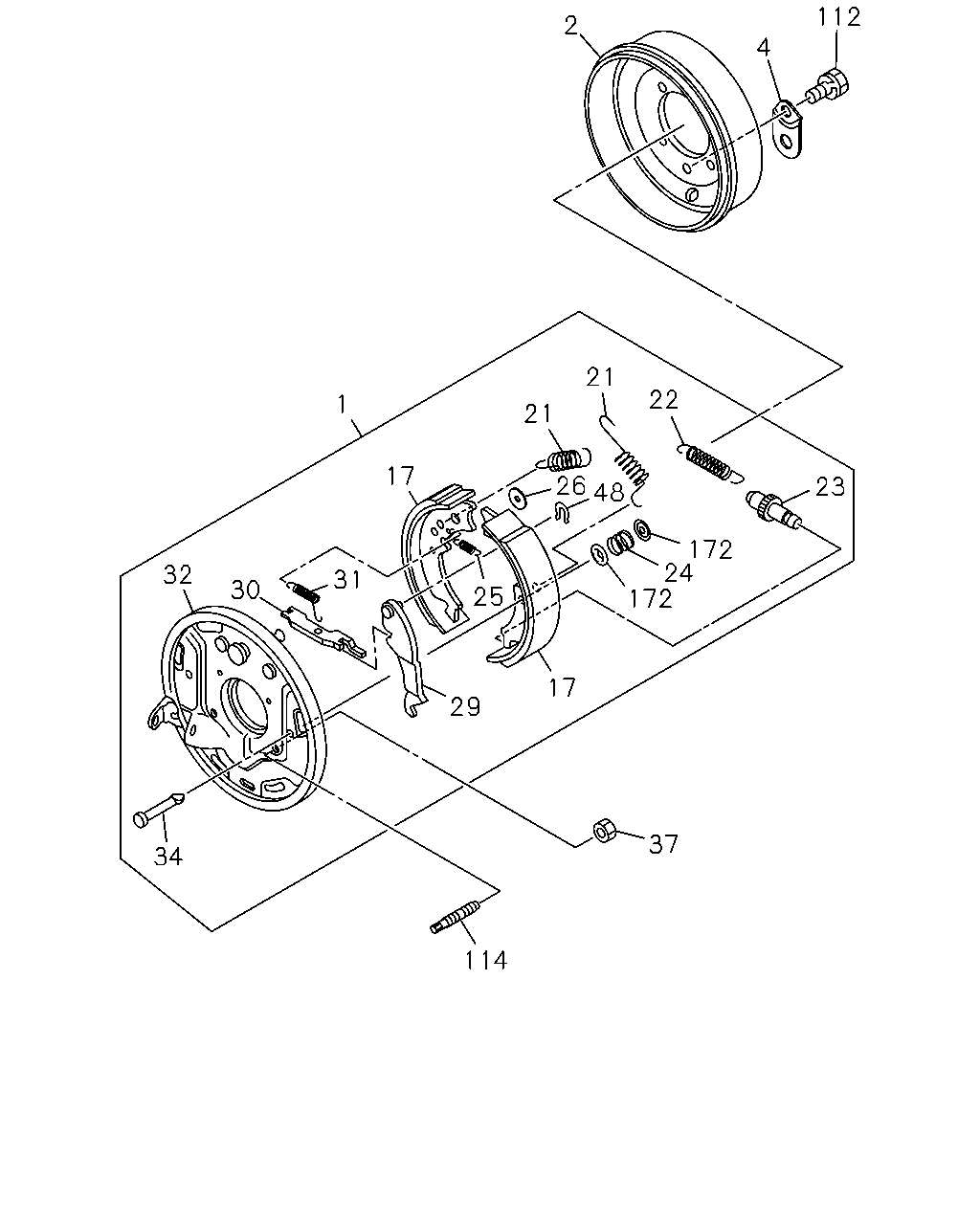

21 21 17 1 31 30 32 34 29 17 37 172 172 24 23 22 26 48 25 114 2 4 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRAKE ASM; CENTER,PARKING IMA	8-98029-922-0	01	1	1304-	●
2	DRUM; PARKING BRK IMA	8-97334-107-0	01	1	1304-	●
2	DRUM; PARKING BRK	1-46211-057-1	01	1	1304-		●
4	COVER; ADJ HOLE IMA	8-98029-820-0	01	1	1304-	●
17	SHOE; PARKING BRK IMA	8-97020-250-2	02	1	1304-	●
17	SHOE; PARKING BRK IMA	8-97042-934-1	02	1	1304-		●
21	SPRING; RETURN,PARKING BRK SHOE IMA	8-94132-157-0	02	1	1304-	●
21	SPRING; RETURN,PARKING BRK SHOE IMA	1-09583-280-0	01	1	1304-		●
22	SPRING; ADJ SCREW,PARKING BRK IMA	8-94107-618-0	01	1	1304-	●
23	SCREW; ADJ,PARKING BRK SHOE IMA	8-98043-954-0	01	1	1304-	●
23	SCREW; ADJ,PARKING BRK SHOE IMA	8-98043-963-0	01	1	1304-		●
24	SPRING; BRK SHOE IMA	8-94132-155-1	02	1	1304-	●
25	SPRING; SHOE ALIGNMENT IMA	8-94132-156-0	01	1	1304-	●
26	PLATE; SHOE GUIDE IMA	8-98043-959-0	01	1	1304-	●
29	LEVER; PARKING BRK IMA	8-98043-949-0	01	1	1304-	●
30	STRUT; PARKING BRK IMA	8-98043-953-0	01	1	1304-	●
31	SPRING; SHOE TO STRUT IMA	8-94132-158-0	01	1	1304-	●
32	PLATE; SUPPORT,PARKING BRK IMA	8-97308-176-0	01	1	1304-	●
32	PLATE; SUPPORT,PARKING BRK IMA	1-46213-069-0	01	1	1304-		●
34	PIN; BRK SHOE IMA	8-98043-955-0	02	1	1304-	●
37	NUT; SUPPORT PLATE M12 LOCK NUT IMA	8-98029-927-0	04	1	1304-	●
37	NUT; SUPPORT PLATE M14 FLANGE IMA	8-97365-444-0	04	1	1304-		●
48	RETAINER; PIN,PARKING BRK IMA	8-98043-958-0	01	1	1304-	●
112	BOLT; COVER TO BRK DRUM M6X16 W/LK WASHER THA	0-50540-616-0	01	1	1304-	●
114	STUD; SUPPORT PLATE IMA	8-98029-929-0	04	1	1304-	●
114	STUD; SUPPORT PLATE M14X22.5 L=42.5 IMA	8-97365-445-0	04	1	1304-		●
172	CUP; SHOE HOLD IMA	8-98043-956-0	04	1	1304-	●

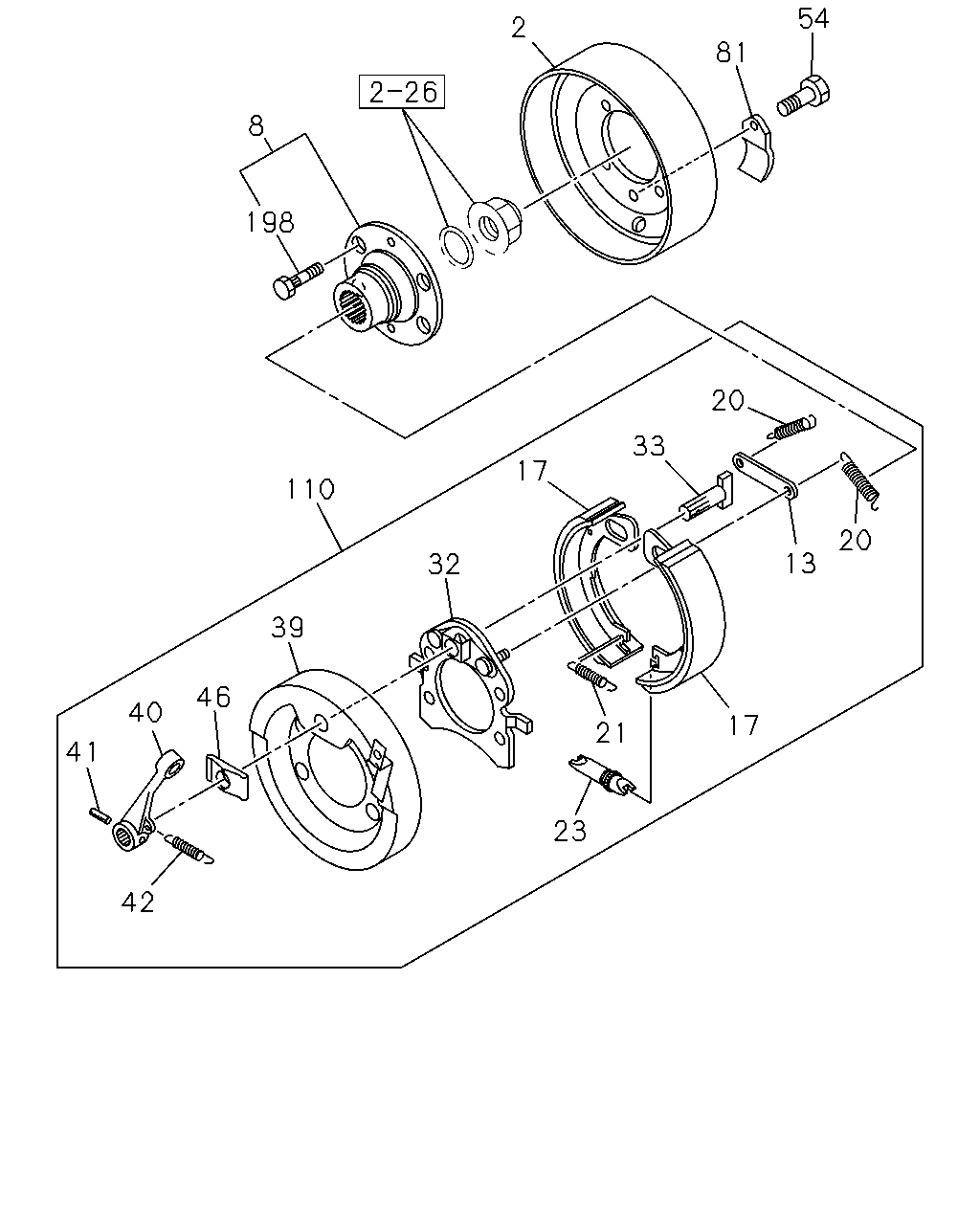

110 39 46 40 41 42 32 17 33 20 20 17 23 21 13 198 2 8 81 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK IMA	8-97334-107-0	01	1	1304-	●
2	DRUM; PARKING BRK	1-46211-057-1	01	1	1304-		●
8	FLANGE; PARKING BRK IMA	8-98044-142-0	01	1	1304-		●
13	BRACE; PARKING BRK IMA	1-46239-003-0	01	1	1304-		●
17	SHOE; PARKING BRK IMA	8-97020-250-2	02	1	1304-	●
17	SHOE; PARKING BRK IMA	8-97042-934-1	02	1	1304-		●
20	SPRING; RETURN,SECONDARY,PARKING BRK IMA	1-09586-002-0	02	1	1304-		●
21	SPRING; RETURN,PARKING BRK SHOE IMA	8-94132-157-0	02	1	1304-	●
21	SPRING; RETURN,PARKING BRK SHOE IMA	1-09583-280-0	01	1	1304-		●
23	SCREW; ADJ,PARKING BRK SHOE IMA	8-98043-954-0	01	1	1304-	●
23	SCREW; ADJ,PARKING BRK SHOE IMA	8-98043-963-0	01	1	1304-		●
32	PLATE; SUPPORT,PARKING BRK IMA	8-97308-176-0	01	1	1304-	●
32	PLATE; SUPPORT,PARKING BRK IMA	1-46213-069-0	01	1	1304-		●
33	SHAFT; CAM,PARKING BRK IMA	8-98043-961-0	01	1	1304-		●
39	COVER; DUST,PARKING BRK IMA	1-46213-075-0	01	1	1304-		●
40	LEVER; CM/SHF,PARKING BRK IMA	8-98047-550-0	01	1	1304-		●
41	PIN; KNOCK,LEVER IMA	9-09878-594-0	01	1	1304-		●
42	SPRING; RETURN,LEVER IMA	1-09583-041-0	01	1	1304-		●
46	WASHER; LEVER IMA	1-09509-057-0	01	1	1304-		●
54	BOLT; COVER M8X20 W/LK&PL WASHER IMA	0-50640-820-0	02	1	1304-		●
81	COVER; CHECK HOLE,PARKING BRK IMA	8-98031-861-0	02	1	1304-		●
110	BRAKE ASM; PARKING IMA	8-98034-305-0	01	1	1304-		●
198	BOLT; KNURL M12X39 IMA	8-97365-446-0	04	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
