Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#119956) — 47 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

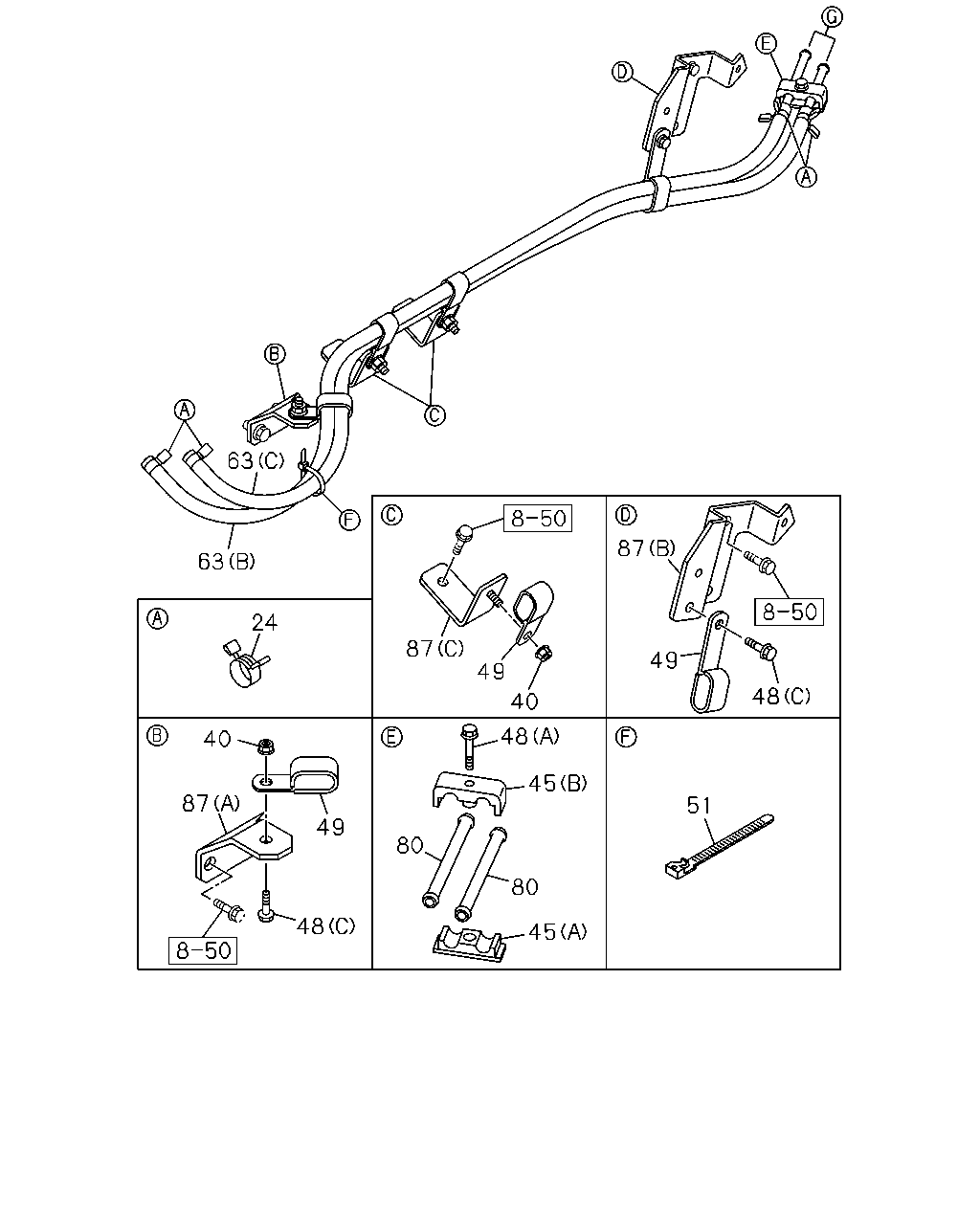

[845A] NO.2 (27 parça)

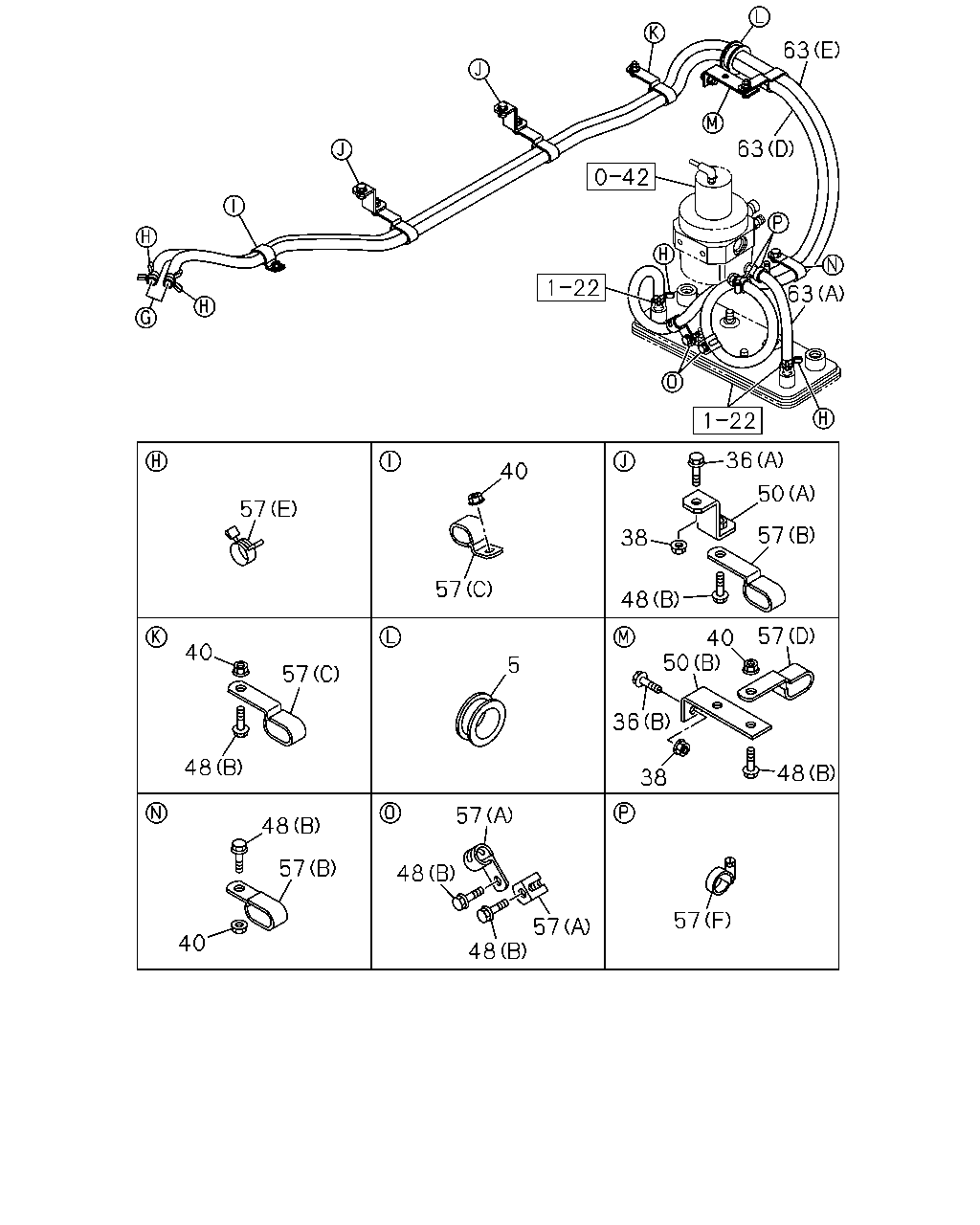

[845A] NO.1 (20 parça)
▶
63
63
63
36
57
38
48
50
40
57
50
36
38
48
57
57
57
57
57
57
40
57
40
48
48
40
48
48
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
GROMMET; WATER HOSE
ID=32 OD=40 T=18
1-09891-003-0
01
1
1305-
●
●
36
BOLT; BRKT
(B) M8X25 FLANGE THA
0-28650-825-0
01
1
1305-
●
●
36
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
1305-
●
38
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1305-
●
●
38
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1305-
●
40
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
06
1
1305-
●
40
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1305-
●
●
40
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
04
1
1305-
●
48
BOLT; CLIP FIX
(A) M6X30 FLANGE THA
0-28650-630-0
01
1
1305-
●
●
48
BOLT; CLIP FIX
(B) M8X20 FLANGE THA
0-28650-820-0
07
1
1305-
●
●
48
BOLT; CLIP FIX
(C) M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
●
●
50
BRACKET
(B) L=82 B=20
1-47478-420-0
01
1
1305-1404
●
●
50
BRACKET
(B) L=82 B=20
8-98259-390-0
01
1
1405-
●
●
50
BRACKET
(A)
1-47478-113-0
02
1
1305-
●
57
CLIP; HOSE
(B) ID=16X2 L=28
0-95325-556-0
01
1
1305-
●
57
CLIP; HOSE
(D) ID=19X32 H=17.5 L=50.5
1-09701-320-0
03
1
1305-
●
57
CLIP; HOSE
(A) ID=16 L=28
0-95235-556-0
02
1
1305-
●
●
57
CLIP; HOSE
(C) ID=19X32 H=17.5 L=22.5
1-09701-315-0
02
1
1305-
●
●
57
CLIP; HOSE
(E) ID=14
1-09704-102-0
04
1
1305-
●
●
57
CLIP; HOSE
(F) ID=11-17
8-98173-762-1
02
1
1305-
●
●
57
CLIP; HOSE
(B) ID=16X2 L=28
0-95325-556-0
03
1
1305-
●
57
CLIP; HOSE
(D) ID=19X32 H=17.5 L=50.5
1-09701-320-0
01
1
1305-
●
63
HOSE; WATER
(A) L=180 SERVICED BY L=3000
0-03559-300-0
01
1
1305-
●
●
63
HOSE; WATER
(B)
8-97925-775-0
01
1
1305-
●
●
63
HOSE; WATER
(C)
8-97925-776-1
01
1
1305-
●
●
63
HOSE; WATER
(D)
8-97925-777-1
01
1
1305-
●
●
63
HOSE; WATER
(E)
8-97925-778-1
01
1
1305-
●
●
63
63
24
40
87
49
48
87
49
40
87
49
48
51
45
80
45
48
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
CLAMP; WATER HOSE
ID=14
1-09704-102-0
04
1
1305-
●
●
40
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
06
1
1305-
●
40
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1305-
●
●
40
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
04
1
1305-
●
45
CLIP; WATER PIPE
(A)
1-09701-180-0
01
1
1305-
●
●
45
CLIP; WATER PIPE
(B) ID=10 & 10 L=25
8-94393-280-3
01
1
1305-
●
●
48
BOLT; CLIP FIX
(A) M6X30 FLANGE THA
0-28650-630-0
01
1
1305-
●
●
48
BOLT; CLIP FIX
(B) M8X20 FLANGE THA
0-28650-820-0
07
1
1305-
●
●
48
BOLT; CLIP FIX
(C) M8X25 FLANGE THA
0-28650-825-0
02
1
1305-
●
●
49
CLIP; WATER HOSE,HTR
ID=16X2 L=28
0-95325-556-0
04
1
1305-
●
●
51
CLIP; WATER HOSE,HTR
L=250
5-09707-030-1
01
1
1305-
●
●
63
HOSE; WATER
(A) L=180 SERVICED BY L=3000
0-03559-300-0
01
1
1305-
●
●
63
HOSE; WATER
(B)
8-97925-775-0
01
1
1305-
●
●
63
HOSE; WATER
(C)
8-97925-776-1
01
1
1305-
●
●
63
HOSE; WATER
(D)
8-97925-777-1
01
1
1305-
●
●
63
HOSE; WATER
(E)
8-97925-778-1
01
1
1305-
●
●
80
PIPE; WATER
THA
8-97925-761-1
02
1
1305-
●
●
87
BRACKET; HTR HOSE CLIP
(A) THA
8-97925-749-0
01
1
1305-
●
●
87
BRACKET; HTR HOSE CLIP
(B) THA
8-97926-025-0
01
1
1305-
●
●
87
BRACKET; HTR HOSE CLIP
(C) THA
8-97926-060-0
02
1
1305-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
