◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11539 - CYH CHINA EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#119952) — 36 parça

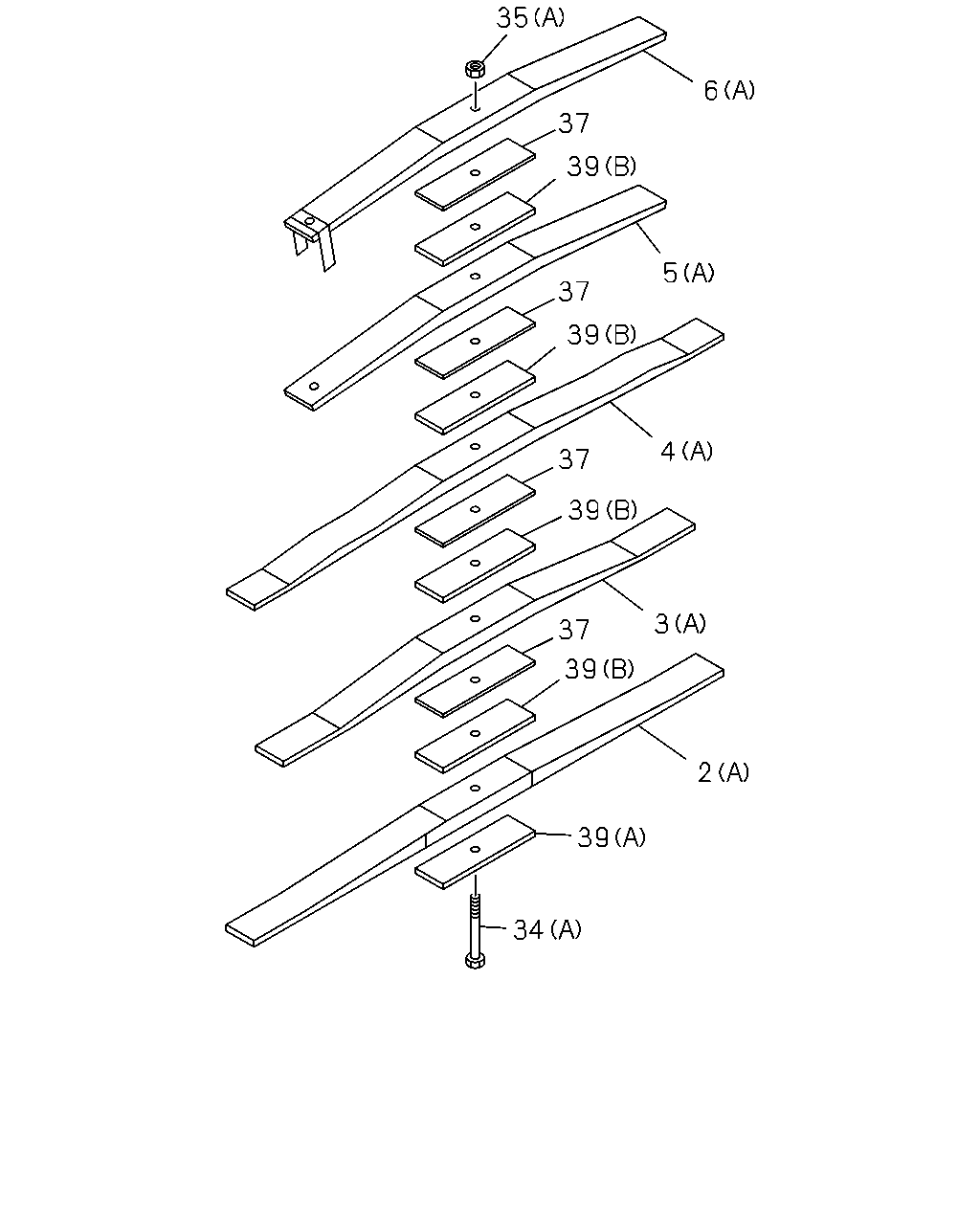

çizim 351142
35 6 37 5 39 37 4 37 39 39 37 3 39 2 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-601-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98161-618-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-602-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98161-619-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-603-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98161-620-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98156-986-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-604-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98156-987-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-605-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=215 ASM PART: A = 8-98157-787-0 		8-98148-955-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=225 ASM PART: B = 8-98159-609-0 		8-98156-981-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: A = 8-98157-787-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: B = 8-98159-609-0 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1.2 ASM PART: B = 8-98159-609-0 		1-51359-037-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: B = 8-98159-609-0 		1-51377-399-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=3.2 ASM PART: B = 8-98159-609-0 		8-97615-292-0 01 1 -
çizim 351145
34 36 2 3 5 4 6 7 8 9 10 35
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-601-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98161-618-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-602-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98161-619-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-603-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98161-620-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98156-986-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-604-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(A) ASM PART: B = 8-98159-609-0 		8-98156-987-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
(B) ASM PART: A = 8-98157-787-0 		8-98161-605-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98157-787-0 		8-98161-606-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98157-787-0 		8-98161-607-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 8-98157-787-0 		8-98161-608-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 8-98157-787-0 		8-98161-609-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(B), L=215 ASM PART: A = 8-98157-787-0 		8-98148-955-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
(A), L=225 ASM PART: B = 8-98159-609-0 		8-98156-981-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(B), M16 ASM PART: A = 8-98157-787-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
(A), M16 ASM PART: B = 8-98159-609-0 		1-09400-061-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 8-98157-787-0 		1-09000-326-0 01 1 -
