Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#11995) — 292 parça

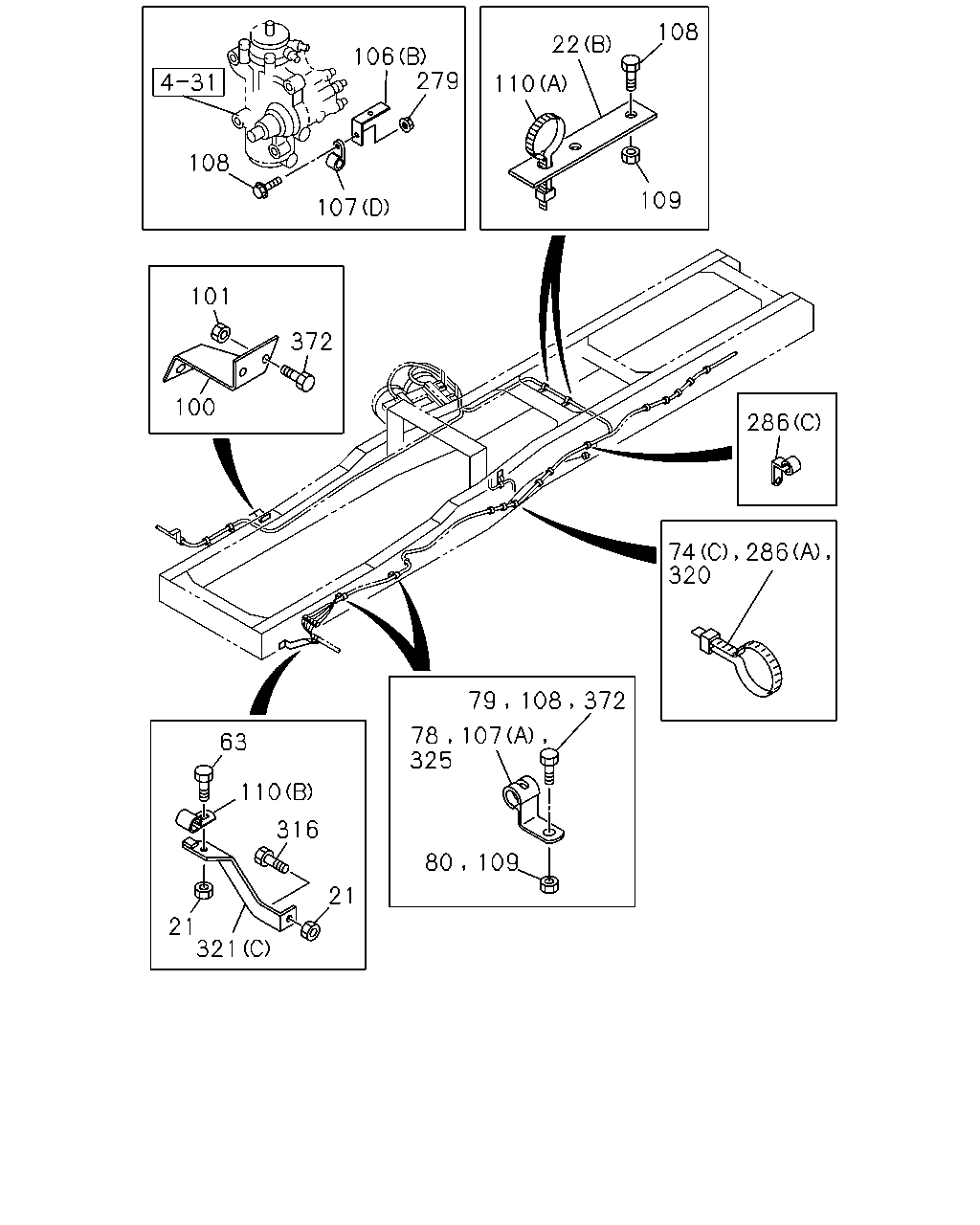

286 286 74 320 372 108 79 107 109 80 325 78 21 321 21 316 110 63 100 372 101 108 107 106 279 110 22 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
22	BRACKET; CLIP (C) L=100	1-47477-620-1	01	1	0105-
22	BRACKET; CLIP (B) L=125	1-47477-975-1	02	1	0105-
22	BRACKET; CLIP ANTILOCK BRAKE SYSTEM(BFA) (A) L=150 H=30	1-47477-629-2	02	1	0105-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
74	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0105-
74	CLIP; NYLON TUBE (C) L=250	1-09707-126-0	03	1	0105-0309
74	CLIP; NYLON TUBE (C) L=250	1-09707-126-0	04	1	0310-
74	CLIP; NYLON TUBE (B) ID=6.35 & 12	1-09709-275-1	01	1	0105-0105
74	CLIP; NYLON TUBE (D) ID=12 & 12	1-09709-280-1	01	1	0105-0105
74	CLIP; NYLON TUBE AIR DRYER<PS7> (E) ID=12 & 15	1-09709-281-1	01	1	0105-
78	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	0105-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	0105-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602
101	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
106	BRACKET; TUBE CLIP (B) L=115 B=25	1-47476-758-0	01	1	0108-
106	BRACKET; TUBE CLIP (A)	1-47476-200-0	01	1	0105-0111
106	BRACKET; TUBE CLIP (C)	1-47477-694-0	01	1	0112-
107	CLIP; NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	0108-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0105-
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0105-0106
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0107-0107
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35	1-09700-875-0	02	1	0108-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0105-0107
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=31 H=30 L=35	1-09700-994-0	02	1	0108-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0105-0106
107	CLIP; NYLON TUBE FULLER M/T<X9B> DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0105-0106
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-0107
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0108-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0108-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0105-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28050-825-0	04	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0105
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
110	CLIP; BAND,NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0105-0107
110	CLIP; BAND,NYLON TUBE (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0108-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	42	1	0105-0105
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	44	1	0106-0112
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	46	1	0201-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (D) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	0105-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) ID=15 L=28	1-09701-216-0	01	1	0107-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	0105-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-
316	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
316	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28650-830-0	01	1	0601-
320	CLIP; BAND,FLEX FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) L=140	5-09707-031-1	01	1	0105-0105
321	BRACKET; CLIP (C)	1-47477-810-0	01	1	0105-0109
321	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (D)	1-47477-337-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (B) L=75	1-47478-328-0	01	1	0105-
325	CLIP; AIR PIPE EXC. FULL FLOATING CAB(W16) ID=18 H=23 L=28	1-09700-860-0	01	1	0105-0311
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-

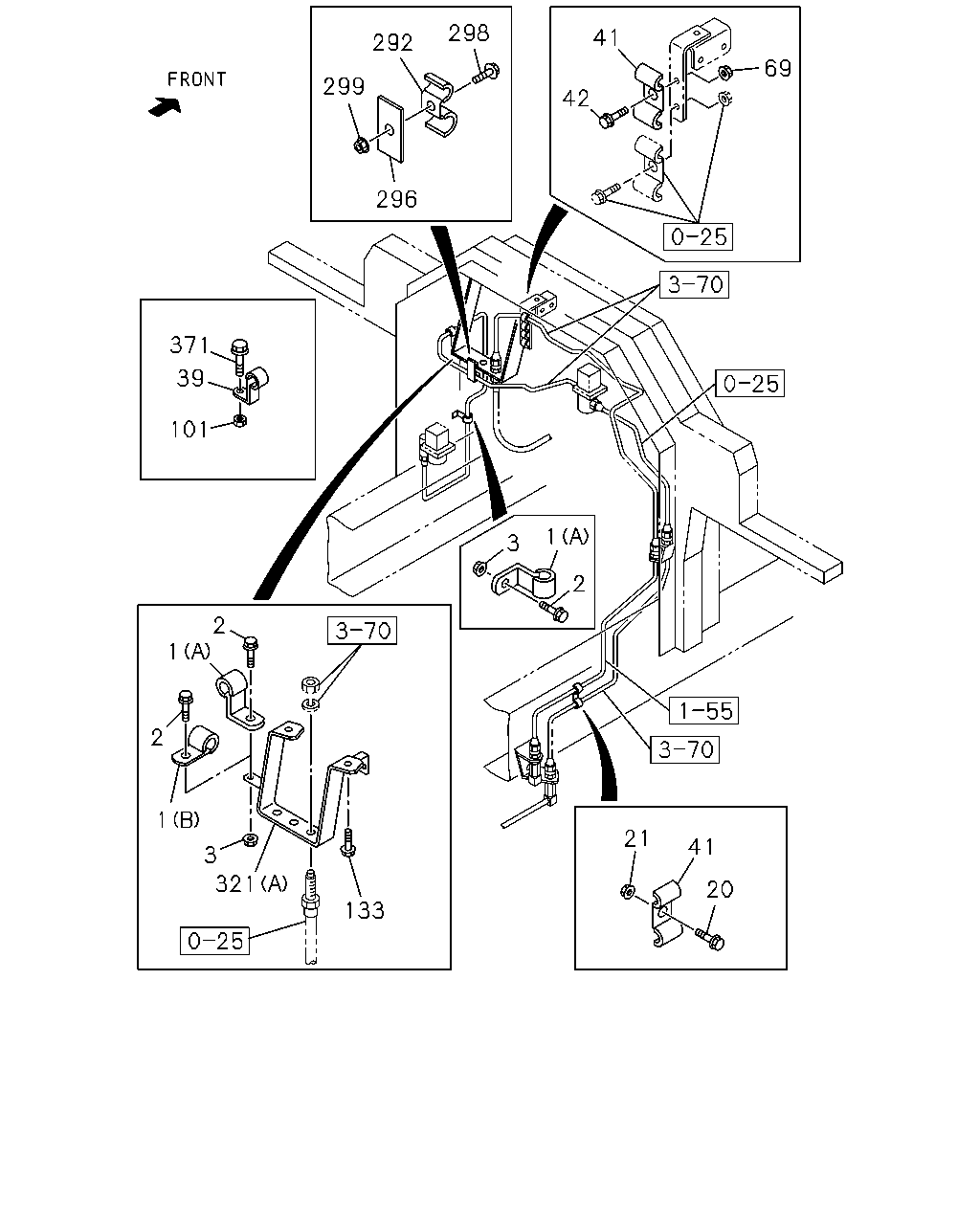

299 292 298 41 42 69 296 371 39 101 2 1 2 1 3 321 133 21 41 20 2 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) ID=7 L=20	9-09524-635-0	01	1	0105-0606
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	02	1	0601-
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	0105-0602
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	02	1	0603-
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
20	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
39	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0302
39	CLIP; AIR PIPE D=15 L=45	5-09700-076-0	01	1	0303-
41	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
42	BOLT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0105-0602
69	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602
101	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0105-0512
133	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	01	1	0601-
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M10X25 FLANGE	0-28681-025-0	02	1	0205-0512
133	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M10X25 FLANGE	0-28651-025-0	02	1	0601-
133	BOLT; BRKT 6WF1 TC-C(1B8) M6X10 FLANGE	0-28080-610-0	01	1	0105-0512
133	BOLT; BRKT 6WF1 TC-C(1B8) M6X10 FLANGE	0-28050-610-0	01	1	0601-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	0105-
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
298	BOLT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0105-0602
299	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
321	BRACKET; CLIP (C)	1-47477-810-0	01	1	0105-0109
321	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (D)	1-47477-337-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (B) L=75	1-47478-328-0	01	1	0105-
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-0304
371	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28680-830-0	01	1	0305-0512
371	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-

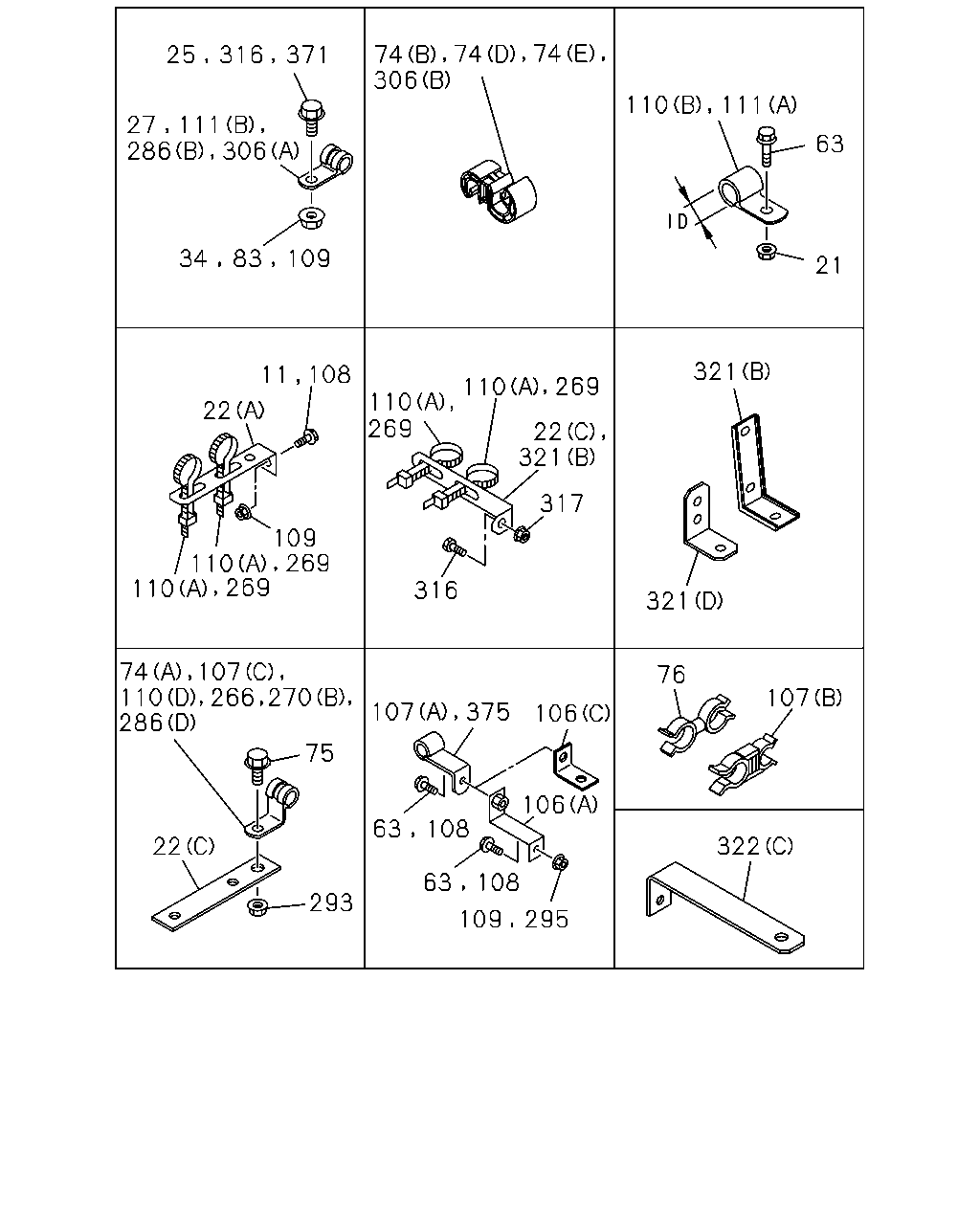

25 316 371 74 74 74 110 111 63 21 306 111 27 286 306 34 83 109 11 108 110 269 110 269 22 321 317 316 321 321 76 107 322 295 109 108 63 106 106 375 107 108 63 75 293 22 286 110 74 107 266 270 110 269 110 269 109 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
11	BOLT; CLIP BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X35 FLANGE	0-28650-835-0	02	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
22	BRACKET; CLIP (C) L=100	1-47477-620-1	01	1	0105-
22	BRACKET; CLIP (B) L=125	1-47477-975-1	02	1	0105-
22	BRACKET; CLIP ANTILOCK BRAKE SYSTEM(BFA) (A) L=150 H=30	1-47477-629-2	02	1	0105-
25	BOLT; CLIP EXC. FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	01	1	0105-0311
27	CLIP; FLEX HOSE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=10 & 10	1-09709-277-1	01	1	0105-
27	CLIP; FLEX HOSE 6WF1 TC-C(1B8) ID=15 L=28	1-09701-216-0	02	1	0105-
34	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0107-0602
34	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	01	1	0603-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
74	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0105-
74	CLIP; NYLON TUBE (C) L=250	1-09707-126-0	03	1	0105-0309
74	CLIP; NYLON TUBE (C) L=250	1-09707-126-0	04	1	0310-
74	CLIP; NYLON TUBE (B) ID=6.35 & 12	1-09709-275-1	01	1	0105-0105
74	CLIP; NYLON TUBE (D) ID=12 & 12	1-09709-280-1	01	1	0105-0105
74	CLIP; NYLON TUBE AIR DRYER<PS7> (E) ID=12 & 15	1-09709-281-1	01	1	0105-
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
75	BOLT; CLIP 6WF1 TC-C(1B8) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
75	BOLT; CLIP 6WF1 TC-C(1B8) M8X16 FLANGE	0-28050-816-0	02	1	0601-
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	0105-
83	NUT; CLIP EXC. FULL FLOATING CAB(W16) M8 FLANGE	0-91150-108-0	01	1	0105-0311
106	BRACKET; TUBE CLIP (B) L=115 B=25	1-47476-758-0	01	1	0108-
106	BRACKET; TUBE CLIP (A)	1-47476-200-0	01	1	0105-0111
106	BRACKET; TUBE CLIP (C)	1-47477-694-0	01	1	0112-
107	CLIP; NYLON TUBE (D) ID=28 L=40	1-09701-261-0	02	1	0108-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5	1-09709-182-0	01	1	0105-
107	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0105-0106
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0107-0107
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35	1-09700-875-0	02	1	0108-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0105-0107
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=31 H=30 L=35	1-09700-994-0	02	1	0108-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE ZF M/T<X9E> (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0105-0106
107	CLIP; NYLON TUBE FULLER M/T<X9B> DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0105-0106
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-0107
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30	1-09700-948-0	03	1	0107-0107
107	CLIP; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0108-
107	CLIP; NYLON TUBE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0108-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0105-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28050-825-0	04	1	0601-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0105
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
110	CLIP; BAND,NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0105-0107
110	CLIP; BAND,NYLON TUBE (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0108-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	42	1	0105-0105
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	44	1	0106-0112
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	46	1	0201-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
111	CLIP; AIR PIPE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 L=50	1-09701-019-0	01	1	0105-0106
111	CLIP; AIR PIPE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 L=50	1-09701-019-0	01	1	0107-
111	CLIP; AIR PIPE ZF M/T<X9E> (A) ID=28 L=40	1-09701-261-0	01	1	0105-0106
111	CLIP; AIR PIPE FULLER M/T<X9B> DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 L=40	1-09701-261-0	01	1	0105-0106
111	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 L=40	1-09701-261-0	01	1	0107-
111	CLIP; AIR PIPE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 L=40	1-09701-261-0	01	1	0107-
266	CLIP; NYLON TUBE ID=18 H=23 L=28	1-09700-860-0	01	1	0105-
269	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) L=250	1-09707-126-0	25	1	0105-0105
269	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) L=250	1-09707-126-0	26	1	0106-
269	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) L=250	1-09707-126-0	15	1	0105-0105
269	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) L=250	1-09707-126-0	16	1	0106-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0105-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	01	1	0309-
286	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (C) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (D) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
286	CLIP; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0106-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	0105-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) ID=15 L=28	1-09701-216-0	01	1	0107-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	0105-
293	NUT; CLIP CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> M8 FLANGE	0-91150-108-0	01	1	0105-0105
293	NUT; CLIP EXC. CAUTIONS PORTUGUESE<NAT>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>,CAUTIONS CHINESE<SL7>,CAUTIONS AR ABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> M8 FLANGE	0-91150-108-0	01	1	0105-0105
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
306	CLIP; NYLON TUBE (B) ID=12 & 12	1-09709-280-1	01	1	0106-
306	CLIP; NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=32	1-09700-766-1	01	1	0105-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-
316	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
316	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28650-830-0	01	1	0601-
317	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	01	1	0105-0602
317	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0603-
317	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0105-0602
317	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0603-
321	BRACKET; CLIP (C)	1-47477-810-0	01	1	0105-0109
321	BRACKET; CLIP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-47477-472-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (D)	1-47477-337-1	01	1	0105-
321	BRACKET; CLIP 6WF1 TC-C(1B8) (B) L=75	1-47478-328-0	01	1	0105-
322	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0105-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0105-0601
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0602-
322	BRACKET; CLIP ISUZU M/T<X9A> (C) L=112	1-47475-694-1	01	1	0107-
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-0304
371	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28680-830-0	01	1	0305-0512
371	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
375	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0105-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-

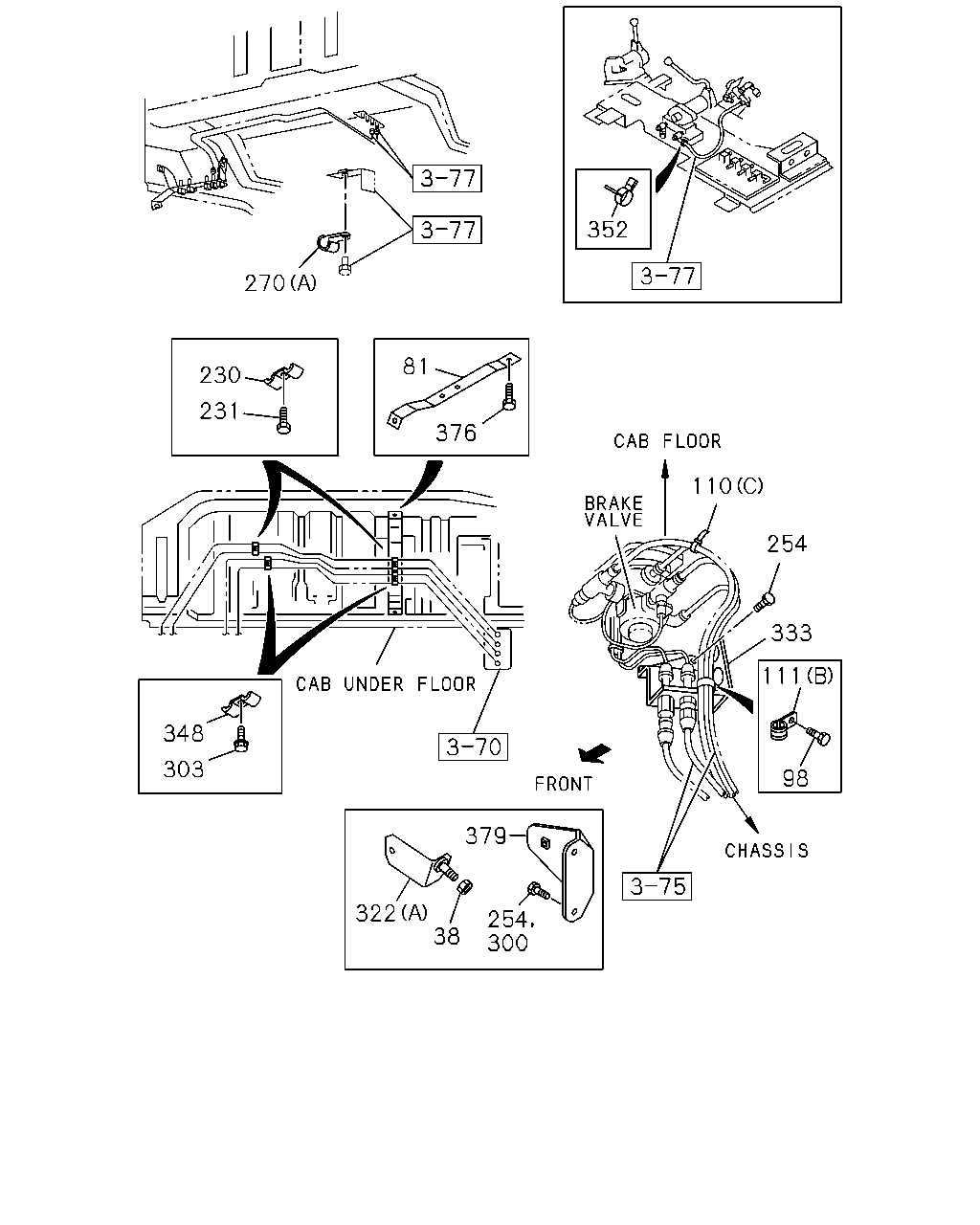

270 230 231 348 303 322 38 300 254 379 98 111 333 254 110 376 81 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
81	BRACKET; CLIP	1-47477-483-0	01	1	0105-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
110	CLIP; BAND,NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0105-0107
110	CLIP; BAND,NYLON TUBE (D) ID=31 H=30 L=35	1-09700-994-0	01	1	0108-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	42	1	0105-0105
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	44	1	0106-0112
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	46	1	0201-
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (C) L=140	5-09707-031-1	01	1	0112-
111	CLIP; AIR PIPE FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 L=50	1-09701-019-0	01	1	0105-0106
111	CLIP; AIR PIPE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 L=50	1-09701-019-0	01	1	0107-
111	CLIP; AIR PIPE ZF M/T<X9E> (A) ID=28 L=40	1-09701-261-0	01	1	0105-0106
111	CLIP; AIR PIPE FULLER M/T<X9B> DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 L=40	1-09701-261-0	01	1	0105-0106
111	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=28 L=40	1-09701-261-0	01	1	0107-
111	CLIP; AIR PIPE MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) ID=28 L=40	1-09701-261-0	01	1	0107-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0105-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	0105-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	0205-0205
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0105-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	01	1	0309-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0206-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
322	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0105-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0105-0601
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0602-
322	BRACKET; CLIP ISUZU M/T<X9A> (C) L=112	1-47475-694-1	01	1	0107-
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	0105-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0105-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0105-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
376	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	04	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
376	BOLT; BRKT ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
376	BOLT; BRKT ISUZU M/T<X9A> M8X25 FLANGE	0-28650-825-0	01	1	0601-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0105-

376 367 322 375 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
322	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0105-
322	BRACKET; CLIP (A)	1-79996-360-0	01	1	0105-0601
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0602-
322	BRACKET; CLIP ISUZU M/T<X9A> (C) L=112	1-47475-694-1	01	1	0107-
357	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
357	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	01	1	0601-
367	BRACKET ASM	1-42119-080-0	01	1	0105-
375	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0105-
375	CLIP; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
376	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	04	1	0105-0512
376	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	04	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
376	BOLT; BRKT ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
376	BOLT; BRKT ISUZU M/T<X9A> M8X25 FLANGE	0-28650-825-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
