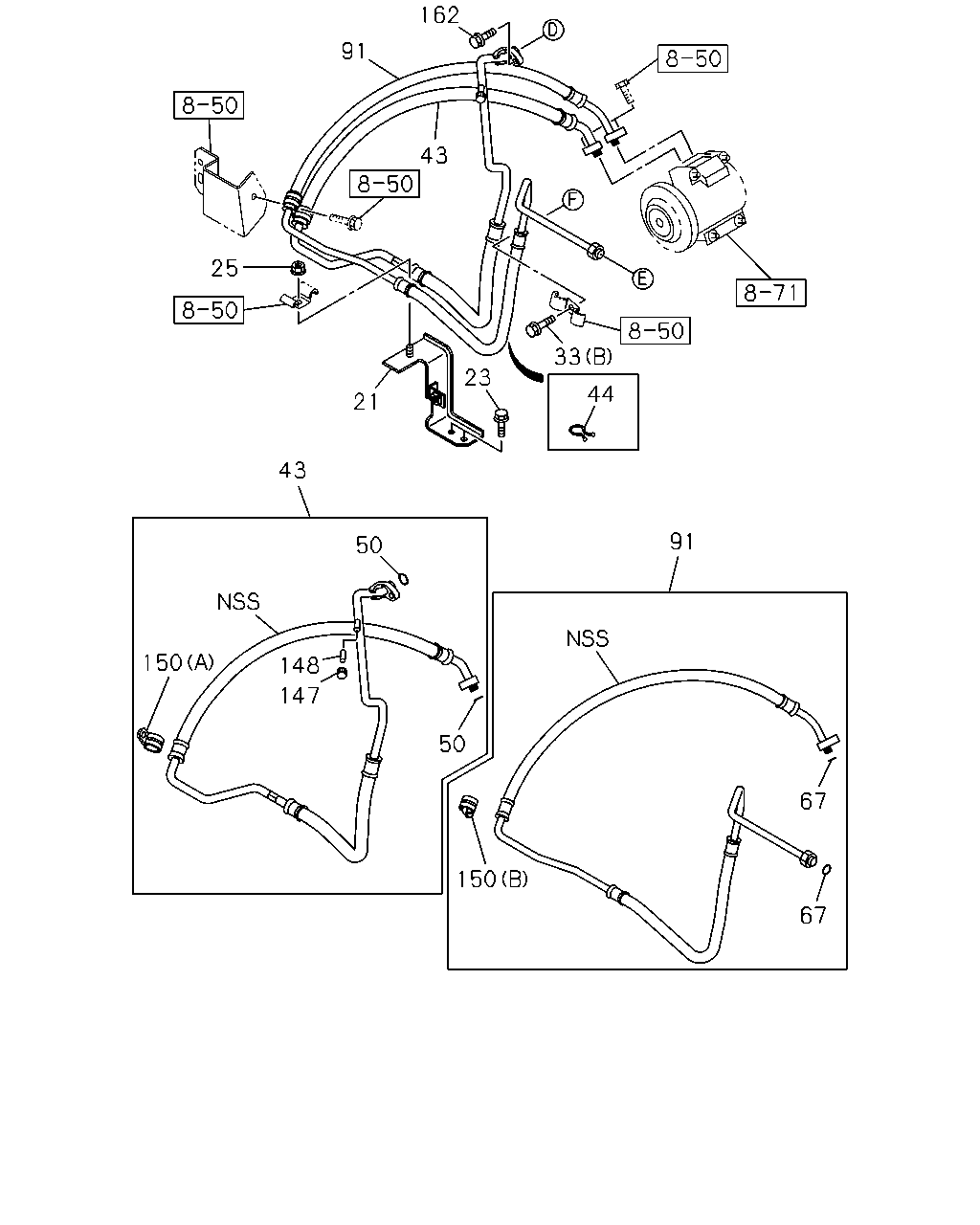

8-52 — PIPING; AIR CONDITIONING (#119947) — 30 parça

116 174 158 27 158 116 12 33 202 156 171 116 158 27 33 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK	8-98052-610-0	01	1	1305-
27	CLIP; COOLER PIPE (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1305-
27	CLIP; COOLER PIPE (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1305-
27	CLIP; COOLER PIPE (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1305-
33	BOLT; CLIP (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1305-
33	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
116	GASKET; PIPE (A) ID=7.4 THA	8-97095-906-0	02	1	1305-
116	GASKET; PIPE (B) ID=11.7 THA	8-97095-907-0	01	1	1305-
156	VALVE; PIPE THA	8-98151-702-0	01	1	1305-
158	BOLT; PIPE FIX M6X25 FLANGE	0-28050-625-0	03	1	1305-
171	CAP; PIPE CAP MARK H THA	8-97095-911-0	01	1	1305-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE	8-98041-330-0	01	1	1305-
202	SWITCH; PRESSURE	1-83564-391-0	01	1	1305-

67 67 150 91 50 43 150 148 147 44 33 43 162 91 25 23 21 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE	8-98114-846-0	01	1	1305-
23	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	02	1	1305-
25	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1305-
33	BOLT; CLIP (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1305-
33	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1305-
43	HOSE; FLEX,A/C,EVAP TO CMPR	8-98052-619-1	01	1	1305-
44	CLIP; FLEX HOSE ID=30	8-94315-423-0	01	1	1305-
50	GASKET; FLEX HOSE,A/C ID=14.5 THA	8-97095-908-0	02	1	1305-
67	GASKET; FLEX HOSE ID=11.7 THA	8-97095-907-0	02	1	1305-
91	HOSE; FLEX,CMPR	8-98052-620-1	01	1	1305-
147	CAP; FLEX HOSE CAP MARK L THA	1-83539-331-0	01	1	1305-
148	VALVE; FLEX HOSE THA	8-97095-909-0	01	1	1305-
150	CLIP; HOSE (B) THA	1-83574-249-0	01	1	1305-
150	CLIP; HOSE (A) THA	1-83574-264-0	01	1	1305-
162	BOLT; FLEX HOSE M6X25 FLANGE THA	0-28650-625-0	01	1	1305-1307
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	01	1	1308-1308
162	BOLT; FLEX HOSE M6X25 FLANGE THA	0-28650-625-0	01	1	1309-
