Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#119944) — 22 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

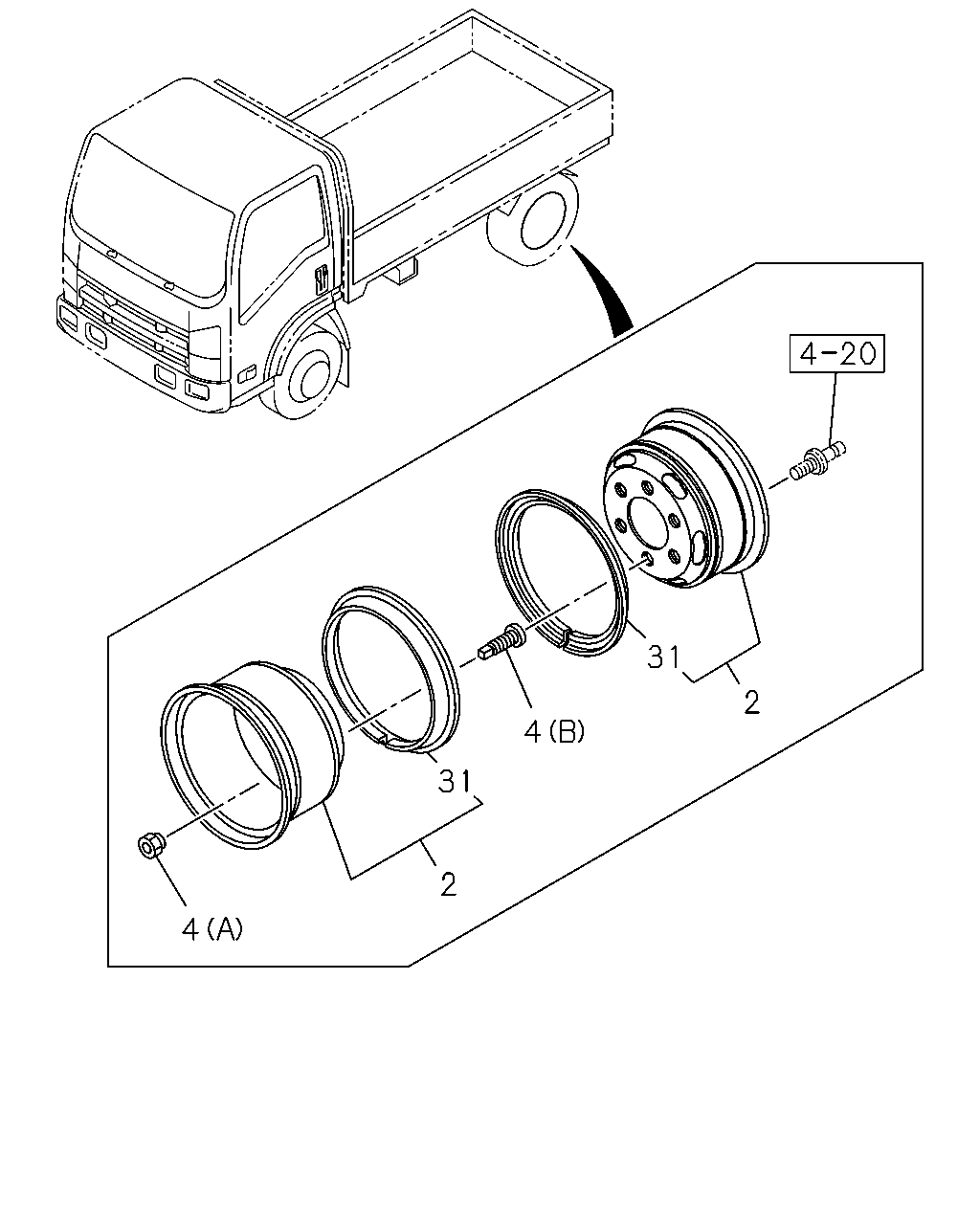

[480A] REAR (12 parça)

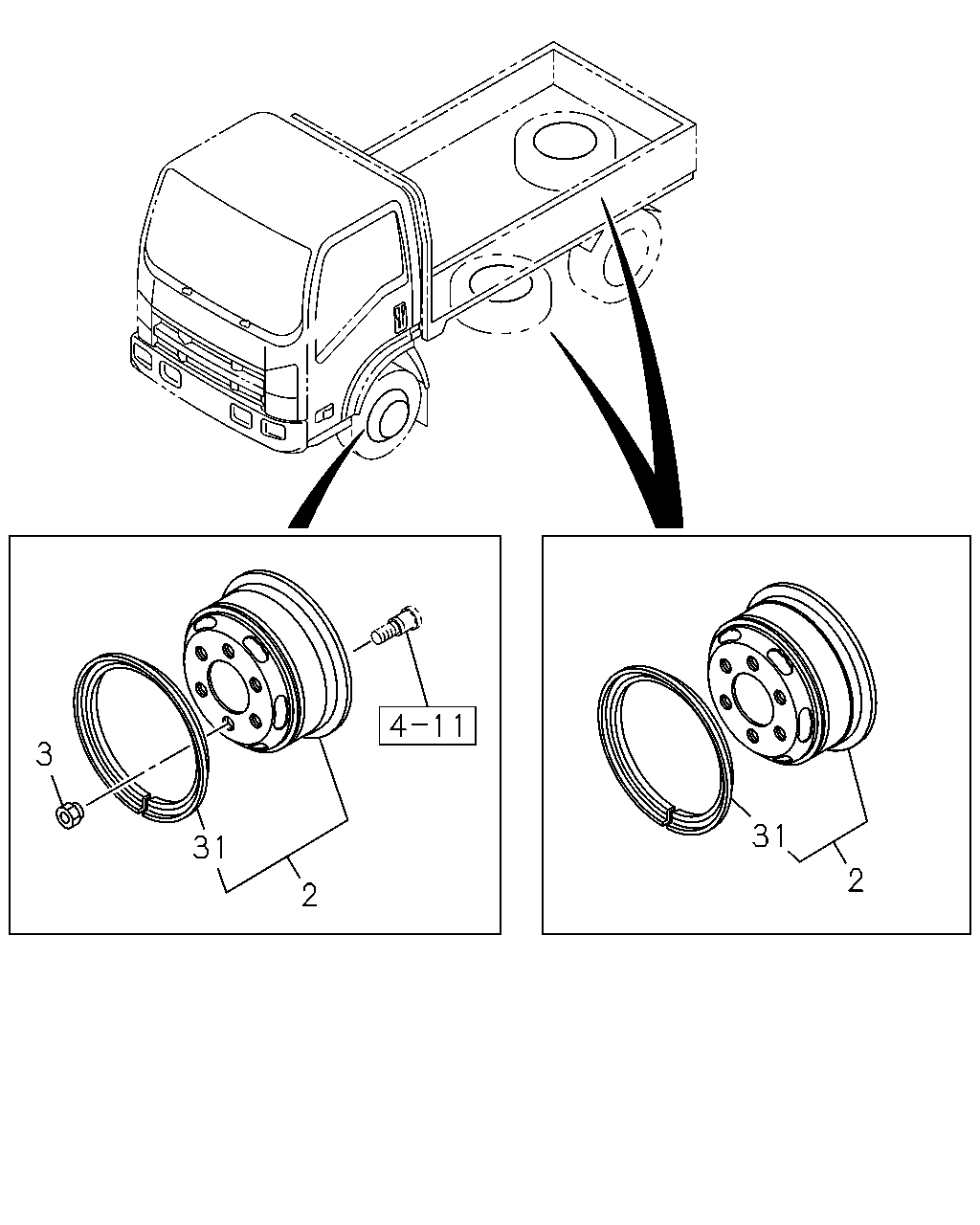

[480A] FRONT AND SPARE (10 parça)
▶
4
31
2
4
2
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA
8-97915-604-0
01
1
1304-
●
2
WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA
8-97915-604-0
06
1
1304-
●
2
WHEEL; DISC
SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA
8-97915-587-0
01
1
1304-
●
2
WHEEL; DISC
FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA
8-97915-587-0
06
1
1304-
●
4
NUT; WHEEL,RR AXLE
(B) OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
06
1
1304-
●
●
4
NUT; WHEEL,RR AXLE
(A) M30 THA
8-97916-066-0
06
1
1304-
●
●
4
NUT; WHEEL,RR AXLE
(A) M30 LH THREAD THA
8-97916-121-0
06
1
1304-
●
●
4
NUT; WHEEL,RR AXLE
(B) OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
06
1
1304-
●
●
31
RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK THA
8-97916-942-0
01
1
1304-
●
31
RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK THA
8-97916-942-0
06
1
1304-
●
31
RING; SIDE,DISC WHEEL
SPARE THA
8-97915-588-0
01
1
1304-
●
31
RING; SIDE,DISC WHEEL
FRONT,REAR THA
8-97915-588-0
06
1
1304-
●
2
31
3
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA
8-97915-604-0
01
1
1304-
●
2
WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA
8-97915-604-0
06
1
1304-
●
2
WHEEL; DISC
SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA
8-97915-587-0
01
1
1304-
●
2
WHEEL; DISC
FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA
8-97915-587-0
06
1
1304-
●
3
NUT; WHEEL,FRT AXLE
M20 RH THREAD IMA
8-97359-807-0
06
1
1304-
●
●
3
NUT; WHEEL,FRT AXLE
M20 LH THREAD IMA
8-97359-808-0
06
1
1304-
●
●
31
RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK THA
8-97916-942-0
01
1
1304-
●
31
RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK THA
8-97916-942-0
06
1
1304-
●
31
RING; SIDE,DISC WHEEL
SPARE THA
8-97915-588-0
01
1
1304-
●
31
RING; SIDE,DISC WHEEL
FRONT,REAR THA
8-97915-588-0
06
1
1304-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
