Sayfa 3-77 - Isuzu EPC

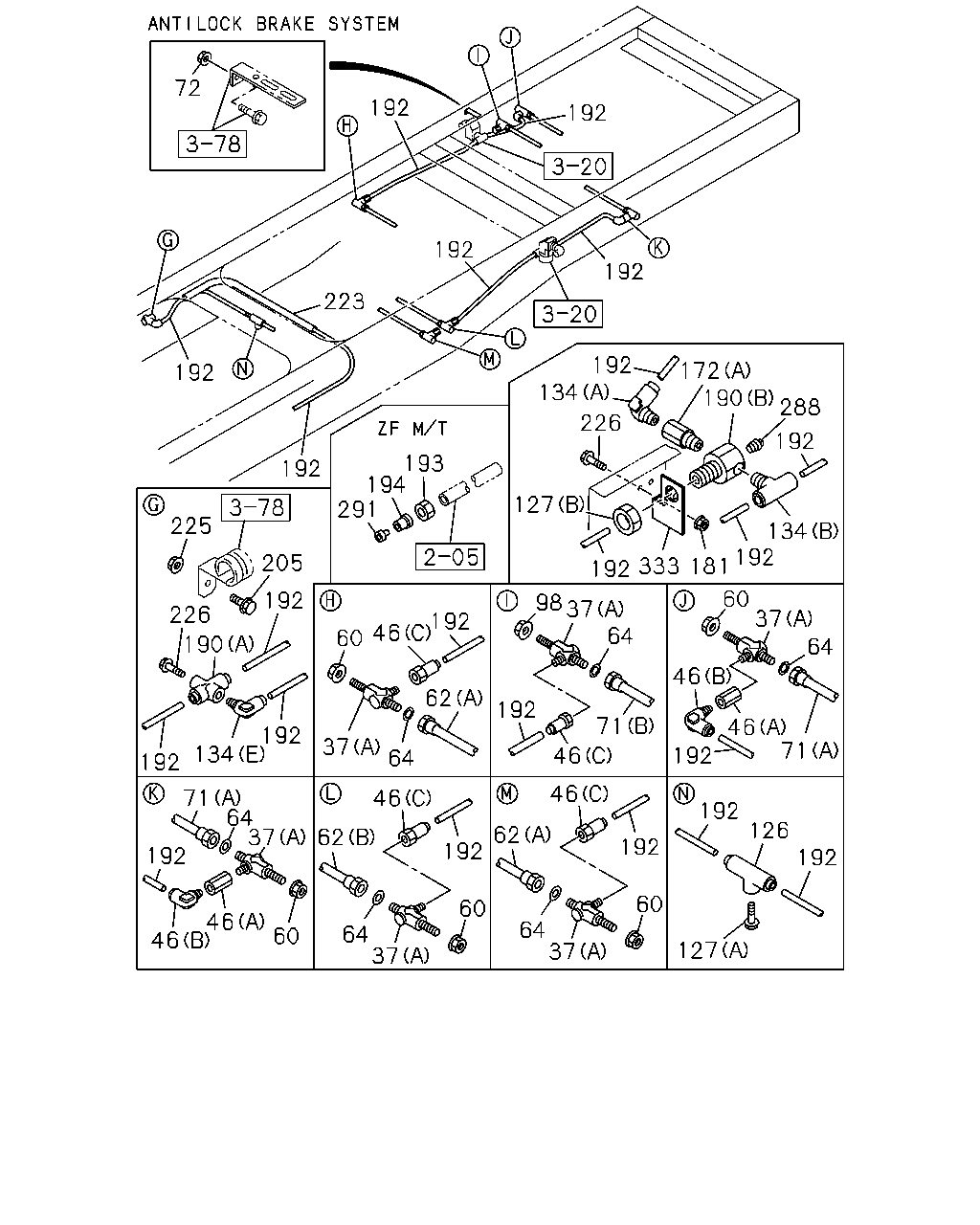

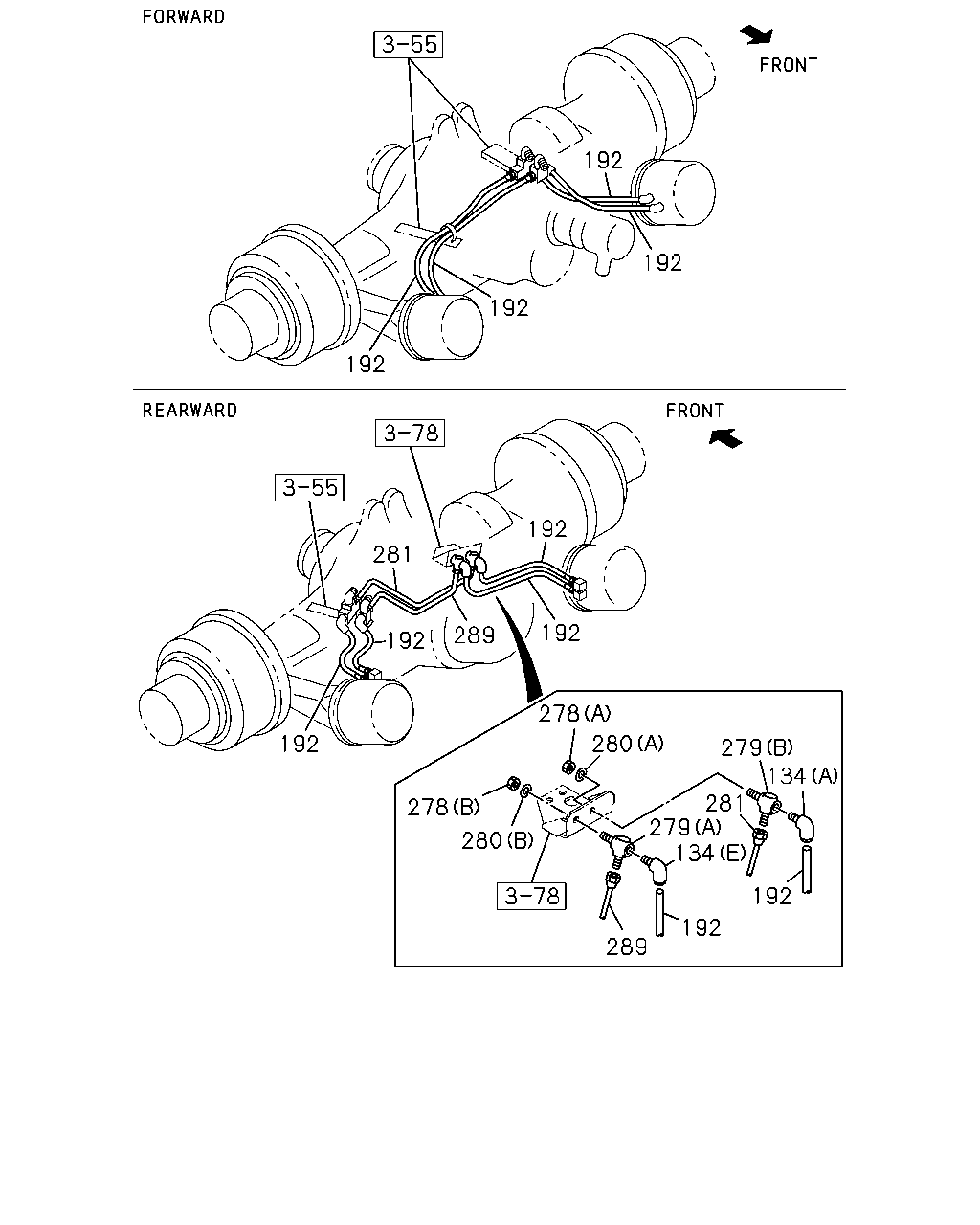

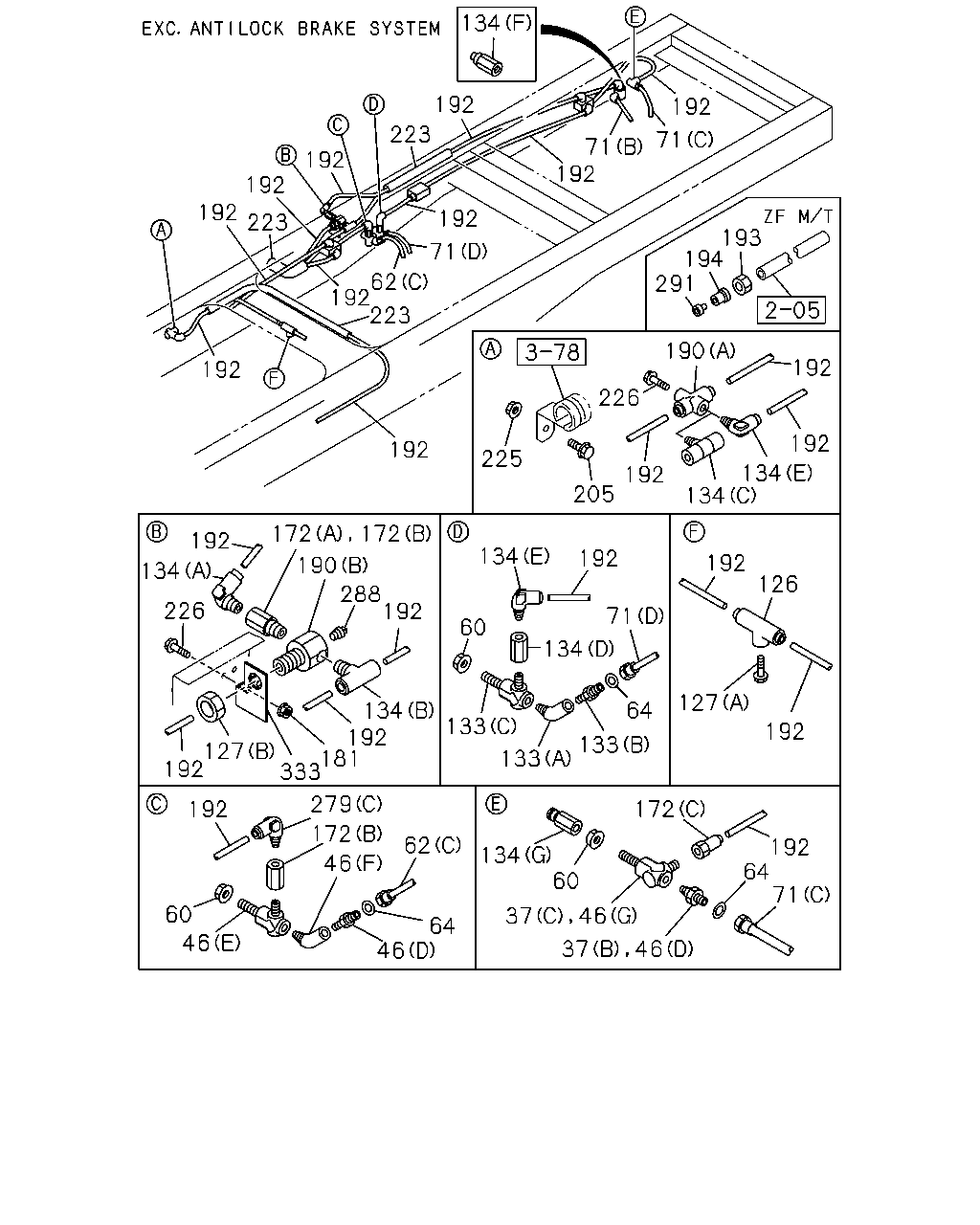

3-77 — BRAKE PIPING; AIR,REAR (#11994) — 315 parça

134 192 71 71 192 192 223 192 192 223 192 192 223 192 62 71 192 291 194 193 190 192 192 134 134 192 226 205 225 192 172 172 192 134 190 288 192 134 192 192 126 192 127 71 134 64 133 133 133 60 134 62 181 333 127 192 226 192 279 172 46 60 46 46 64 62 134 37 60 46 37 46 71 64 192 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-09650-360-1	06	1	0105-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-0105
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0106-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0106-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	0105-0105
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	0106-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C)	1-09650-251-1	01	1	0106-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0105-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0105-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)	1-09650-251-1	01	1	0105-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0105-
46	NIPPLE; AIR PIPE BRAKE REGULATION ECE<TDV> (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-
46	NIPPLE; AIR PIPE BRAKE REGULATION ECE<TDV> (G) M14X35	1-09650-272-2	01	1	0105-
60	NUT; NIPPLE,AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	04	1	0105-
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	04	1	0105-0512
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	0-91111-520-0	04	1	0601-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=370	0-07847-370-1	02	1	0105-0605
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=370	0-57847-370-1	02	1	0606-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=530	0-07847-530-1	01	1	0105-0605
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=530	0-57847-530-1	01	1	0606-
62	HOSE; FLEX,FWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=630	0-07909-630-0	01	1	0105-0607
62	HOSE; FLEX,FWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=630	0-57909-630-0	01	1	0608-
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	12	1	0105-
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	06	1	0105-
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> ID=17.5	9-09572-515-0	02	1	0105-
64	GASKET; FLEX HOSE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	02	1	0105-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=450 W/SPRING	0-07847-450-1	02	1	0105-0605
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=450 W/SPRING	0-57847-450-1	02	1	0606-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	0105-0605
71	HOSE; FLEX,RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	0105-0605
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-57847-580-1	01	1	0606-
71	HOSE; FLEX,RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-57847-580-1	01	1	0606-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-07909-550-0	01	1	0105-0607
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (C) L=550	0-07909-550-0	01	1	0105-0607
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-57909-550-0	01	1	0608-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (C) L=550	0-57909-550-0	01	1	0608-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) L=630	0-07909-630-0	01	1	0105-0607
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) L=630	0-57909-630-0	01	1	0608-
126	UNION; NYLON TUBE DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0105-
127	NUT; UNION (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
127	NUT; UNION (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-
127	NUT; UNION (B) M22	9-09111-422-0	01	1	0105-0512
127	NUT; UNION (B) M22	0-91111-522-0	01	1	0601-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	0105-
133	UNION; NIPPLE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0105-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (G) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
134	CONNECTOR (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0105-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (F) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-
172	ADAPTER; UNION (A) PT3/8	1-48319-058-0	01	1	0105-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-
181	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	02	1	0105-0602
181	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0603-
190	UNION; 3 WAY (B)	1-09661-064-0	01	1	0105-
190	UNION; 3 WAY ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-
190	UNION; 3 WAY BRAKE REGULATION ECE<TDV> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-
190	UNION; 3 WAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0309
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0606
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0310-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0607-
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	0105-0105
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0105-0105
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0309
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0310-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0607-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0607-
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
226	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0601-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
226	BOLT; UNION M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
226	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	0601-
279	UNION; AIR PIPE (A) M14X35	1-09650-272-2	01	1	0105-
279	UNION; AIR PIPE (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0105-
279	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
288	PLUG PT1/4	9-99204-513-0	01	1	0105-
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0105-0105
333	BRACKET; CONNECTOR	1-47478-839-1	01	1	0105-

72 192 192 192 192 223 192 192 193 194 291 225 205 192 226 190 192 134 192 60 46 192 62 64 37 192 98 37 64 192 127 226 134 192 172 190 288 192 134 192 181 333 60 37 64 46 46 71 192 71 46 192 126 192 127 37 60 192 46 62 64 192 60 37 64 46 62 60 46 46 192 71 64 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-09650-360-1	06	1	0105-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-0105
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0106-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0106-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	0105-0105
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	1-09650-251-1	01	1	0106-
37	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C)	1-09650-251-1	01	1	0106-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0105-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0105-
46	NIPPLE; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (E)	1-09650-251-1	01	1	0105-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0105-
46	NIPPLE; AIR PIPE BRAKE REGULATION ECE<TDV> (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-
46	NIPPLE; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-
46	NIPPLE; AIR PIPE BRAKE REGULATION ECE<TDV> (G) M14X35	1-09650-272-2	01	1	0105-
60	NUT; NIPPLE,AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	04	1	0105-
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	9-99111-420-0	04	1	0105-0512
60	NUT; NIPPLE,AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) M20	0-91111-520-0	04	1	0601-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=370	0-07847-370-1	02	1	0105-0605
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=370	0-57847-370-1	02	1	0606-
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=530	0-07847-530-1	01	1	0105-0605
62	HOSE; FLEX,FWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=530	0-57847-530-1	01	1	0606-
62	HOSE; FLEX,FWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=630	0-07909-630-0	01	1	0105-0607
62	HOSE; FLEX,FWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=630	0-57909-630-0	01	1	0608-
64	GASKET; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	12	1	0105-
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5	9-09572-515-0	06	1	0105-
64	GASKET; FLEX HOSE EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> ID=17.5	9-09572-515-0	02	1	0105-
64	GASKET; FLEX HOSE BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18	9-09572-510-0	02	1	0105-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=450 W/SPRING	0-07847-450-1	02	1	0105-0605
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (A) L=450 W/SPRING	0-57847-450-1	02	1	0606-
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	0105-0605
71	HOSE; FLEX,RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-07847-580-1	01	1	0105-0605
71	HOSE; FLEX,RWD RR ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-57847-580-1	01	1	0606-
71	HOSE; FLEX,RWD RR BRAKE REGULATION HONG KONG<TCZ> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=580	0-57847-580-1	01	1	0606-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-07909-550-0	01	1	0105-0607
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (C) L=550	0-07909-550-0	01	1	0105-0607
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=550	0-57909-550-0	01	1	0608-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ> (C) L=550	0-57909-550-0	01	1	0608-
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) L=630	0-07909-630-0	01	1	0105-0607
71	HOSE; FLEX,RWD RR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) L=630	0-57909-630-0	01	1	0608-
72	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0105-0602
72	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-
98	NUT; PIPE UNION ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE	0-91150-114-0	02	1	0105-
126	UNION; NYLON TUBE DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0105-
127	NUT; UNION (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
127	NUT; UNION (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-
127	NUT; UNION (B) M22	9-09111-422-0	01	1	0105-0512
127	NUT; UNION (B) M22	0-91111-522-0	01	1	0601-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (G) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
134	CONNECTOR (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0105-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (F) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-
172	ADAPTER; UNION (A) PT3/8	1-48319-058-0	01	1	0105-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
172	ADAPTER; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-
181	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	02	1	0105-0602
181	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0603-
190	UNION; 3 WAY (B)	1-09661-064-0	01	1	0105-
190	UNION; 3 WAY ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-
190	UNION; 3 WAY BRAKE REGULATION ECE<TDV> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-
190	UNION; 3 WAY EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0309
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0606
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0310-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0607-
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	0105-0105
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0105-0105
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0309
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0310-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0607-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0607-
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
226	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0601-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
226	BOLT; UNION M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
226	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	0601-
288	PLUG PT1/4	9-99204-513-0	01	1	0105-
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0105-0105
333	BRACKET; CONNECTOR	1-47478-839-1	01	1	0105-

223 192 192 129 129 192 223 220 17 293 17 17 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0105-
17	UNION; AIR PIPE (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0105-
17	UNION; AIR PIPE (C)	1-09661-083-0	01	1	0105-
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	0105-
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0105-0210
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0105-0111
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0112-0210
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0105-0210
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0211-
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0211-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0309
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0606
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0310-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0607-
220	HOSE; VINYL,EXH,PARKING BRK VLV ISUZU M/T<X9A> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0107-0107
220	HOSE; VINYL,EXH,PARKING BRK VLV ISUZU M/T<X9A>,FULLER M/T<X9B> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0107-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0105-0105
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0106-0106
220	HOSE; VINYL,EXH,PARKING BRK VLV ZF M/T<X9E> L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0107-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0309
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0310-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0607-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0607-
293	VALVE; CHECK	1-48410-479-0	01	1	0105-0106
293	VALVE; CHECK	1-48410-479-0	01	1	0105-0106
293	VALVE; CHECK	1-48410-479-1	01	1	0107-

192 192 192 192 281 192 192 278 280 279 134 281 279 134 192 192 289 280 278 192 192 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (G) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105
134	CONNECTOR (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
134	CONNECTOR (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0105-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-
134	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE REGULATION ECE<TDV> (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0105-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (F) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0309
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0606
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0310-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0607-
278	NUT; UNION (A) M16	9-99111-416-0	01	1	0105-0512
278	NUT; UNION (A) M16	0-91111-516-0	01	1	0601-
278	NUT; UNION (B) M20	9-99111-420-0	01	1	0105-0512
278	NUT; UNION (B) M20	0-91111-520-0	01	1	0601-
279	UNION; AIR PIPE (A) M14X35	1-09650-272-2	01	1	0105-
279	UNION; AIR PIPE (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0105-
279	UNION; AIR PIPE EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
280	WASHER; LK (A) ID=16.2	9-09150-516-0	01	1	0105-0603
280	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	0604-
280	WASHER; LK (B) ID=20.2	9-09150-520-0	01	1	0105-0603
280	WASHER; LK (B) ID=20.2	0-91510-520-0	01	1	0604-
281	PIPE; AIR,EMERGENCY	1-49117-109-0	01	1	0105-
289	PIPE; AIR,MODULATOR TO RELAY VLV	1-49117-108-0	01	1	0105-

18 226 129 223 223 192 192 223 274 262 205 262 274 192 192 223 223 129 17 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0105-
17	UNION; AIR PIPE (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0105-
17	UNION; AIR PIPE (C)	1-09661-083-0	01	1	0105-
17	UNION; AIR PIPE (D)	1-47470-609-0	01	1	0105-
18	PIPE; AIR,UNION TO UNION BAGGAGE BOX CAB RR SIDE<TBM> (A) L=1885	1-49121-759-1	01	1	0105-
18	PIPE; AIR,UNION TO UNION BAGGAGE BOX CAB RR SIDE<TBM> (B) L=1937	1-49122-060-1	01	1	0105-
18	PIPE; AIR,UNION TO UNION EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) L=1749	1-49121-758-1	01	1	0105-
18	PIPE; AIR,UNION TO UNION EXC. BAGGAGE BOX CAB RR SIDE<TBM> (B) L=1845	1-49122-059-1	01	1	0105-
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	0105-0512
19	NUT; PIPE UNION M8	0-91110-508-0	01	1	0601-
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0105-0210
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0105-0111
129	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0112-0210
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0105-0210
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0211-
129	CONNECTOR; NYLON TUBE DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0211-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0309
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0606
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0310-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0607-
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0309
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-0606
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0310-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0607-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0607-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
226	BOLT; UNION M8X20 FLANGE	0-28050-820-0	01	1	0601-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
226	BOLT; UNION M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
226	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	0601-
262	BRACKET (B)	1-79996-143-0	01	1	0105-
262	BRACKET (A)	1-79996-144-0	01	1	0105-
274	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
274	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-
274	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
