◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55 - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER (#119939) — 18 parça

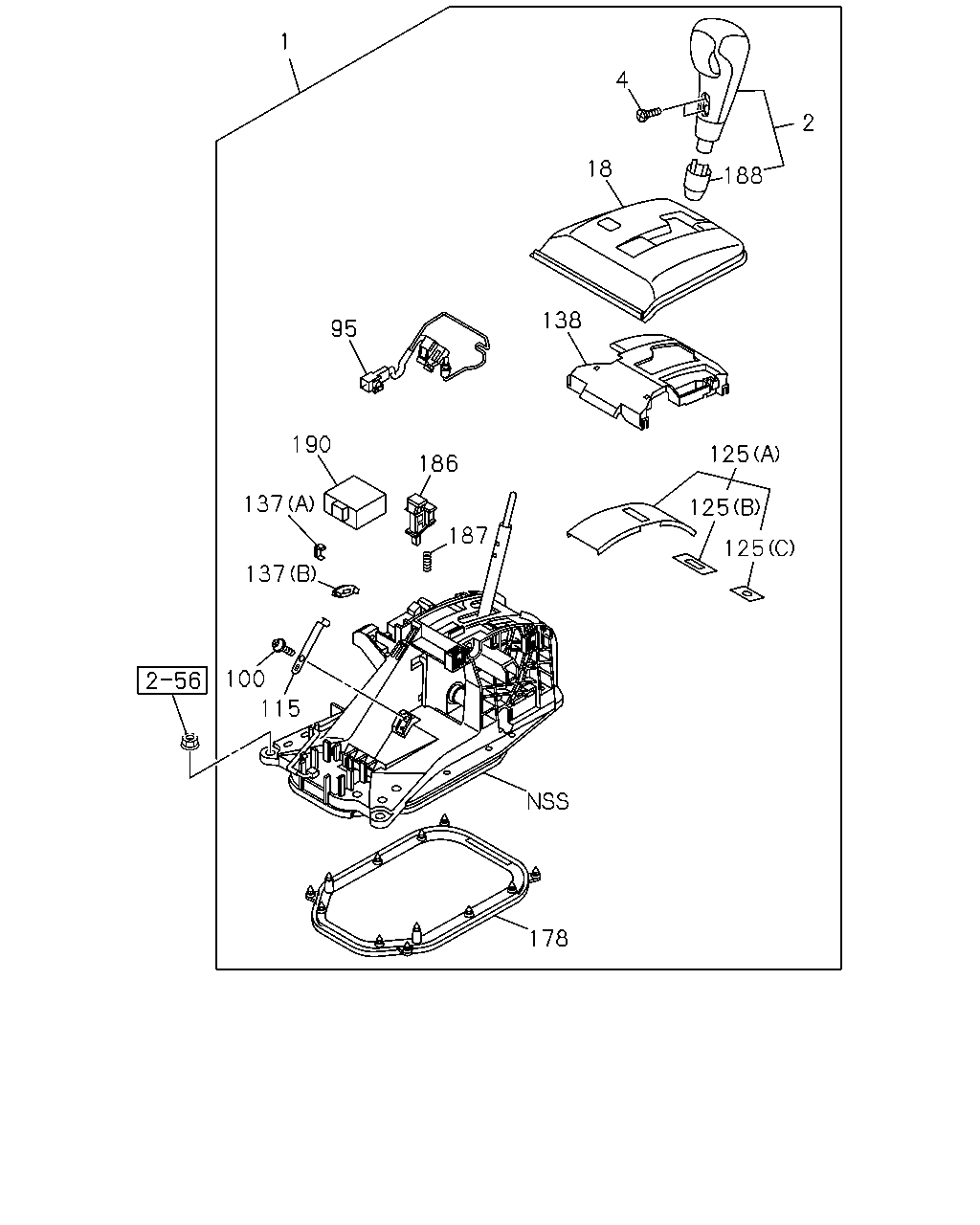

çizim 350746
95 1 190 137 137 100 115 187 186 138 18 4 2 188 125 125 125 178
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
SILVER 		8-97416-793-5 01 1 1305-
2 KNOB ASM; AUTO CONT LEVER
SILVER 		8-97421-017-0 01 1 1305-
4 SCREW; KNOB TO LEVER 8-98163-219-0 02 1 1305-
18 COVER; INDICATOR,UPR
BLACK 		8-97421-015-1 01 1 1305-
95 LAMP; INDICATOR 8-98163-211-0 01 1 1305-
100 SCREW 8-98163-221-0 01 1 1305-
115 PLATE; SPR,LEVER 8-98163-220-0 01 1 1305-
125 COVER; SHIFT LEVER
(A) 		8-98163-185-0 01 1 1305-
125 COVER; SHIFT LEVER
(C) 		8-98163-186-0 01 1 1305-
125 COVER; SHIFT LEVER
(B) 		8-98163-187-0 01 1 1305-
137 CUSHION
(A) 		8-98163-222-0 01 1 1305-
137 CUSHION
(B) 		8-98163-223-0 01 1 1305-
138 BOX; LAMP 8-98173-049-1 01 1 1305-
178 SHEET; SHIFT LEVER 8-98163-225-0 01 1 1305-
186 BUTTON; SHIFT LOCK
BLACK 		8-97421-016-0 01 1 1305-
187 SPRING; RETURN,SHIFT 8-98163-182-0 01 1 1305-
188 COVER; KNOB 8-98163-209-0 01 1 1305-
190 CONTROLLER; INTERLOCK 8-98163-217-0 01 1 1305-
