Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

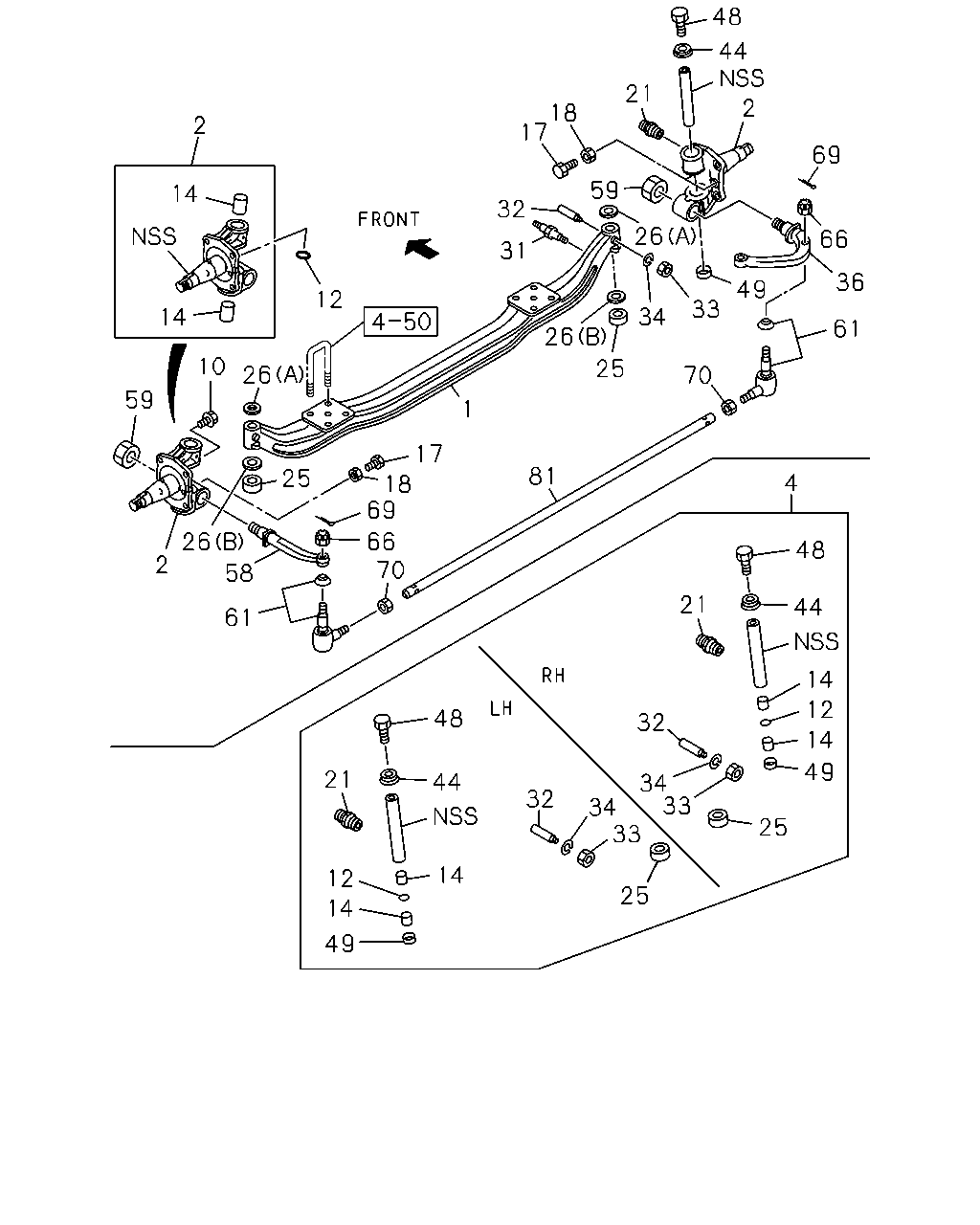

4-10 - FRONT AXLE
▶
4-10 — FRONT AXLE
(#119937) — 44 parça
Tümü
A - NPR5SN
B - NPR5SS
48
44
2
69
66
36
61
70
33
49
26
34
25
26
31
32
17
18
21
59
12
14
14
2
26
10
59
2
26
58
61
25
17
18
69
66
70
81
1
4
48
21
44
14
12
14
49
25
33
34
32
25
33
34
32
48
44
14
21
12
14
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
AXLE; FRT
IMA
8-98038-384-3
01
1
1304-
●
●
2
KNUCKLE; FRT AXLE
8-97261-549-2
01
1
1304-
●
●
2
KNUCKLE; FRT AXLE
8-97261-550-2
01
1
1304-
●
●
4
KING PIN KIT
5-87832-219-2
01
1
1304-1402
●
●
4
KING PIN KIT
IMA
5-87832-220-2
01
1
1403-
●
●
10
PLUG; PLATE,KNUCKLE
IMA
8-97360-117-0
01
1
1304-
●
●
12
GASKET; KNUCKLE
IMA
8-98084-500-0
02
1
1304-
●
●
14
BUSHING; KING PIN
DAIDO WO/NOTCH IMA
8-94107-672-3
04
1
1304-
●
●
17
BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT IMA
8-97360-059-0
03
1
1304-
●
17
BOLT; STOPPER KNUCKLE
IMA
8-98016-968-0
03
1
1304-
●
18
NUT; STOPPER BOLT,KNUCKLE
M12 IMA
0-91111-512-0
03
1
1304-
●
●
21
NIPPLE; GREASE,KING PIN
M6 STRAIGHT THA
0-90301-406-0
04
1
1304-
●
●
25
BEARING; THRUST,KING PIN
IMA
8-94248-883-2
02
1
1304-1402
●
●
25
BEARING; THRUST,KING PIN
8-94248-883-3
01
1
1403-
●
●
25
BEARING; THRUST,KING PIN
8-97141-943-1
01
1
1403-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.50 IMA
8-94162-574-0
AR
1
1304-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.55 IMA
8-94162-575-0
AR
1
1304-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.60 IMA
8-94162-576-0
AR
1
1304-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.65 IMA
8-94162-577-0
AR
1
1304-
●
●
26
SHIM; KING PIN,BRG
(B) T=1.95 IMA
8-94168-490-0
02
1
1304-1402
●
●
26
SHIM; KING PIN,BRG
(B) T=1.95 IMA
8-94168-490-0
01
1
1403-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.70 IMA
8-94174-352-0
AR
1
1304-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.80 IMA
8-94174-354-0
AR
1
1304-
●
●
26
SHIM; KING PIN,BRG
(A) T=0.90 IMA
8-94174-356-0
AR
1
1304-
●
●
31
PIN; S/ABS,LWR
IMA
8-97145-460-0
02
1
1304-
●
●
32
BOLT; KEY,KING PIN
8-97141-945-2
02
1
1304-
●
●
33
NUT; KEY BOLT
M10 THA
0-91110-510-0
02
1
1304-
●
●
34
WASHER; LK,KEY BOLT
ID=10.2 IMA
0-91510-510-0
02
1
1304-
●
●
36
ARM; KNUCKLE
IMA
8-97202-776-4
01
1
1304-
●
●
44
COVER; KING PIN
OD=36 IMA
8-97360-023-0
02
1
1304-
●
●
48
BOLT; COVER
M10X12 FLANGE IMA
0-28051-012-0
02
1
1304-
●
●
49
CAP; KNUCKLE
IMA
8-97360-024-0
02
1
1304-
●
●
58
ARM; TIE ROD
IMA
8-97138-304-1
01
1
1304-
●
●
59
NUT; TIE ROD ARM
IMA
8-97360-123-0
02
1
1304-
●
●
61
ROD END; TIE ROD
IMA
8-97107-349-2
01
1
1311-
●
●
61
ROD END; TIE ROD
8-97142-100-1
01
1
1304-1310
●
●
61
ROD END; TIE ROD
IMA
8-97107-348-2
01
1
1311-
●
●
61
ROD END; TIE ROD
8-97142-101-1
01
1
1304-1310
●
●
66
NUT; TIE ROD END
M16 SLOTTED IMA
8-98049-689-0
02
1
1304-
●
●
69
PIN; SPLIT,TIE ROD END
OD=3.7 L=20 IMA
0-81124-020-0
02
1
1304-
●
●
70
NUT; TIE ROD END
M20 LH THREAD IMA
8-94254-726-0
01
1
1311-
●
●
70
NUT; TIE ROD END
M20 LH THREAD IMA
8-94254-726-0
01
1
1304-1310
●
●
70
NUT; TIE ROD END
M20 IMA
8-98043-530-0
01
1
1304-
●
●
81
ROD; TIE
IMA
8-97061-869-0
01
1
1304-
●
●
