Isuzu WW
▶
TRUCKS
▶
CYH
▶
11539 - CYH CHINA EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#119924) — 59 parça
◀

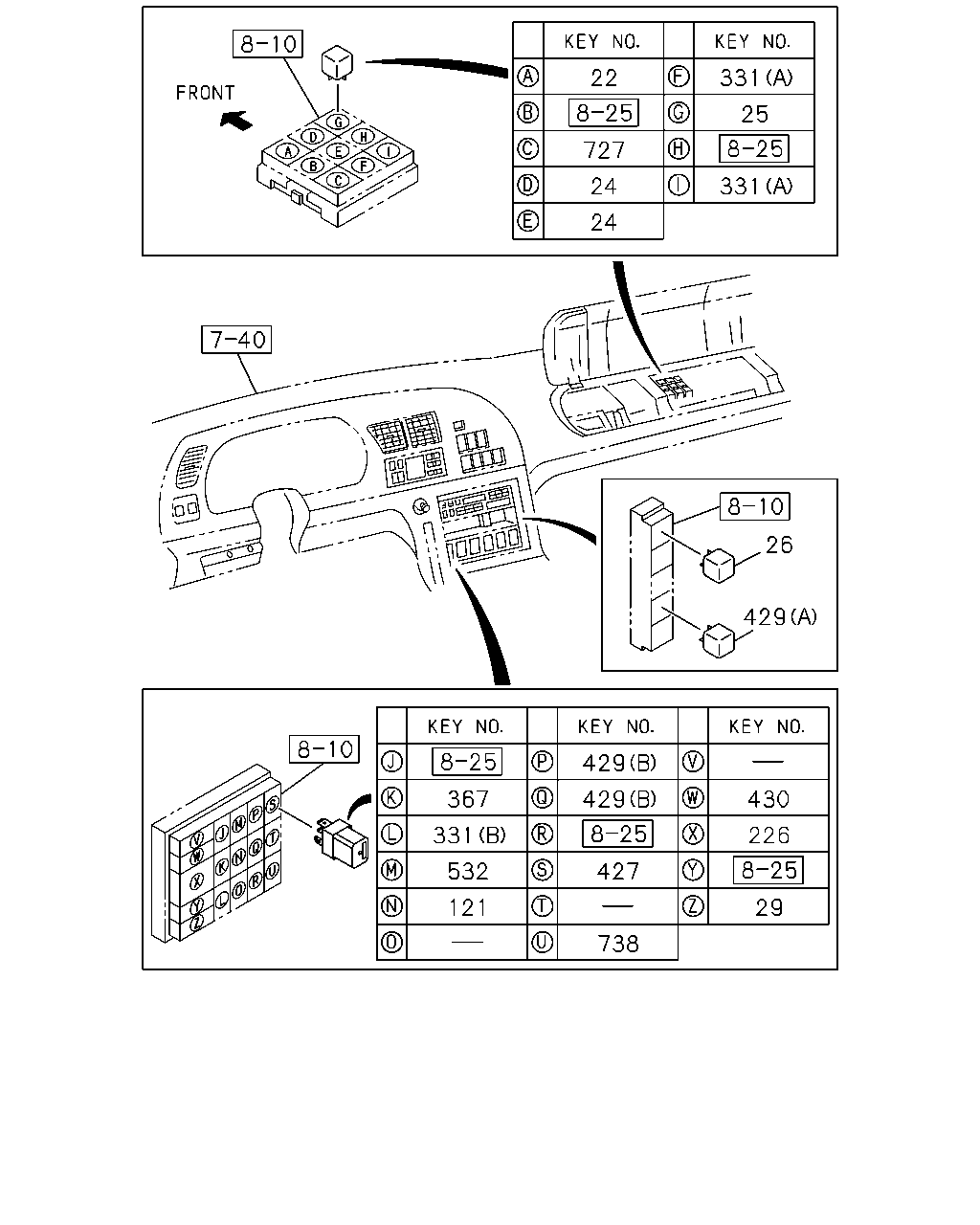

[828A] CAB SIDE NO.1 (17 parça)

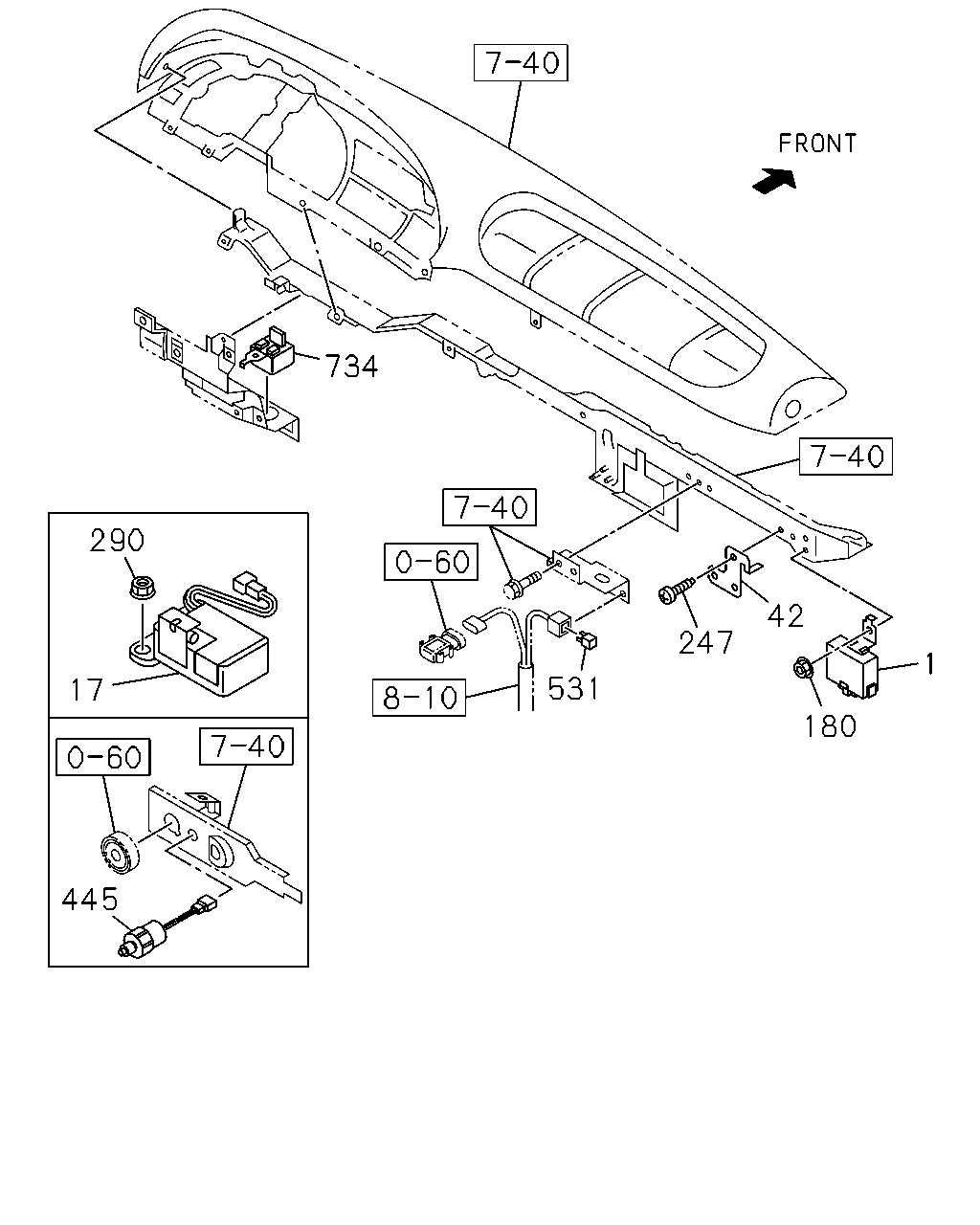

[828A] CAB SIDE NO.2 (9 parça)
[828A] FRAME SIDE NO.1 (12 parça)
[828A] FRAME SIDE NO.2 (11 parça)
[828A] FRAME SIDE NO.3 (10 parça)
▶
22
727
24
24
331
25
331
26
429
367
331
532
121
429
429
427
738
430
226
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1305-
24
RELAY; LIGHTING
24V 12.5A PANASONIC
8-97262-933-0
02
1
1305-
25
RELAY; TAIL LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1305-
26
RELAY; CONSENT
24V 12.5A PANASONIC
8-97262-933-0
01
1
1305-
29
RELAY; HORN
24V 10A PANASONIC
8-97173-035-1
01
1
1305-
121
RELAY; PARKING BRK
24V 10A PANASONIC
8-97173-035-1
01
1
1305-
226
RELAY; EXH BRK
24V 12.5A PANASONIC
8-97262-933-0
01
1
1305-
331
RELAY; A/C
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1305-
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 12.5A PANASONIC
8-97262-933-0
02
1
1305-
367
RELAY; NEUTRAL
24V 10A PANASONIC
8-97173-035-1
01
1
1305-
427
RELAY; RETARDER
24V 10A PANASONIC
8-97173-035-1
01
1
1305-
429
RELAY; POWER CUT
(A) 24V 12.5A MITUBA
1-82550-326-0
01
1
1305-
429
RELAY; POWER CUT
(B) 24V 10A PANASONIC
8-97173-035-1
02
1
1305-
430
RELAY; RANGE
MJX16P M/T(Y3Z) 24V 10A PANASONIC
8-97173-035-1
01
1
1305-
532
RELAY; SEAT BELT WARNING
24V 10A PANASONIC
8-97173-035-1
01
1
1305-
727
RELAY; START CUT
24V 12.5A PANASONIC
8-97262-933-0
01
1
1305-
738
RELAY; EXH & RETARDER CUT
24V 10A PANASONIC
8-97173-035-1
01
1
1305-
1
180
42
247
531
290
17
445
734
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1305-
17
TIMER; SEAT BELT
1-82550-183-1
01
1
1305-
42
BRACKET; RELAY
1-82698-128-2
01
1
1305-
180
NUT; FLASHER UNIT
M6 FLANGE
0-91180-106-0
01
1
1305-
247
SCREW; BRKT
M5X14
8-94279-325-0
01
1
1305-
290
NUT
M6 FLANGE
0-91180-106-0
02
1
1305-
445
SWITCH; ENG STOP
8-98138-305-0
01
1
1305-
531
RELAY; MAIN
24V
8-98167-175-0
01
1
1305-
734
ALARM; MULTI
1-83460-106-0
01
1
1305-
84
85
117
86
115
116
51
45
44
46
50
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
1-83410-067-0
01
1
1305-
45
HORN; LOW NOTE
1-83410-066-0
01
1
1305-
46
BOLT; HORN TO BODY
M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1305-
50
BRACKET; HORN
8-98198-870-1
01
1
1305-
51
BOLT; HORN TO BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1305-
83
NUT; BRKT,HORN
M8 FLANGE
0-91180-108-0
02
1
1305-
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1305-
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1305-
86
NUT; BUZZER
M8 FLANGE
0-91180-108-0
01
1
1305-
115
RELAY; POWER CAB TILT UNIT
NIKKO
1-81171-075-1
01
1
1305-
116
BOLT; RELAY FIX
M8X16 FLANGE
0-28050-816-0
02
1
1305-
117
NUT; RELAY FIX
M8 FLANGE
0-91180-108-0
02
1
1305-
282
97
39
96
280
604
261
96
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
BOLT; BRKT,MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
1305-
88
CONNECTOR; MAG VLV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1305-
96
BOLT; BRKT FIX
(A) M8X25 FLANGE
0-28650-825-0
01
1
1305-
96
BOLT; BRKT FIX
(B) M10X25 FLANGE
0-28651-025-0
01
1
1305-
97
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1305-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1305-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1305-
280
CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1305-
282
BRACKET; MAG VLV
(A)
1-82569-277-2
01
1
1305-
282
BRACKET; MAG VLV
(B)
1-82569-421-0
01
1
1305-
604
VALVE; MAG,ENG CONT
1-82563-871-2
01
1
1305-
91
90
284
282
603
261
89
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1305-
89
VALVE; MAG,DIFF LOCK
8-97641-594-0
01
1
1305-
90
BOLT; MAG VLV
M8X40 FLANGE
0-28650-840-0
02
1
1305-
91
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
1305-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1305-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1305-
282
BRACKET; MAG VLV
(A)
1-82569-277-2
01
1
1305-
282
BRACKET; MAG VLV
(B)
1-82569-421-0
01
1
1305-
284
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
1305-
603
PROTECTOR; MAG VLV
1-47471-046-0
01
1
1305-
