◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#11992) — 317 parça
çizim 21997
312 221 123
BalonParca AdiParca NoAdetTipApplied Date
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-994-0 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
312 NUT; UNION
M8 		9-09110-408-0 01 1 0105-0512
312 NUT; UNION
M8 		0-91110-508-0 01 1 0601-

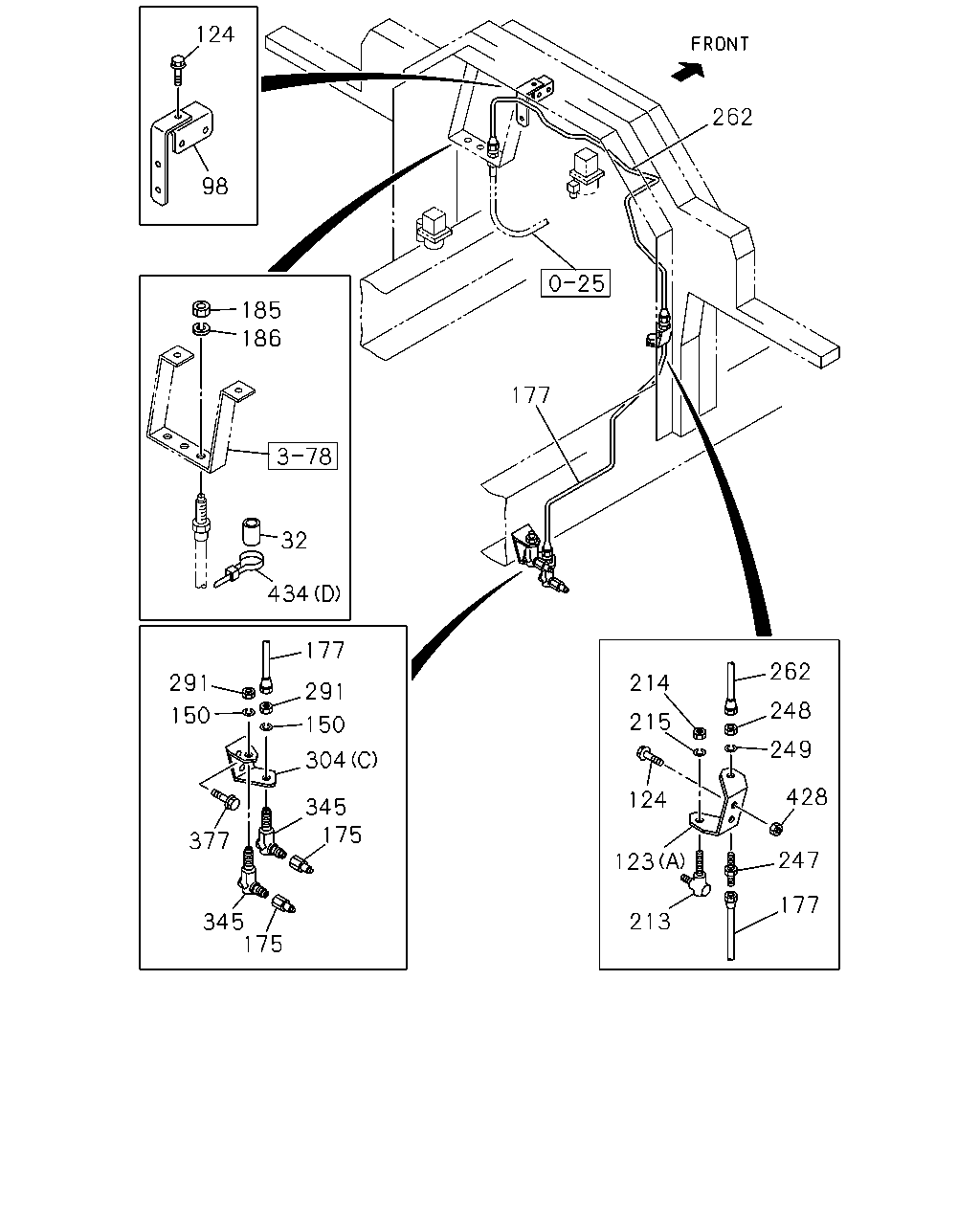

çizim 80071
124 98 185 186 177 262 262 248 249 428 247 177 213 123 124 215 214 175 345 377 150 291 175 345 304 150 291 177 434 32
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6 L=30 		5-09360-352-0 01 1 0105-
32 SLEEVE; RUBBER,AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105
98 BRACKET; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) 		1-47477-471-0 01 1 0105-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-994-0 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
124 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0105-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
175 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-
177 PIPE; AIR,UNION TO UNION
L=687 SERVICED BY L=700 		1-47428-811-0 01 1 0105-
185 NUT; FLEX HOSE,AIR GOV
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M12 		9-09840-280-0 01 1 0105-
186 WASHER; LK,FLEX HOSE,AIR GOV
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=12.2 		9-09150-512-0 01 1 0105-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=12.2 		0-91510-512-0 01 1 0604-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		9-09228-906-1 01 1 0105-0607
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		0-92138-906-0 01 1 0608-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		9-09225-206-1 01 1 0105-0607
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0105-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0105-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M12 L=66.5 		9-09223-306-1 01 1 0105-0607
247 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M12 L=66.5 		0-92113-306-0 01 1 0608-
247 UNION; AIR PIPE
6WF1 TC-C(1B8) M12 ELBOW 		9-09225-206-1 01 1 0105-0607
247 UNION; AIR PIPE
6WF1 TC-C(1B8) M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0105-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0105-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
262 PIPE; AIR,UNION TO FLEX
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) 		1-49121-783-0 01 1 0105-
291 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0512
291 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0105-
304 BRACKET; UNION
6WG1 TC-N(71L) MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 		1-47479-827-0 01 1 0306-
304 BRACKET; UNION
(C) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0105-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (A) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0107-0305
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0306-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) 		1-47477-757-1 01 1 0105-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0105-0607
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=17 		8-94449-734-1 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=140 		5-09707-031-1 01 1 0105-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0105-0106
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0107-
434 CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0105-0106
434 CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0107-

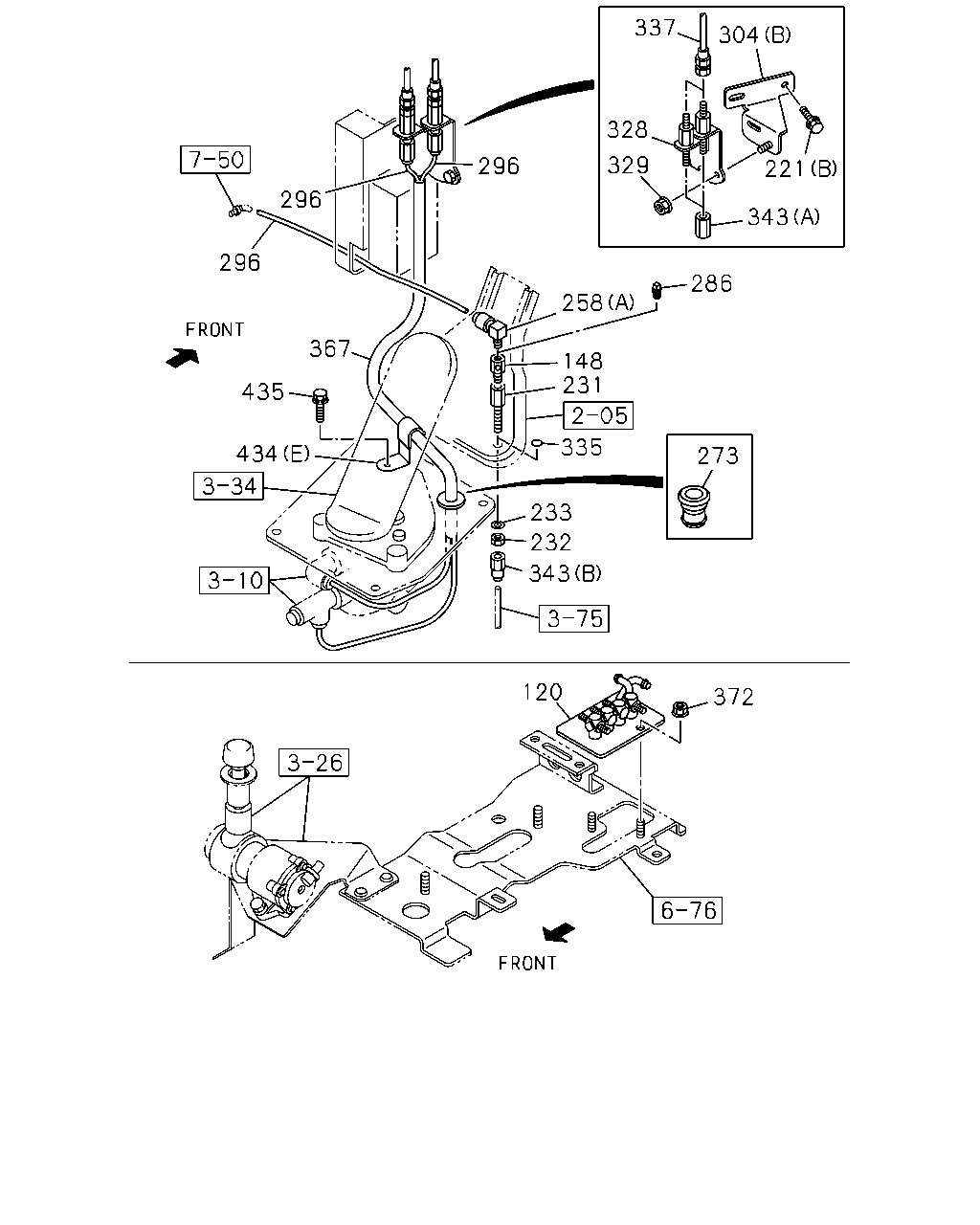

çizim 80074
372 120 343 232 233 273 335 231 148 258 286 343 221 304 337 328 329 296 296 296 367 435 434
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 0105-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 		8-94338-417-0 01 1 0105-0106
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 0107-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
231 UNION; AIR PIPE
ZF M/T<X9E> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0105-0211
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0105-0211
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0212-
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0212-
232 NUT; UNION,AIR PIPE
ZF M/T<X9E> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0105-0211
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0105-0211
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0212-
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0212-
233 WASHER; LK,UNION,AIR PIPE
ZF M/T<X9E> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0211
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0211
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0212-0603
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0212-0603
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
273 GROMMET 1-09332-135-0 01 1 0105-
286 PLUG; AIR PIPE
ZF M/T<X9E> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0105-0211
286 PLUG; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0212-
296 TUBE; NYLON
AIR DRYER<PS7> SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0105
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
304 BRACKET; UNION
6WG1 TC-N(71L) MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 		1-47479-827-0 01 1 0306-
304 BRACKET; UNION
(C) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0105-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (A) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0107-0305
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0306-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) 		1-47477-757-1 01 1 0105-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0105-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0603-
335 SEAL; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0105-
335 SEAL; UNION
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0105-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0105-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 0606-
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0105-
343 UNION; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0105-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=17 		8-94449-734-1 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=140 		5-09707-031-1 01 1 0105-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0105-0106
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0107-
434 CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0105-0106
434 CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0107-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-

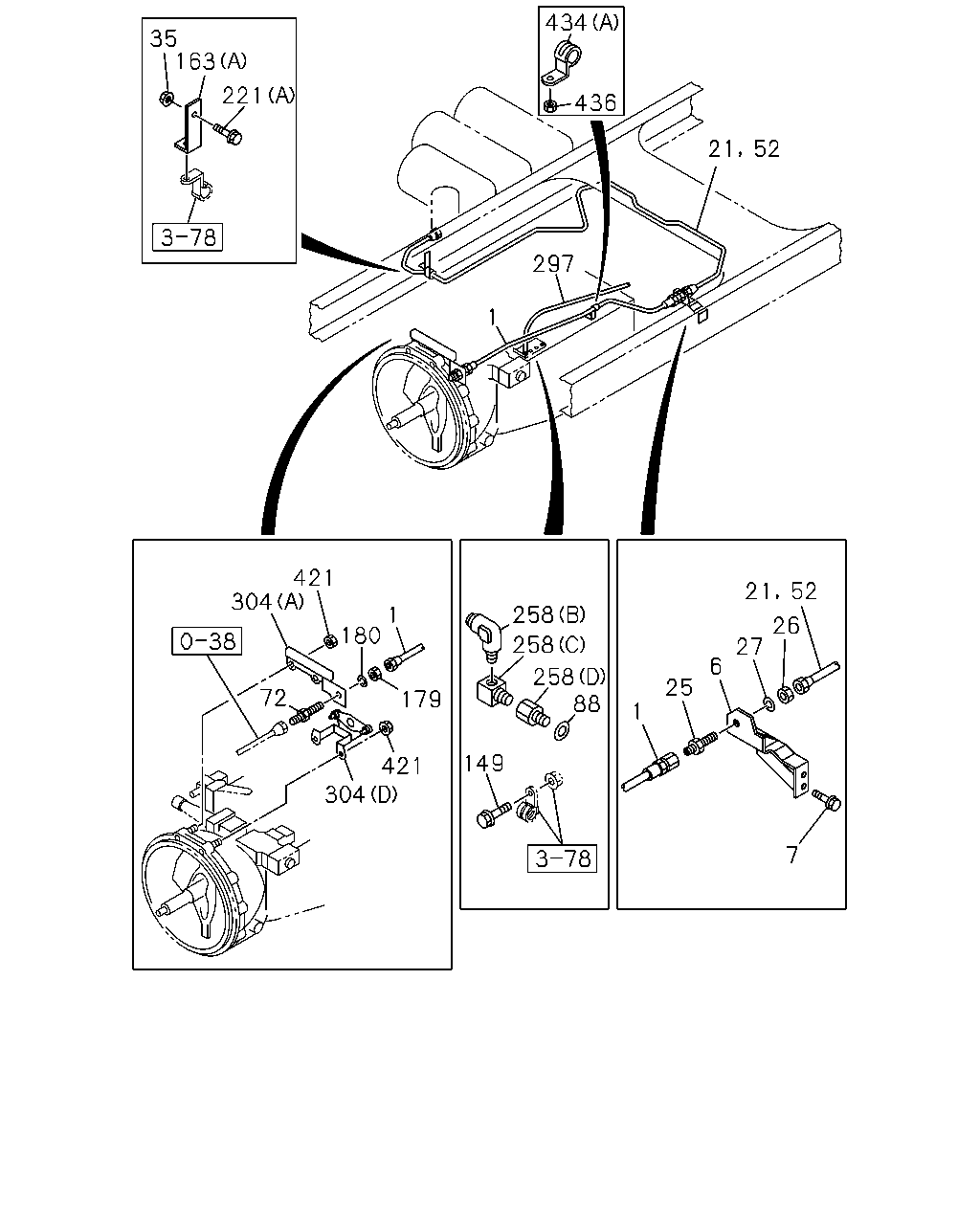

çizim 80616
434 436 21 52 297 221 163 35 421 304 1 180 179 72 421 304 149 88 258 258 258 21 52 26 27 6 25 1 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=1050 		1-09363-789-0 01 1 0105-0105
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) ZF M/T<X9E> L=1050 		1-09363-789-0 01 1 0105-0106
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=1050 		1-09363-789-0 01 1 0105-0106
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> L=1050 		1-09363-789-0 01 1 0107-
1 HOSE; FLEX,AIR TANK
FULLER M/T<X9B> L=1050 		1-09363-789-0 01 1 0107-
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> 		1-09363-856-0 01 1 0105-0106
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> 		1-09363-856-0 01 1 0107-
1 HOSE; FLEX,AIR TANK
6WF1 TC-C(1B8) ZF M/T<X9E> L=1000 		1-09363-794-0 01 1 0105-0105
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0105-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49213-123-0 01 1 0105-0105
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-123-0 01 1 0106-0106
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-185-0 01 1 0106-
25 VALVE; CHECK 1-48320-042-1 01 1 0105-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
M22 		9-09111-422-0 01 1 0105-0512
26 NUT; CHECK VLV
M22 		0-91111-522-0 01 1 0601-
27 WASHER; LK,CHECK VLV
ID=22.5 		9-09150-522-0 01 1 0105-0603
27 WASHER; LK,CHECK VLV
ID=22.5 		0-91510-522-0 01 1 0604-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49213-124-0 01 1 0105-0105
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49123-124-0 01 1 0106-0106
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49123-186-0 01 1 0106-
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY(E1Q) ZF M/T<X9E> M22 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 0105-0106
72 UNION; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY(E1Q) ISUZU M/T<X9A>,ZF M/T<X9E> M22 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 0107-
88 GASKET; NYLON TUBE
MJD7S M/T(Y2Y) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
163 BRACKET; AIR PIPE
(A) 		1-34656-009-0 01 1 0105-
163 BRACKET; AIR PIPE
(B) 		1-47478-213-0 01 1 0105-
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M22 		9-09111-422-0 01 1 0105-0106
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M22 		9-09111-422-0 01 1 0107-0512
179 NUT; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M22 		0-91111-522-0 01 1 0601-
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> ID=22.5 		9-09150-522-0 01 1 0105-0106
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> ID=22.5 		9-09150-522-0 01 1 0107-0603
180 WASHER; LK,UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> ID=22.5 		0-91510-522-0 01 1 0604-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
304 BRACKET; UNION
6WG1 TC-N(71L) MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 		1-47479-827-0 01 1 0306-
304 BRACKET; UNION
(C) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 0105-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (A) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0107-0305
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (D) 		1-47477-182-1 01 1 0306-
304 BRACKET; UNION
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) 		1-47477-757-1 01 1 0105-
421 NUT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 0105-0106
421 NUT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 02 1 0107-0602
421 NUT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M10 FLANGE 		0-91180-210-0 02 1 0603-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=17 		8-94449-734-1 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=140 		5-09707-031-1 01 1 0105-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0105-0106
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0107-
434 CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0105-0106
434 CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0107-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0106
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0105-0106
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0107
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0107-0107
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0108-0602
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0108-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0105-0106
436 NUT; CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0107-0107
436 NUT; CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-0602
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-0602
436 NUT; CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 02 1 0603-
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 02 1 0603-
çizim 81084
163 291 221 295 295 295 290 295 295 295 295 290 295 295 290 295 295 295 295 290 295 295 295 295
BalonParca AdiParca NoAdetTipApplied Date
163 BRACKET; AIR PIPE
(A) 		1-34656-009-0 01 1 0105-
163 BRACKET; AIR PIPE
(B) 		1-47478-213-0 01 1 0105-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (D) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
221 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
290 UNION; AIR PIPE 1-09661-064-0 01 1 0105-
291 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0512
291 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0105-
295 CONNECTOR; NYLON TUBE
(E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0105-
295 CONNECTOR; NYLON TUBE
FULLER M/T<X9B> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
295 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
FULLER M/T<X9B>,ZF M/T<X9E> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) 		1-09661-073-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) 		1-09661-073-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (I) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-
295 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (J) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (K) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0105
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (G) 		1-09661-061-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (G) 		1-09661-061-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (G) 		1-09661-061-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R), TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (G) 		1-09661-061-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0107-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0107-

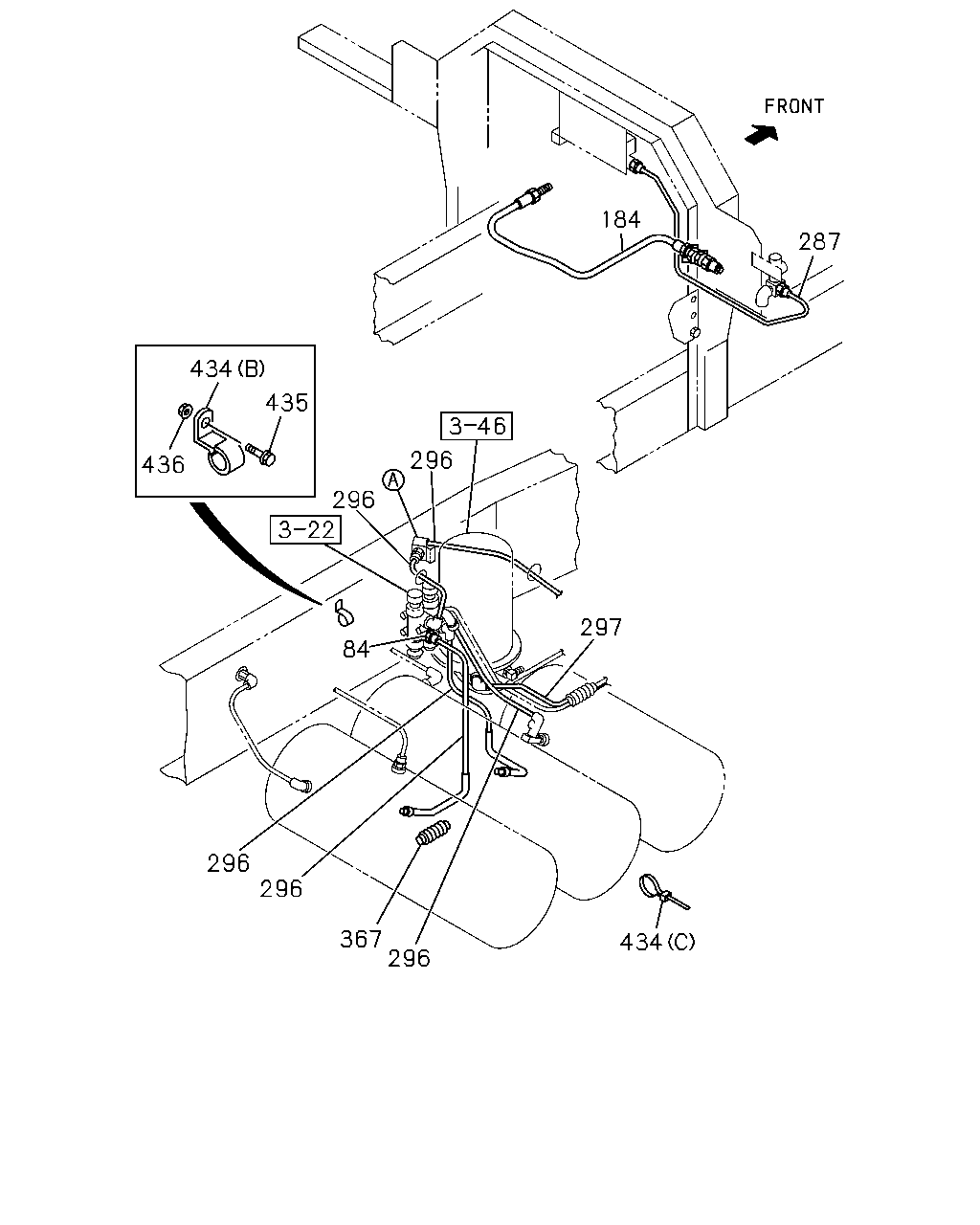

çizim 81115
184 287 297 434 296 367 296 296 84 296 296 435 434 436
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-
184 HOSE; FLEX,AIR GOV
6WF1 TC-C(1B8) L=780 		1-09363-620-0 01 1 0105-
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) 		1-49122-364-0 01 1 0105-0202
287 PIPE; AIR,MAG VLV
6WA1 TC-C(55L) L=1314 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L),6WG1 TC-C(72L) 		1-49122-365-0 01 1 0105-0202
287 PIPE; AIR,MAG VLV
6WG1 TC-N(71L),6WG1 TC-C(72L) L=1269 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
296 TUBE; NYLON
AIR DRYER<PS7> SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0105
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0105-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-
434 CLIP
(C) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(E) ID=17 		8-94449-734-1 01 1 0105-
434 CLIP
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=140 		5-09707-031-1 01 1 0105-
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0105-0106
434 CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 01 1 0107-
434 CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0105-0106
434 CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> (A) D=24 L=21 		1-09700-380-0 02 1 0107-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
435 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
435 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0106
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0105-0106
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0107
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0107-0107
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0108-0602
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0108-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
6WF1 TC-C(1B8) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0105-0106
436 NUT; CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0107-0107
436 NUT; CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-0602
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-0602
436 NUT; CLIP
6WF1 TC-C(1B8) ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 02 1 0603-
436 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 02 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
