1-50 — EXHAUST PIPE AND SILENCER (#119919) — 89 parça
çizim 350516
172 532 38 25 562 143 385 44 2 36 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
THA 		8-97924-535-0 01 1 1304- ● ●
2 GASKET; PIPE TO MANIF
IMA 		8-97381-455-0 01 1 1304- ● ●
8 BRACKET; EXH PIPE
IMA 		8-97365-228-0 01 1 1304- ● ●
25 PIPE; EXH,BRK VLV TO SILENCER
THA 		8-98074-109-0 01 1 1304- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 03 1 1304- ● ●
36 NUT; EXH PIPE
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> (B) M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
38 NUT; SILENCER
M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
44 BOLT; BRKT
M10X40 FLANGE THA 		0-28051-040-0 01 1 1304- ● ●
143 RUBBER; SUPPORT
(A) IMA 		8-97080-694-0 01 1 1304- ● ●
143 RUBBER; SUPPORT
(B) IMA 		8-98034-767-0 01 1 1304- ● ●
172 BOLT
M10X35 FLANGE THA 		0-28651-035-0 02 1 1304- ● ●
385 BRACKET; SILENCER MTG
(B) IMA 		8-97207-224-0 02 1 1304- ● ●
385 BRACKET; SILENCER MTG
(A) IMA 		8-98074-495-1 01 1 1304- ● ●
532 NUT
M10 FLANGE THA 		0-91180-110-0 04 1 1304- ● ●
562 PLATE; STUD,BOLT
M8X70 IMA 		0-10855-870-0 04 1 1304- ● ●

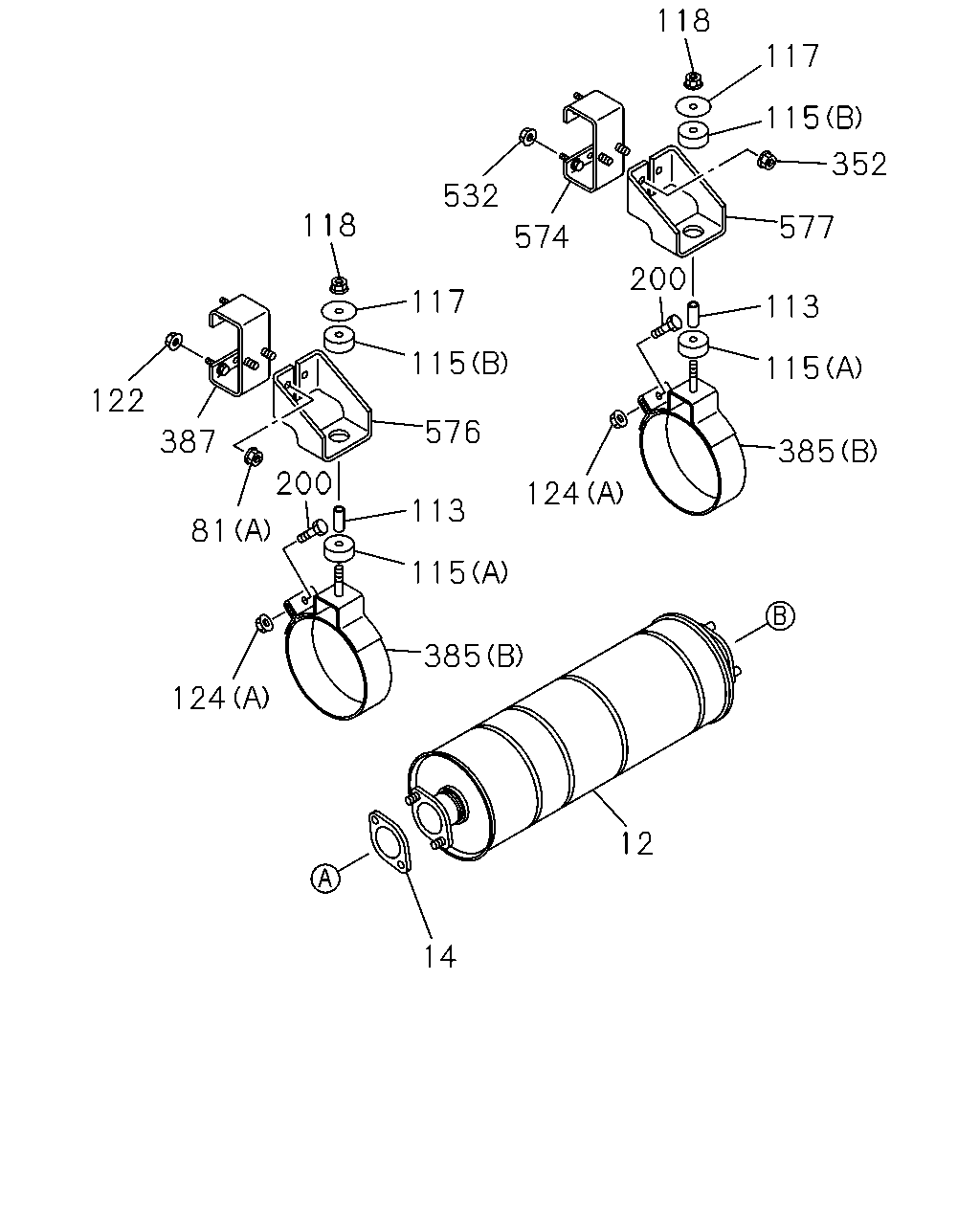

çizim 350524
122 200 81 113 576 115 124 115 117 118 387 124 385 12 14 385 115 113 577 352 115 117 118 574 532 200
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
THA 		8-97924-545-1 01 1 1304- ● ●
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 IMA 		8-94328-352-0 01 1 1304- ● ●
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1304- ● ●
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 THA 		9-22151-217-0 02 1 1304- ● ●
115 RUBBER; MTG,SILENCER
(A) IMA 		8-97379-882-0 02 1 1304- ● ●
115 RUBBER; MTG,SILENCER
(B) THA 		8-97925-254-0 02 1 1304- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 IMA 		9-09852-169-0 02 1 1304- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE IMA 		5-09440-006-0 02 1 1304- ● ●
122 NUT; HANGER BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 IMA 		0-91110-508-0 02 1 1304- ● ●
124 NUT; SUPPORT RUBBER
WHEEL BASE 4100MM<41W> (C) M10 THA 		0-91110-510-0 01 1 1304- ●
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER THA 		0-50540-845-0 02 1 1304- ● ●
352 NUT; BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
385 BRACKET; SILENCER MTG
(B) IMA 		8-97207-224-0 02 1 1304- ● ●
385 BRACKET; SILENCER MTG
(A) IMA 		8-98074-495-1 01 1 1304- ● ●
387 SPACER; BRKT
IMA 		8-98044-774-0 01 1 1304- ● ●
532 NUT
M10 FLANGE THA 		0-91180-110-0 04 1 1304- ● ●
574 SPACER; DPD
IMA 		8-98044-774-0 01 1 1304- ● ●
576 BRACKET; DPD FRT TO FRAME
THA 		8-98074-124-1 01 1 1304- ● ●
577 BRACKET; DPD RR TO FRAME
THA 		8-98074-124-1 01 1 1304- ● ●

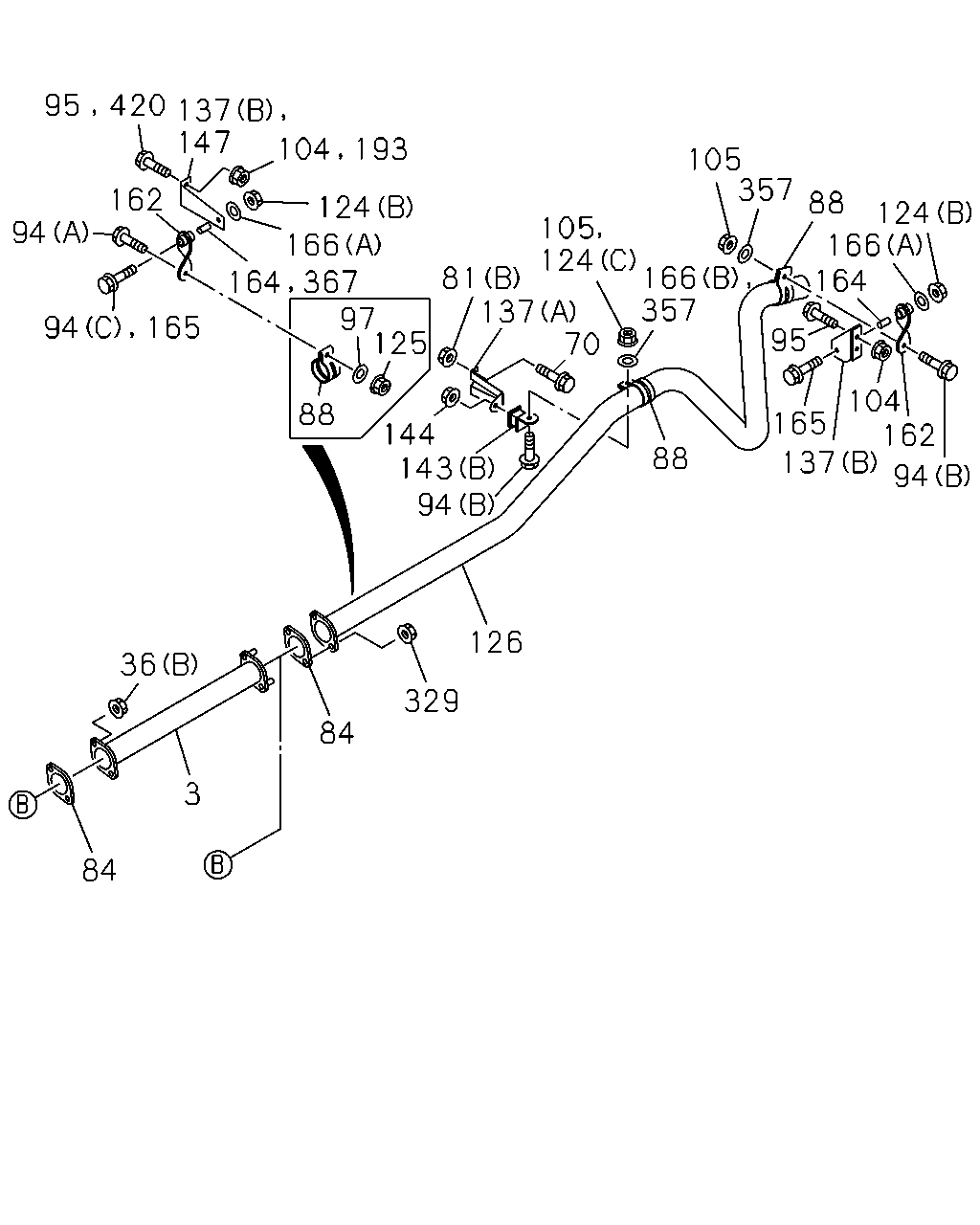

çizim 352230
84 36 84 126 329 3 88 94 162 165 104 137 95 88 105 124 166 357 357 81 144 164 70 137 94 143 94 124 165 94 95 420 105 367 164 166 162 147 137 124 104 193 166 97 125 88
BalonParca AdiParca NoAdetTipApplied Date A B
3 PIPE; EXH,CENTER
WHEEL BASE 3800MM<38W> THA 		8-97187-167-0 01 1 1304- ●
3 PIPE; EXH,CENTER
WHEEL BASE 4100MM<41W> THA 		8-97307-804-0 01 1 1304- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 03 1 1304- ● ●
36 NUT; EXH PIPE
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> (B) M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
70 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1304- ● ●
81 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1304- ● ●
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
84 GASKET; EXH PIPE
ID=64.7 IMA 		8-94328-352-0 01 1 1304- ● ●
84 GASKET; EXH PIPE
WHEEL BASE 3800MM<38W>,WHEEL BASE 4100MM<41W> ID=64.7 IMA 		8-94328-352-0 01 1 1304- ● ●
88 CLAMP; EXH PIPE
IMA 		8-97373-158-0 02 1 1304- ● ●
88 CLAMP; EXH PIPE
IMA 		8-97373-158-0 01 1 1304- ● ●
94 BOLT; CLAMP
(B) M10X45 FLANGE THA 		0-28051-045-0 01 1 1304- ● ●
94 BOLT; CLAMP
(B) M10X45 FLANGE THA 		0-28051-045-0 01 1 1304- ● ●
94 BOLT; CLAMP
(A) M10X50 FLANGE THA 		8-97301-165-0 01 1 1304- ● ●
94 BOLT; CLAMP
WHEEL BASE 4100MM<41W> (C) M10X70 FLANGE THA 		0-28051-070-0 01 1 1304- ●
95 BOLT; BRKT
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M8X25 FLANGE THA 		0-28650-825-0 02 1 1304- ● ●
95 BOLT; BRKT
WHEEL BASE 4100MM<41W> M10X30 FLANGE THA 		0-28651-030-0 04 1 1304- ●
97 WASHER; PL,CLAMP
ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1304- ● ●
104 NUT; BRKT
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M8 FLANGE THA 		0-91180-108-0 02 1 1304- ● ●
104 NUT; BRKT
WHEEL BASE 4100MM<41W> M10 FLANGE THA 		0-91180-110-0 04 1 1304- ●
105 NUT; CLAMP
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M10 THA 		0-91110-510-0 01 1 1304- ● ●
105 NUT; CLAMP
M10 THA 		0-91110-510-0 01 1 1304- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304- ● ●
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1304- ● ●
124 NUT; SUPPORT RUBBER
(A) M8 IMA 		0-91110-508-0 02 1 1304- ● ●
124 NUT; SUPPORT RUBBER
WHEEL BASE 4100MM<41W> (C) M10 THA 		0-91110-510-0 01 1 1304- ●
125 NUT; CLAMP
M10 THA 		0-91110-510-0 01 1 1304- ● ●
126 PIPE; EXH,RR
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> THA 		8-97924-505-0 01 1 1304- ● ●
126 PIPE; EXH,RR
WHEEL BASE 4100MM<41W> THA 		8-97924-506-0 01 1 1304- ●
137 BRACKET; TAIL PIPE
(A) IMA 		8-98090-280-0 01 1 1304- ● ●
137 BRACKET; TAIL PIPE
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (B) IMA 		8-97116-588-2 01 1 1304- ● ●
137 BRACKET; TAIL PIPE
WHEEL BASE 4100MM<41W> (B) IMA 		8-97185-801-0 02 1 1304- ●
143 RUBBER; SUPPORT
(A) IMA 		8-97080-694-0 01 1 1304- ● ●
143 RUBBER; SUPPORT
(B) IMA 		8-98034-767-0 01 1 1304- ● ●
144 NUT; MTG RUBBER
M8 FLANGE THA 		0-91180-108-0 01 1 1304- ● ●
147 BRACKET; VERTICAL PIPE
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> IMA 		8-98090-125-1 01 1 1304- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 IMA 		8-98034-765-0 01 1 1304- ● ●
162 RUBBER; SUPPORT,TAIL PIPE
L=115 IMA 		8-98034-765-0 01 1 1304- ● ●
164 COLLAR; DIST,TAIL PIPE
L=37.5 THA 		9-22151-217-0 01 1 1304- ● ●
164 COLLAR; DIST,TAIL PIPE
4HK1-TCS ENG<RJS> WHEEL BASE 4100MM<41W> L=37.5 THA 		9-22151-217-0 01 1 1304- ●
165 BOLT; SUPPORT RUBBER
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1304- ● ●
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE THA 		0-28051-070-0 01 1 1304- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
(A) ID=10.5 OD=32 IMA 		0-91614-810-0 01 1 1304- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
(A) ID=10.5 OD=32 IMA 		0-91614-810-0 01 1 1304- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
WHEEL BASE 4100MM<41W> (B) ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1304- ●
193 NUT; BRKT,VERTICAL PIPE
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1304- ● ●
357 WASHER; PL,CLAMP
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1304- ● ●
357 WASHER; PL,CLAMP
ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1304- ● ●
367 COLLAR; DIST,SUPPORT RUBBER
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> L=37.5 THA 		9-22151-217-0 01 1 1304- ● ●
420 BOLT; BRKT,VERTICAL PIPE
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> M10X30 FLANGE THA 		0-28651-030-0 02 1 1304- ● ●
