Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶

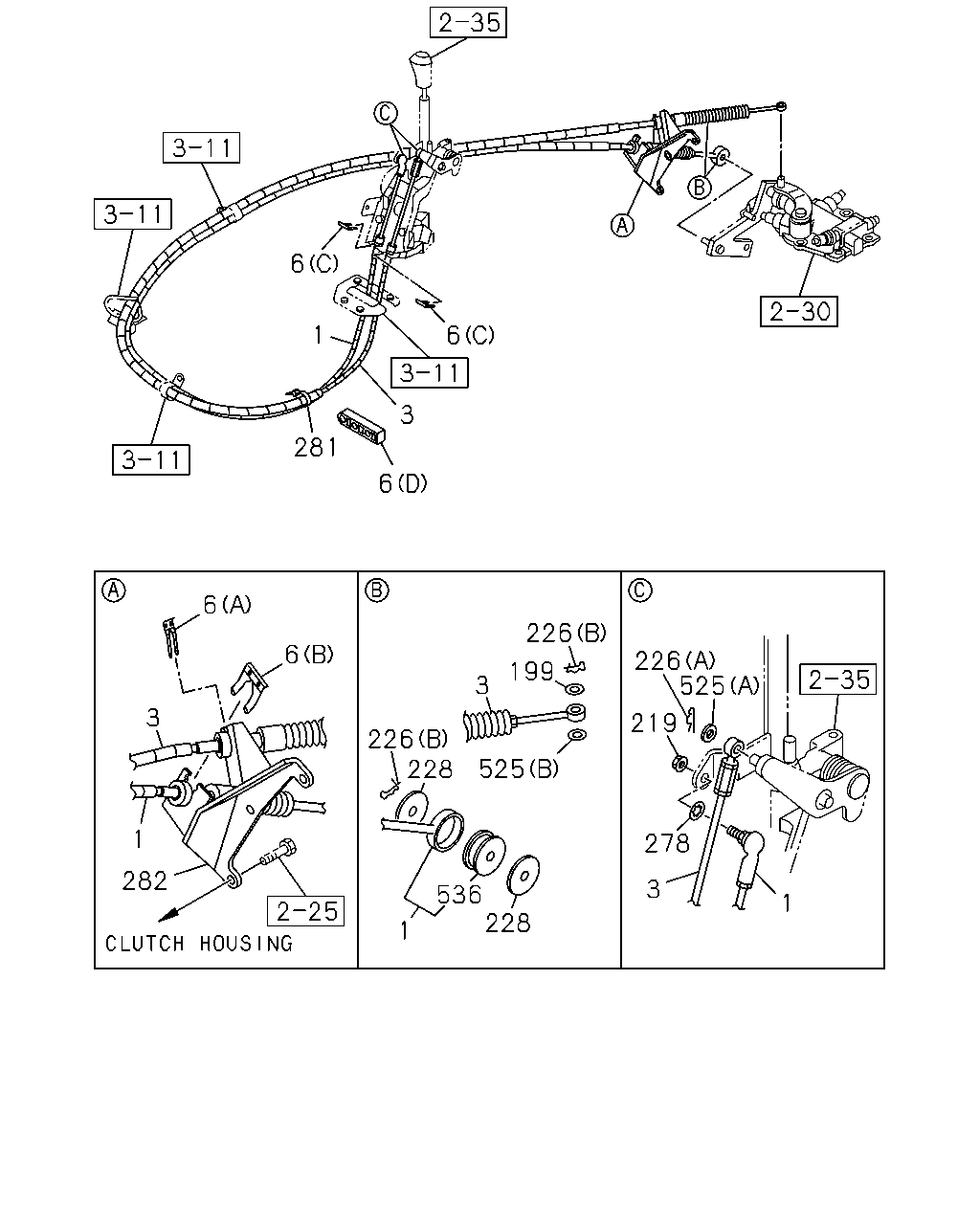

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#119910) — 19 parça
6
1
281
3
226
199
6
226
228
536
228
1
282
3
6
6
226
525
219
278
3
1
6
1
3
525
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
FRONT WIDE TREAD<7GV> L=3141 IMA
8-98147-385-0
01
1
1304-
1
CABLE; SHIFT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> L=3116 THA
8-98146-876-0
01
1
1304-
3
CABLE; SELECT,TRANS CONT
FRONT WIDE TREAD<7GV> IMA
8-98130-266-1
01
1
1304-
3
CABLE; SELECT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> L=3229 THA
8-98025-443-4
01
1
1304-
6
CLIP; CABLE
(A) ID=22.2 IMA
1-09701-209-1
01
1
1304-
6
CLIP; CABLE
(C) IMA
8-97011-448-0
02
1
1304-
6
CLIP; CABLE
(D)
8-97093-491-1
01
1
1304-
6
CLIP; CABLE
(B) ID=19.2 IMA
8-97211-011-0
01
1
1304-
199
WASHER; PL,SELECT
ID=8.4 OD=16 THA
0-91610-508-0
01
1
1304-
219
NUT; FLANGE,SHAFT CABLE
M8 T=8.0 IMA
8-94363-045-0
01
1
1304-
226
PIN; SHIFT CABLE
(A) L=27.7 IMA
8-94111-137-0
01
1
1304-
226
PIN; SHIFT CABLE
(B) L=23 IMA
8-94170-378-0
02
1
1304-
228
WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 IMA
8-97182-975-0
02
1
1304-
278
WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT IMA
0-91541-208-0
01
1
1304-
281
CLIP; BAND
L=140 THA
8-97920-656-0
01
1
1304-
282
BRACKET; TRANS SIDE
IMA
8-98032-396-2
01
1
1304-
525
WASHER; SHIFT CABLE
(A) ID=8.4 OD=16 IMA
0-91614-508-0
01
1
1304-
525
WASHER; SHIFT CABLE
(B) ID=8.4 OD=14 IMA
5-09550-002-0
01
1
1304-
536
DAMPER; CABLE
THA
8-98097-681-0
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
