Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

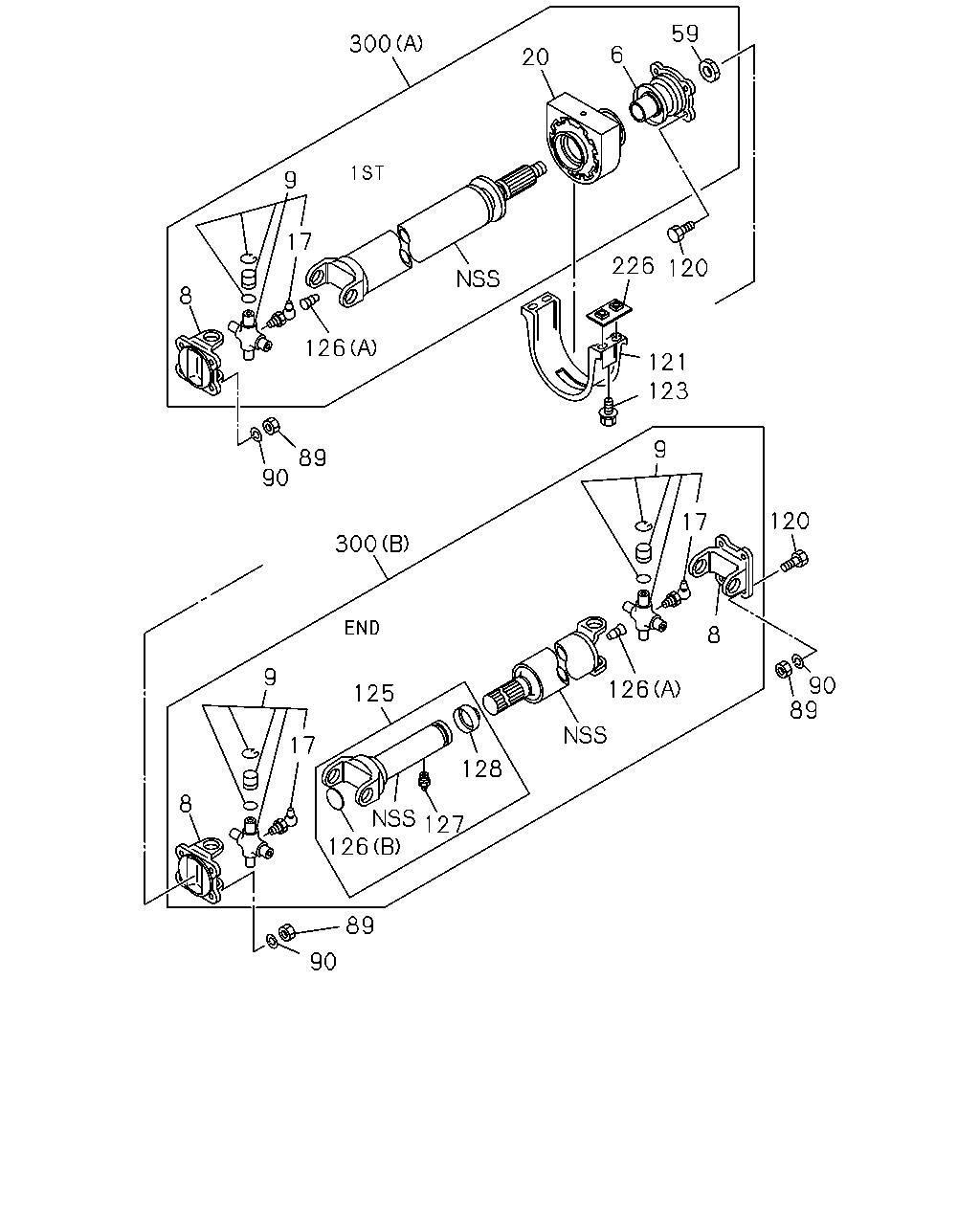

4-01 — PROPELLER SHAFT
(#119903) — 22 parça
20
6
59
120
226
121
9
17
89
90
123
17
9
120
90
89
8
128
125
17
9
89
90
127
8
126
300
300
126
126
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
COUPLING ASM; DRIVER,PROP SHAFT
THA
8-98020-796-0
01
1
1304-
8
YOKE; FLANGE,PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> D=80 THA
1-37211-037-4
02
1
1304-
8
YOKE; FLANGE,PROP SHAFT
D=80 THA
1-37211-037-4
01
1
1304-
9
JOURNAL ASM; PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> THA
8-98020-789-1
02
1
1304-
9
JOURNAL ASM; PROP SHAFT
THA
8-98020-789-1
01
1
1304-
17
NIPPLE; GREASE,PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> PT1/8 ELBOW IMA
0-90301-610-0
02
1
1304-
17
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW IMA
0-90301-610-0
01
1
1304-
20
BEARING ASM; CTR,PROP SHAFT
THA
8-98020-880-0
01
1
1304-
59
NUT; RET TO SUPPORT
M30 THA
8-97160-857-0
01
1
1304-
89
NUT; YOKE TO RR AXLE
M12 IMA
8-97365-450-1
12
1
1304-
90
WASHER; LK,YOKE TO RR AXLE
ID=12.2 IMA
0-91510-812-0
12
1
1304-
120
BOLT; YOKE TO RR AXLE
M12X35 IMA
8-97365-451-1
08
1
1304-
121
RETAINER; CUSHION RUBBER
IMA
8-97035-623-1
01
1
1304-
123
BOLT; RET
M10X25 W/LK&PL WASHER IMA
0-50641-025-0
04
1
1304-
125
YOKE ASM; SPLINED,PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> L=224 THA
8-98044-229-0
01
1
1304-
126
PLUG; SPLINED YOKE
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-94366-900-0
01
1
1304-
126
PLUG; SPLINED YOKE
(A) THA
1-09600-023-0
02
1
1304-
127
NIPPLE; GREASE,SPLINED YOKE
FRAME STRAIGHT TYPE<7KJ> M6 STRAIGHT THA
0-90301-406-0
01
1
1304-
128
SEAL; SLEEVE
FRAME STRAIGHT TYPE<7KJ> THA
8-97145-746-0
01
1
1304-
226
PLATE; LK,CENTER BRG
IMA
8-97371-572-0
02
1
1304-
300
SHAFT ASM; PROP,RR
FRAME STRAIGHT TYPE<7KJ> (B) L=1252 THA
8-98063-805-1
01
1
1304-
300
SHAFT ASM; PROP,RR
(A) L=1127 THA
8-98040-793-1
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
