◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#119902) — 117 parça
çizim 350986
95 56 9 8 1 128 225 104 9 8 106 71 9 106 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1250 THA 		8-98040-194-0 01 1 1305- ●
1 SHAFT; PROP
(B) L=1287 THA 		8-98098-105-0 01 1 1305- ●
1 SHAFT; PROP
(C) L=500 THA 		8-98229-827-0 01 1 1305- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-084-0 02 1 1305- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-084-0 01 1 1305- ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-112-0 02 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 1305- ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 1305- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1305- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1305- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 04 1 1305- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 04 1 1305- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305- ● ●
56 NUT; YOKE
FXZ<FG****> M14 FLANGE 		8-97365-444-0 04 1 1305- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305- ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1305- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1305- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1305- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1305- ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1305- ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1305- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 THA 		1-37241-140-0 01 1 1305- ●
225 YOKE; SLEEVE,PROP SHAFT
L=315 THA 		1-37241-149-0 01 1 1305- ●

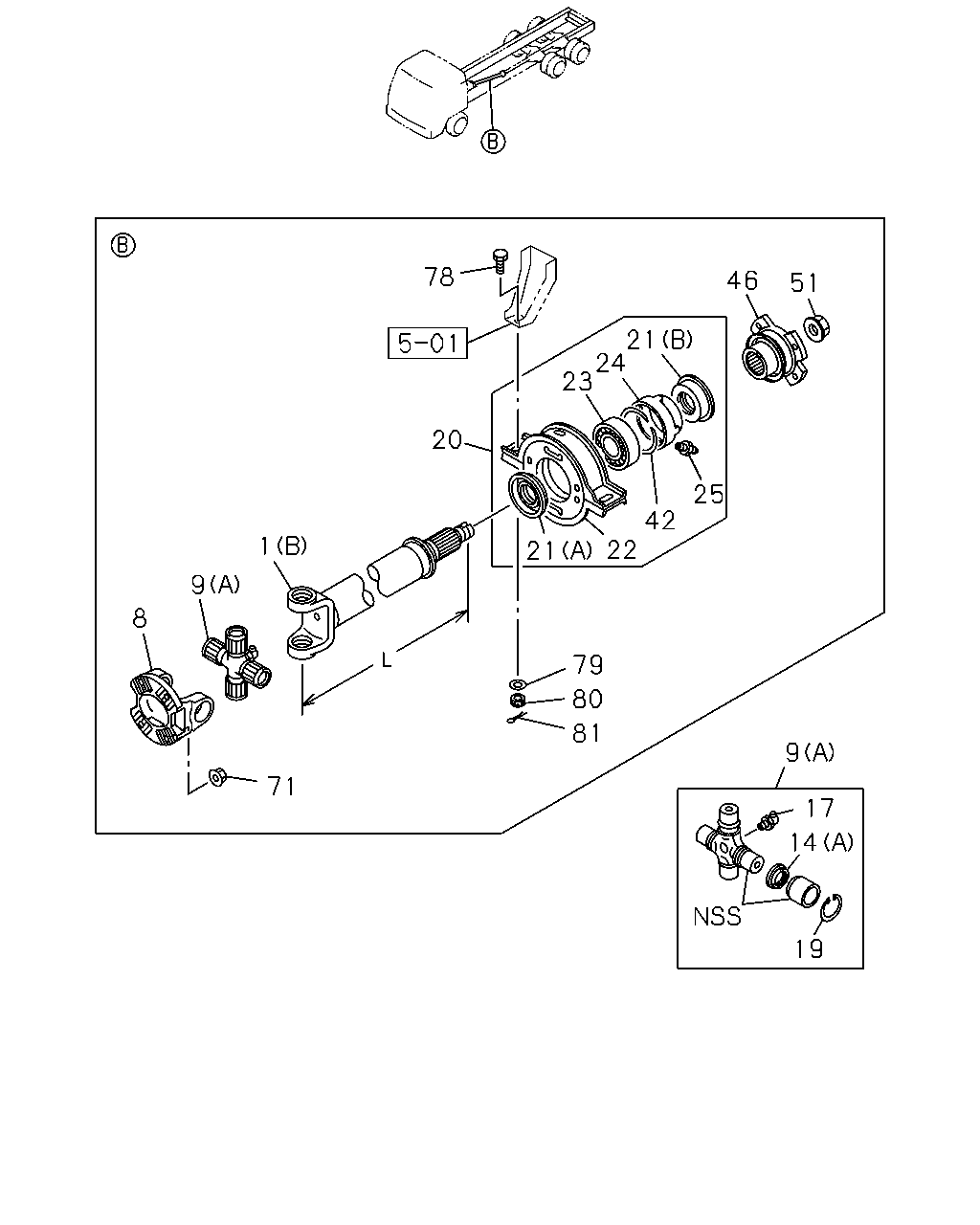

çizim 350990
78 20 23 24 21 46 51 25 42 22 21 79 80 9 1 9 8 81 17 14 19 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1250 THA 		8-98040-194-0 01 1 1305- ●
1 SHAFT; PROP
(B) L=1287 THA 		8-98098-105-0 01 1 1305- ●
1 SHAFT; PROP
(C) L=500 THA 		8-98229-827-0 01 1 1305- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-084-0 02 1 1305- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-084-0 01 1 1305- ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-112-0 02 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 1305- ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 1305- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1305- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1305- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 04 1 1305- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 04 1 1305- ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 THA 		1-37510-116-0 01 1 1305- ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 THA 		1-09625-222-1 01 1 1305- ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 THA 		1-09625-622-0 01 1 1305- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-056-0 01 1 1305- ●
23 BEARING; CENTER,PROP SHAFT
THA 		1-09800-210-0 01 1 1305- ●
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-110-0 01 1 1305- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1305- ●
42 RING; SNAP,CTR BRG
THA 		1-09587-085-0 01 1 1305- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-349-0 01 1 1305- ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE THA 		1-09449-040-0 01 1 1305- ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1305- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1305- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1305- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1305- ●

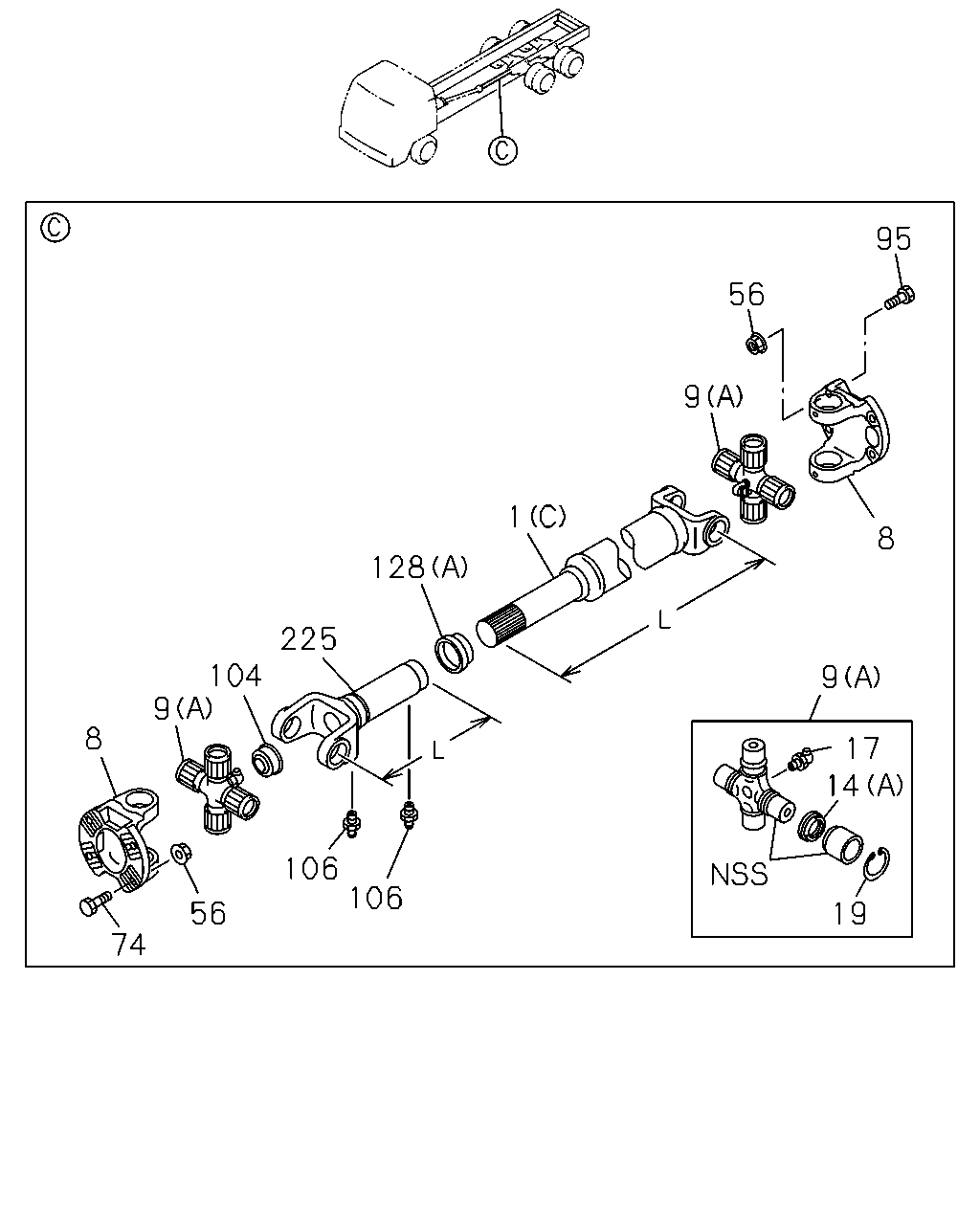

çizim 350995
95 56 9 8 9 1 128 17 14 19 225 104 9 8 74 106 106 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1250 THA 		8-98040-194-0 01 1 1305- ●
1 SHAFT; PROP
(B) L=1287 THA 		8-98098-105-0 01 1 1305- ●
1 SHAFT; PROP
(C) L=500 THA 		8-98229-827-0 01 1 1305- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-084-0 02 1 1305- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-084-0 01 1 1305- ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-112-0 02 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 1305- ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 1305- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 08 1 1305- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 08 1 1305- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-103-1 04 1 1305- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 THA 		1-09587-107-0 04 1 1305- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1305- ● ●
56 NUT; YOKE
FXZ<FG****> M14 FLANGE 		8-97365-444-0 04 1 1305- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1305- ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1305- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1305- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1305- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1305- ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1305- ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1305- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 THA 		1-37241-140-0 01 1 1305- ●
225 YOKE; SLEEVE,PROP SHAFT
L=315 THA 		1-37241-149-0 01 1 1305- ●

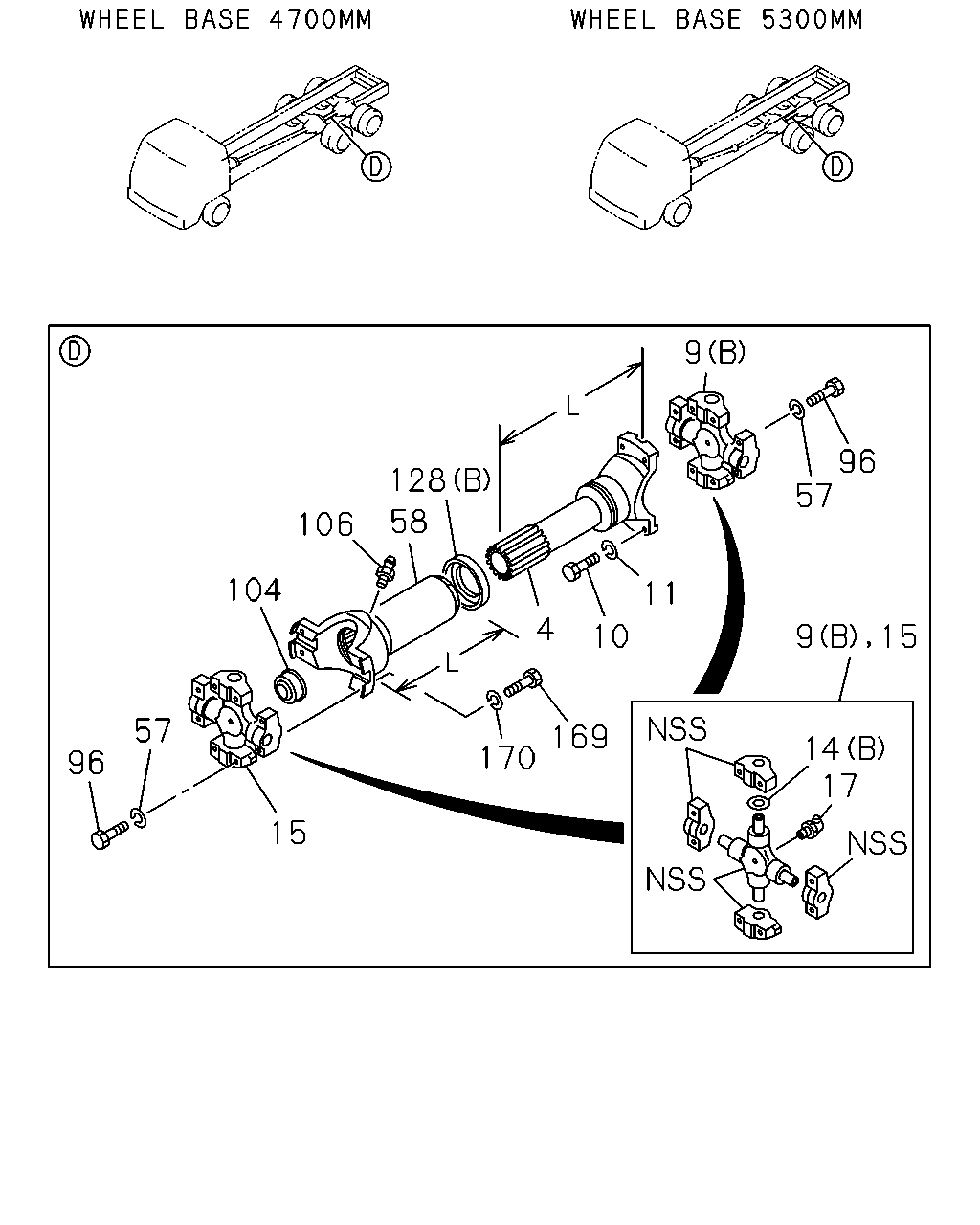

çizim 350996
9 96 57 128 106 58 104 57 96 15 170 169 4 10 11 9 15 14 17
BalonParca AdiParca NoAdetTipApplied Date A B
4 SHAFT; PROP
L=348 THA 		1-37171-127-2 01 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-100-1 01 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-112-0 02 1 1305- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-112-0 01 1 1305- ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1305- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1305- ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1305- ● ●
14 COVER; DUST,SPIDER
(A) THA 		1-37249-133-0 04 1 1305- ●
15 UNIVERSAL CENTER
THA 		1-37300-100-1 01 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1305- ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1305- ● ●
58 FLANGE; SPLINED
L=265 THA 		1-37245-317-0 01 1 1305- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1305- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1305- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-049-0 01 1 1305- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1305- ● ●
128 SEAL; SLEEVE
(A) THA 		1-37247-020-0 01 1 1305- ● ●
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1305- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1305- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1305- ● ●
