Isuzu WW
▶
PICKUP
▶
TFR
▶
51421 - TFR/TFS(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#119901) — 19 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
◀

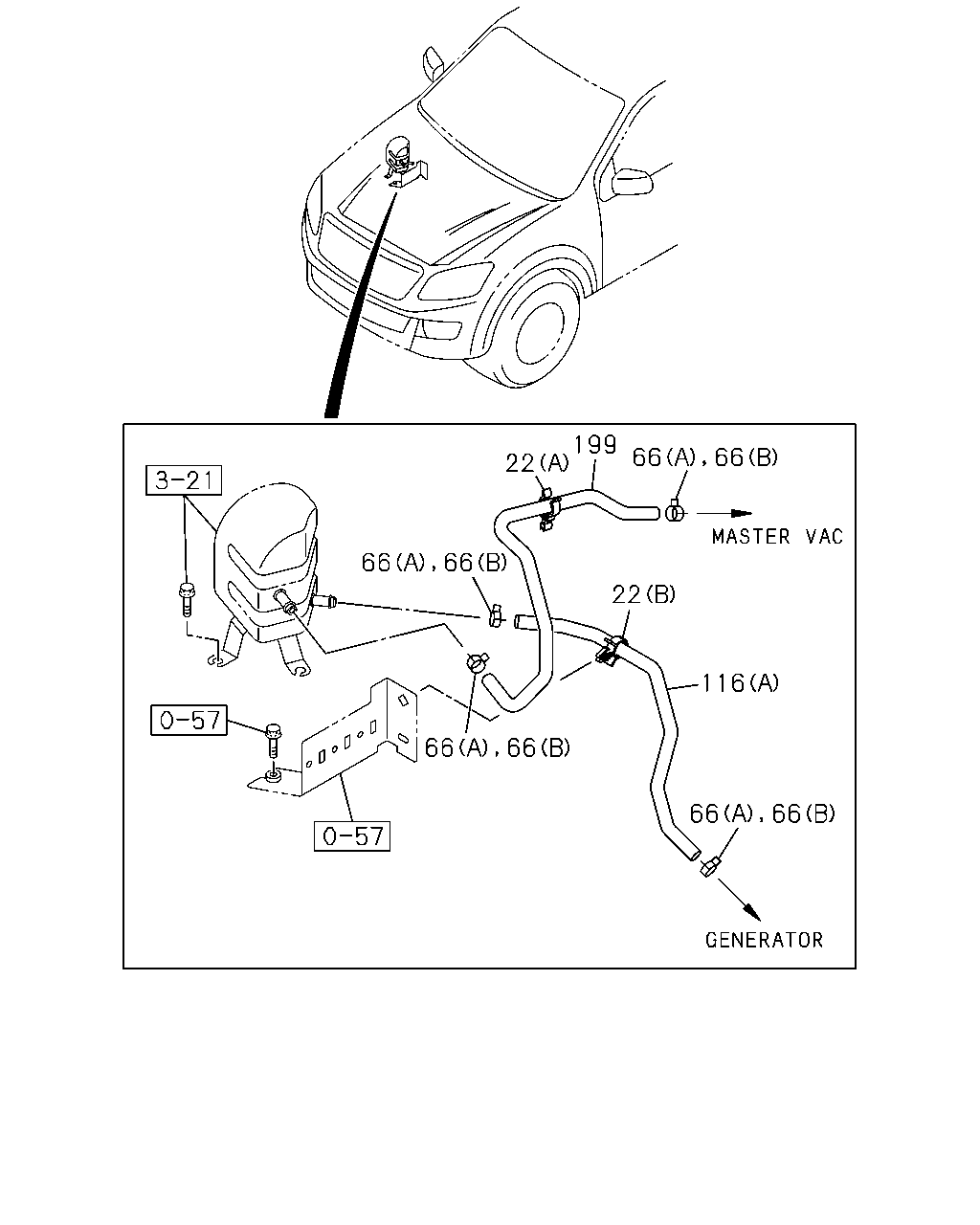

[360A] 4JA1 (10 parça)

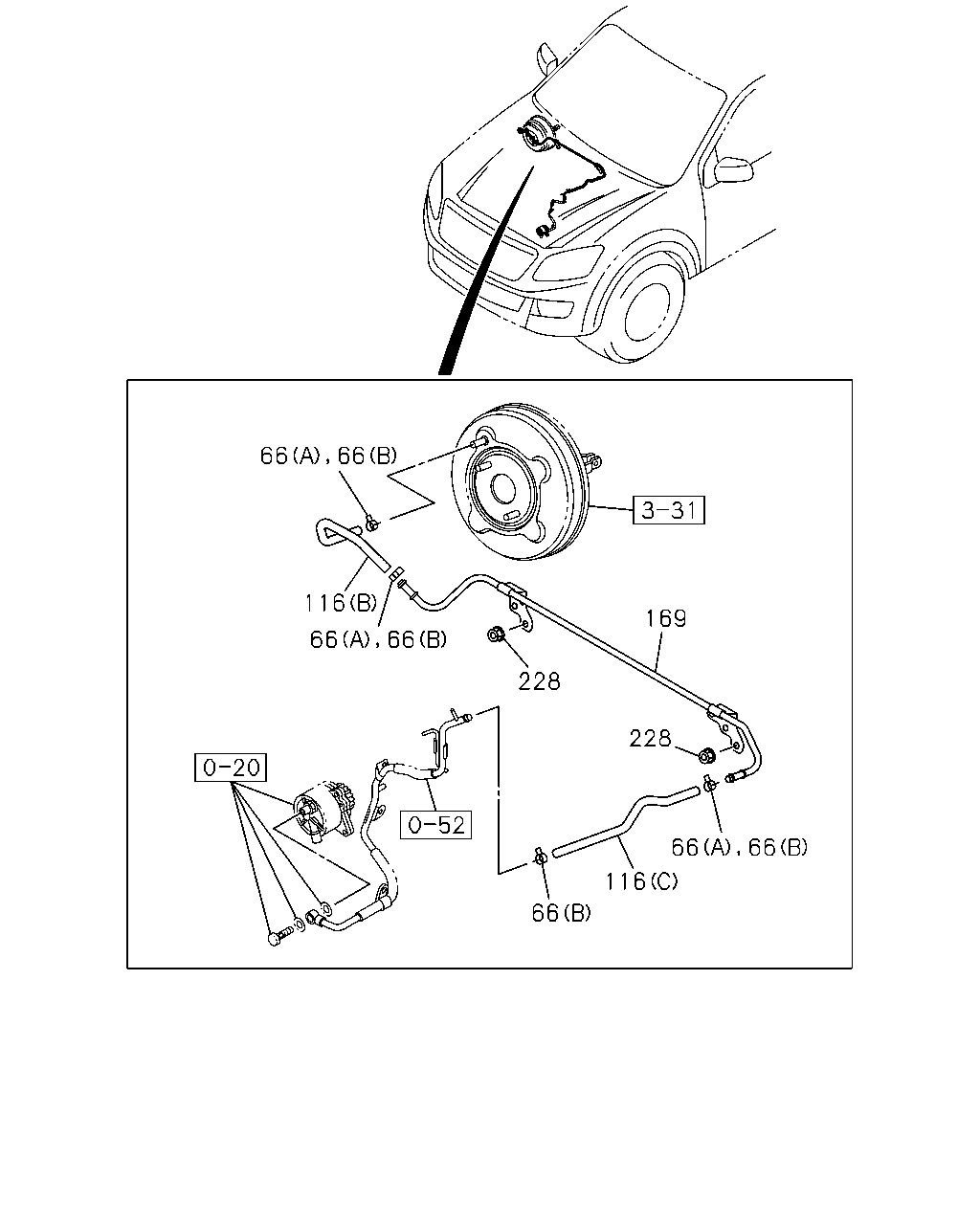

[360A] 4JK1 (9 parça)
▶
22
199
66
66
22
116
66
66
66
66
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
22
CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) (A)
8-97089-536-0
01
1
1305-
●
●
22
CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) (B)
8-97362-925-0
01
1
1305-
●
●
66
CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5
8-98035-872-0
04
1
1305-1403
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (A) ID=15.5
8-98035-872-0
03
1
1305-1403
●
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (B) ID=16
8-98036-539-0
01
1
1305-1403
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16
8-98036-539-0
04
1
1404-
●
●
●
●
116
HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A)
8-98100-738-0
01
1
1305-
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (B)
8-98100-736-0
01
1
1305-
●
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (C)
8-98100-737-1
01
1
1305-
●
●
●
199
HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0)
8-98100-739-2
01
1
1305-
●
●
169
228
228
66
66
66
66
66
66
66
116
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
66
CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5
8-98035-872-0
04
1
1305-1403
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (A) ID=15.5
8-98035-872-0
03
1
1305-1403
●
●
●
66
CLIP; VAC HOSE,M/VAC
4JK1-TCX ENG(LR0) (B) ID=16
8-98036-539-0
01
1
1305-1403
●
●
●
66
CLIP; VAC HOSE,M/VAC
(B) ID=16
8-98036-539-0
04
1
1404-
●
●
●
●
116
HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A)
8-98100-738-0
01
1
1305-
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (B)
8-98100-736-0
01
1
1305-
●
●
●
116
HOSE; VAC,M/VAC
4JK1-TCX ENG(LR0) (C)
8-98100-737-1
01
1
1305-
●
●
●
169
PIPE; VAC,BOOSTER SIDE
4JK1-TCX ENG(LR0)
8-98100-266-1
01
1
1305-
●
●
●
228
NUT; PIPE
4JK1-TCX ENG(LR0) M6 FLANGE
0-91180-106-0
02
1
1305-
●
●
●
