◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#119897) — 221 parça
çizim 350885
119 60 8 9 1 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1305- ● ●
8 CLIP; RR BRK 8-97360-054-0 01 1 1305- ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1305- ● ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1305- ● ●
9 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1305- ● ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1305- ● ●
12 BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE 		0-28650-830-0 01 1 1305- ● ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE 		0-28650-830-0 01 1 1305- ● ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1305-1409 ● ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1410- ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1410- ● ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1305- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1305- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98155-587-2 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-588-2 01 1 1305- ●
60 PIPE ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1305- ●
60 PIPE ASM; BRK
(D) 		8-98099-763-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1305- ●
60 PIPE ASM; BRK
(E) 		8-98099-764-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-779-4 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1305- ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-780-4 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1305- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR 8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-98099-778-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> 		8-98099-778-4 01 1 1305- ● ●

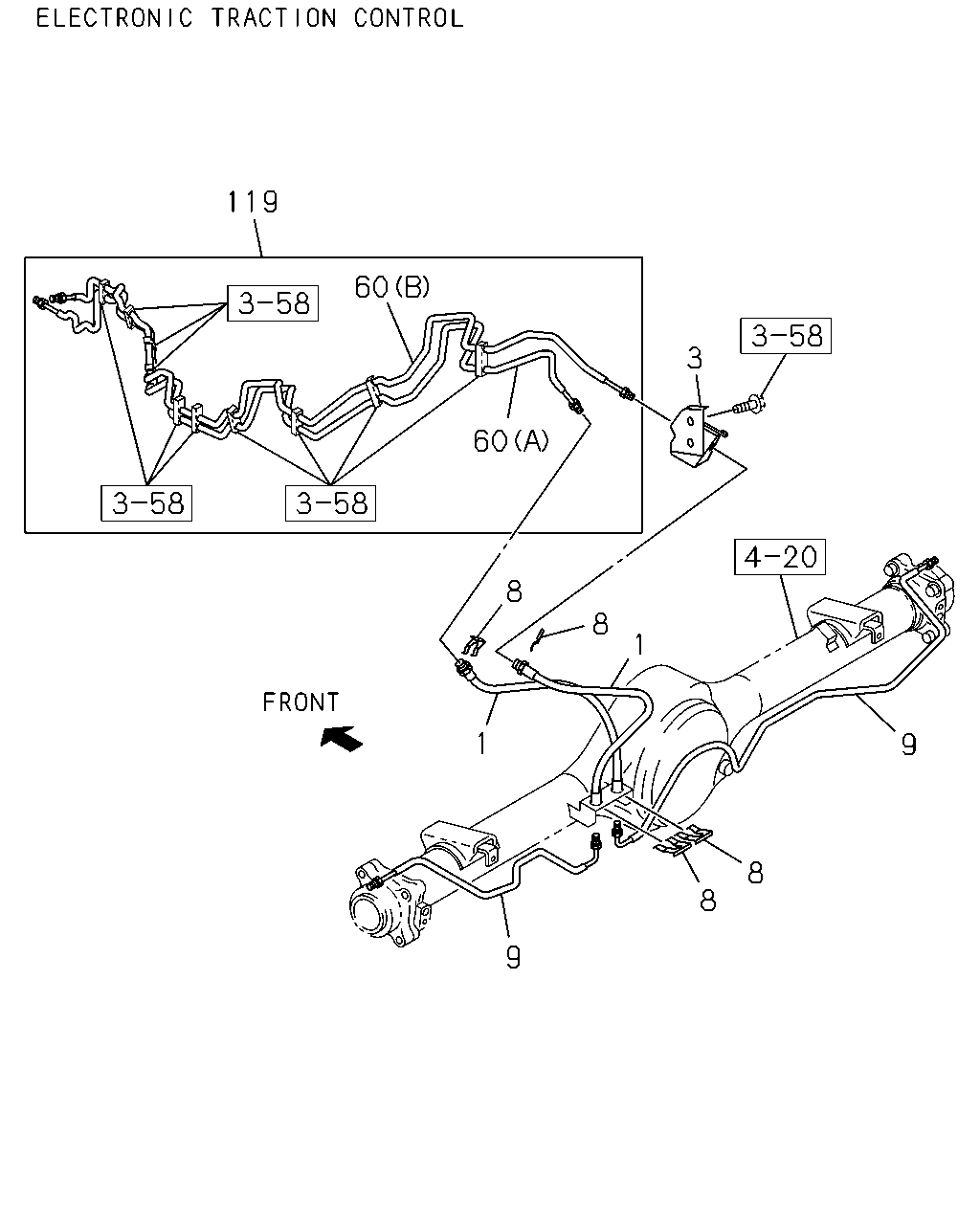

çizim 350915
119 60 60 3 8 8 1 1 8 8 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1305- ● ●
3 BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98102-358-1 01 1 1305- ● ●
8 CLIP; RR BRK 8-97360-054-0 01 1 1305- ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1305- ● ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1305- ● ●
9 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1305- ● ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1305- ● ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1305-1409 ● ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1410- ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1410- ● ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1305- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1305- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98155-587-2 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-588-2 01 1 1305- ●
60 PIPE ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1305- ●
60 PIPE ASM; BRK
(D) 		8-98099-763-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1305- ●
60 PIPE ASM; BRK
(E) 		8-98099-764-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-779-4 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1305- ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-780-4 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1305- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR 8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-98099-778-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> 		8-98099-778-4 01 1 1305- ● ●
çizim 350921
119 60 60 1 8 58 9 9 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1305- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1305- ● ●
8 CLIP; RR BRK 8-97360-054-0 01 1 1305- ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1305- ● ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1305- ● ●
9 PIPE; BRK,RR AXLE 8-98103-451-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98103-451-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE 8-98103-452-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98103-452-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-455-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98103-456-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-580-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98151-581-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1305- ● ●
9 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1305- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1305- ● ●
12 BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE 		0-28650-830-0 01 1 1305- ● ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE 		0-28650-830-0 01 1 1305- ● ●
58 PIPE; BRK,LSV TO RR AXLE
L=295 		8-98099-765-2 01 1 1305- ●
58 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) L=295 		8-98099-765-2 01 1 1305- ●
58 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) L=328 		8-98099-777-1 01 1 1305- ●
58 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> L=328 		8-98099-777-1 01 1 1305- ● ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1305-1409 ● ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-723-4 01 1 1305-1409 ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1410- ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1410- ● ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (A) 		8-98099-741-4 01 1 1305- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-742-4 01 1 1305- ●
60 PIPE ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98155-587-2 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98155-588-2 01 1 1305- ●
60 PIPE ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1305- ●
60 PIPE ASM; BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-715-4 01 1 1305- ●
60 PIPE ASM; BRK
(D) 		8-98099-763-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-763-5 01 1 1305- ●
60 PIPE ASM; BRK
(E) 		8-98099-764-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-764-5 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) 		8-98099-779-4 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1305- ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) 		8-98099-780-4 01 1 1305- ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1305- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR 8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-98099-778-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> 		8-98099-778-4 01 1 1305- ● ●
çizim 352197
119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 CONNECTOR
(C) 		8-98099-783-1 01 1 1305- ●
25 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1305- ● ● ●
25 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> (A) 		8-98099-784-1 01 1 1305- ● ● ●
25 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1305- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR 8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-98099-778-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> 		8-98099-778-4 01 1 1305- ● ●

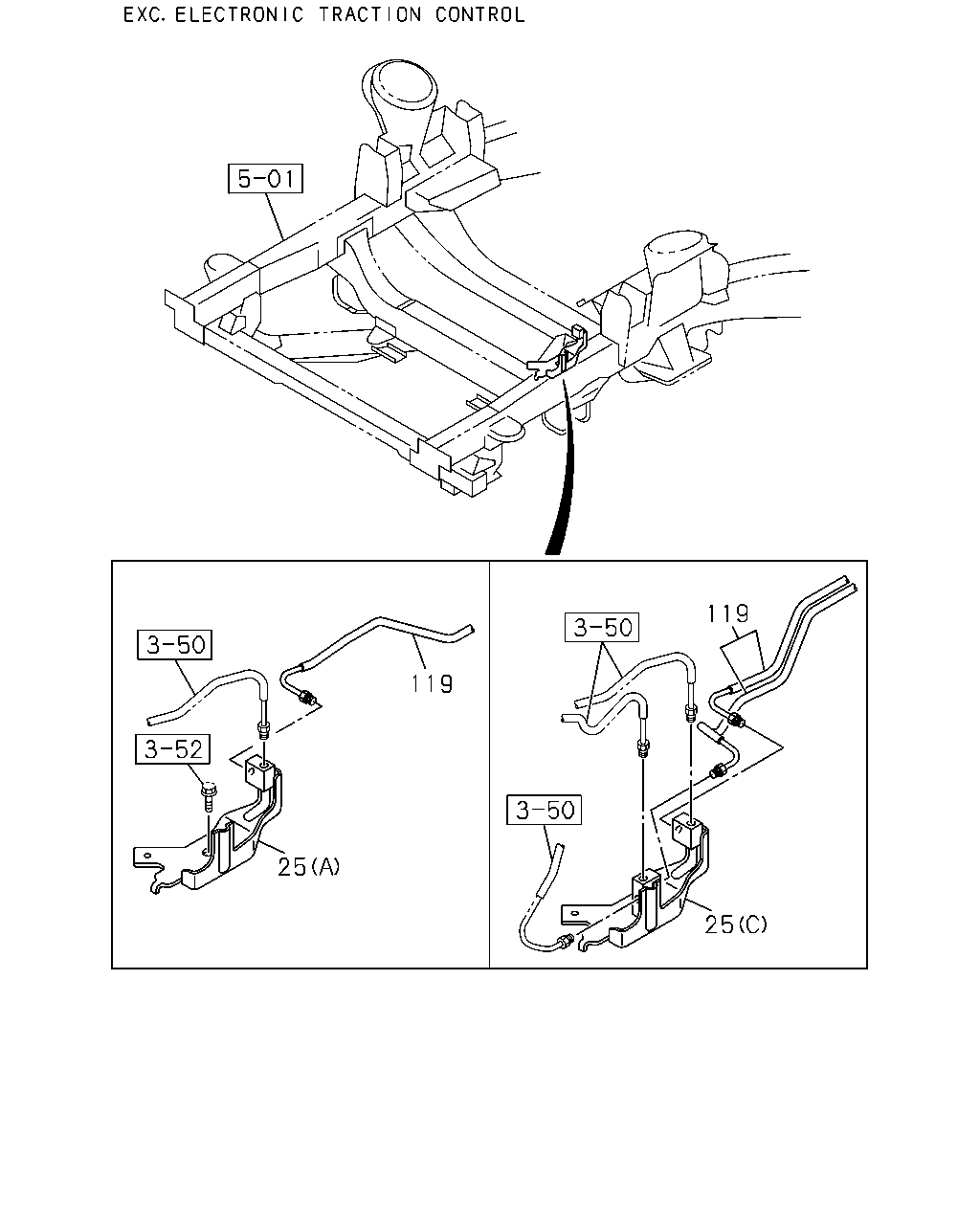

çizim 352443
119 25 119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
25 CONNECTOR
(C) 		8-98099-783-1 01 1 1305- ●
25 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1305- ● ● ●
25 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9> (A) 		8-98099-784-1 01 1 1305- ● ● ●
25 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1305- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1305-1409 ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 		8-98099-722-4 01 1 1305-1409 ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1410- ● ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98155-586-2 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC) 		8-98099-714-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR 8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98099-762-5 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-98099-778-4 01 1 1305- ●
119 PIPE; BRK,2WAY TO RR
BRK WHL LK CONT LSPV<JR9> 		8-98099-778-4 01 1 1305- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
