Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
3 - Brakes, Brake System
▶

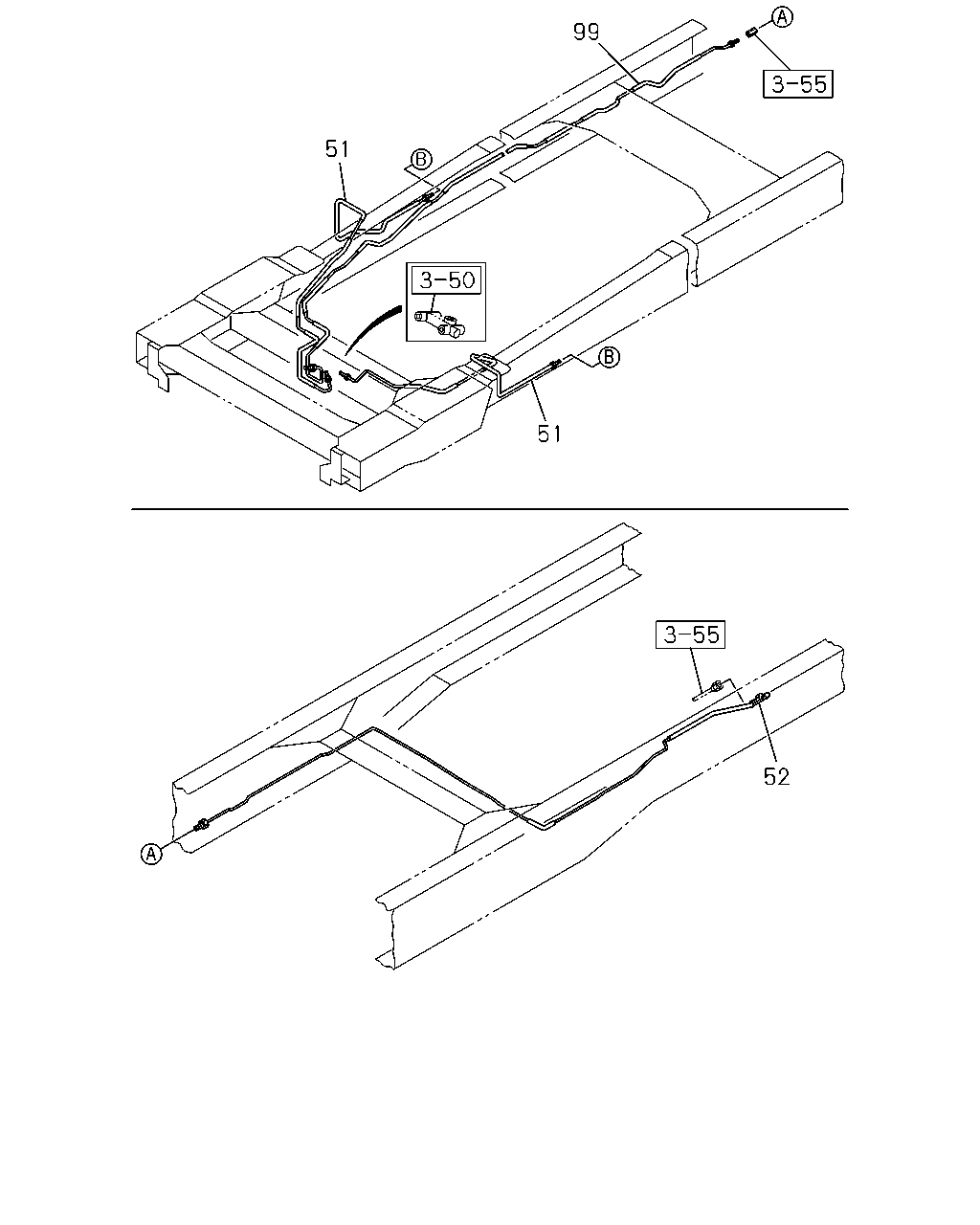

3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#119895) — 17 parça
Tümü
A - NMR5SE
B - NMR5SN
◀
[352A] PIPING (9 parça)
[352A] FLEX HOSE AND OTHER PARTS (8 parça)
▶
51
99
51
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
51
PIPE; BRK
6WAY TO FRONT THA
8-98054-530-0
01
1
1304-
●
●
51
PIPE; BRK
6WAY TO FRONT THA
8-98054-531-1
01
1
1304-
●
●
52
PIPE; BRK
SINGLE RR TIRE<6TD> 2WAY TO REAR THA
8-98054-693-0
01
1
1304-
●
52
PIPE; BRK
EXC. SINGLE RR TIRE<6TD> 2WAY TO REAR THA
8-98054-694-0
01
1
1304-
●
52
PIPE; BRK
WHEEL BASE 2400MM<24W> 2WAY TO REAR THA
8-98054-694-0
01
1
1304-
●
52
PIPE; BRK
WHEEL BASE 3300MM<33W> 2WAY TO REAR THA
8-98054-696-0
01
1
1304-
●
99
PIPE ASM; 4/5/6 WAY
THA
8-98131-078-0
01
1
1304-
●
99
PIPE ASM; 4/5/6 WAY
WHEEL BASE 2400MM<24W> THA
8-98131-078-0
01
1
1304-
●
99
PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM<33W> THA
8-98051-512-1
01
1
1304-
●
9
1
94
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,FRT BRK
IMA
8-97042-976-0
02
1
1304-
●
●
9
CLIP; FLEX HOSE,FRT BRK
IMA
8-97360-054-0
02
1
1304-
●
●
9
CLIP; FLEX HOSE,FRT BRK
IMA
8-97360-054-0
02
1
1304-
●
●
94
PIPE; BRK,W/C TO W/C
THA
8-97940-699-0
01
1
1304-
●
94
PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON<RPT> THA
8-97940-699-0
01
1
1304-
●
94
PIPE; BRK,W/C TO W/C
THA
8-97940-700-0
01
1
1304-
●
94
PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON<RPT> THA
8-97940-700-0
01
1
1304-
●
94
PIPE; BRK,W/C TO W/C
G.V.W. 6.5-7.0TON<RPW> THA
8-97940-696-0
02
1
1304-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
