3-52 — BRAKE PIPING; OIL,FRONT (#119894) — 20 parça

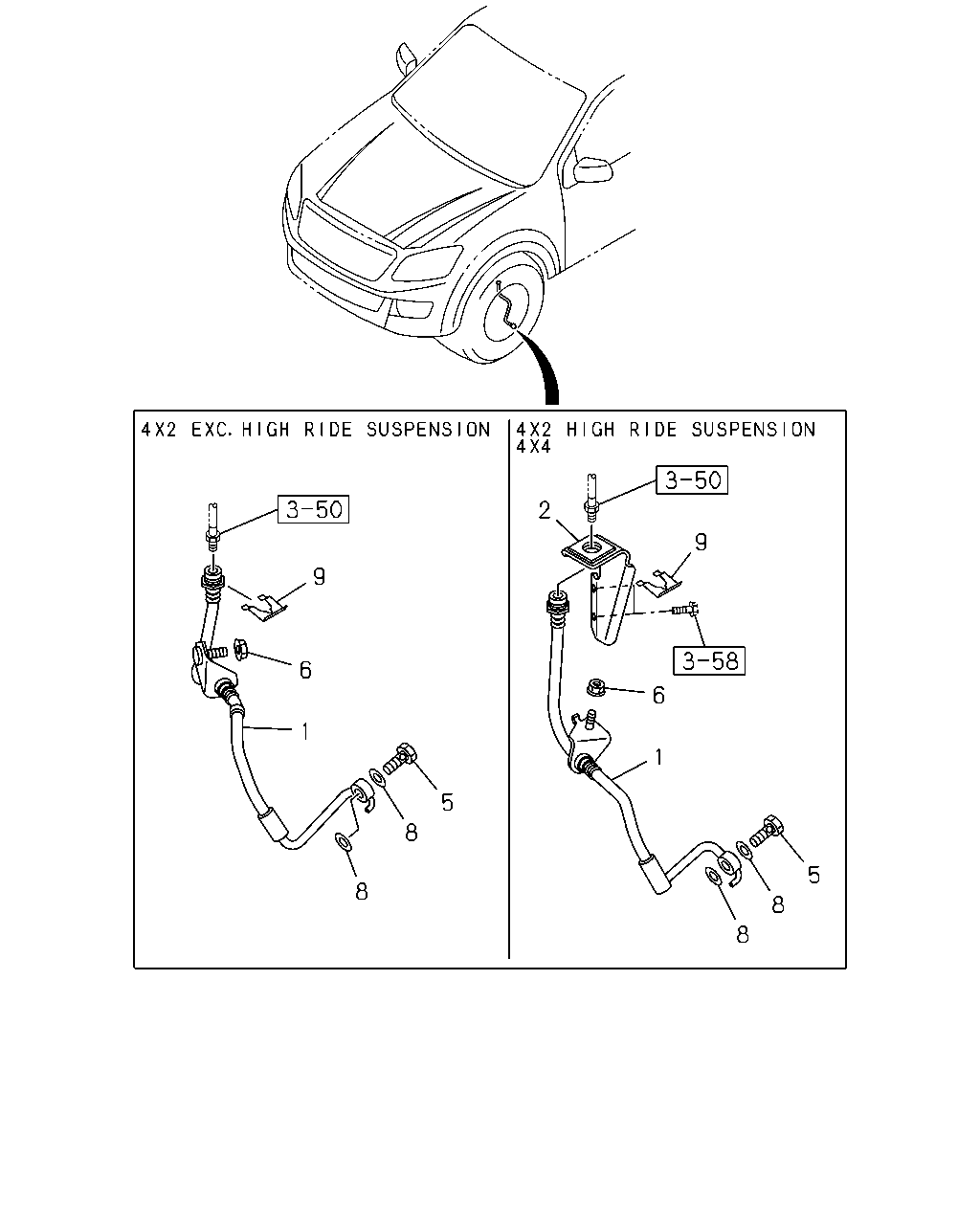

çizim 350887
9 6 1 8 5 8 8 5 8 1 6 2 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HOSE; FLEX,FRT BRK
L=413 		8-98067-244-1 01 1 1305- ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-244-1 01 1 1305- ●
1 HOSE; FLEX,FRT BRK
L=413 		8-98067-248-1 01 1 1305- ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) L=413 		8-98067-248-1 01 1 1305- ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-246-4 01 1 1305- ●
1 HOSE; FLEX,FRT BRK
L=391 		8-98067-246-4 01 1 1305- ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) L=391 		8-98067-247-4 01 1 1305- ●
1 HOSE; FLEX,FRT BRK
L=391 		8-98067-247-4 01 1 1305- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-148-1 01 1 1305- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97947-148-1 01 1 1305- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-97947-149-1 01 1 1305- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97947-149-1 01 1 1305- ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 1305- ● ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M8 FLANGE 		0-91180-108-0 02 1 1305- ● ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 1305- ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1305- ● ● ● ●

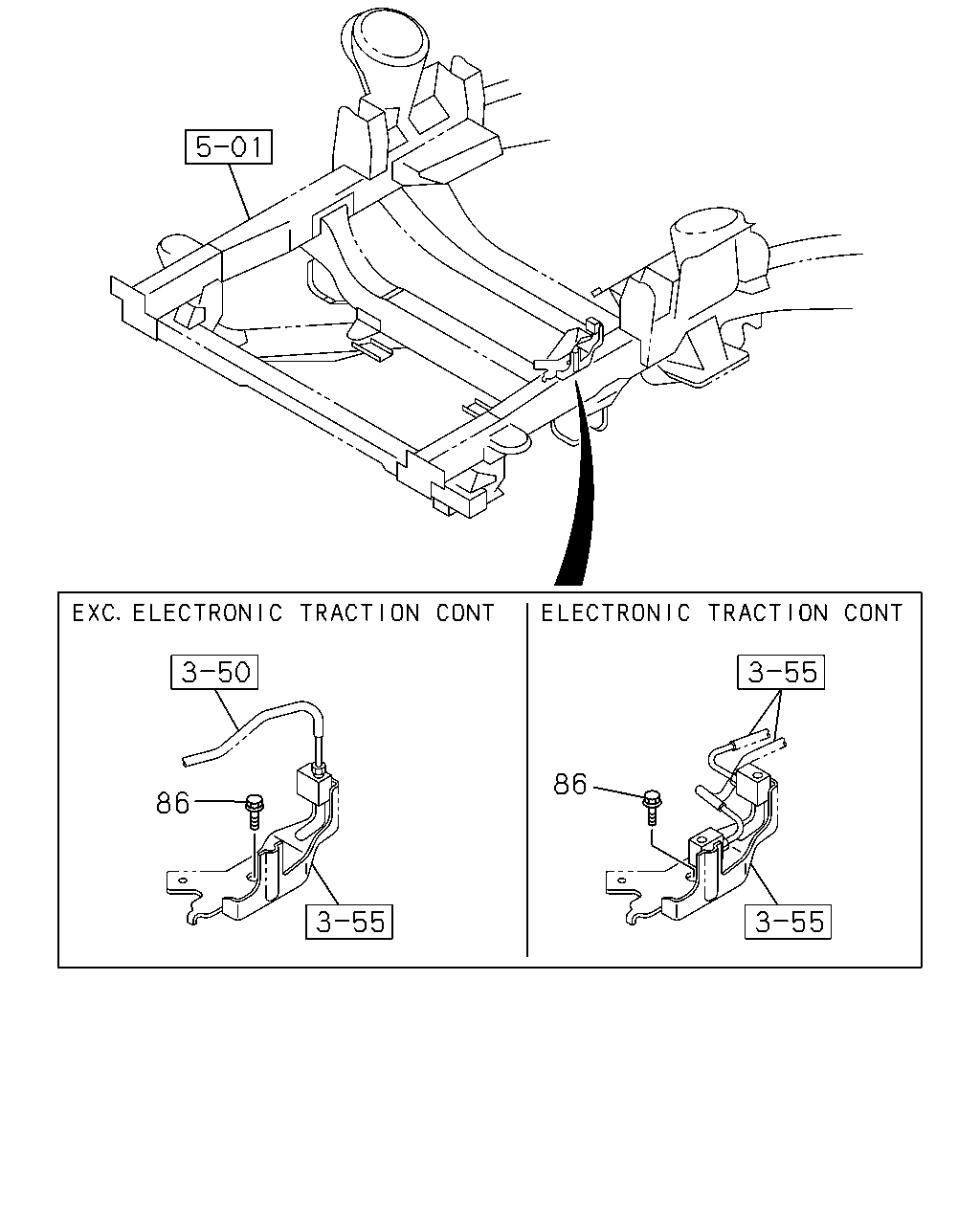

çizim 352756
86 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
86 BOLT; BRK PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 1305- ● ● ●
86 BOLT; BRK PIPE
4JK1-TCX ENG(LR0) M8X20 FLANGE 		0-28650-820-0 01 1 1305- ●
86 BOLT; BRK PIPE
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> M8X20 FLANGE 		0-28650-820-0 01 1 1305- ●
86 BOLT; BRK PIPE
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) M8X20 FLANGE 		0-28650-820-0 01 1 1305- ●
