2-85 — POWER TAKE OFF CONTROL (#119892) — 71 parça

96 287 190 121 222 330 264 287 225 261 260 258 259 262 74 219 80 300 15 16 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL<6WC>	8-98199-362-0	01	1	1304-	●	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC>	8-98050-126-0	01	1	1304-1308	●	●
16	CLIP; CABLE,PTO PTO MANUAL CONTROL<6WC>	8-98050-126-0	01	1	1309-	●	●
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL<6WC>	8-98029-874-0	01	1	1304-	●	●
80	COVER; CONT LEVER PTO MANUAL CONTROL<6WC>	8-97122-741-0	01	1	1304-	●	●
96	NUT PTO TRANSMISSION SIDE<V66> PTO MANUAL CONTROL<6WC> M6 IMA	0-91110-506-0	01	1	1304-1308	●	●
96	NUT PTO MANUAL CONTROL<6WC> M6 IMA	0-91110-506-0	01	1	1309-	●	●
121	RING; SNAP PTO MANUAL CONTROL<6WC> ID=4 IMA	0-91805-504-0	01	1	1304-	●	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66> (A)	8-94366-842-2	01	1	1304-1308	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL<6WC> (A)	8-94366-842-2	01	1	1309-	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL<6WC> (B)	8-98029-878-0	01	1	1304-	●	●
219	KNOB; LEVER PTO MANUAL CONTROL<6WC>	8-97122-736-0	01	1	1304-	●	●
222	BOLT; LEVER PTO MANUAL CONTROL<6WC> (B) M8X60	0-10855-860-0	01	1	1304-	●	●
222	BOLT; LEVER PTO MANUAL CONTROL<6WC> (A) M8X20 FLANGE THA	0-28650-820-0	03	1	1304-	●	●
225	BRACKET; CONT LEVER PTO MANUAL CONTROL<6WC>	8-98152-960-1	01	1	1304-	●	●
258	CABLE; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98029-877-1	01	1	1304-	●	●
259	GRIP; CONT LEVER PTO MANUAL CONTROL<6WC>	8-97141-653-0	01	1	1304-	●	●
260	LEVER; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98030-057-2	01	1	1304-	●	●
261	SWITCH; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98081-918-0	01	1	1304-	●	●
262	RETAINER; SPRING PTO MANUAL CONTROL<6WC>	8-97129-397-0	01	1	1304-	●	●
264	PROTECTOR; EDGE PTO MANUAL CONTROL<6WC>	8-98211-652-0	01	1	1304-	●	●
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL<6WC> (A) M6 IMA	0-91110-506-0	01	1	1304-	●	●
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL<6WC> (B) M8 FLANGE THA	0-91180-208-0	01	1	1304-	●	●
300	CAP; KNOB PTO MANUAL CONTROL<6WC>	8-97122-740-0	01	1	1304-	●	●
330	COLOR; DUMP CONT PTO MANUAL CONTROL<6WC>	8-98049-802-0	01	1	1304-	●	●

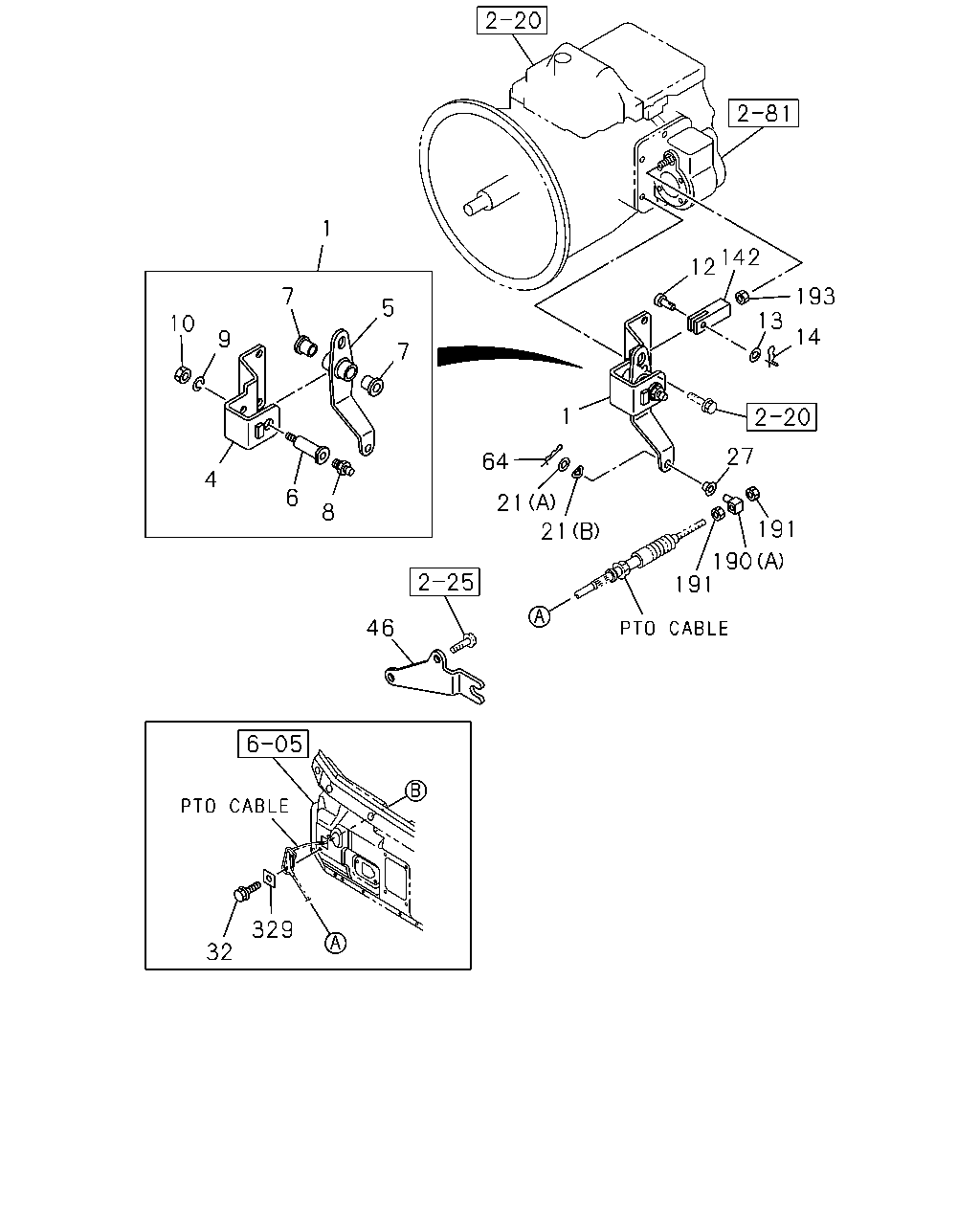

1 5 7 7 9 10 4 8 6 46 64 1 191 191 27 14 13 193 142 12 329 32 21 21 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE<V66>	8-98150-089-1	01	1	1304-	●	●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66>	8-98150-099-1	01	1	1304-	●	●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE<V66>	8-98032-718-0	01	1	1304-	●	●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE<V66>	8-98150-101-0	01	1	1304-	●	●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	5-33659-053-0	02	1	1304-	●	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE<V66> M6 STRAIGHT THA	0-90301-406-0	01	1	1304-	●	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE<V66> ID=8.2 IMA	0-91510-508-0	01	1	1304-	●	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE<V66> M8 IMA	0-91110-508-0	01	1	1304-	●	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE<V66>	8-98031-692-0	01	1	1304-	●	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE<V66> ID=12.5 OD=22 IMA	0-91610-512-0	01	1	1304-	●	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66>	8-97581-216-0	01	1	1304-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22 THA	0-91614-708-0	01	1	1304-1308	●	●
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL<6WC> (A) ID=8.4 OD=22 THA	0-91614-708-0	01	1	1309-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1304-1308	●	●
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL<6WC> (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1309-	●	●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	1304-1308	●	●
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL<6WC>	8-94367-367-0	01	1	1309-	●	●
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL<6WC> M6X16 FLANGE	0-28060-616-0	02	1	1304-	●	●
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL<6WC>	8-98032-829-2	01	1	1304-	●	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7 IMA	8-94111-137-0	01	1	1304-1308	●	●
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL<6WC> L=27.7 IMA	8-94111-137-0	01	1	1309-	●	●
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE<V66>	8-98031-691-0	01	1	1304-	●	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66> (A)	8-94366-842-2	01	1	1304-1308	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL<6WC> (A)	8-94366-842-2	01	1	1309-	●	●
190	BOSS; LEVER,PTO PTO MANUAL CONTROL<6WC> (B)	8-98029-878-0	01	1	1304-	●	●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6 IMA	0-91110-506-0	02	1	1304-1308	●	●
191	NUT; BOSS PTO MANUAL CONTROL<6WC> M6 IMA	0-91110-506-0	02	1	1309-	●	●
193	NUT PTO TRANSMISSION SIDE<V66> M12 IMA	0-91111-512-0	01	1	1304-	●	●
329	SEAL PTO MANUAL CONTROL<6WC> IMA	8-97856-616-0	02	1	1304-	●	●

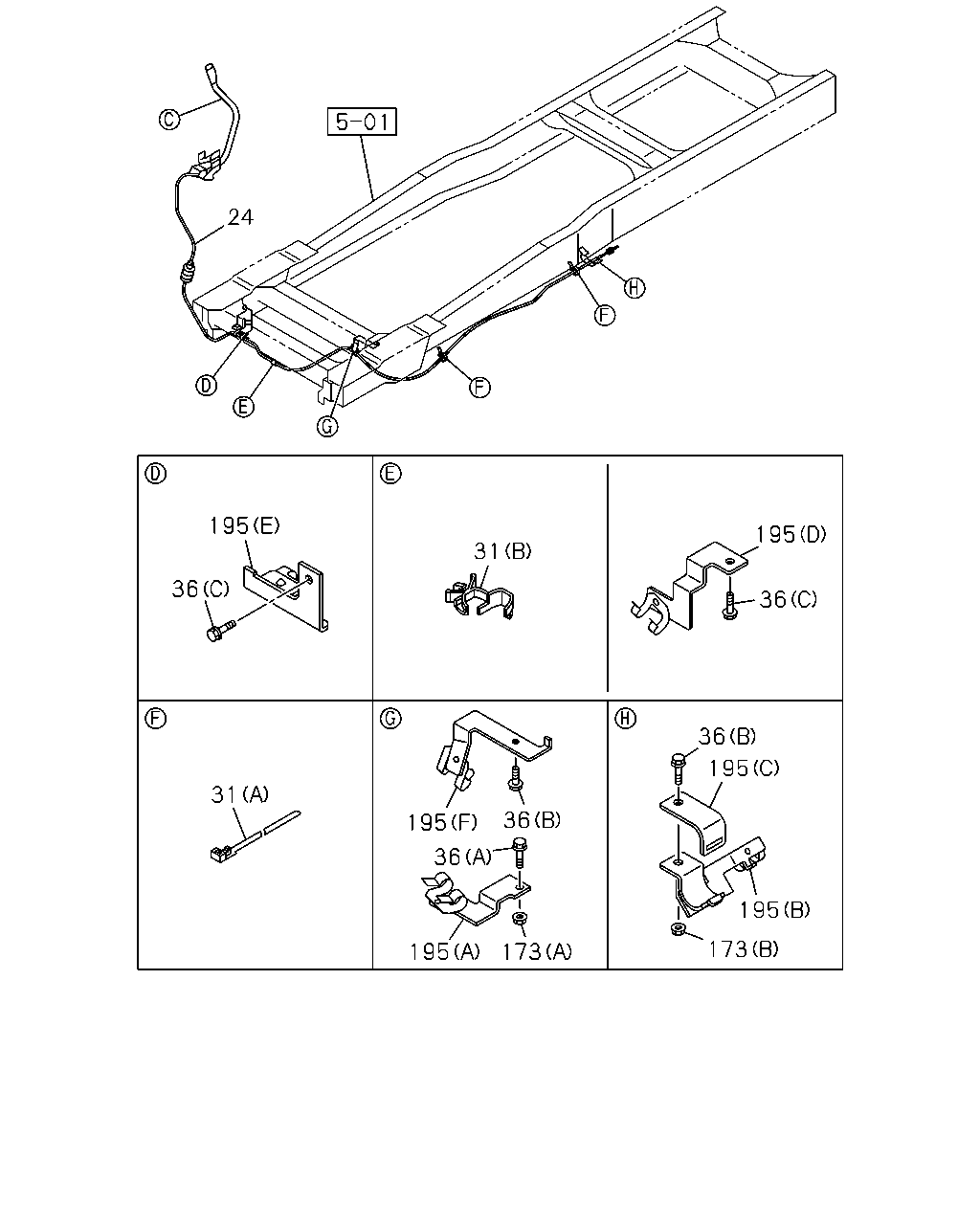

24 195 36 31 195 36 36 195 173 36 195 195 173 36 195 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CABLE; PTO CONT COOLER WO/HEATER<C65> PTO MANUAL CONTROL<6WC> L=3377	8-98223-323-0	01	1	1309-	●	●
24	CABLE; PTO CONT PTO MANUAL CONTROL<6WC> EXC. COOLER WO/HEATER<C65> L=3372	8-98223-325-0	01	1	1309-	●	●
31	CLIP; BAND,CABLE PTO MANUAL CONTROL<6WC> (A) L=250 IMA	5-09707-030-1	01	1	1309-	●	●
31	CLIP; BAND,CABLE PTO MANUAL CONTROL<6WC> (B) ID=16 IMA	8-97040-812-0	01	1	1309-	●	●
36	BOLT; PTO BRKT COOLER WO/HEATER<C65> PTO MANUAL CONTROL<6WC> (A) M6X20 FLANGE THA	0-28650-620-0	01	1	1309-	●	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL<6WC> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1309-	●	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL<6WC> EXC. COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1309-	●	●
36	BOLT; PTO BRKT PTO MANUAL CONTROL<6WC> (C) M10X20 FLANGE THA	0-28651-020-0	02	1	1309-	●	●
173	NUT; BRKT COOLER WO/HEATER<C65> PTO MANUAL CONTROL<6WC> (A) M6 FLANGE THA	0-91180-106-0	01	1	1309-	●	●
173	NUT; BRKT PTO MANUAL CONTROL<6WC> (B) M8 FLANGE THA	0-91180-108-0	01	1	1309-	●	●
173	NUT; BRKT PTO MANUAL CONTROL<6WC> EXC. COOLER WO/HEATER<C65> (B) M8 FLANGE THA	0-91180-108-0	01	1	1309-	●	●
195	BRACKET; CONT CABLE COOLER WO/HEATER<C65> PTO MANUAL CONTROL<6WC> (A)	8-98032-856-1	01	1	1309-	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL<6WC> (D)	8-98101-143-0	01	1	1309-	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL<6WC> (B)	8-98117-131-0	01	1	1309-	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL<6WC> (C)	8-98117-132-0	01	1	1309-	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL<6WC> (E)	8-98152-321-0	01	1	1309-	●	●
195	BRACKET; CONT CABLE PTO MANUAL CONTROL<6WC> EXC. COOLER WO/HEATER<C65> (F)	8-98086-264-0	01	1	1309-	●	●
